Crankshaft Position Sensor: Installation

  1. INSTALL CRANKSHAFT POSITION SENSOR
    1. Apply a light coat of engine oil to the O-ring on the crankshaft position sensor.
      Fig 1: Identifying O-ring Location
      G04973362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the crankshaft position sensor with the bolt.

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

      NOTE: Do not twist the O-ring.
    3. Install the wire harness and crankshaft position sensor connector clamp.
    4. Connect the crankshaft position sensor connector.

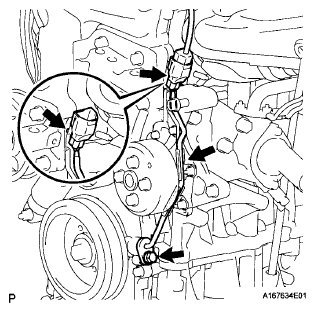

    Fig 2: Locating Crankshaft Position Sensor Connector Clamp
    G06007638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL GENERATOR ASSEMBLY  (See INSTALLATION )
  3. INSTALL V-RIBBED BELT  (See ON-VEHICLE INSPECTION )
  4. INSTALL ENGINE UNDER COVER RH
  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  6. INSPECT FOR OIL LEAK
