Engine Control System (2AZ-FE): ECM: Components

Fig 1: Identifying ECM Replacement Components With Torque Specification (1 Of 2)
G06040309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

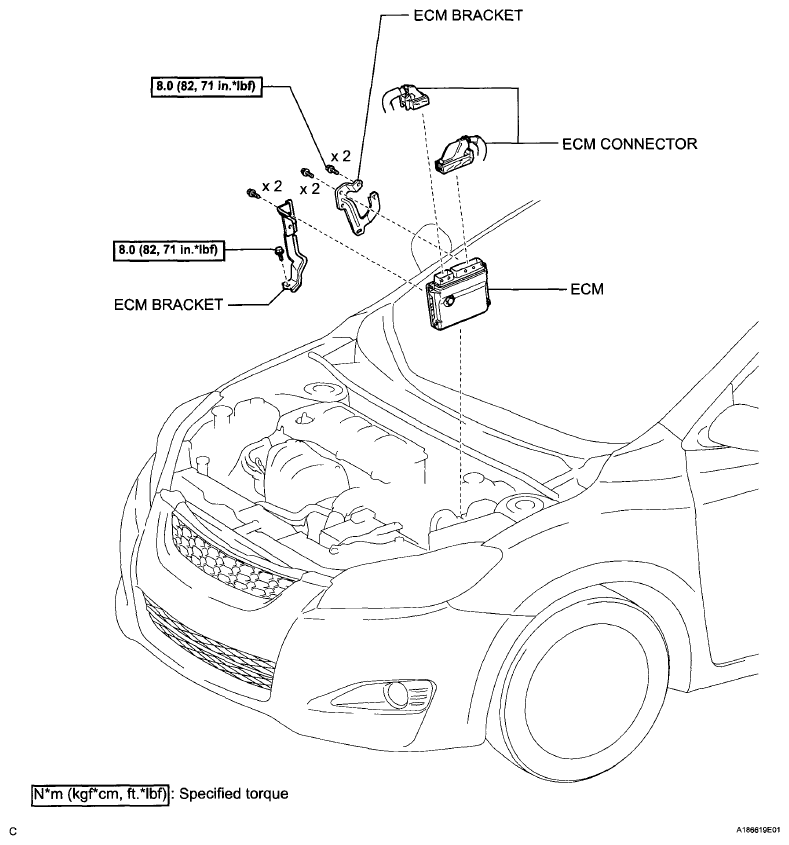

Fig 2: Identifying ECM Replacement Components With Torque Specification (2 Of 2)
G06040310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
