Engine Coolant Temperature Sensor: Components

Fig 1: Identifying Engine Coolant Temperature Sensor Replacement Components With Torque Specification (1 Of 2)
G06040309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

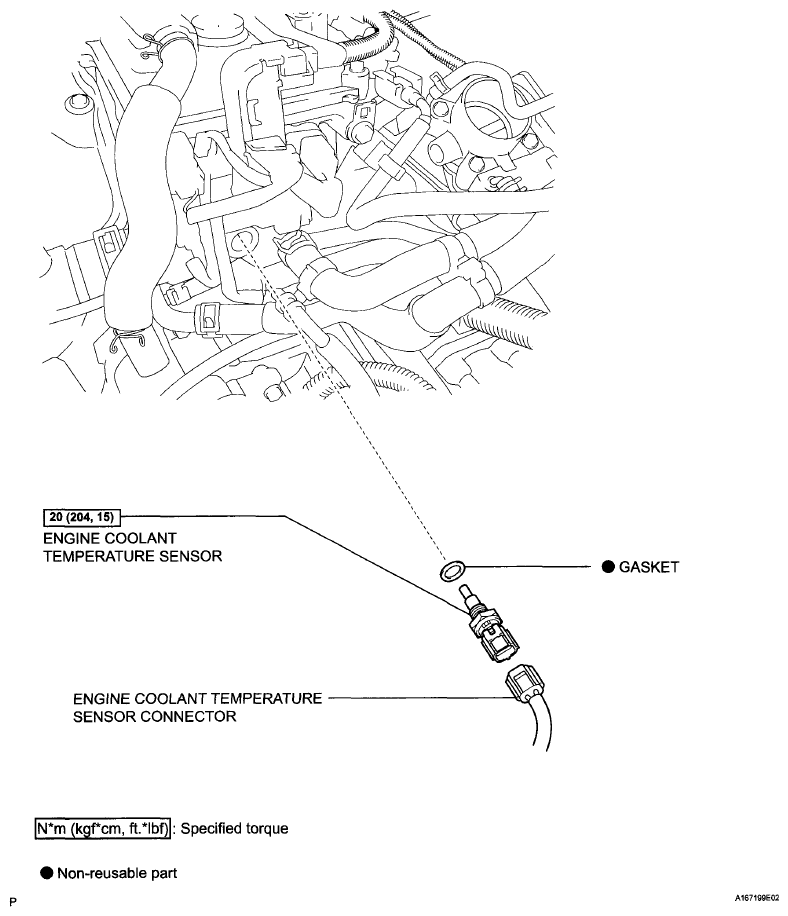

Fig 2: Identifying Engine Coolant Temperature Sensor Replacement Components With Torque Specification (2 Of 2)
G06040345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
