Engine Coolant Temperature Sensor: Installation

INSTALL ENGINE COOLANT TEMPERATURE SENSOR
1. Install the engine coolant temperature sensor through a new gasket.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

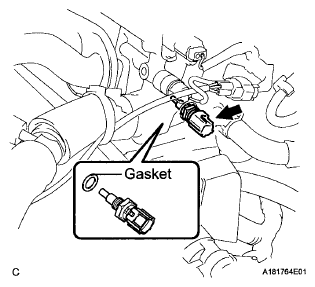

  Fig 1: Locating Engine Coolant Temperature Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the engine coolant temperature sensor connector.
INSTALL AIR CLEANER CASE (See INSTALLATION )
INSTALL AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE (See INSTALLATION )
ADD ENGINE COOLANT (See COOLANT )
INSPECT FOR COOLANT LEAK (See COOLING SYSTEM )
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY (See INSTALLATION )

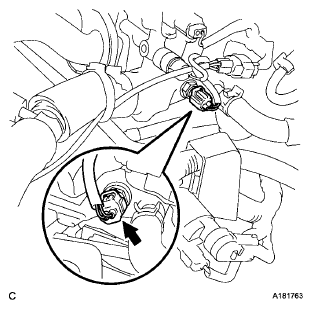

Fig 2: Locating Engine Coolant Temperature Sensor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
