Heated Oxygen Sensor: Components

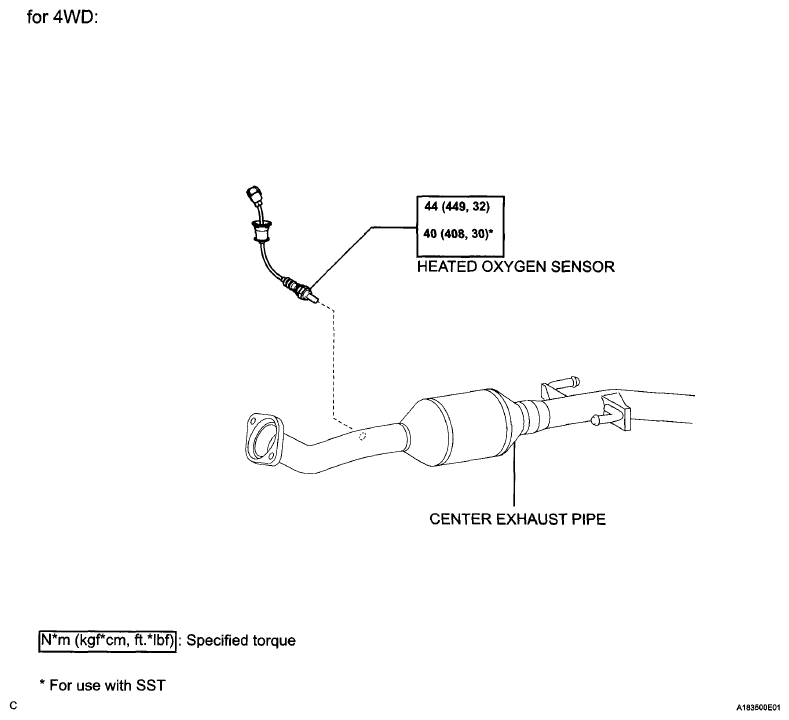

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications (For 4WD)
G06040376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

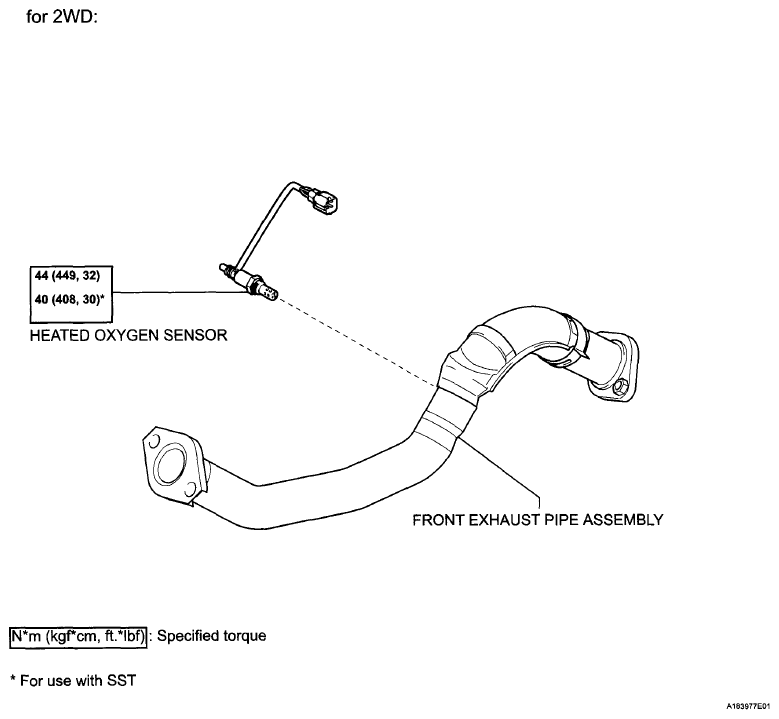

Fig 2: Heated Oxygen Sensor Replacement Components With Torque Specifications (For 2WD)
G06040377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
