Knock Sensor: Components

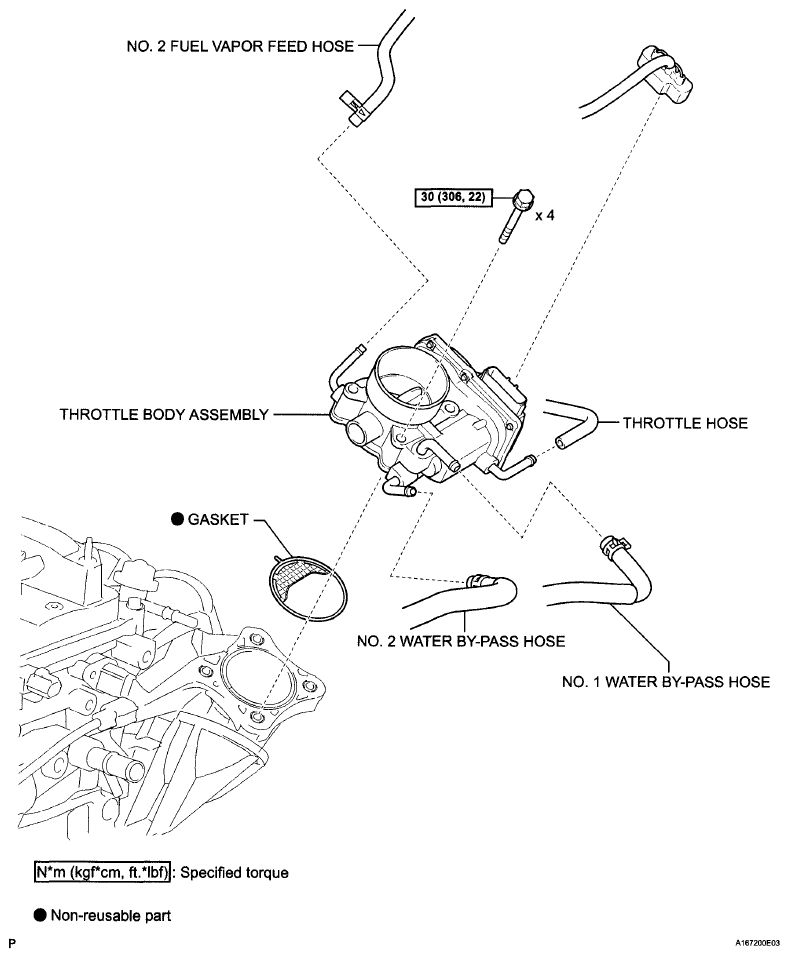

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specification (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

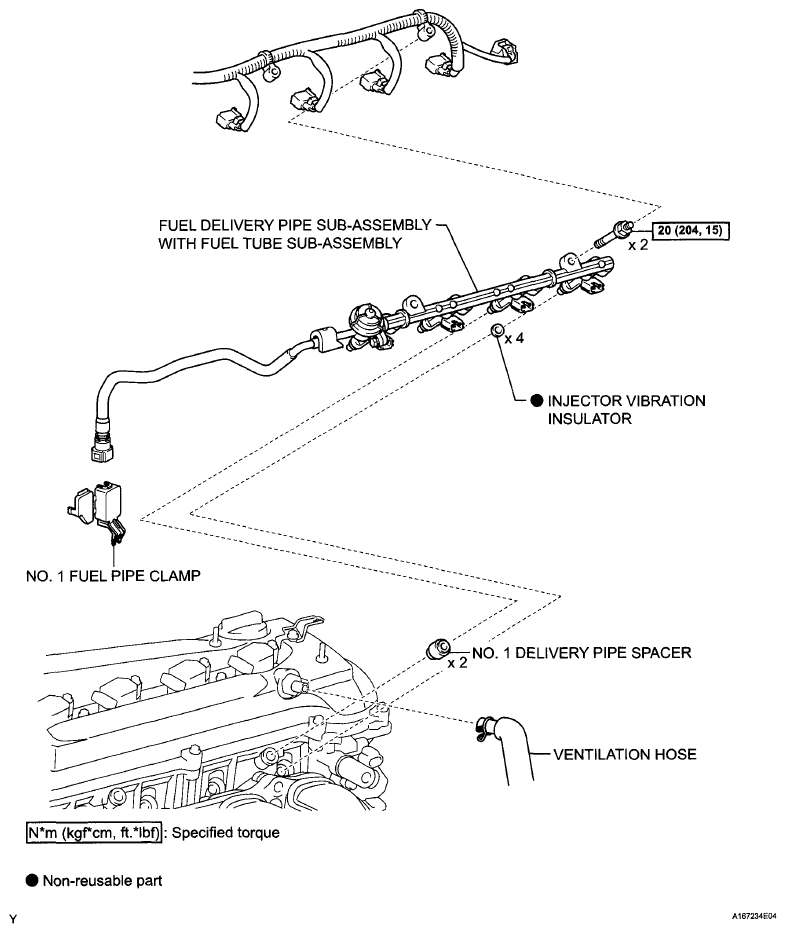

Fig 2: Identifying Knock Sensor Replacement Components With Torque Specification (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

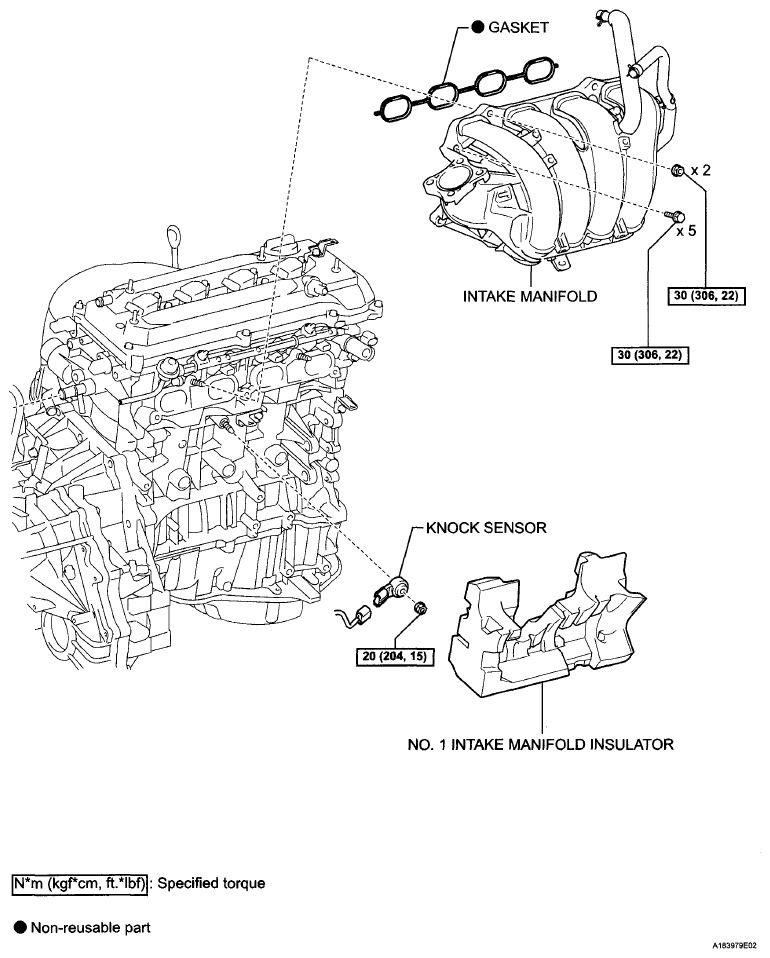

Fig 3: Identifying Knock Sensor Replacement Components With Torque Specification (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

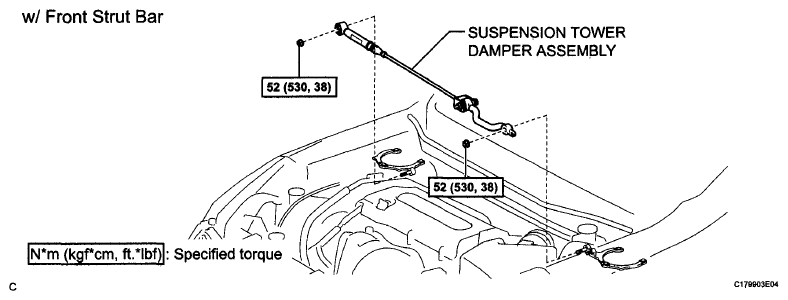

Fig 4: Identifying Knock Sensor Replacement Components With Torque Specification (4 Of 6)

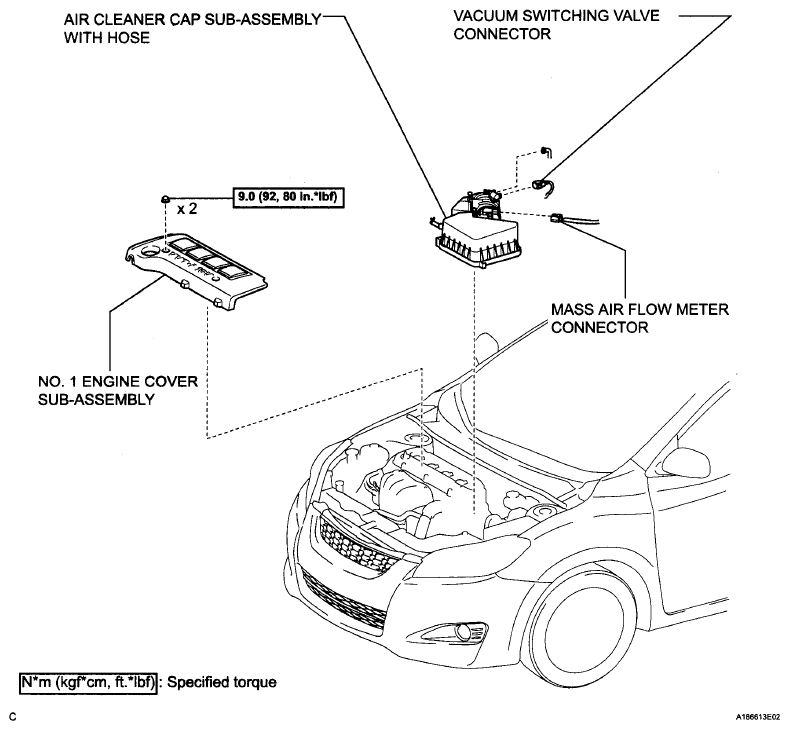

Fig 5: Identifying Knock Sensor Replacement Components With Torque Specification (5 Of 6)

Fig 6: Identifying Knock Sensor Replacement Components With Torque Specification (6 Of 6)
