Knock Sensor: Installation

INSTALL KNOCK SENSOR
1. Install the knock sensor with the nut.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
2. Connect the sensor connector.
INSTALL NO. 1 INTAKE MANIFOLD INSULATOR
1. Install the No. 1 intake manifold insulator.

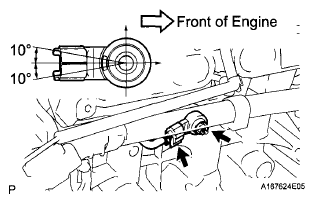

Fig 1: Locating Knock Sensor Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE MANIFOLD
1. Install a new gasket to the intake manifold.

  Fig 2: Locating Intake Manifold Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the intake manifold with the 5 bolts and 2 nuts, and connect the wire harness clamp.
  Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

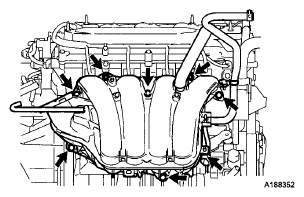

  Fig 3: Locating Intake Manifold Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the union to check valve hose.

  Fig 4: Locating Valve Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the ventilation hose.
INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY WITH FUEL TUBE SUB-ASSEMBLY (See INSTALLATION )
CONNECT FUEL TUBE SUB-ASSEMBLY (See INSTALLATION )

Fig 5: Locating Ventilation Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL THROTTLE BODY ASSEMBLY (See INSTALLATION )
INSTALL SUSPENSION TOWER DAMPER ASSEMBLY (w/ Front Strut Bar) (See DISPOSAL )
INSTALL OUTER COWL TOP PANEL (See INSTALLATION )
INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY (See INSTALLATION )
INSTALL COWL TOP VENTILATOR LOUVER LH (See INSTALLATION )
INSTALL COWL TOP VENTILATOR LOUVER RH (See INSTALLATION )
INSTALL HOOD TO COWL TOP SEAL (See INSTALLATION )
INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH (See INSTALLATION )
INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH (See INSTALLATION )
INSTALL FRONT WIPER ARM HEAD CAP (See INSTALLATION )
INSTALL AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE (See INSTALLATION )
ADD ENGINE COOLANT (See COOLANT )
INSPECT FOR COOLANT LEAK (See COOLING SYSTEM )
INSPECT FOR FUEL LEAK (See ON-VEHICLE INSPECTION )
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY (See INSTALLATION )
