Throttle Body: Components

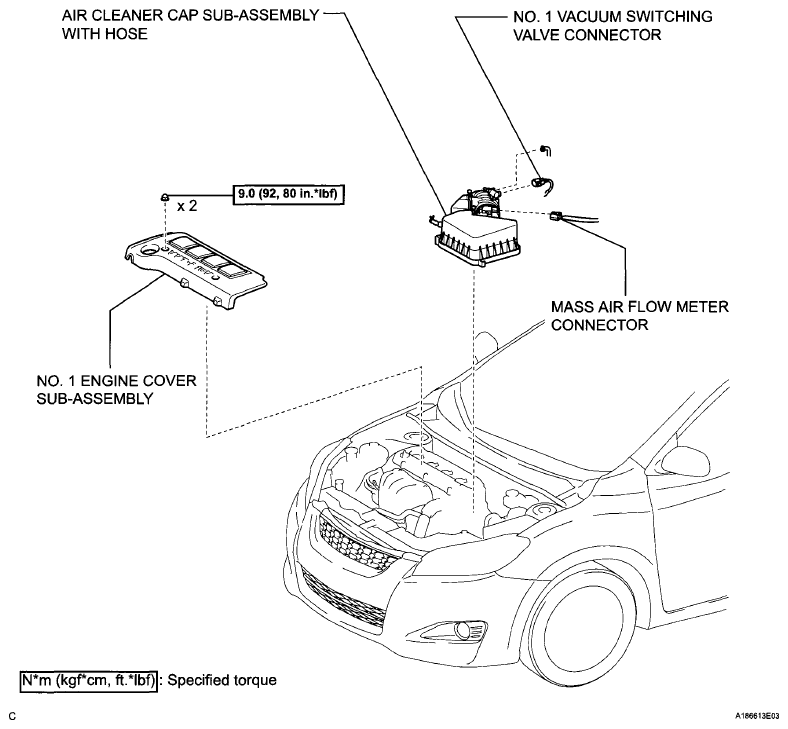

Fig 1: Identifying Throttle Body Replacement Components With Torque Specification (1 Of 2)
G06040288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

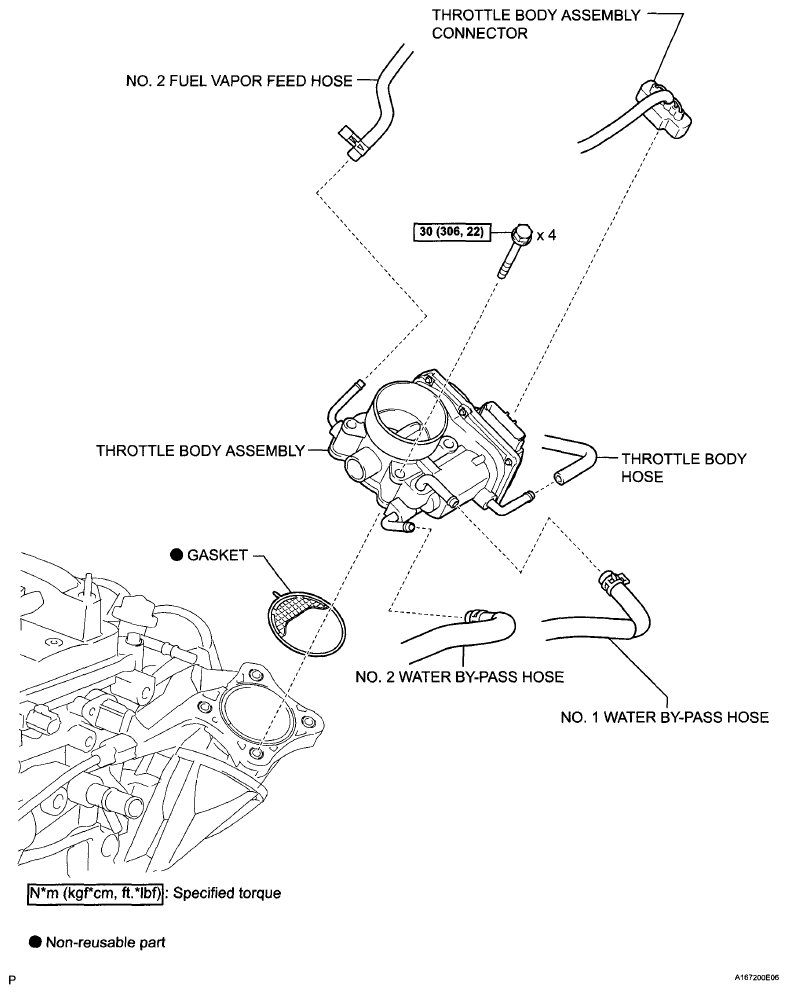

Fig 2: Identifying Throttle Body Replacement Components With Torque Specification (2 Of 2)
G06040289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
