Repair Instruction: Initialization

HINT:

The VIN is a 17-digit alphanumeric vehicle identification number. The Techstream is required to register the VIN.

1. Description

   HINT:

   This registration section consists of two parts: Read VIN and Write VIN.

   1. Read VIN: This process allows the VIN stored in the ECM to be read in order to confirm that the two VINs, provided with the vehicle and stored in the vehicle's ECM, are the same.
   2. Write VIN: This process allows the VIN to be input into the ECM. If the ECM is changed, or the ECM VIN and vehicle VIN do not match, the VIN can be registered, or overwritten in the ECM by following procedure.
2. Read VIN
   1. Confirm the vehicle VIN.
   2. Connect the Techstream to the DLC3.
   3. Turn the ignition switch to ON.
   4. Turn the Techstream on.
   5. Enter the following menus: Powertrain / Engine and ECT / Utility / VIN / VIN Read.
3. Write VIN
   1. Confirm the vehicle VIN.
   2. Connect the Techstream to the DLC3.
   3. Turn the ignition switch to ON.
   4. Turn the Techstream on.
   5. Enter the following menus: Powertrain / Engine and ECT / Utility / VIN / VIN Write.

HINT:

The key has 2 codes: the key code (immobilizer code) and the wireless code. Both of these codes need to be registered. Refer to appropriate code registration procedures.

1. When adding master keys or sub keys (Additional registration):
   1. Register the key code (immobilizer code) in the transponder key ECU.
   TRANSPONDER KEY ECU KEY CODE REGISTRATION PROCEDURE



   Target ECU	Refer to
   Transponder key ECU	Procedure "B"

2. When replacing the transponder key ECU (New registration):
   1. Register the key code (immobilizer code) in the transponder key ECU.
      TRANSPONDER KEY ECU KEY CODE REGISTRATION PROCEDURE



      Target ECU	Refer to
      Transponder key ECU	Procedure "A"

   2. Register the ECU communication ID between the new transponder key ECU and the ECM.
   ECM KEY CODE REGISTRATION PROCEDURE



   Target ECU	Refer to
   ECM	Procedure "D"

3. When replacing the ECM:
   1. Register the ECU communication ID between the transponder key ECU and the new ECM.
   TRANSPONDER KEY ECU KEY CODE REGISTRATION PROCEDURE



   Target ECU	Refer to
   Transponder key ECU	Procedure "E"

4. When replacing the transponder key ECU and the ECM:
   1. Register the key codes (immobilizer codes) in the new transponder key ECU.
      TRANSPONDER KEY ECU KEY CODE REGISTRATION PROCEDURE



      Target ECU	Refer to
      Transponder key ECU	Procedure "A"

   2. Register the ECU communication ID between the new transponder key ECU and the new ECM.
   TRANSPONDER KEY ECU KEY CODE REGISTRATION PROCEDURE



   Target ECU	Refer to
   Transponder key ECU	Procedure "E"

5. When erasing the key code(s):
   1. Erase the key code(s) of lost key(s).
   TRANSPONDER KEY ECU KEY CODE REGISTRATION PROCEDURE



   Target ECU	Refer to
   Transponder key ECU	Procedure "C"

1. New key code registration (Procedure "A"):
   NOTE: This is the condition that no key codes are registered in the transponder key ECU.

   HINT:

   • In this mode, a maximum of 2 master key codes can be registered.
   • New key codes must be registered with the battery connected. The ignition switch can be either on or off.
   • When a new transponder key ECU is installed, key codes must be registered in the transponder key ECU.

   Automatic Key Code Registration (New Registration)

   AUTOMATIC KEY CODE REGISTRATION PROCEDURE



   Procedure	Security Indicator Light Condition
   1. Start	Blinking HINT: Until first key is inserted
   2. Insert the master key into the ignition key cylinder.	ON
   3. Techstream operation Select the following menu items: Body Electrical / Immobilizer / Utility / Key Registration HINT: After completing the above operation, proceed to the next step in accordance with the prompts on the Techstream screen.	OFF for 1 second and then ON
   4. Remove the key and then push the Next button on the Techstream.	ON
   5. Insert the master key to be registered and then push the Next button on the Techstream.	OFF for 1 second and then ON
   6. Remove the key.	Blinking
   7. End (Procedure "E")

   HINT:

   • A brief outline of key code registration procedure is shown above. For detailed information, refer to the Techstream screen.
   • When the engine immobilizer system is operating normally and the key is pulled out, the security indicator light blinks continuously.
   • If the new key code registration fails, code 2-1 will be output through the security indicator light. Trying to re-register an already registered key will cause code 2-2 to be output when the key is inserted. If the number of registered key codes exceeds the maximum limit, code 2-3 will be output through the security indicator light. The output details are shown as follows.

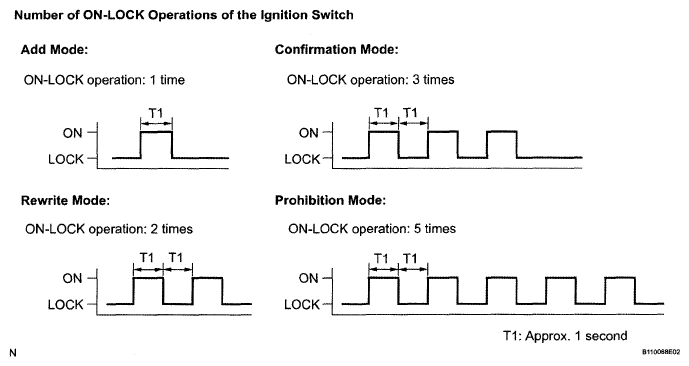

   Fig 1: Security Indicator Light Flash Pattern For Key Registration

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Finish the automatic key code of registration mode. The automatic key code of registration mode can be forced to end when at least 1 key code (immobilizer code) for the master key has been registered.

   HINT:

   • without the Techstream:

   Turn the ignition switch ON and off 5 times within 10 seconds using the master key that has already been registered.

   • with the Techstream:

   Follow the instruction on the Techstream screen to end new key code of registration mode.

1. Additional registration (Procedure "B"):

   HINT:

   • A maximum of 5 key codes and 3 sub-key codes can be registered.
   • Registration mode will end if any step is not completed within the specified time.
   • When the ignition cylinder or the key cylinder set is replaced, remove the transmitter module from the original master key. Then install this transmitter module to a new key and use the new key as the master key. If necessary, use this master key to register other keys.
   NOTE: When the ignition key cylinder has been replaced, locking and unlocking doors are possible with the new master key's transmitter module (removed from the original master key). However, the new master key will not be able to lock and unlock doors through the door key cylinder. Keep the original master key. If the battery in the new master key's transmitter module fails, the original master key can be used to lock and unlock doors through the door key cylinder.

   Additional Registration

   ADDITIONAL KEY REGISTRATION PROCEDURE



   Procedure	Time to Complete Operation	Security Indicator Light Condition
   1. Start	-	Blinking HINT: Until first key is inserted
   2. Insert the already registered master key into the ignition key cylinder and turn the ignition switch to ON.	-	OFF
   3. Techstream operation Select the following menu items: Body Electrical / Immobilizer; Utility / Key Registration HINT: After completing the above operation, proceed to the next step in accordance with the prompts on the Techstream screen.	Within 120 sec.	ON
   4. Remove the master key.	Within 20 sec. HINT: After the Techstream instruction	ON
   5. Insert the key to be registered in the ignition key cylinder.	Within 10 sec.	Blinking
   6. Wait for 60 sec. after the key is registered. HINT: The security indicator light goes off.	-	OFF
   7. Remove the key.	-	Blinking
   8. End

   HINT:

   • A brief outline of key code registration procedure is shown above. For detailed information, refer to the Techstream screen.
   • When the engine immobilizer system is operating normally and the key is pulled out, the security indicator light blinks continuously.
   • If the key code registration has failed in automatic key code registration mode, code 2-1 will be output through the security indicator light. Trying to re-register an already registered key will cause code 2-2 to be output when the key is inserted. If the number of registered key codes exceeds the maximum limit, code 2-3 will be output through the security indicator light. The details are shown in procedure "A".

1. Erase key codes (Procedure "C"):

   HINT:

   • Performing this procedure will erase all key codes except for the master key, which is used for erasing the key codes. In order to use a key whose code has been erased, a new key code must be registered.
   • This procedure will be canceled if each step is not completed within the specified time.

   Erasing Key Code

   ERASING KEY CODE PROCEDURE



   Procedure	Time to Complete Operation	Security Indicator Light Condition
   1. Start	-	Blinking HINT: Until first key is inserted
   2. Insert the already registered master key in the ignition key cylinder and turn the ignition switch to ON.	-	OFF
   3. Techstream operation Select the following menu items: Body Electrical / Immobilizer / Utility / Transponder Code Erasure HINT: After completing the above operation, proceed to the next step in accordance with the prompts on the Techstream screen.	Within 120 sec.	ON for 1 second and then OFF
   4. Remove the master key.	Within 10 sec. HINT: After the Techstream instruction	Blinking
   5. End

   HINT:

   • A brief outline of key code registration procedures is shown above. For detailed information, refer to the Techstream screen.
   • When the engine immobilizer system is operating normally and the key is pulled out, the security indicator light blinks continuously.

1. ECU communication ID registration (Procedure "D"):
   NOTE:

   • When the transponder key ECU is replaced, the ECU communication ID of the ECM must be registered into the transponder key ECU to match their ECU communication IDs.
   • The engine cannot be started unless the ECU communication IDs match.
   • Do not turn the ignition switch from ON to off 20 times or more before setting the ECU communication ID. Turning the ignition switch from ON to off 20 times or more will result in the engine not starting unless the transponder key ECU is replaced with a new one.
   • After the registration, turning the ignition switch to the START position may not start the engine on the first try. If so, turn the ignition switch to the START position again.
   • After the engine is started, erase DTC B2799 (code for ECM's immobilizer communication error) by either of the following:

   • Using the Techstream.
   • Disconnecting the battery for 30 seconds.
   1. Using SST, connect terminals TC and CG of the DLC3.

      SST 09843-18040

      Fig 2: Connecting Terminals TC And CG Of DLC3 Using SST

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Turn the ignition switch to ON and leave the vehicle as is for 30 minutes.

      HINT:

      Do not start the engine.

   3. Check that the engine can be started.
2. ECU communication ID registration (Procedure "E"):
   NOTE: The ECU communication ID should be registered when the ECM and transponder key ECU are replaced or when the ECM only is replaced in order to match the ECU communication ID.
   ECU COMMUNICATION ID REGISTRATION PROCEDURE



   Procedure	Security Indicator Light Condition
   1. Start	OFF
   2. Insert an already registered key into the ignition key cylinder.
   3. Start engine
   4. Check that the engine starts and stays on for more than 3 seconds.
   5. End

HINT:

The ECM learns various conditions and controls the automatic transaxle assembly and engine assembly according to those characteristics. Therefore, when the automatic transaxle assembly, engine assembly, or ECM has been replaced, it is necessary to reset the memory so that the ECM can re-learn. Reset procedure is as follows.

1. Turn the ignition switch off.
2. Connect the Techstream to the DLC3.
3. Turn the ignition switch to ON and the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Utility / Reset Memory. Then, press "Next".
   CAUTION: After performing RESET MEMORY, be sure to perform the ROAD TEST (See ROAD TEST ) described earlier.

   HINT:

   The ECM learns when the ROAD TEST is performed.

HINT:

The ECM learns various conditions and controls the automatic transaxle assembly and engine assembly according to those characteristics. Therefore, when the automatic transaxle assembly, engine assembly, or ECM has been replaced, it is necessary to reset the memory so that the ECM can re-learn. Reset procedure is as follows.

1. Turn the ignition switch off.
2. Connect the Techstream to the DLC3.
3. Turn the ignition switch to ON and the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Utility / Reset Memory. Then, press "Next".
   CAUTION: After performing RESET MEMORY, be sure to perform the ROAD TEST (See ROAD TEST ) described earlier.

   HINT:

   The ECM learns when the ROAD TEST is performed.

HINT:

The ECM learns various conditions and controls the automatic transaxle assembly and engine assembly according to those characteristics. Therefore, when the automatic transaxle assembly, engine assembly, or ECM has been replaced, it is necessary to reset the memory so that the ECM can re-learn. Reset procedure is as follows.

1. Turn the ignition switch off.
2. Connect the Techstream to the DLC3.
3. Turn the ignition switch to ON and the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Utility / Reset Memory. Then, press "Next".
   CAUTION: After performing RESET MEMORY, be sure to perform the ROAD TEST (See ROAD TEST ) described earlier.

   HINT:

   The ECM learns when the ROAD TEST is performed.

It is necessary to register the transmitter IDs in the tire pressure warning ECU when replacing a tire pressure warning valve and transmitter and/or a tire pressure warning ECU.

Prepare all transmitter ID data before starting registration.

1. Before registration
   1. When replacing the tire pressure warning ECU:
      • Read the registered transmitter IDs that are stored in the old ECU using the Techstream and note them down.
      • If reading stored transmitter IDs is impossible due to malfunctions of components such as the tire pressure warning antenna and receiver, remove the tires from the wheels and check the IDs located on the tire pressure warning valve and transmitters (See TIRE PRESSURE WARNING SYSTEM ).
   2. When replacing a tire pressure warning valve and transmitter:
      • Make a note of the 7-digit number (transmitter ID) written on the tire pressure warning valve and transmitter.
      Fig 3: Identifying 7-Digit Number (Transmitter ID) On Tire Pressure Warning Valve And Transmitter

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      • The transmitter ID is written on the tire pressure warning valve and transmitter. It will not be possible to read the transmitter ID after installing the tire onto the wheel. Therefore, make a note of the transmitter ID before installing the tire.
      • When one tire pressure warning valve and transmitter is replaced, the transmitter IDs for all the tire pressure warning valve and transmitters must be re-registered. Before registering the transmitter ID of the new tire pressure warning valve and transmitter, check the Data List and record the all of the transmitter IDs that are already registered.

1. Set all tire pressures to the specified value(s) (See TIRE PRESSURE WARNING SYSTEM ).
2. Turn the ignition switch off.
3. Connect the Techstream to the DLC3.
4. Turn the ignition switch to ON.
5. Turn the Techstream on.
6. Enter the following menus: Chassis / Tire Pressure Monitor/ Utility / ID Registration.
7. Follow the ID Registration steps displayed the Techstream screen.
8. Confirmation of transmitter ID registration.
   1. Enter the following menus: Chassis / Tire Pressure Monitor/ Data List.
   2. Read the "ID Tire Inflation Pressure" values.
   3. Confirm that the tire pressure data of all tires are displayed on the Techstream.
      NOTE:

      • It takes about 2 or 3 minutes to display the updated tire pressure data. If the values are not displayed after a few minutes, perform troubleshooting according to the inspection procedure for DTCs C2121/21 to C2124/24 (See DTC C2121/21 NO SIGNAL FROM TRANSMITTER ID1; DTC C2122/22 NO SIGNAL FROM TRANSMITTER ID2; DTC C2123/23 NO SIGNAL FROM TRANSMITTER ID3; DTC C2124/24 NO SIGNAL FROM TRANSMITTER ID4; DTC C2181/81 TRANSMITTER ID1 NOT RECEIVED (TEST MODE DTC); DTC C2182/82 TRANSMITTER ID2 NOT RECEIVED (TEST MODE DTC); DTC C2183/83 TRANSMITTER ID3 NOT RECEIVED (TEST MODE DTC); DTC C2184/84 TRANSMITTER ID4 NOT RECEIVED (TEST MODE DTC) ).
      • If the IDs have not been registered, DTC C2171/71 is set in the tire pressure warning ECU after 3 minutes or more.
      • If normal pressure values are displayed, the IDs have been registered correctly.
      • If the tire pressure values are not displayed after a few minutes, the IDs may be incorrect or the system may have a malfunction.
      • After all IDs are registered, DTC C2126/26 (Transmitter ID not Received) is set in the tire pressure warning ECU and the tire pressure warning light blinks for 1 minute and then comes on. When the tire pressure warning ECU successfully receives signals from all the transmitters whose IDs are stored in the ECU, DTC C2126/26 is cleared and the tire pressure warning light goes off.

1. Adjust all tire pressures to the standard tire inflation pressure, as indicated on the tire and loading information label on the vehicle.
2. Turn the ignition switch to ON.
3. Push and hold the tire pressure warning reset switch for 3 seconds or more so that the tire pressure warning light blinks 3 times.
   Fig 4: Identifying Tire Pressures Warning Light With Blinking Pattern

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Turn the ignition switch off.
5. Connect the Techstream to the DLC3.
6. Turn the ignition switch to ON.
7. Turn the Techstream on.
8. Enter the following menus: Chassis / Tire Pressure Monitor / Data List,
9. Check that initialization has been completed.
10. Confirm that tire pressure data of all wheels are displayed on the Techstream.
    NOTE:

    • Initialization normally completes within 2 or 3 minutes.
    • If initialization did not complete successfully, DTC C2177/77 will be set after a vehicle speed 8 km/h (5 mph) or more continues for 20 minutes or more.
    • Initialization can be terminated by connecting terminals TC and CG of the DLC3.
    Fig 5: Identifying Terminals TC And CG Of DLC3

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Tire Pressure Monitor

    TIRE PRESSURE MONITOR DATA LIST



    Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
    ID1 Tire Inflation Pressure	ID1 tire inflation pressure/ min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1.0 kgf/ cm2 , -14 psi) max.: Absolute pressure / 638 kPa (6.4 kgf/ cm2 , 93 psi), Relative pressure / 538 kPa (5.4 kgf/cm2 , 78 psi)	Actual tire inflation pressure	If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
    ID2 Tire Inflation Pressure	ID2 tire inflation pressure / min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1.0 kgf/ cm2 , -14 psi) max.: Absolute pressure / 638 kPa (6.4 kgf/ cm2 , 93 psi), Relative pressure / 538 kPa (5.4 kgf/cm2 , 78 psi)	Actual tire inflation pressure	If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
    ID3 Tire Inflation Pressure	ID3 tire inflation pressure / min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1.0 kgf/ cm2 , -14 psi) max.: Absolute pressure / 638 kPa (6.4 kgf/ cm2 , 93 psi), Relative pressure / 538 kPa (5.4 kgf/cm2 , 78 psi)	Actual tire inflation pressure	If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
    ID4 Tire Inflation Pressure	ID4 tire inflation pressure / min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1.0 kgf/ cm2 , -14 psi) max.: Absolute pressure / 638 kPa (6.4 kgf/ cm2 , 93 psi), Relative pressure / 538 kPa (5.4 kgf/cm2 , 78 psi)	Actual tire inflation pressure	If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1.0 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
    HINT: The initialization is completed when the "ID Tire Inflation Pressure" display shows the correct pressures. *: It may take about 2 or 3 minutes until the values are displayed. If the values are not displayed after a few minutes, perform troubleshooting according to the inspection procedure for DTCs C2121/21 to C2124/24 (See DTC C2121/21 NO SIGNAL FROM TRANSMITTER ID1; DTC C2122/22 NO SIGNAL FROM TRANSMITTER ID2; DTC C2123/23 NO SIGNAL FROM TRANSMITTER ID3; DTC C2124/24 NO SIGNAL FROM TRANSMITTER ID4; DTC C2181/81 TRANSMITTER ID1 NOT RECEIVED (TEST MODE DTC); DTC C2182/82 TRANSMITTER ID2 NOT RECEIVED (TEST MODE DTC); DTC C2183/83 TRANSMITTER ID3 NOT RECEIVED (TEST MODE DTC); DTC C2184/84 TRANSMITTER ID4 NOT RECEIVED (TEST MODE DTC) ).

1. Clear the zero point calibration data.
   1. Turn the ignition switch off.
   2. Check that the steering wheel is centered.
   3. Check that the shift lever is in P (for automatic transaxle) or the parking brake is applied (for manual transaxle).
   4. Connect the Techstream to the DLC3.
   5. Turn the ignition switch to ON.
   6. Turn the Techstream on.
   7. Select the skid control ECU to clear the zero point calibration data using the Techstream. Enter the following menus: Chassis / ABS/VSC/ TRAC / Utility / Reset Memory.
   8. Turn the ignition switch off.
   NOTE: If the ignition switch is turned to ON for more than 15 seconds with the shift lever in P (for automatic transaxle) or the parking brake applied (for manual transaxle) after zero point of the yaw rate and acceleration sensor has been cleared, only the zero point of the yaw rate sensor will be stored. If the vehicle is driven under these conditions, the skid control ECU will store the zero point calibration for the acceleration sensor as not being completed. The skid control ECU will then also indicate this as a malfunction of the VSC system using the indicator lights.
2. Perform zero point calibration of the yaw rate and acceleration sensor.
   1. Turn the ignition switch off.
   2. Check that the steering wheel is centered.
   3. Check that the shift lever is in P (for automatic transaxle) or the parking brake is applied (for manual transaxle).
      NOTE: DTCs C1210/36 and C1336/39 will be recorded if the shift lever is not in P (for automatic transaxle) or the parking brake is not applied (for manual transaxle) (See DTC C1210/36 ZERO POINT CALIBRATION OF YAW RATE SENSOR UNDONE; DTC C1336/39 ZERO POINT CALIBRATION OF ACCELERATION SENSOR UNDONE ).
   4. Connect the Techstream to the DLC3.
   5. Turn the ignition switch to ON.
   6. Turn the Techstream on.
   7. Switch the skid control ECU to Test Mode using the Techstream. Enter the following menus: Chassis / ABS/VSC/TRAC / Utility / Test Mode.
   8. After the system enters Test Mode, keep the vehicle stationary on a level surface for 2 seconds or more.
   9. Check that the VSC OFF indicator light comes on for several seconds and then blinks in Test Mode.

      HINT:

      • The slip indicator light remains on during Test Mode because traction control operation is prohibited (The slip indicator light goes off when the VSC OFF switch is on).
      • If the VSC OFF indicator light does not blink, perform zero point calibration again.
      Fig 6: VSC OFF Indicator Light Test Mode Blinking Pattern

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Zero point calibration is performed only once after the system enters Test Mode.
      • Calibration cannot be performed again until the stored data is cleared.
   10. Turn the ignition switch off and disconnect the Techstream.

1. Clear the zero point calibration data.
   1. Turn the ignition switch off.
   2. Check that the steering wheel is centered.
   3. Check that the shift lever is in P (for automatic transaxle) or the parking brake is applied (for manual transaxle).
   4. Turn the ignition switch to ON.
   5. The warning and indicator light come on for 3 seconds to indicate that the initial check is completed.
   6. Using SST, connect and disconnect terminals TS and CG of the DLC3 4 times or more within 8 seconds.

      SST 09843-18040

   7. Check that the VSC OFF indicator light comes on.
   Fig 7: Identifying Terminals TS And CG Of DLC3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: If the ignition switch is turned to ON for more than 15 seconds with the shift lever in P (for automatic transaxle) or the parking brake applied (for manual transaxle) after zero point of the yaw rate and acceleration sensor has been cleared, only the zero point of the yaw rate sensor will be stored. If the vehicle is driven under these conditions, the skid control ECU will store the zero point calibration for the acceleration sensor as not being completed. The skid control ECU will then also indicate this as a malfunction of the VSC system using the indicator lights.
2. Perform zero point calibration of the yaw rate and acceleration sensor.
   1. Turn the ignition switch off.
   2. Check that the steering wheel is centered.
   3. Check that the shift lever is in P (for automatic transaxle) or the parking brake is applied (for manual transaxle).
      NOTE: DTCs C1210/36 and C1336/39 will be recorded if the shift lever is not in P (for automatic transaxle) or the parking brake is not applied (for manual transaxle) (See DTC C1210/36 ZERO POINT CALIBRATION OF YAW RATE SENSOR UNDONE; DTC C1336/39 ZERO POINT CALIBRATION OF ACCELERATION SENSOR UNDONE ).
   4. Using SST, connect terminals TS and CG of the DLC3.

   SST 09843-18040

   5. Turn the ignition switch to ON.
   6. Keep the vehicle stationary on a level surface for 2 seconds or more.
      Fig 8: Identifying Terminals TS And CG Of DLC3

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   7. Check that the VSC OFF indicator light comes on for several seconds and then blinks in Test Mode.

      HINT:

      • The slip indicator light remains on during Test Mode because traction control operation is prohibited (The slip indicator light goes off when the VSC OFF switch is on).
      • If the VSC OFF indicator light does not blink, perform zero point calibration again.
      • Zero point calibration is performed only once after the system enters Test Mode.
      • Calibration cannot be performed again until the stored data is cleared.
      Fig 9: VSC OFF Indicator Light Test Mode Blinking Pattern

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   8. Turn the ignition switch off and disconnect SST from the DLC3.

1. Inspection before calibration
   1. Turn the ignition switch off.
   2. Connect the Techstream to the DLC3.
   3. Turn the ignition switch to ON.
   4. Turn the Techstream on.
   5. Enter the following menus: Chassis / EMPS / Data List.

   Check the values by referring to the table below.

   EMPS

   EMPS DATA LIST



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   IG Power Supply	ECU power source voltage / Min.: 0 V, Max.: 20.1531 V	9 to 16 V	Ignition switch ON

   Standard voltage: 9 to 16 V

   NOTE: If the IG power supply voltage is 9 V or less, calibration cannot be performed. In this case, charge or replace the battery, and then perform calibration.
2. Rotation angle sensor calibration value clear, rotation angle sensor initialization, and torque sensor zero point calibration.
   NOTE:

   • If DTC C1516 (Torque Sensor Zero Point Adjustment Incomplete) is stored, the torque sensor zero point cannot be calibrated. Clear the DTC before starting calibration.
   • If DTC C1526 (Rotation Angle Sensor Initialization Incomplete) is stored, the rotation angle sensor cannot be initialized. Clear the DTC before starting initialization.
   1. Turn the ignition switch off.
   2. Connect the Techstream to the DLC3.
   3. Turn the ignition switch to ON.
   4. Turn the Techstream on.
   5. Enter the following menus: Chassis / EMPS / Utility / Torque Sensor Adjustment.
   NOTE:

   • Center the steering wheel and align the front wheels straight ahead.
   • Do not turn the steering wheel sharply.
   • Do not touch the steering wheel during the torque sensor zero point calibration (for 3 seconds).

1. Turn the ignition switch to ON.
2. Select either add or rewrite mode according to the Techstream display.
3. The number of registered codes is indicated.
4. Register of the door control transmitter.
   1. If either add mode or rewrite mode has been selected, press the LOCK and UNLOCK switches on the transmitter simultaneously.
   2. Within 3 seconds of releasing the LOCK and UNLOCK switches, press either of the switches on the door control transmitter.
      NOTE:

      • Do not press the LOCK and UNLOCK switches simultaneously for more than 1.5 seconds.
      • Perform this operation within 1 meter of the driver seat to register the transmitter.
      • Do not push other transmitter switches during the transmitter registration process.
   3. The main body ECU automatically performs the power door LOCK-UNLOCK operation once in order to indicate whether registration has been completed correctly or not.
   4. If continuing registration, the next recognition code must be registered in the door control transmitter within 30 seconds.

      HINT:

      Up to 4 recognition codes can be registered.

5. Complete the registration mode.
   1. Registration mode will end when any of the following occurs:
   • 30 seconds or more have elapsed after a code is registered.
   • The Techstream is used to finish registration.
   • The Techstream is disconnected.
   • The ignition switch is turned off.
6. Perform the following after registration is completed.
   1. Perform the wireless door lock control operation check (See OPERATION CHECK ).

      HINT:

      If the wireless door lock control does not operate, perform the registration procedure again.

1. The vehicle should be in the following conditions.
   1. No key is inserted in the ignition key cylinder.
   2. Only driver door is opened.
2. Perform the following operations to select the desired mode.
   1. Insert and remove the key from the ignition switch twice within 5 seconds. (End with key removed)
   2. After the above operation, close and open the driver door twice. (End with door open)

      Then insert the key into the ignition key cylinder and remove it.

      HINT:

      Complete this procedure within 40 seconds.

   3. After the above operations, close and open the driver door twice. (End with door open)

      Then insert the key into the ignition key cylinder and close the door.

      HINT:

      Complete this procedure within 40 seconds.

   4. Turn the ignition switch from LOCK to ON and back to LOCK at approximately 1 second intervals 1 to 5 times to select a mode (see Fig 10). Then remove the key from the ignition key cylinder.
      Fig 10: Ignition Switch ON-LOCK Operation Pattern

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Complete this procedure within 40 seconds.

      NOTE: If the number of the ON-LOCK operations of the ignition switch is 0, 4, 6 or more, there will be no response to inform which mode has been selected.
   5. After selecting a mode, the main body ECU automatically performs the power door LOCK-UNLOCK operation within 5 seconds to inform the selected mode (see the ).
   Fig 11: Power Door Lock Operation ON-LOCK Operation Pattern Response To Selected Mode

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   • In confirmation mode, the LOCK- UNLOCK operation will occur once for each recognition code that has been registered. For example, if 2 recognition codes have been registered, the LOCK-UNLOCK operation will occur 2 times.
   • In confirmation mode and prohibition mode, once a LOCK-UNLOCK operation response has occurred, the registration procedure will end.
3. Register new recognition codes (add mode or rewrite mode):
   1. Within 45 seconds after add mode or rewrite mode has been selected, press the LOCK and UNLOCK switches on the transmitter simultaneously for 1.0 to 1.5 seconds. Then, press either one of the switches for more than 1.0 second. (Procedure "A")
   2. Within 5 seconds after the transmitter has been released, the LOCK-UNLOCK operation will be automatically performed once if the registration of the recognition code of the transmitter is completed correctly.

      If the LOCK-UNLOCK operation is performed twice, registration of the recognition code has failed. Perform the registration procedure from the beginning. (Procedure "B")

      Fig 12: LOCK-UNLOCK Pattern Response To Registration Completion

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. If multiple transmitters need to be registered, repeat procedures "A" and "B" within 45 seconds after the previous registration.

      HINT:

      • 4 recognition codes can be registered at once.
      • If even one of the following conditions is satisfied, registration mode will end.
        • 40 seconds have elapsed after a recognition code has been registered.
        • Any of the doors is opened.
        • The key is inserted into the ignition key cylinder.
        • 4 recognition codes are registered.

1. Zero point calibration procedures
   1. Check that all of the following conditions are met:
      • The vehicle is parked on a flat surface.
      • No objects are placed on the front passenger seat.
      • The front passenger seat belt buckle switch is OFF.
   2. Adjust the seat position according to the table below:
      SEAT POSITION ADJUSTMENT REFERENCE CHART



      Adjustment Item	Position
      Slide Direction	Rearmost position
      Reclining Angle	Upright position
      Headrest Height	Lowest position
      Lifter Height	Lowest position

   3. Connect the Techstream to the DLC3.
   4. Turn the ignition switch to ON.
   5. Perform zero point calibration by following the prompts on the Techstream screen.

      HINT:

      • Refer to the Techstream operator's manual for further details.
      • If zero point calibration is performed when the calibration conditions are not satisfied, DTC B1797 is output.
      • If zero point calibration has failed, DTC B1797 is output.

1. Sensitivity check procedure
   1. Turn the ignition switch off.
   2. Place a 20 kg (44.0 lb) weight on the front passenger seat.
      NOTE:

      • Do not allow the weight to come into contact with the seatback when placing it on the seat cushion.
      • Place the weight in the area shown in the illustration.
   3. Turn the ignition switch to ON, and wait for at least 6 seconds.
   4. Check that the passenger airbag ON/OFF indicator indicates OFF.
      Fig 13: Identifying Front Passenger Seat Areas For Placing Weight

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: The passenger airbag ON/OFF indicator indicates OFF  .

   5. Add a 30 kg (66.1 lb) weight to the front passenger seat (total 50 kg (110.2 lb)).
      NOTE:

      • Do not allow the weight to come into contact with the seatback when placing it on the seat cushion.
      • Place the weight in the area shown in the illustration.
   6. Check that the passenger airbag ON/OFF indicator indicates ON.

      OK: The passenger airbag ON/OFF indicator indicates ON  .

1. Turn the ignition switch to ON.
2. Make sure that the sliding roof is fully closed.
3. Press the TILT UP switch until the sliding roof stops at the fully tilt up position. Then release the switch.
4. Press and hold the TILT UP switch until the following movement finishes and then release the switch: approximately 10 seconds → tilt up (approximately 5 mm) → tilt down (approximately 5 mm).
5. Within 5 seconds after finishing the previous step, press and hold the TILT UP switch until the following movement finishes and then release the switch: approximately 5 seconds → tilt down → fully closed → slide open → fully open → slide close → fully closed.

   HINT:

   The initialization process ends when the close operation completes.

6. Check that the AUTO operation functions normally.
   NOTE: If the following conditions occur during the initialization procedure, initialization will fail:

   • One of the following electric loads is given to the vehicle during initialization: cranking the engine, power window operation, rear defogger operation, blower operation, power seat operation, power door lock operation or headlight illumination.
   • The ignition switch is turned off.
   • Another switch is turned on during initialization.
   • The vehicle experiences a strong vibration during initialization, such as slamming of a door.

   HINT:

   • If the sliding roof cannot be fully closed or its position has become misaligned, perform initialization again.
   • If the roof glass stops moving or starts moving in the opposite direction while the CLOSE/UP switch is held down, continue to hold the switch for another 10 seconds or more to return the sliding roof control ECU to an un-initialized condition. Then perform the initialization procedure again.
   • If the AUTO operation function and jam protection function do not operate after the drive gear has been reset, replace the sliding roof control ECU (sliding roof drive gear sub-assembly).
