Inner Rear View Mirror: Installation

  1. INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/o EC Mirror)
    1. Install the mirror in the direction of the white arrow.
    2. Install the cover as shown in the illustration.
      Fig 1: Installing Inner Rear View Mirror Assembly (w/o EC Mirror)
      G04476859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/ EC Mirror)
    1. Install the mirror.
    2. Install the screw.
    3. Install the inner rear view mirror cover.

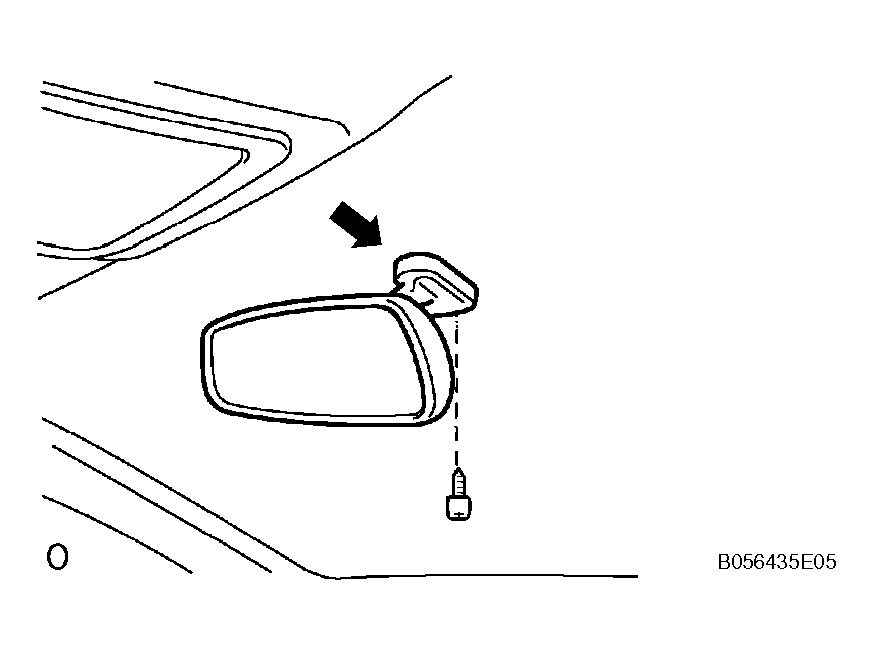

      Fig 2: Installing Inner Rear View Mirror Assembly (w/ EC Mirror)
      G04476860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
