Power Window Control System: Inspection
- INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

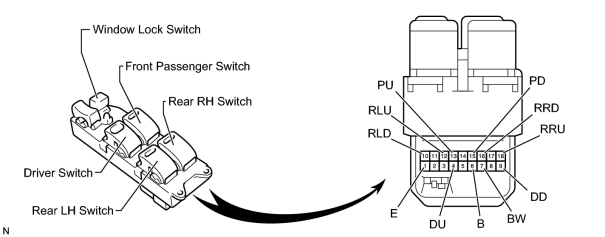

- Measure the resistance of the switch when the switch is operated.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance:
Driver switch
TERMINALS RESISTANCE SPECIFICATION (DRIVER SWITCH)Tester Connection Window Lock Switch Condition Power Window Switch Condition Specified Condition 1 (E) - 9 (DD) Always (ON / OFF) UP Below 1 Ω 4 (DU) - 7 (BW) 1 (E) - 9 (DD) Always (ON / OFF) AUTO UP Below 1 Ω 4 (DU) - 7 (BW) 1 (E) - 4 (DU) Always (ON / OFF) OFF Below 1 Ω 1 (E) - 9 (DD) 1 (E) - 4 (DU) Always (ON / OFF) DOWN Below 1 Ω 7 (BW) - 9 (DD) 1 (E) - 4 (DU) Always (ON / OFF) AUTO DOWN Below 1 Ω 7 (BW) - 9 (DD) Passenger switch
TERMINALS RESISTANCE SPECIFICATION (PASSENGER SWITCH)Tester Connection Window Lock Switch Condition Power Window Switch Condition Specified Condition 1 (E) - 15 (PD) OFF UP Below 1 Ω 6 (B) - 13 (PU) 1 (E) - 13 (PU) OFF OFF Below 1 Ω 1 (E) - 15 (PD) 1 (E) - 13 (PU) OFF DOWN Below 1 Ω 6 (B) - 15 (PD) 1 (E) - 15 (PD) ON UP 10 kΩ or higher 6 (B) - 13 (PU) Below 1 Ω 13 (PU) - 15 (PD) ON OFF Below 1 Ω 1 (E) - 13 (PU) ON DOWN 10 kΩ or higher 6 (B) - 15 (PD) Below 1 Ω Rear LH switch
TERMINALS RESISTANCE SPECIFICATION (REAR LH SWITCH)Tester Connection Window Lock Switch Condition Power Window Switch Condition Specified Condition 1 (E) - 10 (RLD) OFF UP Below 1 Ω 6 (B) - 12 (RLU) 1 (E) - 12 (RLU) OFF OFF Below 1 Ω 1 (E) - 10 (RLD) 1 (E) - 12 (RLU) OFF DOWN Below 1 Ω 6 (B) - 10 (RLD) 1 (E) - 10 (RLD) ON UP 10 kΩ or higher 6 (B) - 12 (RLU) Below 1 Ω 12 (RLU) - 10 (RLD) ON OFF Below 1 Ω 1 (E) - 12 (RLU) ON DOWN 10 kΩ or higher 6 (B) - 10 (RLD) Below 1 Ω Rear RH switch
TERMINALS RESISTANCE SPECIFICATION (REAR RH SWITCH)Tester Connection Window Lock Switch Condition Power Window Switch Condition Specified Condition 1 (E) - 16 (RRD) OFF UP Below 1 Ω 6 (B) - 18 (RRU) 1 (E) - 18 (RRU) OFF OFF Below 1 Ω 1 (E) - 16 (RRD) 1 (E) - 18 (RRU) OFF DOWN Below 1 Ω 6 (B) - 16 (RRD) 1 (E) - 16 (RRD) ON UP 10 kΩ or higher 6 (B) - 18 (RRU) Below 1 Ω 18 (RRU) - 16 (RRD) ON OFF Below 1 Ω 1 (E) - 18 (RRU) ON DOWN 10 kΩ or higher 6 (B) - 16 (RRD) Below 1 Ω If the result is not as specified, replace the master switch assembly.
- Apply battery voltage to the master switch and check that the AUTO light illuminates.
OK
MEASUREMENT CONDITION AND SPECIFIED CONDITIONMeasurement Condition Specified Condition Battery positive (+) --> Terminal 11 (BDR)
Battery negative (-) --> Terminal 1 (E)AUTO light illuminates If the result is not as specified, replace the master switch assembly.
- Measure the resistance of the switch when the switch is operated.
- INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY
- Measure the resistance of the switch when the switch is operated.
Standard resistance
TERMINALS RESISTANCE SPECIFICATIONTester Connection Switch Condition Specified Condition 1 - 2
3 - 4UP Below 1 Ω 1 - 2
3 - 5OFF Below 1 Ω 1 - 4
3 - 5DOWN Below 1 Ω If the result is not as specified, replace the regulator switch assembly.
- Measure the resistance of the switch when the switch is operated.
- INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front LH and Rear LH)
- Apply battery voltage to connector terminals 1 and 2.NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.
- Check that the motor gear rotates smoothly as follows.
OK
MEASUREMENT CONDITION AND SPECIFIED CONDITIONMeasurement Condition Specified Condition Battery positive (+) --> Terminal 2
Battery negative (-) --> Terminal 1Motor gear rotates clockwise Battery positive (+) --> Terminal 1
Battery negative (-) --> Terminal 2Motor gear rotates counterclockwise If the result is not as specified, replace the regulator motor assembly.
- Apply battery voltage to connector terminals 1 and 2.
- INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front RH and Rear RH)
- Apply battery voltage to connector terminals 1 and 2.NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.
- Check that the motor gear rotates smoothly as follows.
OK
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
MEASUREMENT CONDITION AND SPECIFIED CONDITIONMeasurement Condition Specified Condition Battery positive (+) --> Terminal 1
Battery negative (-) --> Terminal 2Motor gear rotates clockwise Battery positive (+) --> Terminal 2
Battery negative (-) --> Terminal 1Motor gear rotates counterclockwise If the result is not as specified, replace the regulator motor assembly.
- Apply battery voltage to connector terminals 1 and 2.
