Inspection Procedure

  1. INSPECT FUSE (AM2, GAUGE, FR DOOR, ECU-IG)
    1. Remove the AM2 fuse from the engine room junction block.
    2. Remove the GAUGE, FR DOOR and ECU-IG fuses from the driver side junction block.
    3. Measure the resistance of the fuses.

      Standard resistance:

      Below 1 Ω

    NG : REPLACE FUSE

    OK : GO TO NEXT STEP

  2. INSPECT IG1 RELAY
    1. Remove the IG1 relay from the driver side junction block.
    2. Measure the resistance of the relay.

      Standard resistance

      TERMINALS RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      3 - 5 10 kΩ or higher
      3 - 5 Below 1 Ω (when battery voltage is applied to terminals 1 and 2)

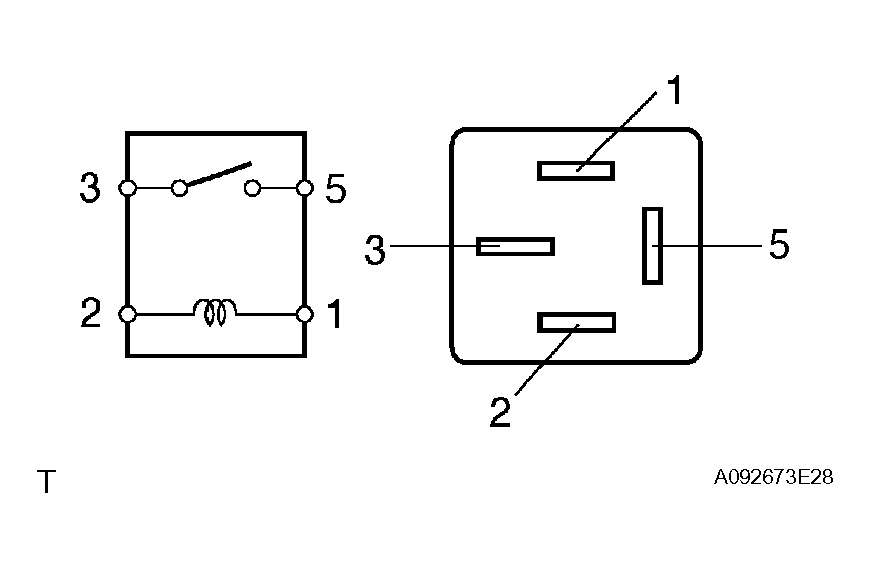

      Fig 1: Inspecting IG1 Relay
      G04476760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPLACE IG1 RELAY

    OK : GO TO NEXT STEP

  3. CHECK WIRE HARNESS (MASTER SWITCH - BATTERY AND BODY GROUND)
    1. Disconnect the P17 switch connector.

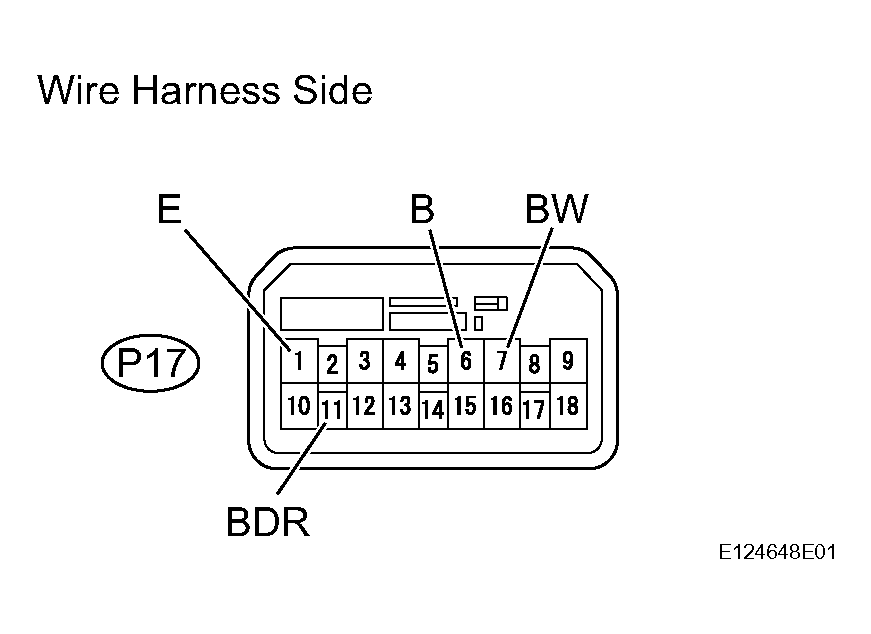

      2. Fig 2: Identifying Power Window Regulator Master Switch Connectors
      G04476761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage or resistance of the wire harness side connector.

      Standard voltage

      TERMINALS VOLTAGE SPECIFICATION

      Tester Connection Condition Specified Condition
      P17-6 (B) - Body ground Power switch ON (IG) 10 to 14 V
      P17-7 (BW) - Body ground Always 10 to 14 V
      P17-11 (BDR) - Body ground Power switch ON (IG) 10 to 14 V

      Standard resistance

      TERMINALS RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      P17-1 (E) - Body ground Always Below 1 Ω

    OK : REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

    NG : GO TO NEXT STEP

  4. CHECK WIRE HARNESS (MASTER SWITCH - JUNCTION BLOCK)
    1. Disconnect the P17 switch connector.
    2. Disconnect the 1G and 1H junction block connectors.

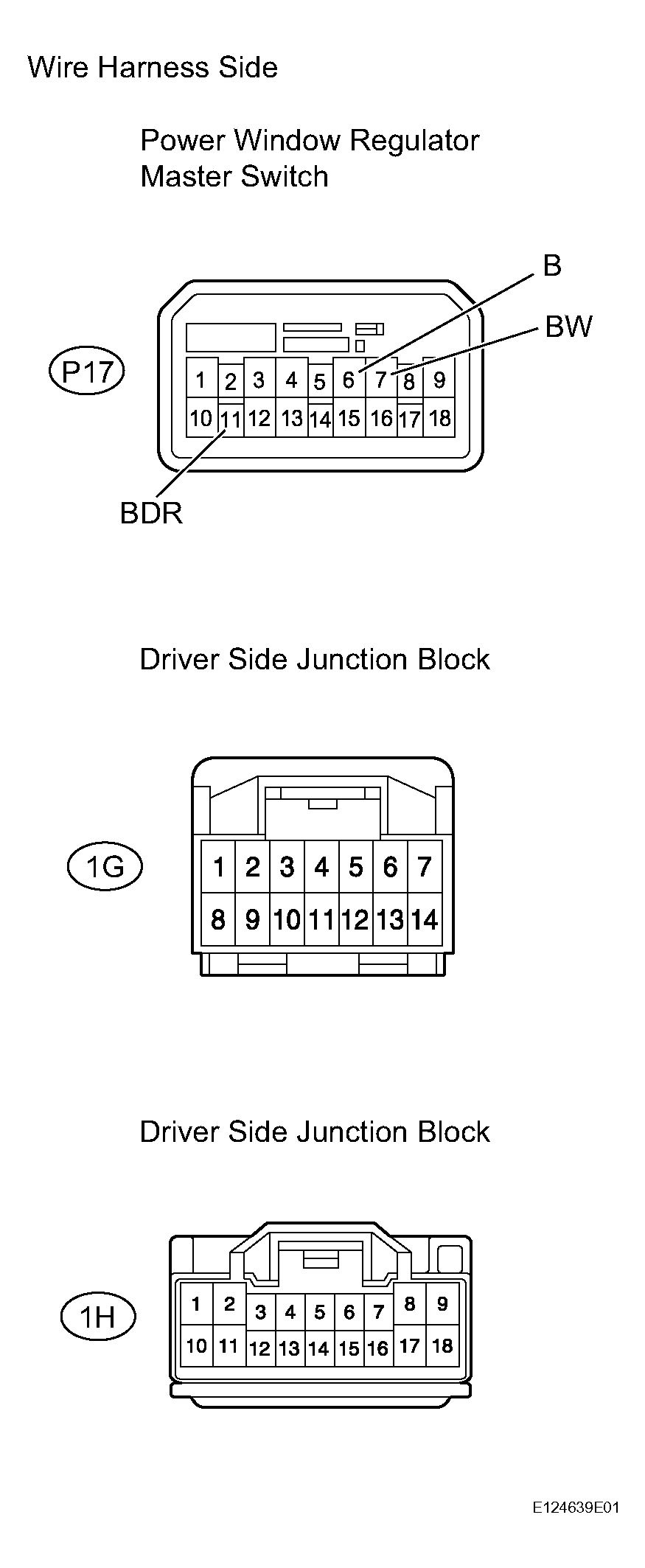

      3. Fig 3: Identifying Power Window Regulator Master Switch Connectors
      G04476762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TERMINALS RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      P17-11 (BDR) - 1G-6 Below 1 Ω
      P17-7 (BW) - 1H-10 Below 1 Ω
      P17-6 (B) - 1H-11 Below 1 Ω
      P17-11 (BDR) or 1G-6 - Body ground 10 kΩ or higher
      P17-7 (BW) or 1H-10 - Body ground 10 kΩ or higher
      P17-6 (B) or 1H-11 - Body ground 10 kΩ or higher

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK : GO TO NEXT STEP

  5. CHECK WIRE HARNESS (JUNCTION BLOCK - BODY GROUND)
    1. Disconnect the 1B and 1E junction block connectors.

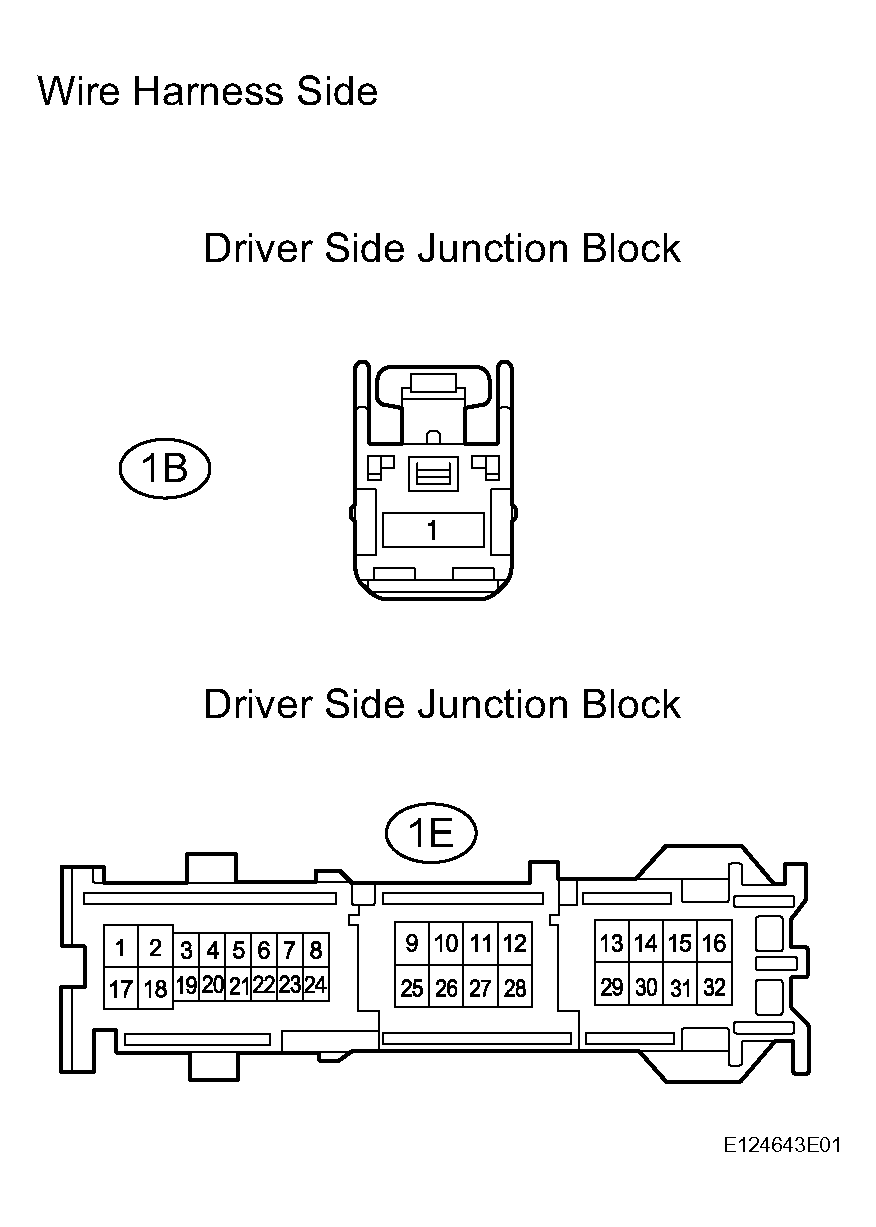

      2. Fig 4: Identifying 1B And 1E Junction Block Connectors
      G04476763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage and resistance of the wire harness side connectors.

      Standard voltage

      TERMINALS VOLTAGE SPECIFICATION

      Tester Connection Specified Condition
      1B-1 - Body ground 10 to 14 V

      Standard resistance

      TERMINALS RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      1E-17 - Body ground Below 1 Ω

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK : GO TO NEXT STEP

  6. CHECK BASIC FUNCTION OF PUSH BUTTON START SYSTEM
    1. Check that the push button start system operates normally.

      OK : Push button start system operates normally.

    NG : GO TO PUSH BUTTON START SYSTEM

    OK : REPLACE DRIVER SIDE JUNCTION BLOCK ASSEMBLY
