Cruise Control: Notes

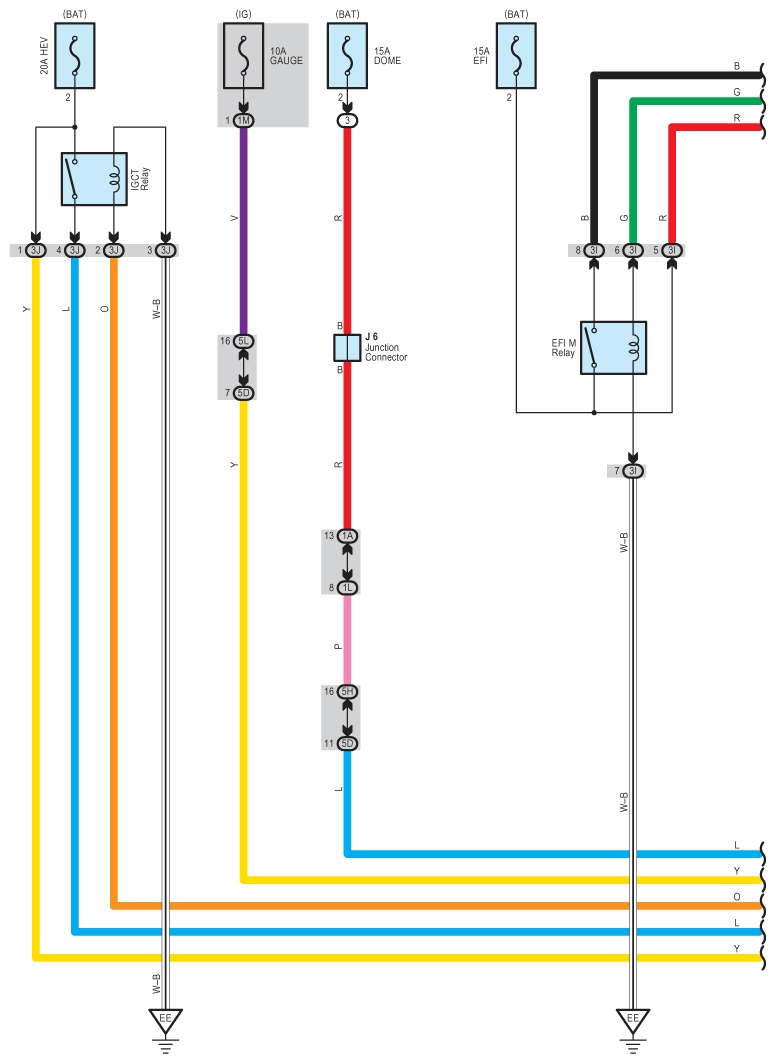

Fig 1: Cruise Control - Circuit Diagram (1 Of 10)

G07611042

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

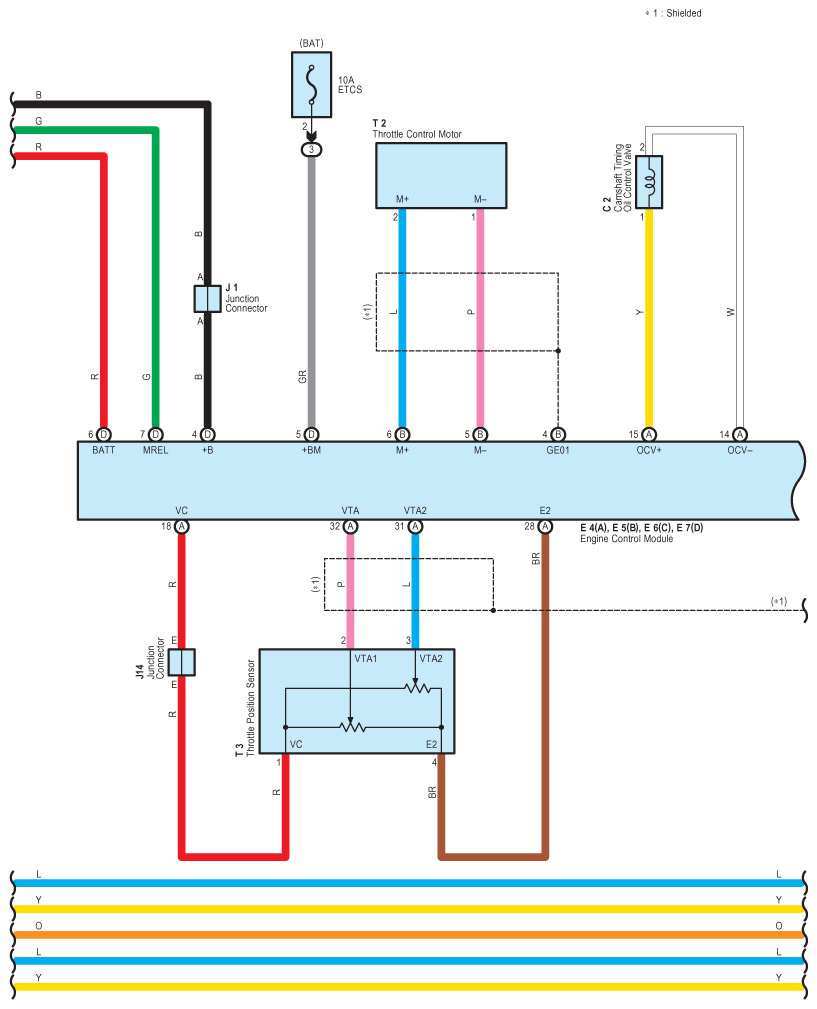

Fig 2: Cruise Control - Circuit Diagram (2 Of 10)

G07611043

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

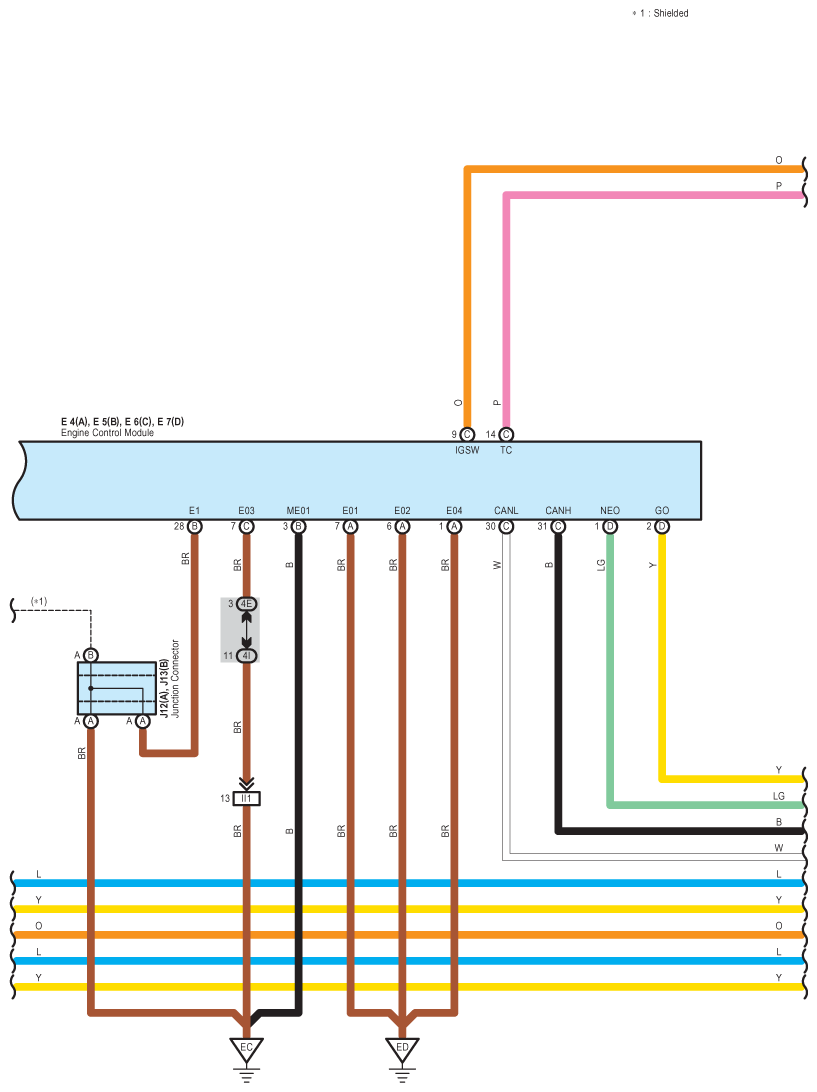

Fig 3: Cruise Control - Circuit Diagram (3 Of 10)

G07611044

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

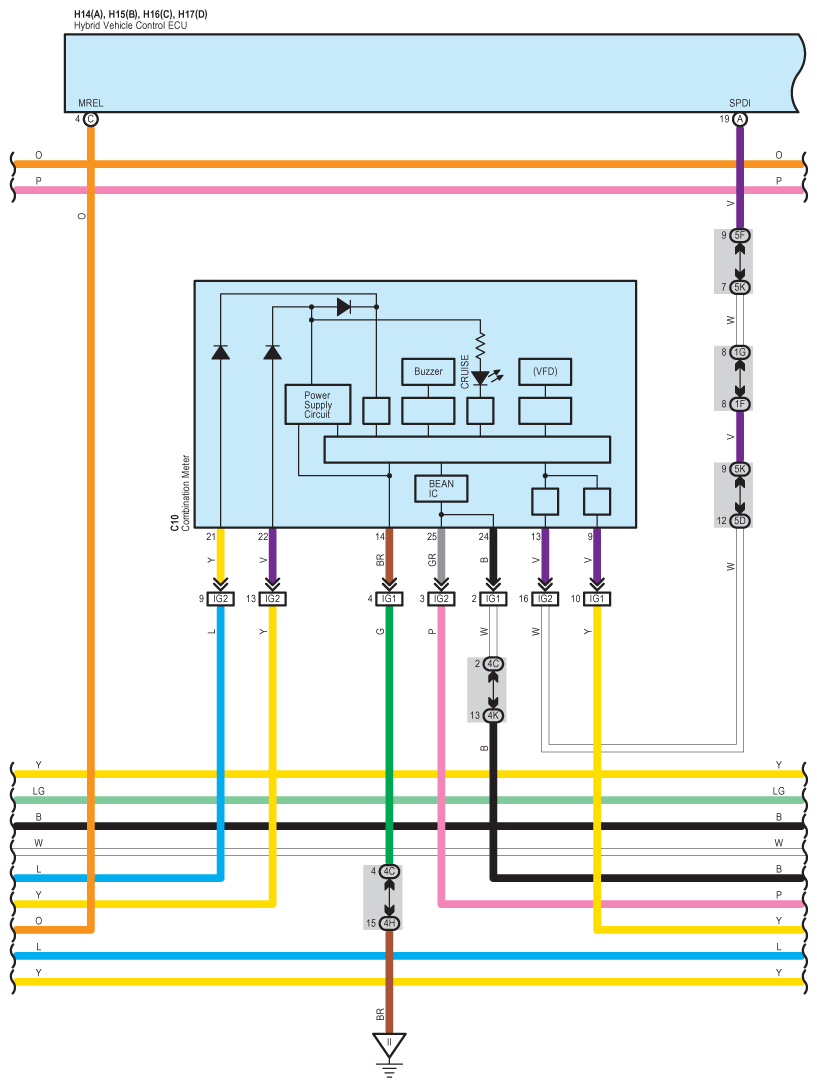

Fig 4: Cruise Control - Circuit Diagram (4 Of 10)

G07611045

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

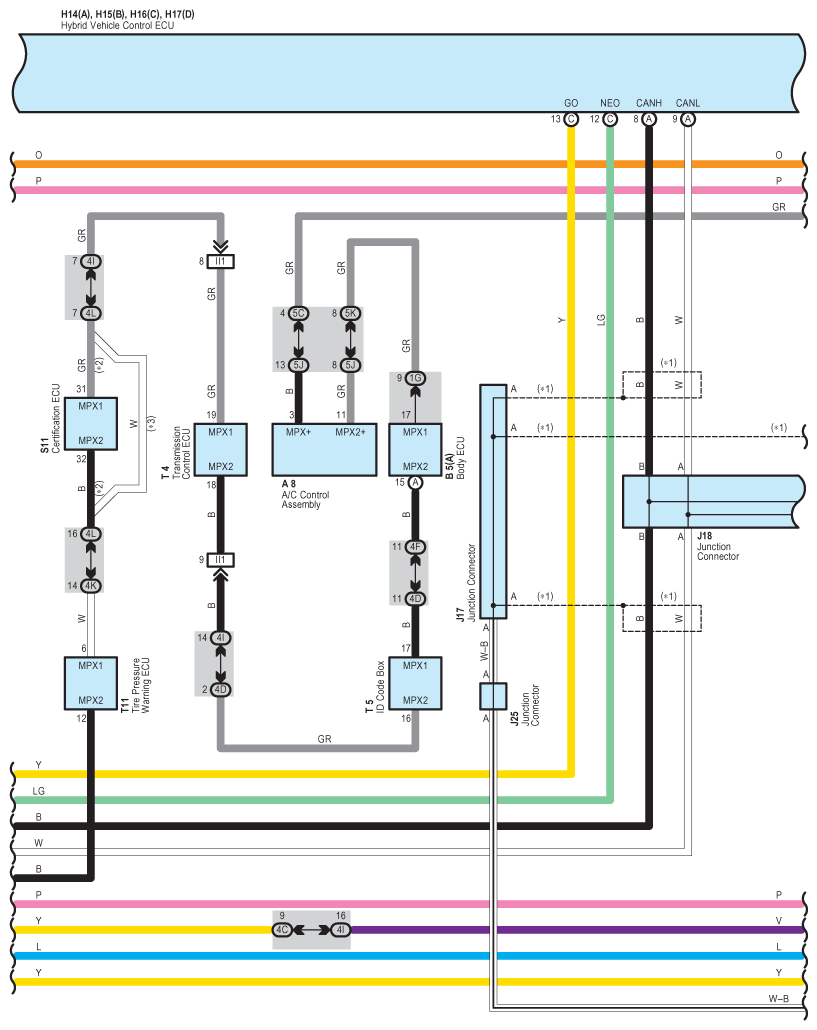

Fig 5: Cruise Control - Circuit Diagram (5 Of 10)

G07611046

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

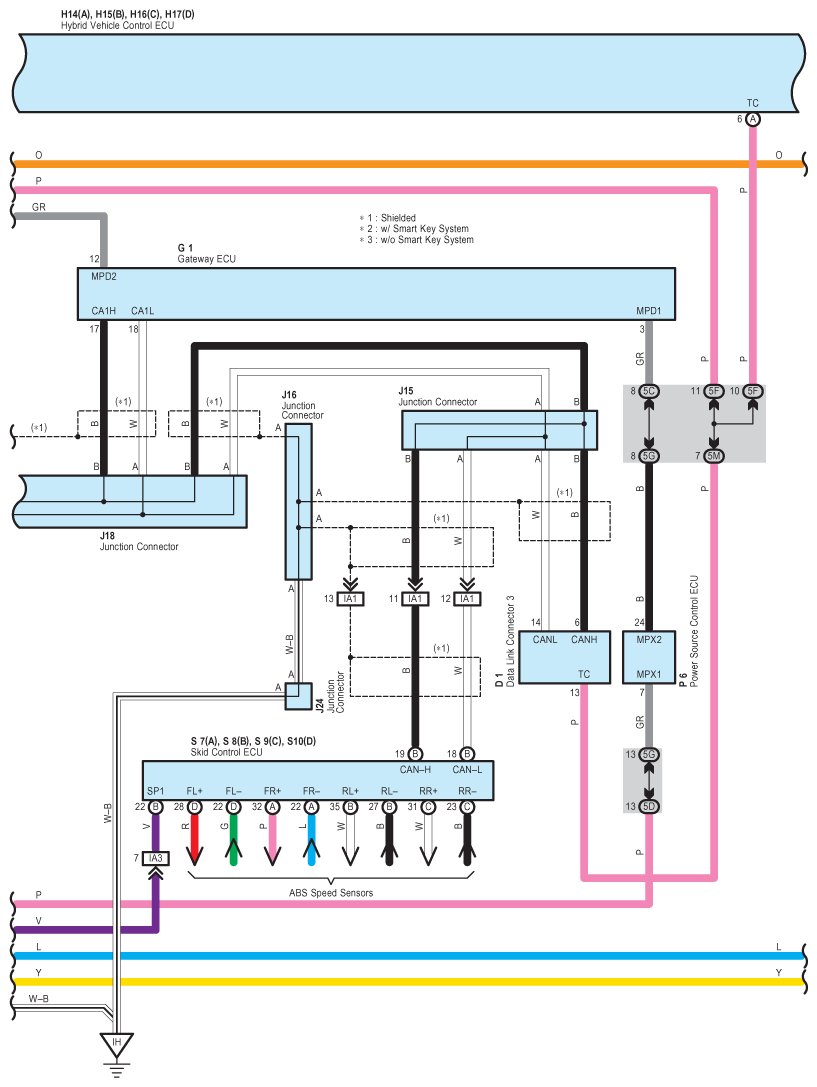

Fig 6: Cruise Control - Circuit Diagram (6 Of 10)

G07611047

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

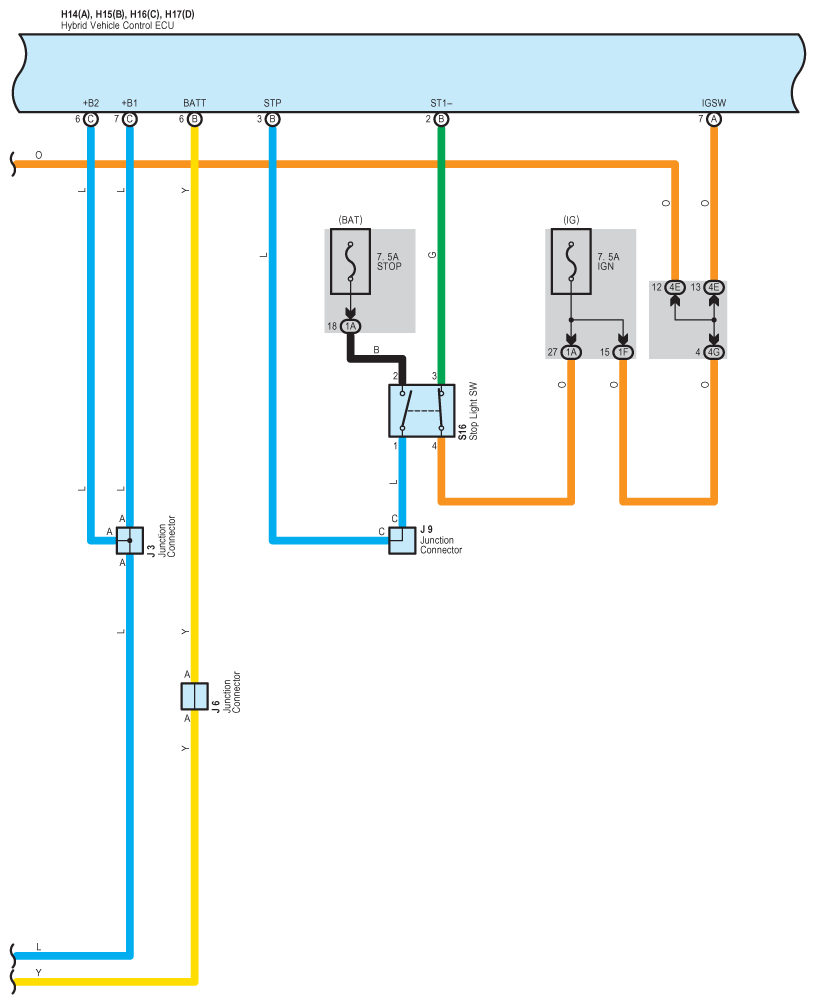

Fig 7: Cruise Control - Circuit Diagram (7 Of 10)

G07611048

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

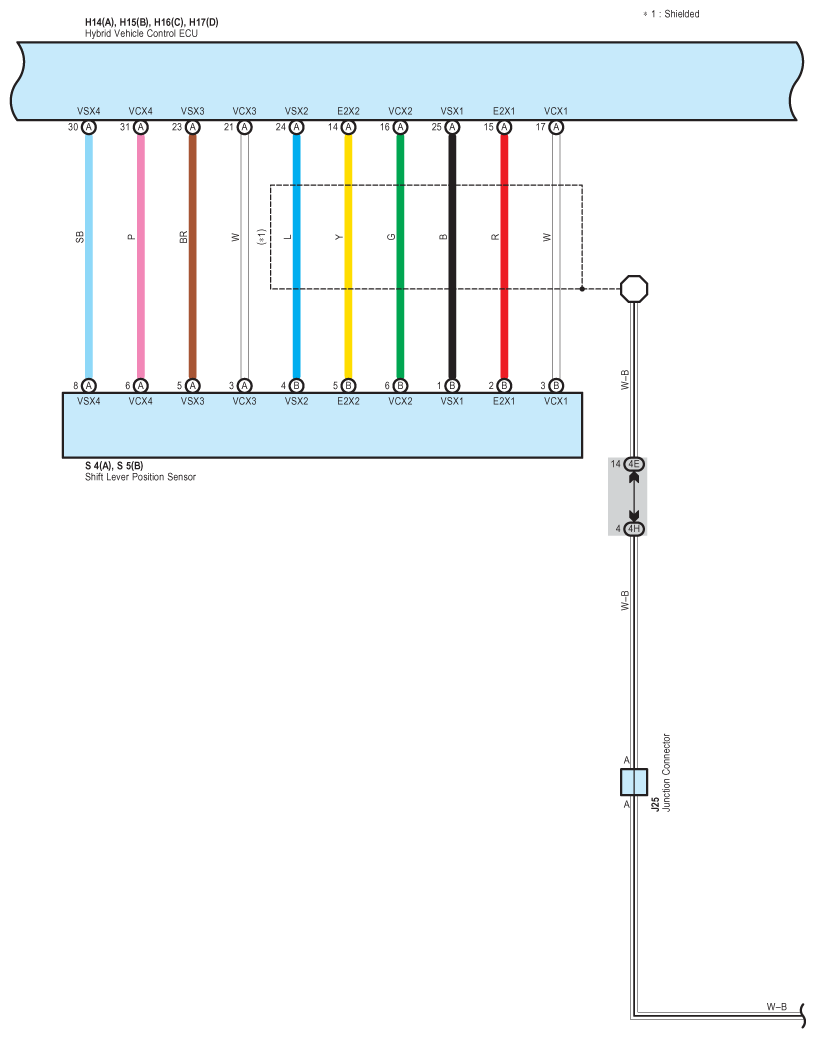

Fig 8: Cruise Control - Circuit Diagram (8 Of 10)

G07611049

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

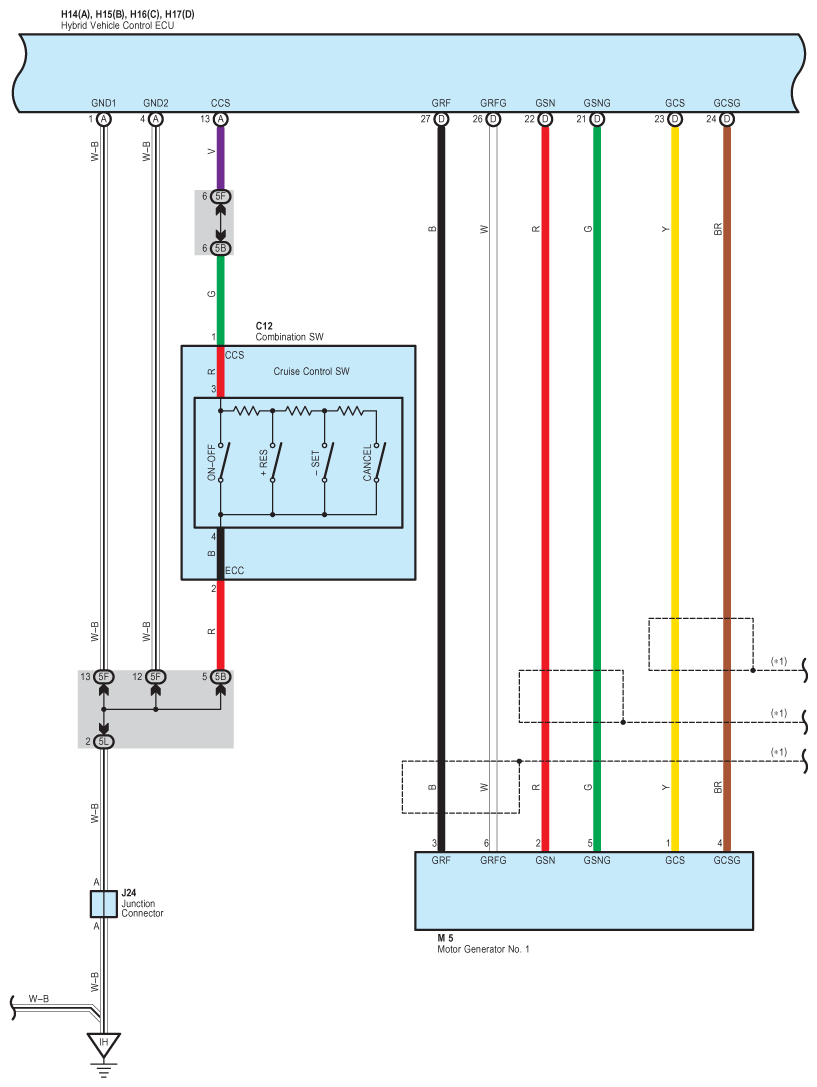

Fig 9: Cruise Control - Circuit Diagram (9 Of 10)

G07611050

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

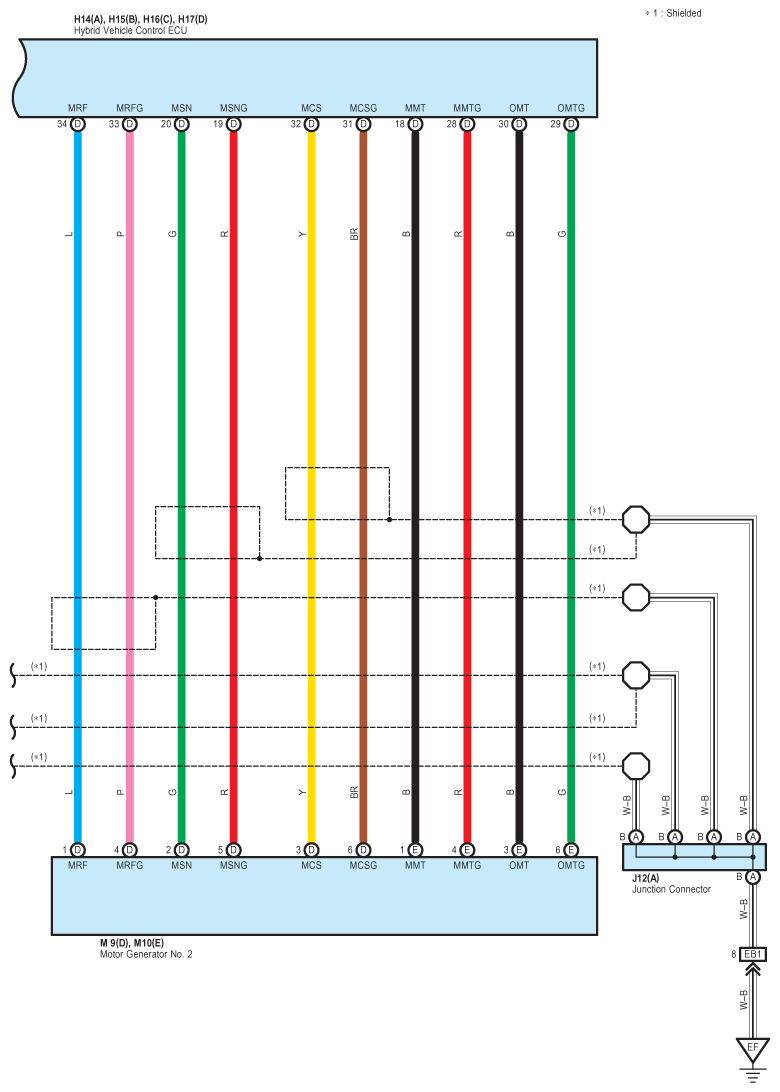

Fig 10: Cruise Control - Circuit Diagram (10 Of 10)

G07611051

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
