OEM System Circuits: EPS: Notes

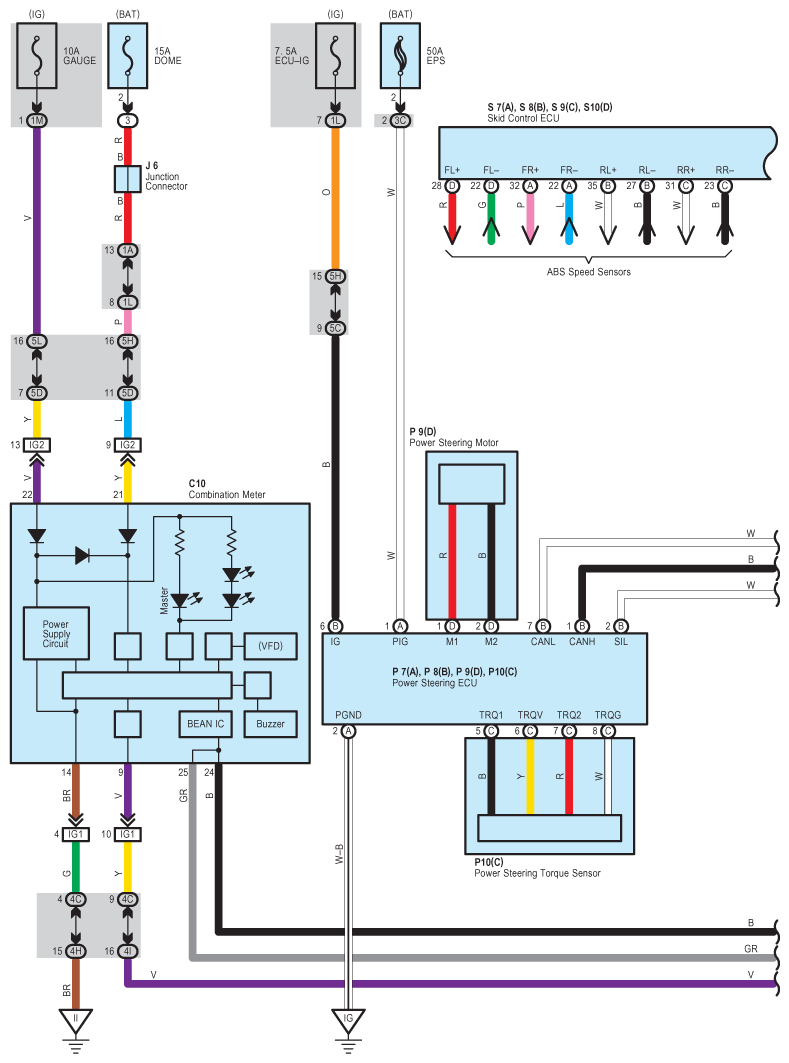

Fig 1: EPS - Circuit Diagram (1 Of 5)
G07611052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

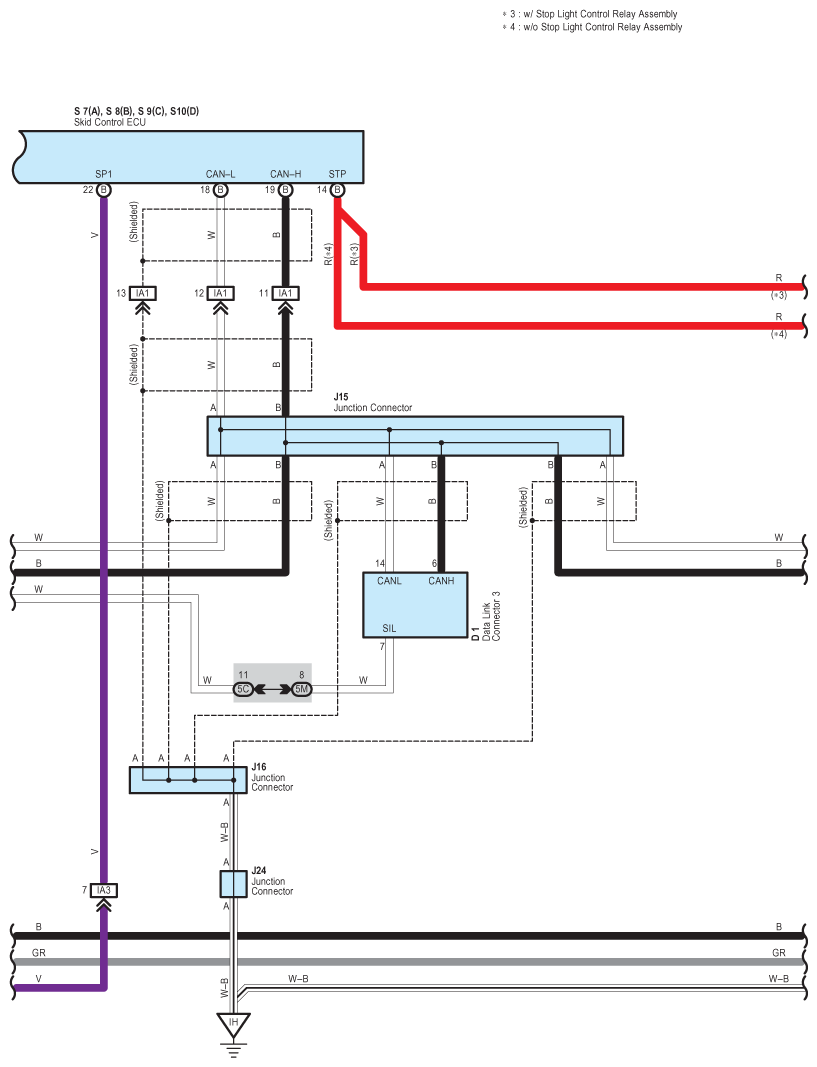

Fig 2: EPS - Circuit Diagram (2 Of 5)
G07611053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

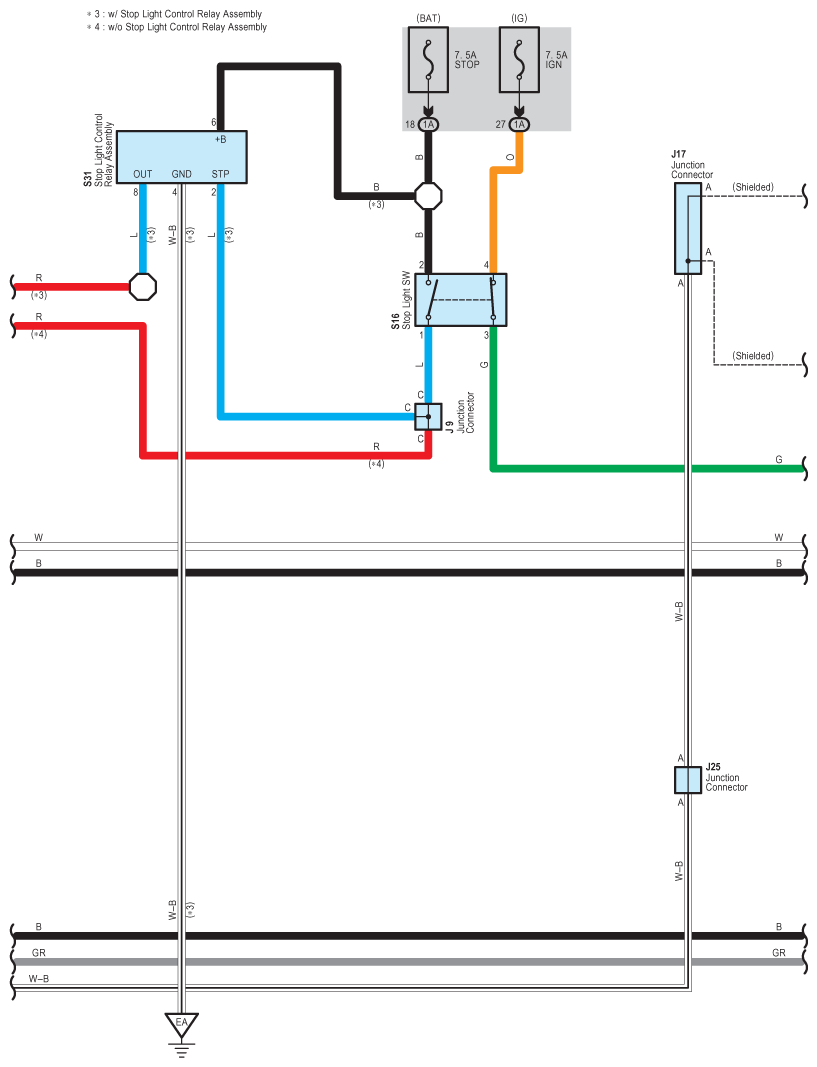

Fig 3: EPS - Circuit Diagram (3 Of 5)
G07611054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

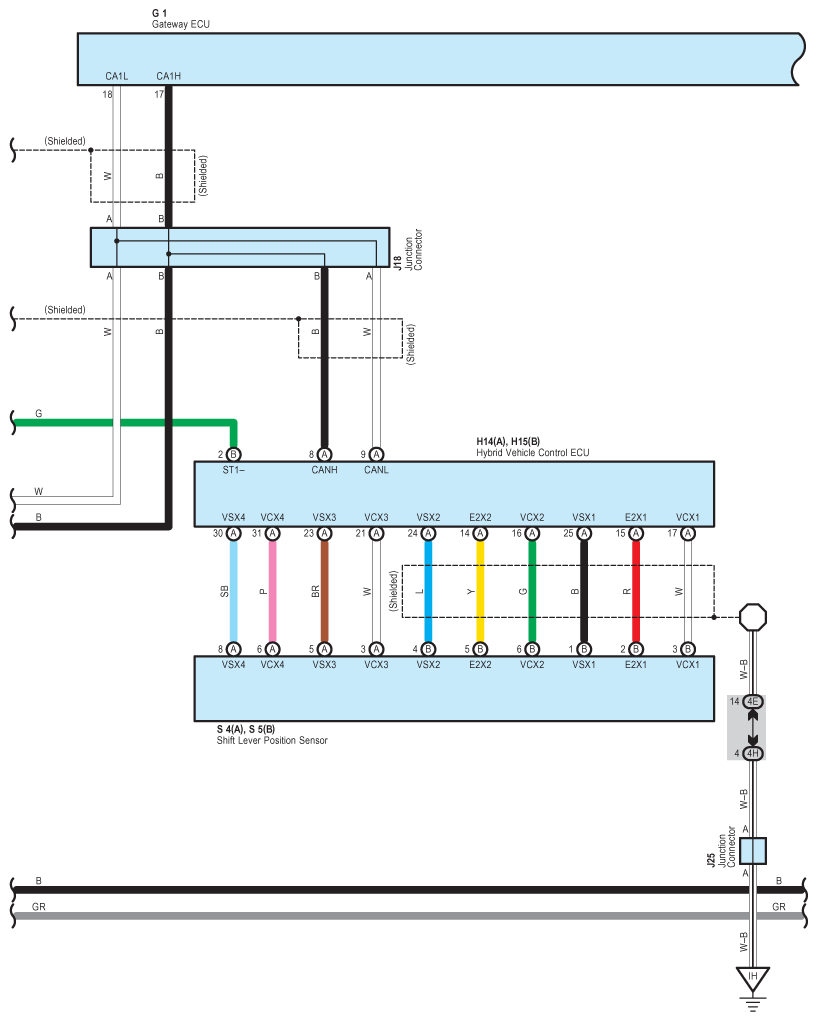

Fig 4: EPS - Circuit Diagram (4 Of 5)
G07611055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

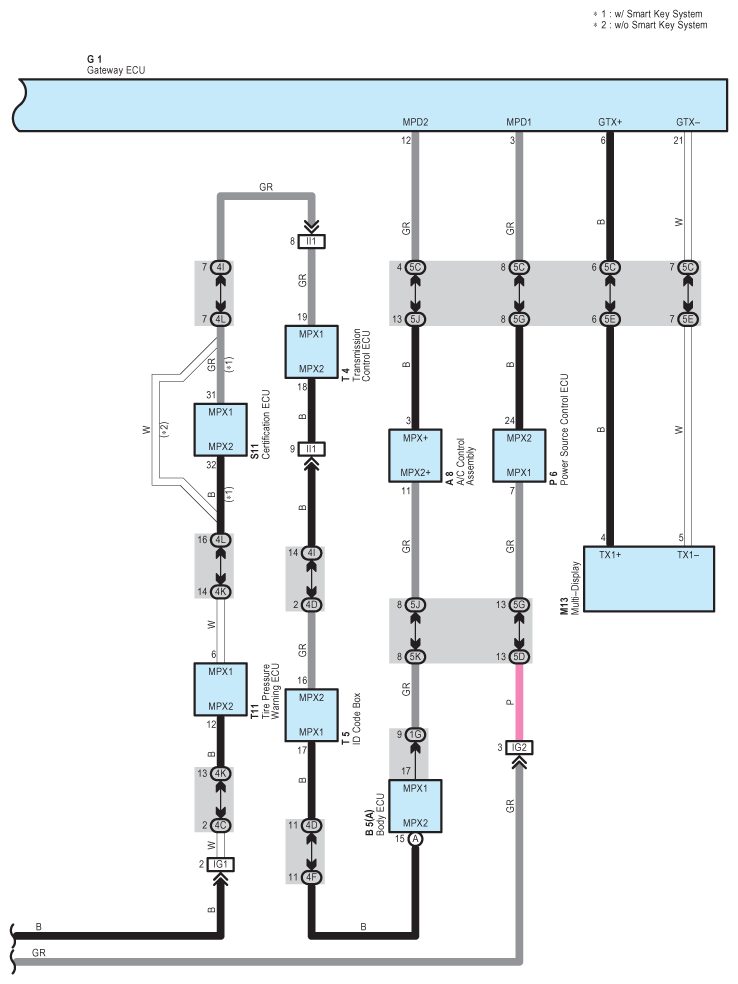

Fig 5: EPS - Circuit Diagram (5 Of 5)
G07611056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
