Shift Control System: Notes

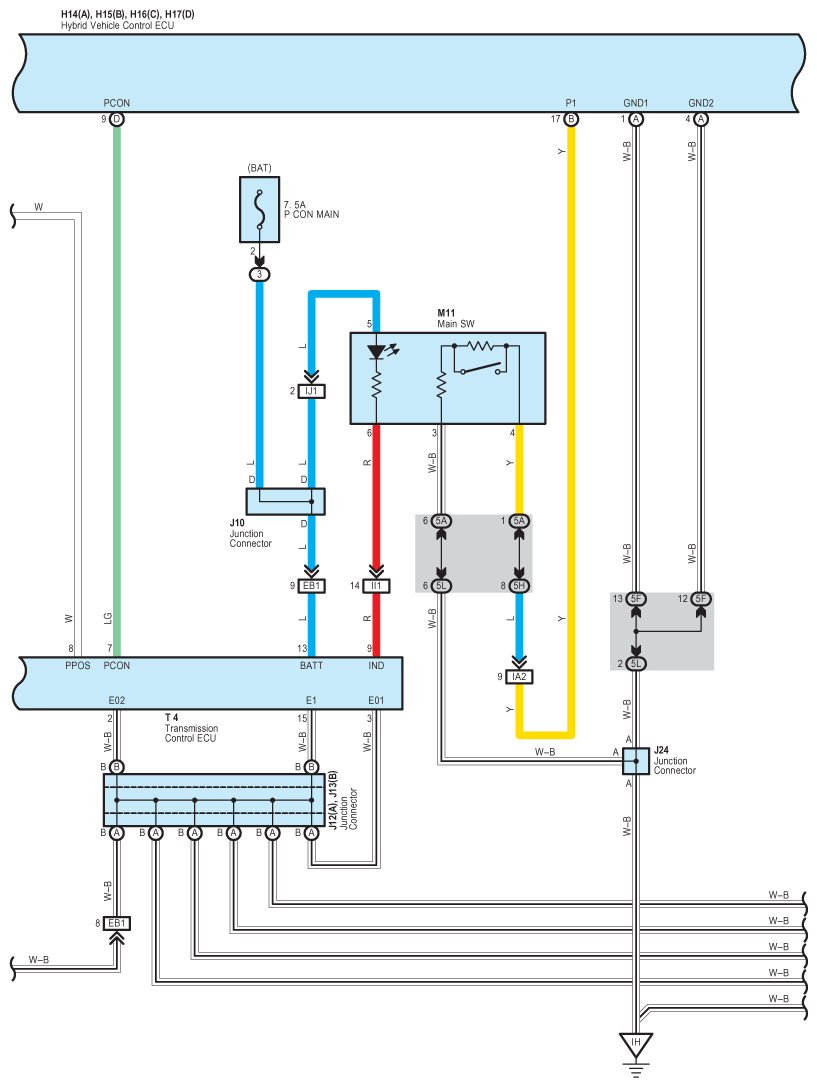

Fig 1: Shift Control System - Circuit Diagram (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

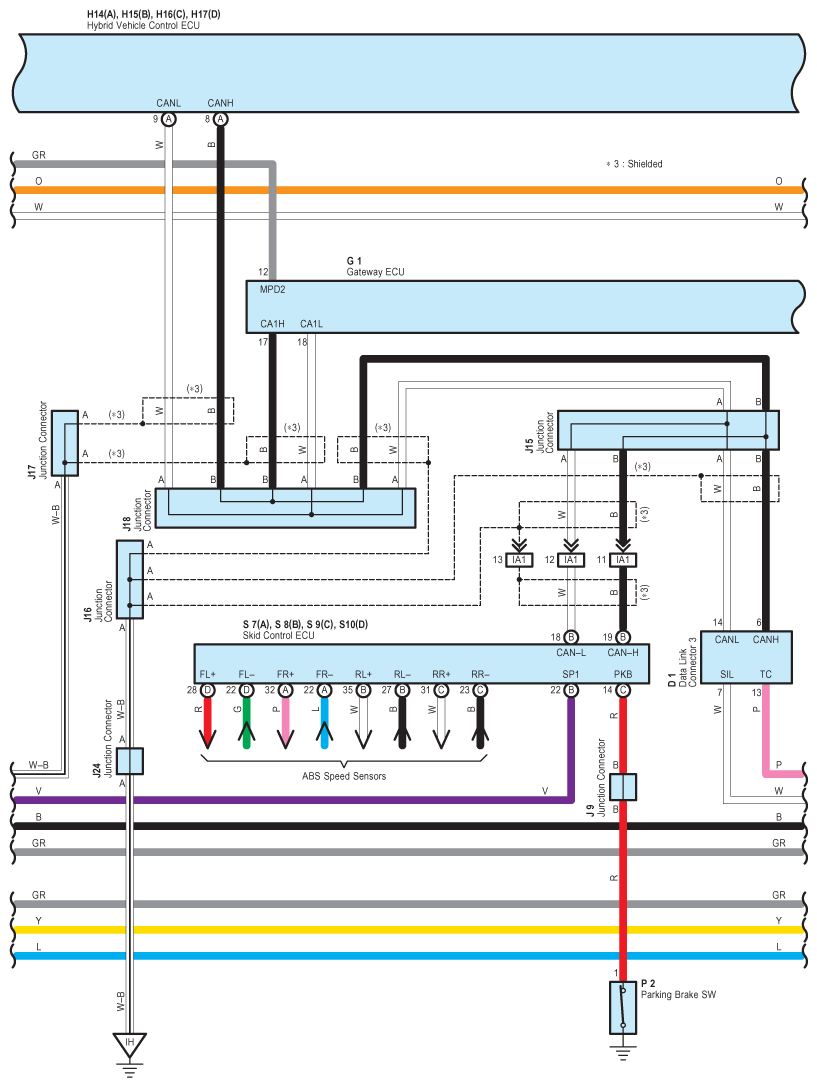

Fig 2: Shift Control System - Circuit Diagram (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

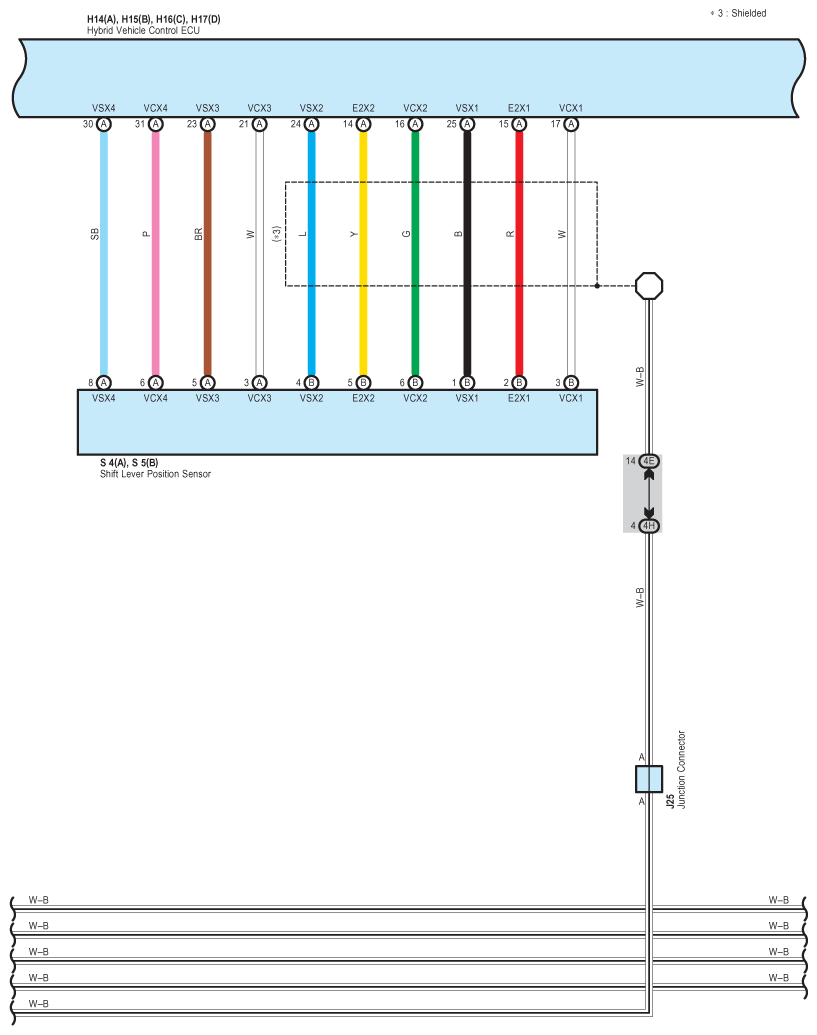

Fig 3: Shift Control System - Circuit Diagram (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

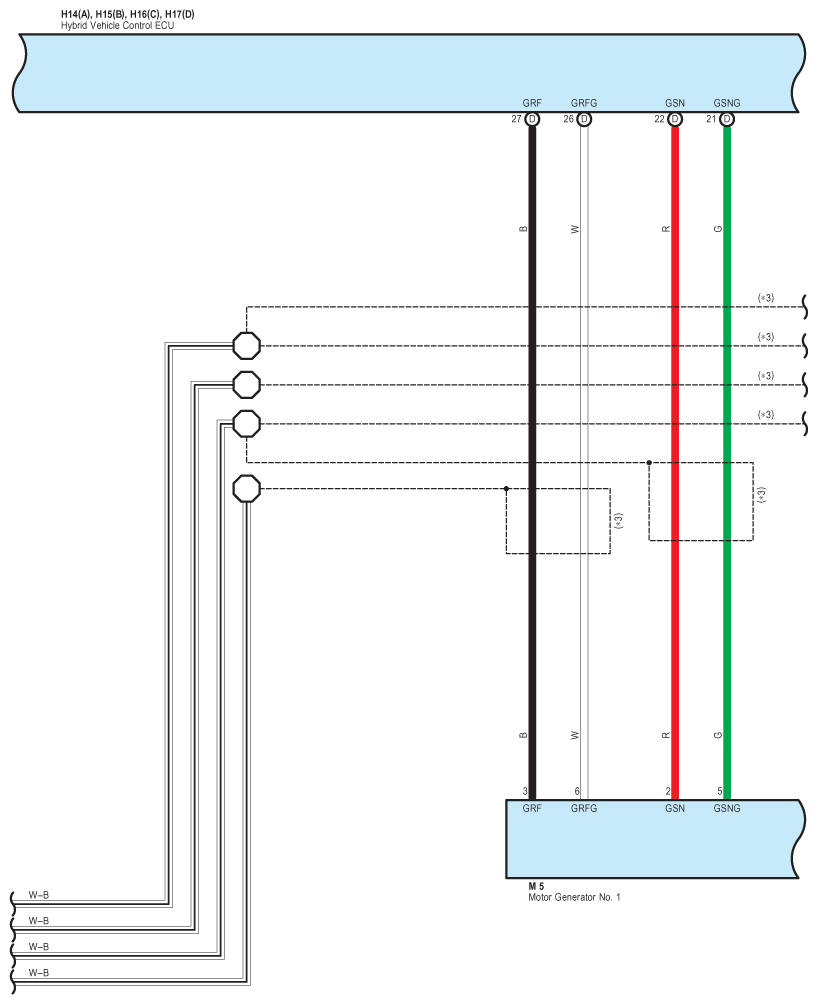

Fig 4: Shift Control System - Circuit Diagram (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

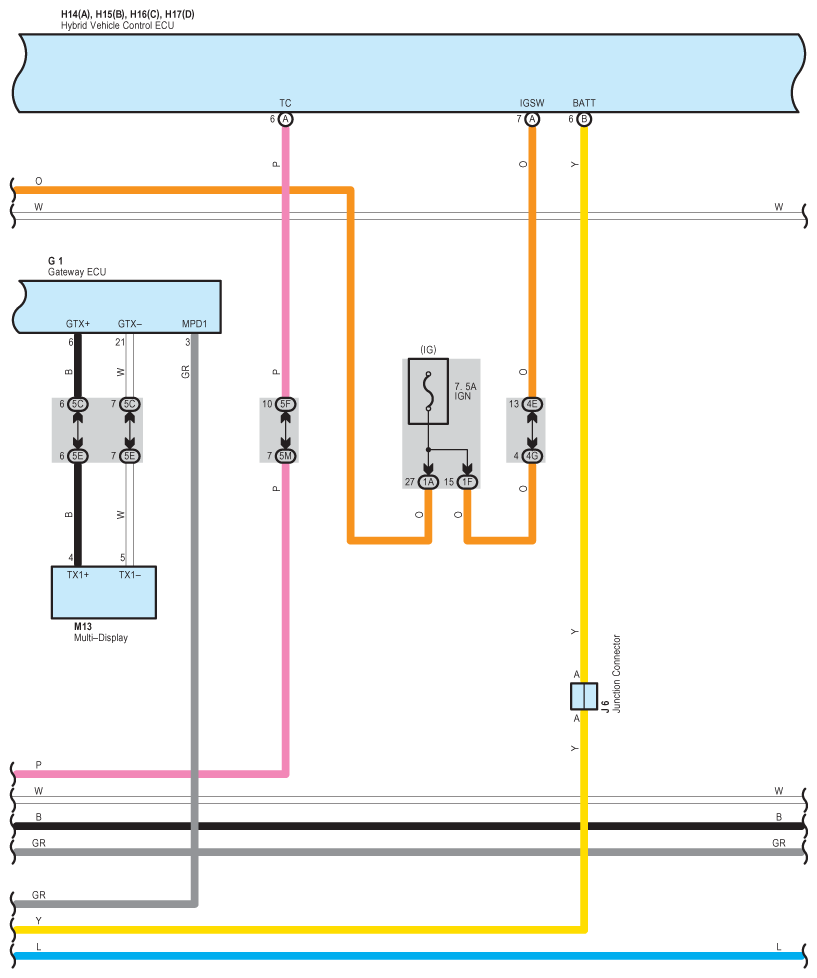

Fig 5: Shift Control System - Circuit Diagram (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

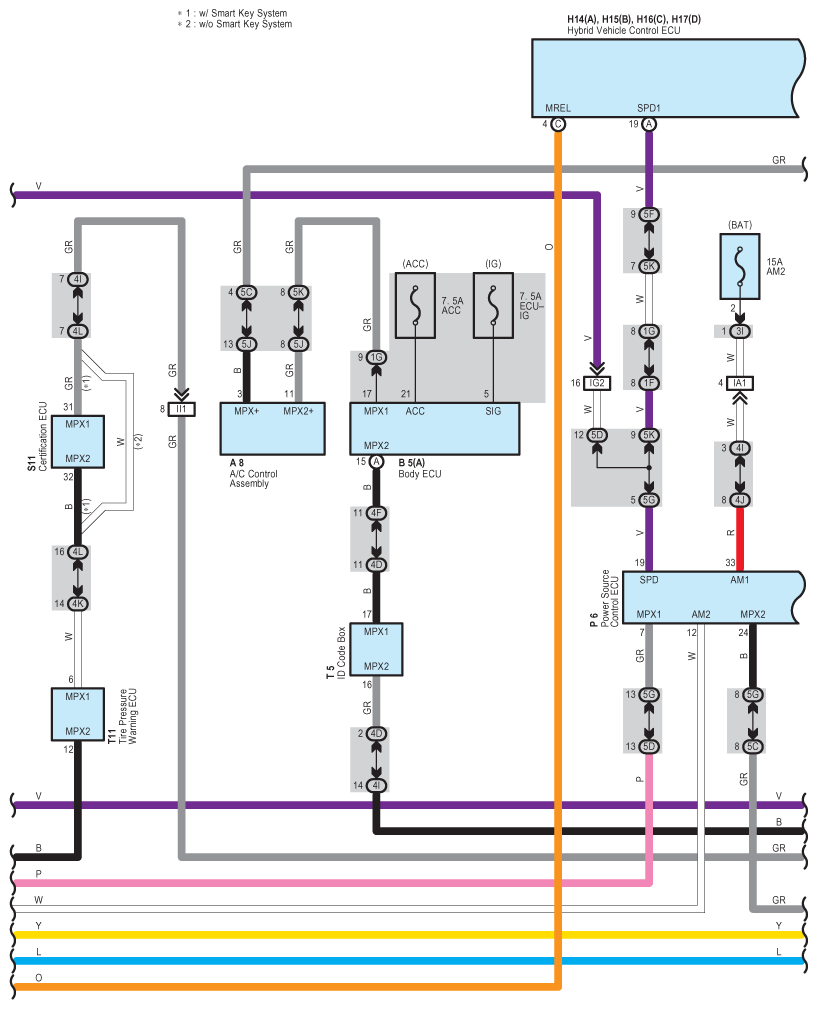

Fig 6: Shift Control System - Circuit Diagram (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

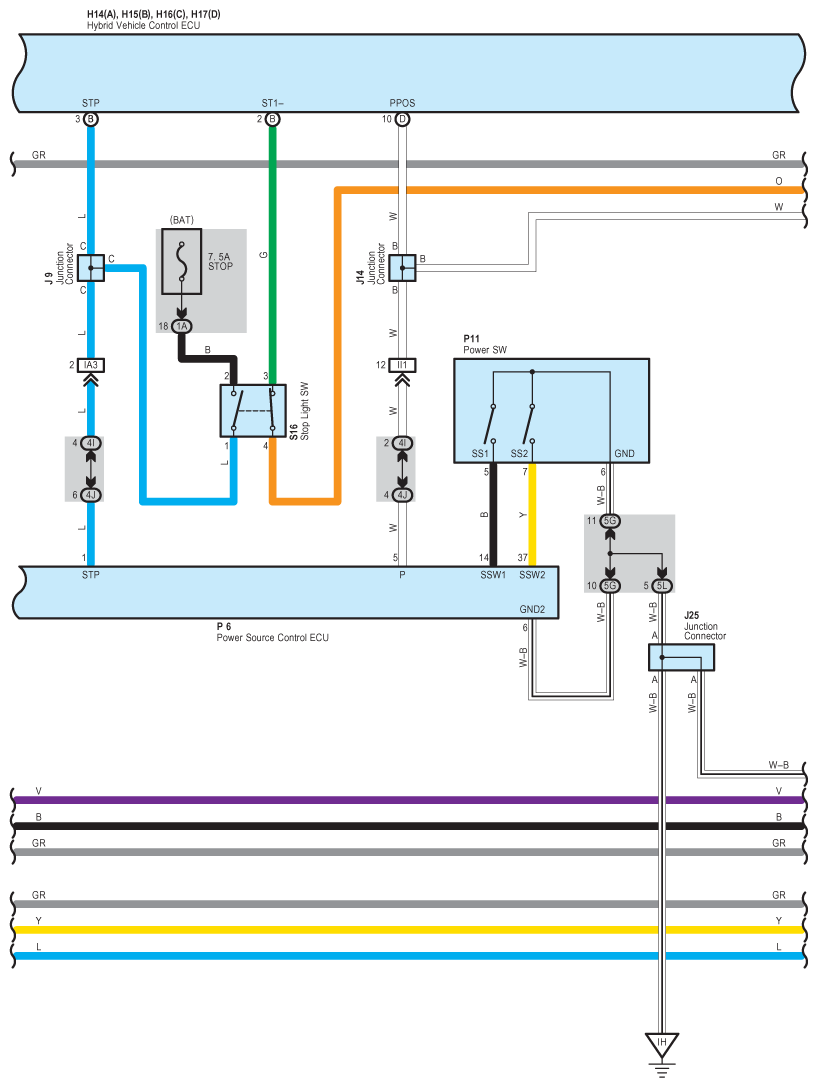

Fig 7: Shift Control System - Circuit Diagram (7 Of 10)

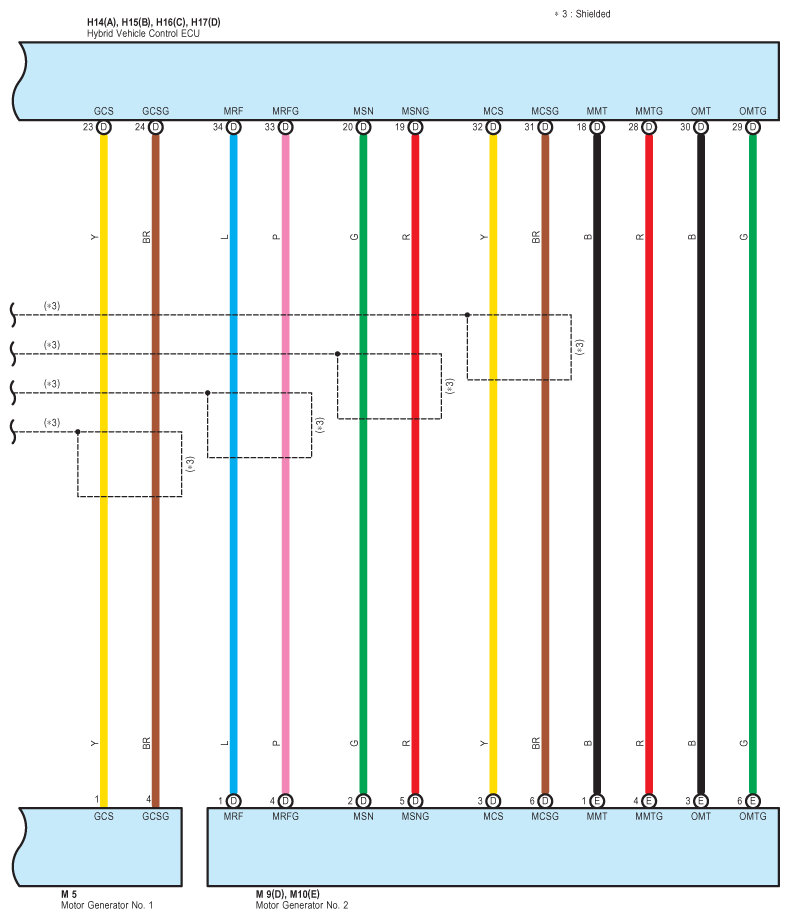

Fig 8: Shift Control System - Circuit Diagram (8 Of 10)

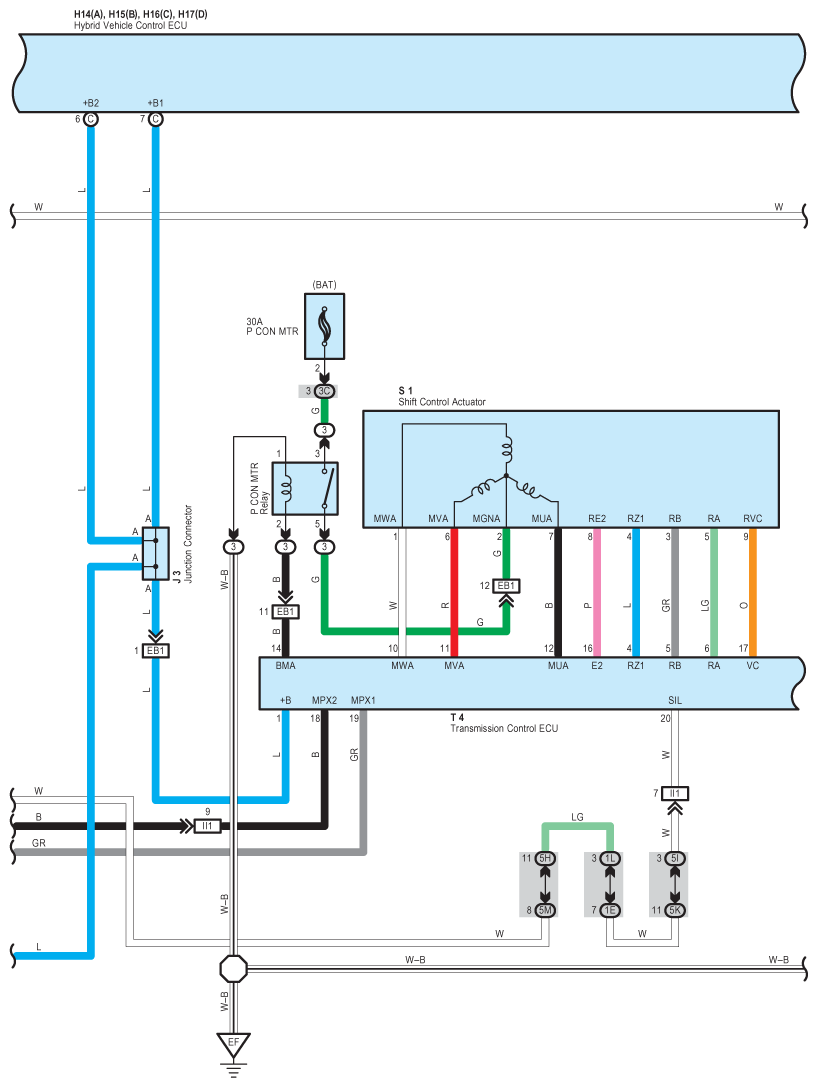

Fig 9: Shift Control System - Circuit Diagram (9 Of 10)

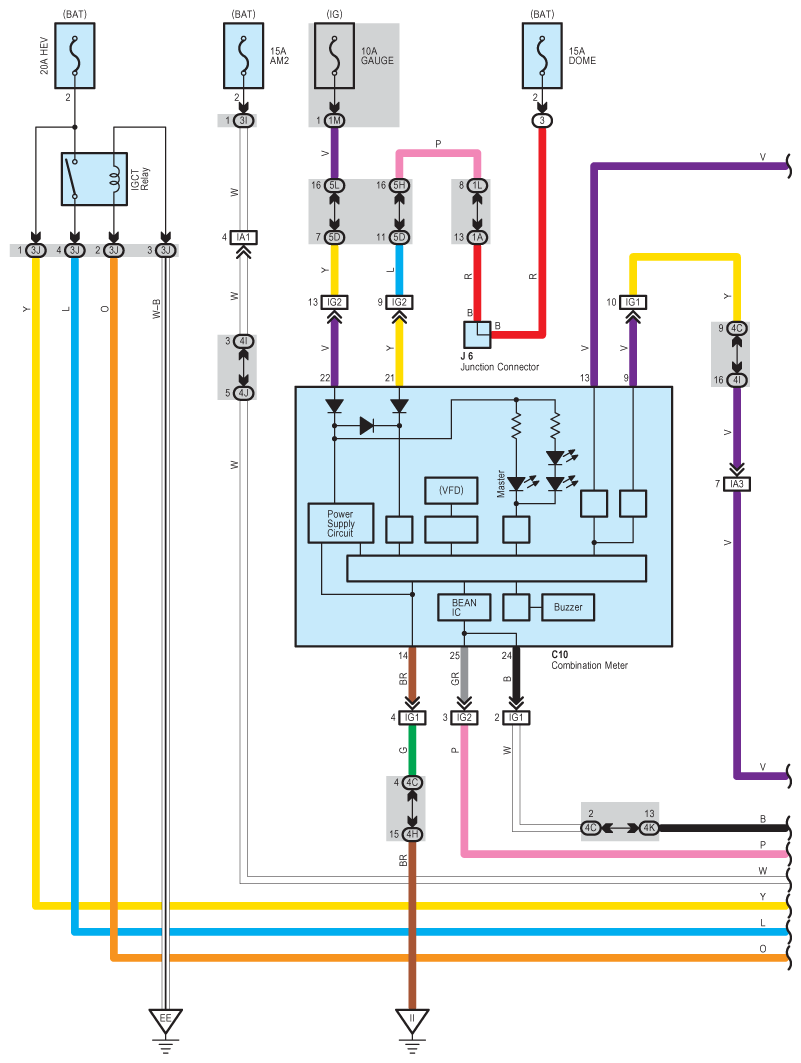

Fig 10: Shift Control System - Circuit Diagram (10 Of 10)
