Theft Deterrent: Notes

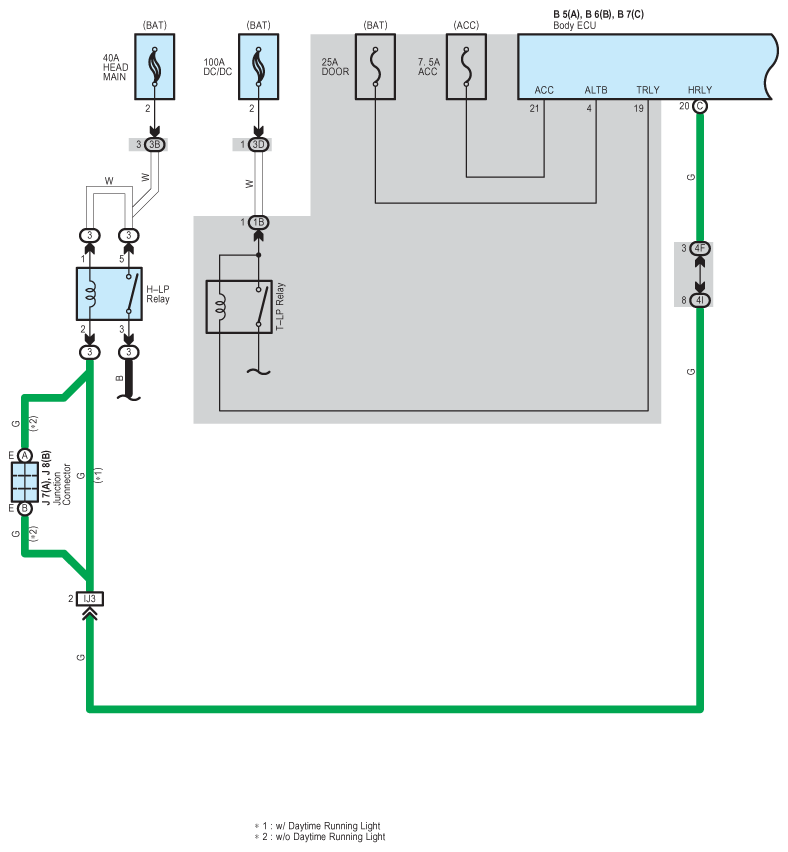

Fig 1: Theft Deterrent - Circuit Diagram (1 Of 7)

G07611025

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

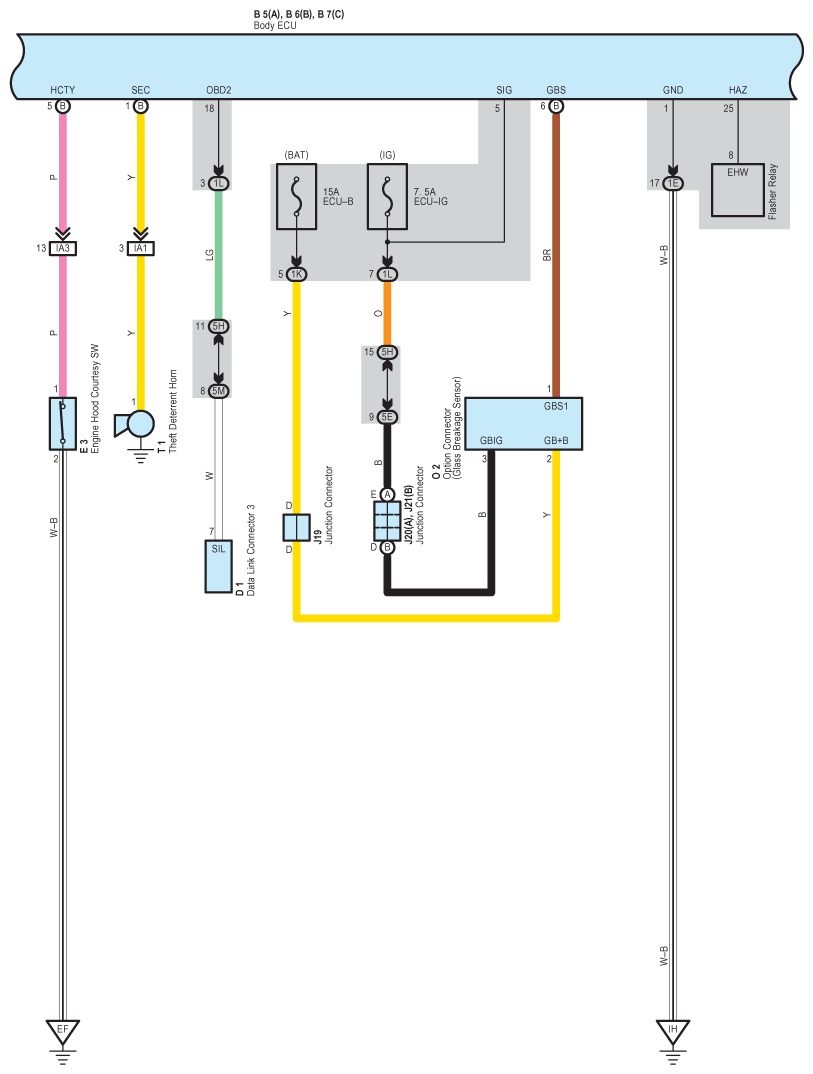

Fig 2: Theft Deterrent - Circuit Diagram (2 Of 7)

G07611026

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

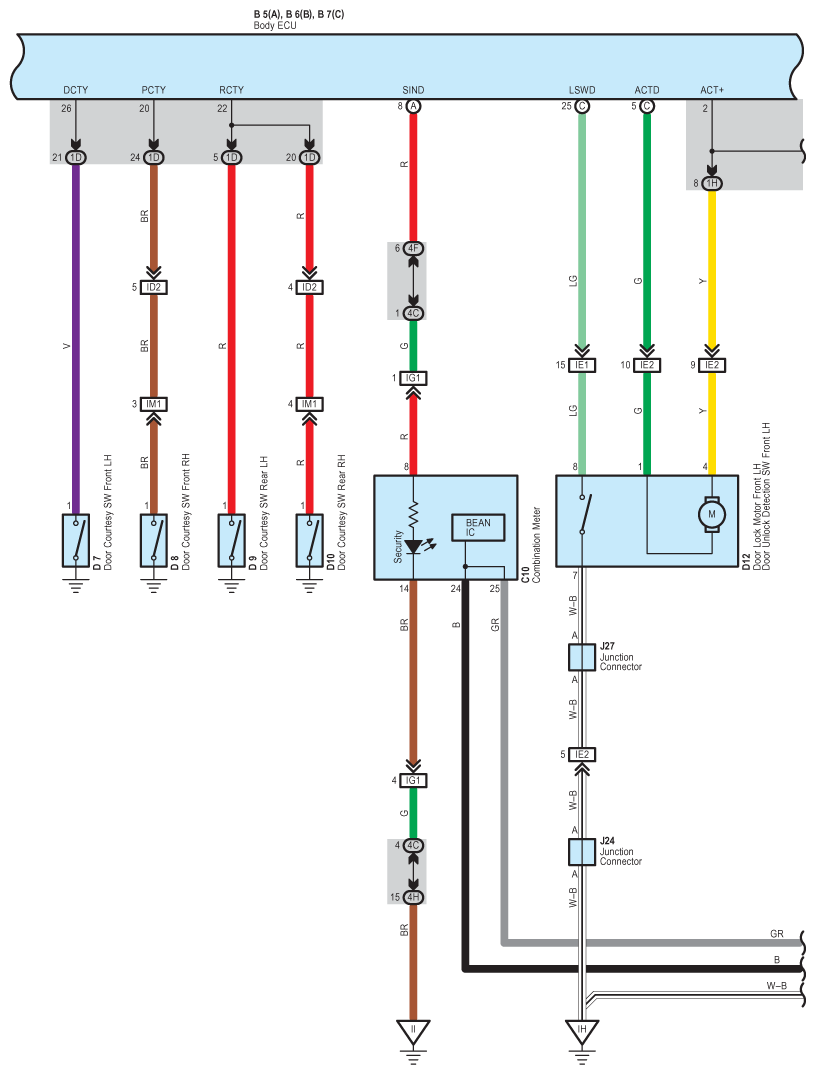

Fig 3: Theft Deterrent - Circuit Diagram (3 Of 7)

G07611027

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

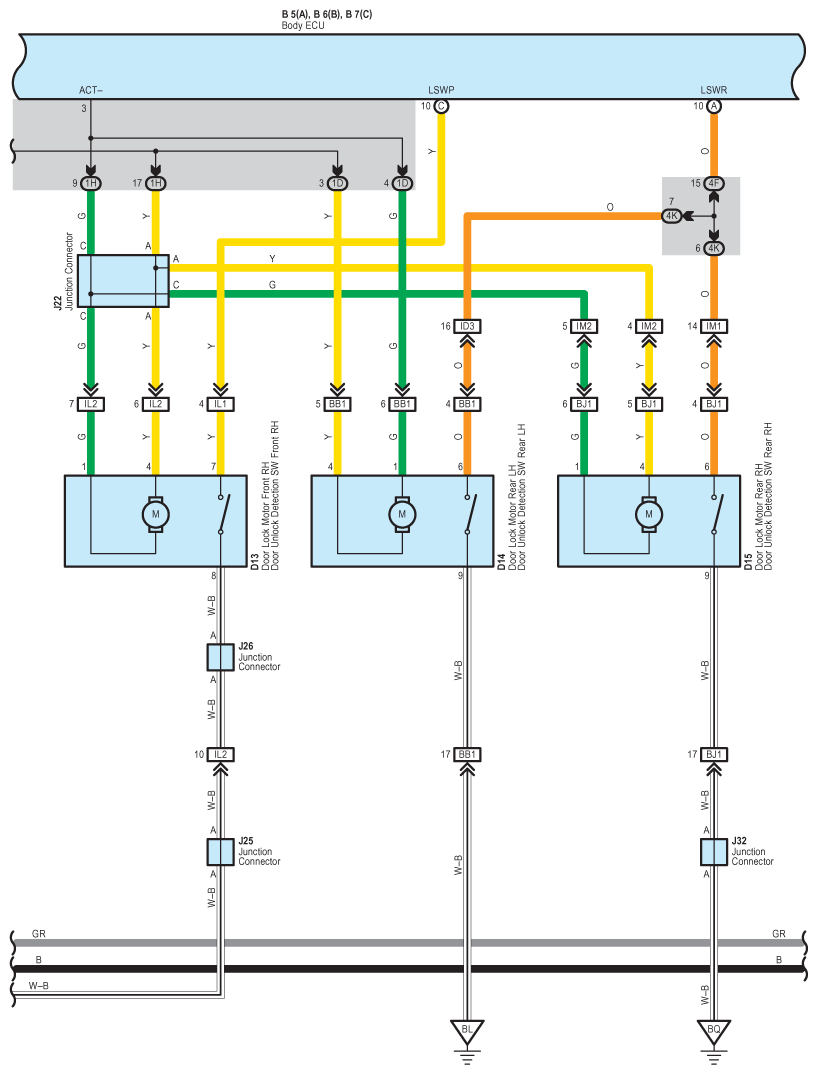

Fig 4: Theft Deterrent - Circuit Diagram (4 Of 7)

G07611028

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

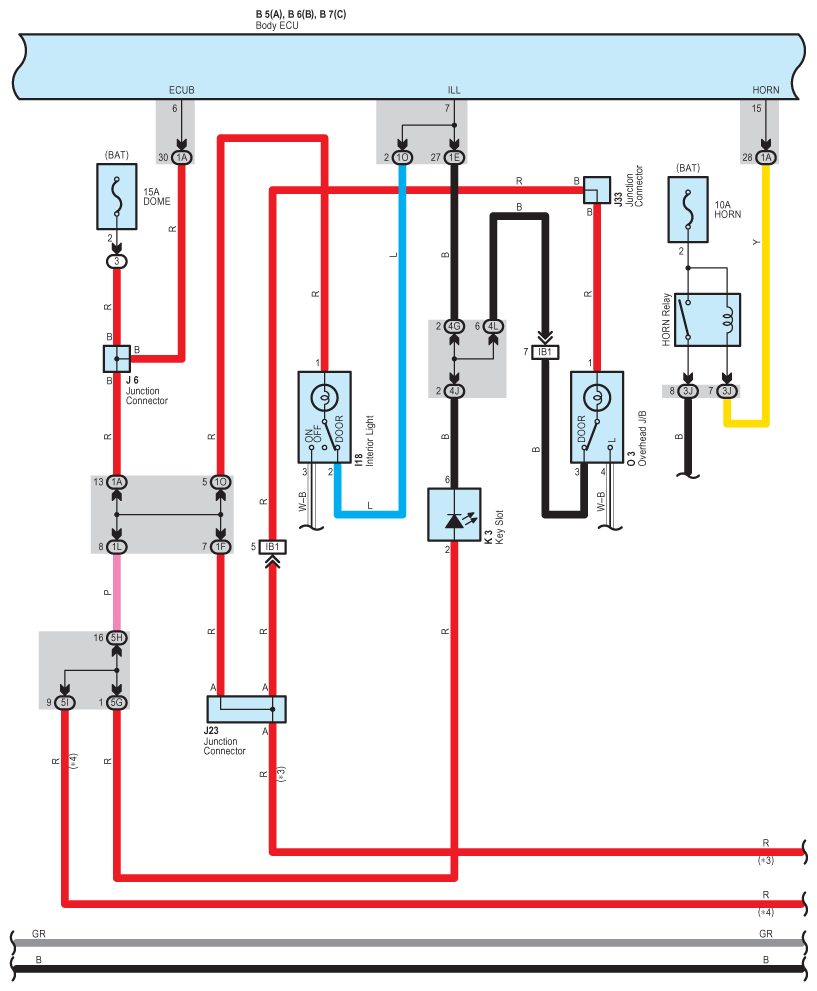

Fig 5: Theft Deterrent - Circuit Diagram (5 Of 7)

G07611029

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

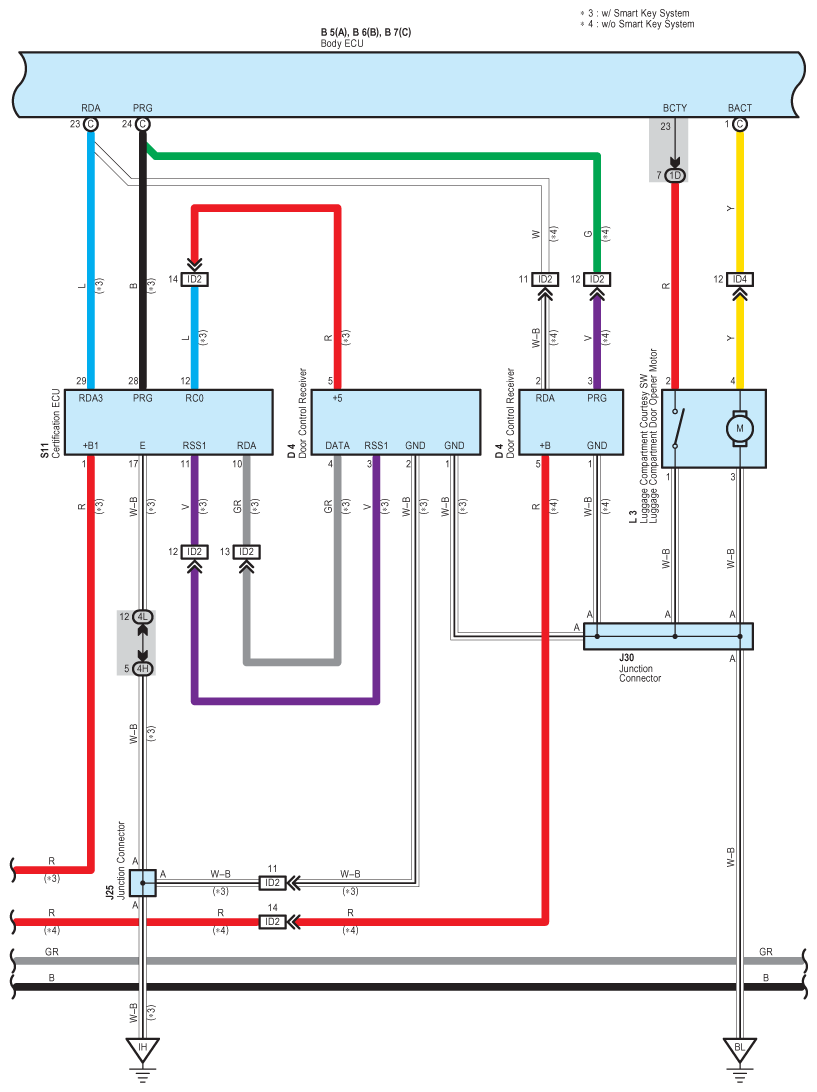

Fig 6: Theft Deterrent - Circuit Diagram (6 Of 7)

G07611030

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

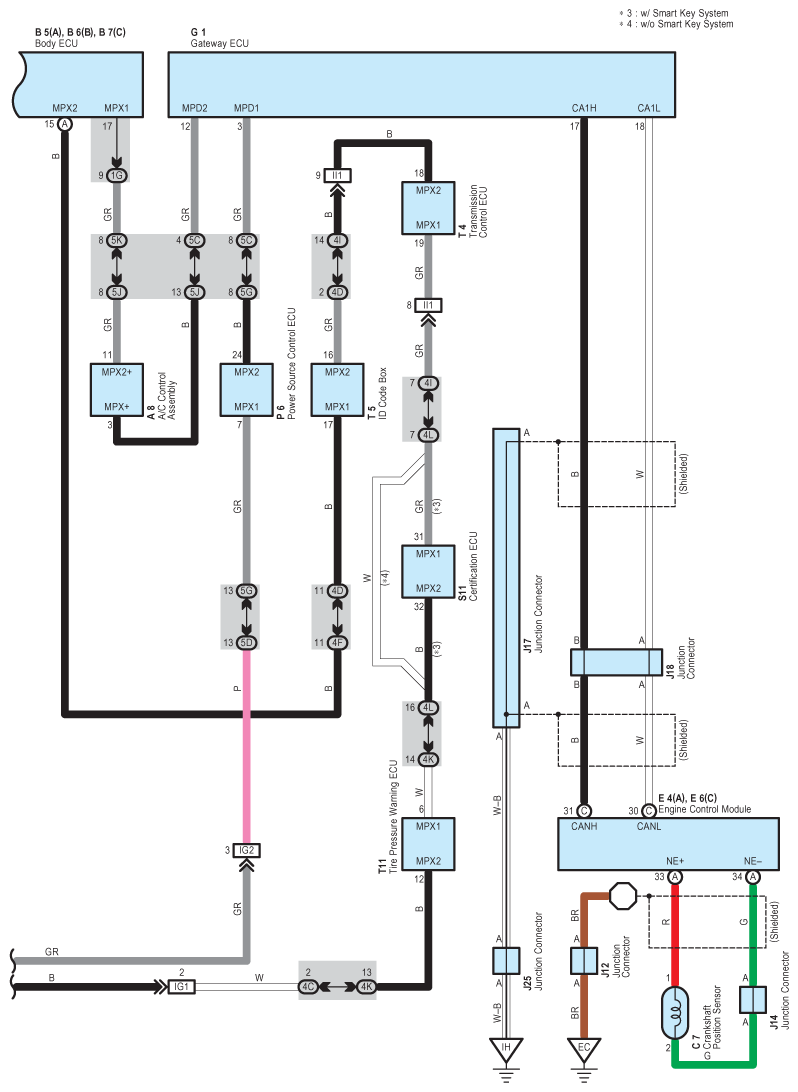

Fig 7: Theft Deterrent - Circuit Diagram (7 Of 7)

G07611031

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
