Repair Instruction: Precaution

1. HINTS ON OPERATIONS

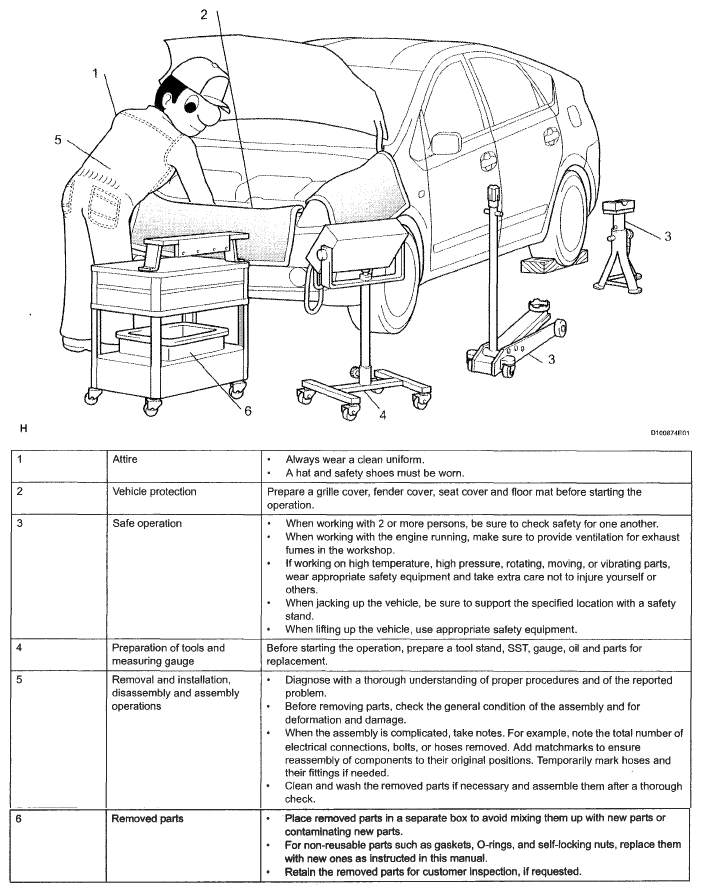

   Fig 1: Identifying Repair Precaution

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. JACKING UP AND SUPPORTING VEHICLE
   1. Care must be taken when jacking up and supporting the vehicle. Be sure to lift and support the vehicle at the proper locations.
3. PRECOATED PARTS
   1. Precoated parts are bolts and nuts that are coated with a seal lock adhesive at the factory.
   2. If a precoated part is retightened, loosened or moved in any way, it must be re-coated with the specified adhesive.
   3. When reusing a precoated part, clean off the old adhesive and dry the part with compressed air. Then apply new seal lock adhesive appropriate to that part.
   4. Some seal lock agents harden slowly. You may have to wait for the seal lock adhesive to harden.
      Fig 2: Identifying Seal Lock Adhesive On Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. GASKETS
   1. When necessary, use a sealer on gaskets to prevent leaks.
5. BOLTS, NUTS AND SCREWS
   1. Carefully follow all the specifications for tightening torques. Always use a torque wrench.
6. FUSES
   1. When inspecting a fuse, check that the wire of the fuse is not broken.
   2. If the wire of a fuse is broken, confirm that there are no shorts in its circuit.
      SYMBOL CHART



      Illustration	Symbol	Part Name	Abbreviation
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	FUSE	FUSE
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	MEDIUM CURRENT FUSE	M-FUSE
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	HIGH CURRENT FUSE	H-FUSE
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	FUSIBLE LINK	FL
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	CIRCUIT BREAKER	CB

   3. When a fuse is replaced, a fuse with the same amperage rating must be used.
   Fig 3: Identifying Fuse Condition
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. CLIPS
   1. The removal and installation methods of typical clips used for vehicle body parts are shown in the table below.

      HINT:

      If clips are damaged during a procedure, always replace the clips with new clips.

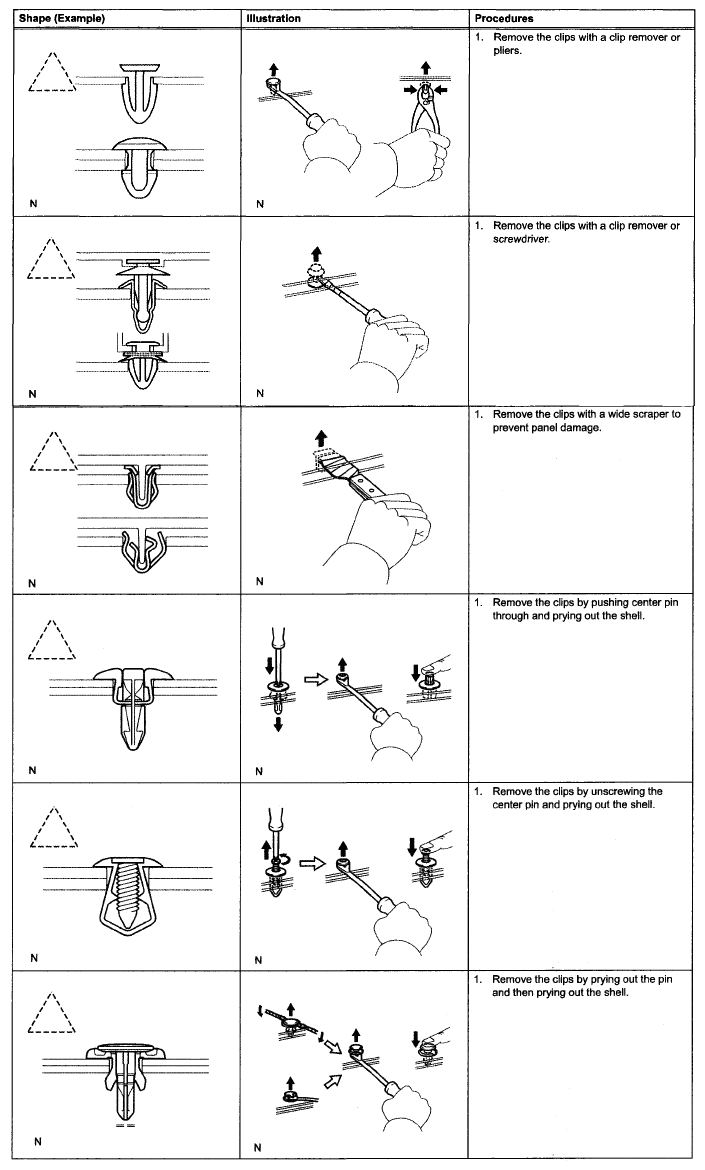

      Fig 4: Clips Removal And Installation Methods

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. CLAWS
   1. The removal and installation methods of typical claws used for vehicle body parts are shown in the table below.

      HINT:

      If claws of caps or covers are damaged during a procedure, always replace the caps or covers with new ones.

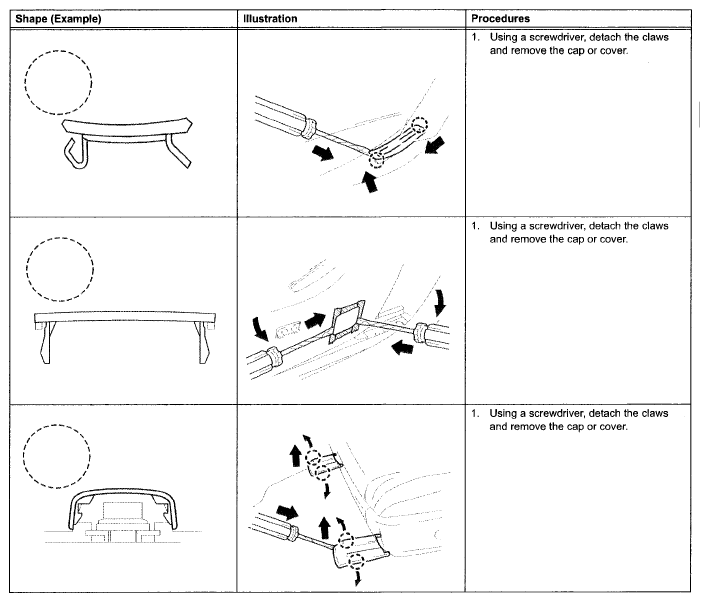

      Fig 5: Claws Removal And Installation Methods

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVAL AND INSTALLATION OF VACUUM HOSES
   1. To disconnect a vacuum hose, pull and twist from the end of the hose. Do not pull from the middle of the hose as this may cause damage.
      Fig 6: Precaution For Vacuum Hose

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. When disconnecting vacuum hoses, use tags to identify where they should be reconnected.
   3. After completing any hose related repairs, double check that the vacuum hoses are properly connected. The label under the hood shows the proper layout.
   4. When using a vacuum gauge, never force the hose onto a connector that is too large. If a hose has been stretched, it may leak air. Use a step-down adapter if necessary.
      Fig 7: Applying Tag On Vacuum Hoses

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. TORQUE WHEN USING TORQUE WRENCH WITH EXTENSION TOOL
    Fig 8: Identifying Torque Wrench Dimension

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Use the formula below to calculate special torque values for situations where SST or an extension tool is combined with the torque wrench.

       Formula:

       T ¹  = L2 / (L1 + L2) * T

       FORMULA CHART



       T1	Reading of torque wrench {N*m (kgf*cm, ft.*lbf)}
       T	Torque {N*m (kgf*cm, ft.*lbf)}
       L1	Length of SST or extension tool {cm (in.)}
       L2	Length of torque wrench {cm (in.)}

       Fig 9: Identifying Torque Wrench Dimension

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       NOTE: If an extension tool or SST is combined with a torque wrench and the wrench is used to tighten to a torque specification in this article, the actual torque will be excessive and parts will be damaged.

1. Engineers must undergo special training to be able to perform high-voltage system inspection and servicing.
2. All high-voltage wire harness connectors are colored orange. The HV battery and other high-voltage components have "High Voltage" caution labels. Do not carelessly touch these wires and components.
3. Before inspecting or servicing the high-voltage system, be sure to follow safety measures, such as wearing insulated gloves and removing the service plug to prevent electrocution. Carry the removed service plug in your pocket to prevent other technicians from reinstalling it while you are servicing the vehicle.
4. After removing the service plug, wait 5 minutes before touching any of the high-voltage connectors and terminals.

   HINT:

   5 minutes are required to discharge the high-voltage condenser inside the inverter.

5. Be sure to install the service plug before starting the hybrid system. Starting the hybrid system with the service plug removed may damage the vehicle.
   Fig 10: Locating Service Plug

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Before wearing insulated gloves, make sure that they are not cracked, ruptured, torn, or damaged in any way. Do not wear wet insulated gloves.
7. When servicing the vehicle, do not carry metal objects like mechanical pencils or scales that can be dropped accidentally and cause a short circuit.
8. Before touching a bare high-voltage terminal, wear insulated gloves and use an electrical tester to ensure that the terminal is not charged with electricity (approximately 0 V).
   Fig 11: Inspecting Insulated Gloves

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. After disconnecting or exposing a high-voltage connector or terminal, insulate it immediately using insulation tape.
10. The screw of a high-voltage terminal should be tightened firmly to the specified torque. Both insufficient and excessive torque can cause failure.
11. Use the "CAUTION: HIGH VOLTAGE. DO NOT TOUCH DURING OPERATION." sign to notify other engineers that a high-voltage system is being inspected and/or repaired.
12. Do not place the battery upside down while removing and installing it.
    Fig 12: Precaution For Disconnecting Or Exposing High-Voltage Connector

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. After servicing the high-voltage system and before reinstalling the service plug, check again that you have not left a part or tool inside, that the high-voltage terminal screws are firmly tightened, and that the connectors are correctly connected.

The PRIUS automatically turns the engine ON and OFF when the READY light on the instrument panel is ON. To avoid injury, remove the key from the key slot before inspecting or servicing the engine compartment.

1. Perform this procedure when the auxiliary battery is fully depleted.

   HINT:

   The following problems indicate that the auxiliary battery is depleted:

   Fig 13: Caution Indication Label

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • No display appears on the instrument panel when the power switch's power mode is set to ON (IG).
   • The hybrid system does not start.
   • The headlights are dim.
   • The sound from the horn is weak.
   NOTE: Never use a quick charger.
   1. Push the "P" position switch, and engage the parking brake.
   2. Remove the key from the key slot.
   3. Using a booster cable, connect the rescue vehicle's 12 V battery positive (+) lead to the stalled vehicle's relay block positive (+) terminal and the negative (-) lead to the suspension support's nut on the right side.
   4. Start the engine of the rescue vehicle and run the engine at a speed slightly higher than the idling speed for 5 minutes to charge the auxiliary battery of the stalled vehicle.
      Fig 14: Connecting Booster Cable

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Depress the brake pedal and push the power switch to start the hybrid system.

      If the hybrid system fails to start and the master light turns ON, the HV battery may be depleted.

   6. Disconnect the booster cable in the reverse order of the connection procedure.
      NOTE: If the auxiliary battery needs to be replaced, replace it only with a 12 V battery specially designed for use with the PRIUS.
      Fig 15: Identifying Battery Indication Label

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Perform this procedure when the HV battery is depleted.
   NOTE: Leaving the vehicle untouched for 2 to 3 months may deplete the HV battery. If the battery is fully depleted, replace the HV battery.

1. Items to be prepared for operation at the site of the accident
   • Protective clothing (insulated gloves, rubber gloves, goggles, and safety shoes)
   • Saturated boric acid solution 20 L (obtain 800 g of boric acid powder, put it into a container, and dissolve it in water)
   • Red litmus paper
   • ABC fire extinguisher (effective against both oil flames and electrical flames)
   • Shop rags (for wiping off the electrolyte)
   • Vinyl tape (for insulating cable)
   • Electrical tester
2. Actions to be taken at the accident site
   1. Wear insulated or rubber gloves, goggles and safety shoes.
   2. Do not touch a bare cable that could be a high voltage cable. If the cable must be touched or if accidental contact is unavoidable, follow these instructions: 1) wear insulated or rubber gloves and goggles, 2) measure the voltage between the cable and the body ground using an electrical tester, and 3) insulate the cable using vinyl tape.
   3. If the vehicle catches on fire, use an ABC fire extinguisher to extinguish the fire. Trying to extinguish a fire using only a small amount of water can be more dangerous than effective. Use a substantial amount of water or wait for fire fighters.
   4. Visually check the HV battery and immediate area for any electrolyte leakage. Do not touch any leaked liquid because it could be a highly alkaline electrolyte. Wear rubber gloves and goggles, and then apply red litmus paper to the leak. If the paper turns blue, the liquid must be neutralized before wiping. Neutralize the liquid using the following procedures: 1) apply saturated boric acid solution to the liquid, and 2) reapply red litmus paper and make sure it does not turn blue. Repeat steps  1 and  2 above until the paper does not turn blue. Then, wipe the neutralized liquid with a shop rag.
   5. If damage to any of the high-voltage components and cables is suspected, cut the high-voltage circuit using the procedure below.

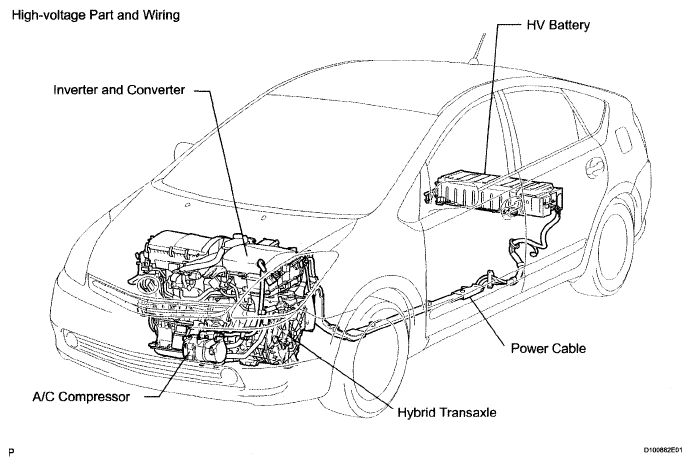

      Fig 16: Identifying High-Voltage Part And Wiring

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Push the "P" position switch and engage the parking brake.
      2. Remove the key from the key slot. Then disconnect the negative (-) terminal of the auxiliary battery.
      3. Remove the service plug while wearing insulated gloves.
         CAUTION: Do not turn the power switch on while removing the service plug.
         Fig 17: Identifying Service Plug

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
         NOTE: If the service plug cannot be removed due to damage to the rear portion of the vehicle, remove the HV fuse or power integration (IGCT relay) instead.
3. Moving the damaged vehicle

   HINT:

   If any of the following applies, tow the vehicle away using a tow truck.

   • One or more of the high-voltage components and cables are damaged.
   • The driving, traction, or fuel system is damaged.

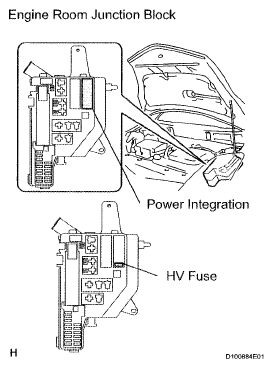

     Fig 18: Identifying Engine Room Junction Block

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • The READY light is not illuminated when you start the engine.
   NOTE:

   • Before towing the vehicle away using a tow truck, disconnect the cable from the negative (-) terminal of the auxiliary battery and remove the service plug. Only if none of the above applies and there are no problems that might affect driving, drive the vehicle away from the accident site to a safe place nearby.
   • Perform the procedure below if the READY light turns off, or there are abnormal noises, unusual smells, or strong vibrations while driving:
     Fig 19: Identifying READY Light

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
     1. Park the vehicle in a safe place.
     2. Push the "P" position switch and engage the parking brake.
     3. Disconnect the power cable from the negative (-) terminal of the auxiliary battery.
     4. Remove the service plug while wearing insulated gloves.
4. Actions required after moving the damaged vehicle If you see any liquid on the road surface, it could be a highly alkaline electrolyte leakage.

   Wear rubber gloves and goggles, and apply red litmus paper to the leak. If the paper turns blue, the liquid must be neutralized before wiping. Neutralize the liquid using the following procedures: 1) apply saturated boric acid solution to the liquid, and 2) reapply red litmus paper and make sure it does not turn blue. Repeat steps  1 and  2 above until the paper does not turn blue. Then wipe the neutralized liquid with a shop rag.

5. Items to be prepared (when repairing damaged vehicles)
   • Protective clothing (insulated gloves, rubber gloves, goggles, and safety shoes)
   • Saturated boric acid solution 20 L (obtain 800 g of boric acid powder, put it into a container, and dissolve it in water)
   • Red litmus paper
   • Shop rags (for wiping off the electrolyte)
   • Vinyl tape (for insulating cable)
   • Electrical tester
6. Precautions to be observed when servicing the damaged vehicle
   1. Wear insulated or rubber gloves, goggles, and safety shoes.
   2. Do not touch a bare cable that could be a high voltage cable. If the cable must be touched or if accidental contact is unavailable, follow these instructions: 1) wear insulated or rubber gloves and goggles, 2) measure the voltage between the cable and the body ground using an electrical tester, and 3) insulate the cable using vinyl tape.
   3. Check the HV battery and immediate area for any electrolyte leakage. Do not touch any leaked liquid because it could be a highly alkaline electrolyte. Wear rubber gloves and goggles, and then apply red litmus paper to the leak. If the paper turns blue, the liquid must be neutralized before wiping. Neutralize the liquid using the following procedures:
      1. apply saturated boric acid solution to the liquid, and 2) reapply red litmus paper and make sure it does not turn blue. Repeat steps  1 and  2 above until the paper does not turn blue. Then wipe the neutralized liquid with a shop rag.
   4. If the electrolyte adheres to your skin, wash the skin immediately using saturated boric acid solution or a large amount of water. If the electrolyte adheres to an article of clothing, take the clothing off immediately.
   5. If the electrolyte comes in contact with your eyes, call out loudly for help. Do not rub your eyes. Wash them with a large amount of water and seek medical care immediately.
   6. If damage to any of the high-voltage components and cables is suspected, cut the high-voltage circuit using the procedure below.
      1. Push the "P" position switch and engage the parking brake.
      2. Remove the key from the key slot. Then disconnect the power cable from the negative (-) terminal of the auxiliary battery.
      3. Wear insulated gloves, and then remove the service plug.
         NOTE: If you cannot remove the service plug due to damage to the rear portion of the vehicle, remove the HV fuse or IGCT relay instead.
7. Precautions to be taken when disposing of the vehicle

   When scrapping the vehicle, remove the HV battery from the vehicle and return it to the location specified by the manufacturer. The same applies to any damaged HV battery.

8. After removing the battery, keep it away from water. Water may heat the battery, which results in fire.
9. Precautions to be observed when towing

   Tow the damaged vehicle with its front wheels or its front and rear wheels lifted off the ground.

   NOTE: Towing the damaged vehicle with its front wheels on the ground may cause the motor to generate electricity. This electricity could, depending on the nature of the damage, leak and cause a fire.
10. Towing with 4 wheels on the ground
    NOTE:

    • If the damaged vehicle needs to be towed using a rope, do not exceed 30 km/h and tow only for very short distances. For example, towing from the accident site to a nearby tow truck is permissible.
    • Change the power switch's power mode to ON (IG) and shift the selector lever to the N position.
    • If any abnormality is present in the damaged vehicle during towing, stop towing immediately.
11. Towing eyelet
    1. Install the hook.
    2. Hook a rope on to the illustrated area for towing.

The PRIUS is equipped with a Supplemental Restraint System (SRS). The SRS of this vehicle consists of the following:

1. Steering pad
2. Front passenger airbag assembly
   Fig 20: Identifying Hook

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Curtain shield airbag assembly
4. Front seat side airbag assembly
5. Front seat outer belt assembly with pretensioner
6. Front airbag sensor assembly
7. Side airbag sensor assembly
8. Rear airbag sensor assembly

1. SPIRAL CABLE
   1. The steering wheel must be fitted correctly to the steering column with the spiral cable at the neutral position, as cable disconnection and other problems may occur. Refer to the information about correct installation of the steering wheel.
2. AIRBAG ASSEMBLY
   1. Airbag assembly with pad:

      Always place a removed or new airbag assembly with the pad surface facing upward. Placing the airbag assembly with the airbag inflation direction facing downward could cause a serious accident if the airbag inflates. Also, do not place anything on top of the airbag assembly.

   2. Never measure the resistance of the airbag squib. This may cause the airbag to inflate, which could cause a serious injury.
   3. Grease or detergents of any kind should not be applied to the airbag assembly.
   4. Store the airbag assembly in an area where the ambient temperature is below 93°C (200°F), the humidity is not high and there is no electrical noise.
   5. When using electric welding anywhere on the vehicle, disconnect the center airbag sensor assembly connectors. These connectors contain shorting springs. This feature reduces the possibility of the airbag deploying due to currents entering the squib wiring.
   6. When disposing of the vehicle or the airbag assembly by itself, the airbag should be deployed using SST before disposal. Activate the airbag in a safe place away from electrical noise.
3. SEAT OUTER BELT ASSEMBLY WITH PRETENSIONER
   1. Never measure the resistance of the seat outer belt. This may cause the pretensioner of the seat outer belt to activate, which could cause a serious injury.
   2. Never install the seat outer belt on another vehicle.
   3. Store the seat outer belt in an area where the ambient temperature is below 80°C (176°F), the humidity is not high and there is no electrical noise.
   4. When using electric welding anywhere on the vehicle, disconnect the airbag ECU connectors. These connectors contain shorting springs. This feature reduces the possibility of the pretensioner deploying due to currents entering the squib wiring.
   5. When disposing of a vehicle or the seat outer belt by itself, the pretensioner should be activated before disposal. Activate the pretensioner in a safe place away from electrical noise.
   6. As the seat outer belt is hot after the pretensioner is activated, allow some time for it to cool down sufficiently before disposal. Never apply water to try to cool down the seat outer belt.
   7. Grease, detergents, oil or water should not be applied to the seat outer belt.
4. CENTER AIRBAG SENSOR ASSEMBLY
   1. Never reuse an center airbag sensor assembly that has been involved in a collision where the SRS has deployed.
   2. The connectors to the center airbag sensor assembly should be connected or disconnected with the sensor placed on the floor. If the connectors are connected or disconnected while the center airbag sensor assembly is not placed on the floor, the SRS may activate.
   3. Work must be started at least 90 seconds after the power switch is turned OFF and the cable is disconnected from the negative (-) battery terminal, even if only loosening the set bolts of the center airbag sensor assembly.
5. WIRE HARNESS AND CONNECTOR
   1. All the connectors in the system are yellow. If the SRS wire harness becomes disconnected or the connector becomes broken, repair or replace it.

1. REMOVAL AND INSTALLATION OF BATTERY TERMINAL
   NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
   1. Before performing electronic work, disconnect the cable from the negative (-) battery terminal to prevent component and wire damage caused by accidental short circuits.
      Fig 21: Disconnecting Cable From Negative (-) Battery Terminal

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. When disconnecting the cable, turn the power switch OFF and headlight dimmer switch OFF and loosen the cable nut completely. Perform these operations without twisting or prying the cable. Then disconnect the cable.
   3. Clock settings, radio settings, audio system memory, DTCs and other data are erased when the cable is disconnected from the negative (-) battery terminal. Write down any necessary data before disconnecting the cable.
2. HANDLING OF ELECTRONIC PARTS
   1. Do not open the cover or case of the ECU unless absolutely necessary. If the IC terminals are touched, the IC may be rendered inoperative by static electricity.
   2. Do not pull the wires when disconnecting electronic connectors. Pull the connector.
   3. Be careful not to drop electronic components, such as sensors or relays. If they are dropped on a hard surface, they should be replaced.
   4. When cleaning the engine with steam, protect the electronic components, air filter and emission-related components from water.
      Fig 22: Precaution For Electronic Parts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Never use an impact wrench to remove or install temperature switches or temperature sensors.
   6. When measuring the resistance of a wire connector, insert the tester probe carefully to prevent terminals from bending.

1. PLACE FOR REMOVING AND INSTALLING FUEL SYSTEM PARTS
   1. Work in a location with good air ventilation that does not have welders, grinders, drills, electric motors, stoves, or any other ignition sources.
   2. Never work in a pit or near a pit as vaporized fuel will collect in those places.
2. REMOVING AND INSTALLING FUEL SYSTEM PARTS
   1. Prepare a fire extinguisher before starting the operation.
   2. To prevent static electricity, install a ground wire to the fuel changer, vehicle and fuel tank, and do not spray the surrounding area with water. Be careful when performing work in this area, as the work surface will become slippery. Do not clean up gasoline spills with water, as this may cause the gasoline to spread, and possibly create a fire hazard.
   3. Avoid using electric motors, working lights and other electric equipment that can cause sparks or high temperatures.
   4. Avoid using iron hammers as they may create sparks.
   5. Dispose of fuel-contaminated cloth separately using a fire resistant container.

1. If any metal particles enter inlet system parts, they may damage the engine.
2. When removing and installing inlet system parts, cover the openings of the removed parts and engine openings. Use gummed tape or other suitable materials.
3. When installing inlet system parts, check that no metal particles have entered the engine or the installed parts.
   Fig 23: Precaution For Removing And Installing Inlet System Parts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Before removing the hose, check the clamp position so that it can be reinstalled in the same position.
2. Replace any deformed or dented clamps with new ones.
3. When reusing a hose, attach the clamp on the clamp track portion of the hose.
4. For a spring type clamp, you may want to spread the tabs slightly after installation by pushing in the direction of the arrows as shown in the illustration.

1. Install the antenna as far away from the ECU and sensors of the vehicle electronic systems as possible.
   Fig 24: Checking Clamp Position

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install an antenna feeder at least 20 cm (7.87 in.) away from the ECU and sensors of the vehicle electronic systems. For details about ECU and sensor locations, refer to the section of the applicable components.
3. Keep the antenna and feeder separate from other wiring as much as possible. This will prevent signals from the communication equipment from affecting vehicle equipment and vice versa.
4. Check that the antenna and feeder are correctly adjusted.
   Fig 25: Checking Antenna And Feeder

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Do not install a high-powered mobile communication system.

1. NOTICES WHEN USING DRUM TESTER
   1. Before beginning testing, disable the VSC. To disable the VSC, turn the power switch OFF and connect SST to terminals 12 (TS) and 4 (CG) of the DLC3.

      SST 09843-18040

      NOTE:

      • Confirm that the VSC warning light blinks.
      • The VSC system will be reset when the engine is started.
      • For safety, secure the vehicle with restraint chains while using a wheel dynamometer.
        Fig 26: Identifying DLC3 Connector Terminals

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. NOTICES OF RELATED OPERATIONS TO VSC
   1. Do not carry out unnecessary installation and removal as it might affect the adjustment of VSC related parts.
   2. Be sure to follow the instructions for work preparation and final confirmation of proper operation of the VSC system.

1. Use only unleaded gasoline.
2. Avoid idling the engine for more than 20 minutes.
3. Avoid performing unnecessary spark jump tests.
   1. Perform a spark jump test only when absolutely necessary. Perform this test as rapidly as possible.
   2. While testing, never race the engine.
4. Avoid a prolonged engine compression measurement. Engine compression measurements must be performed as rapidly as possible.
5. Do not run the engine when the fuel tank is nearly empty. This may cause the engine to misfire and create an extra load on the converter.
