Steering Column Assembly: Disassembly

  1. REMOVE POWER STEERING MOTOR ASSEMBLY
    1. Remove the 2 clamps from the power steering motor and torque sensor wire harness.
      NOTE: Do not damage the clamps.
    2. Remove the 2 bolts and power steering motor.

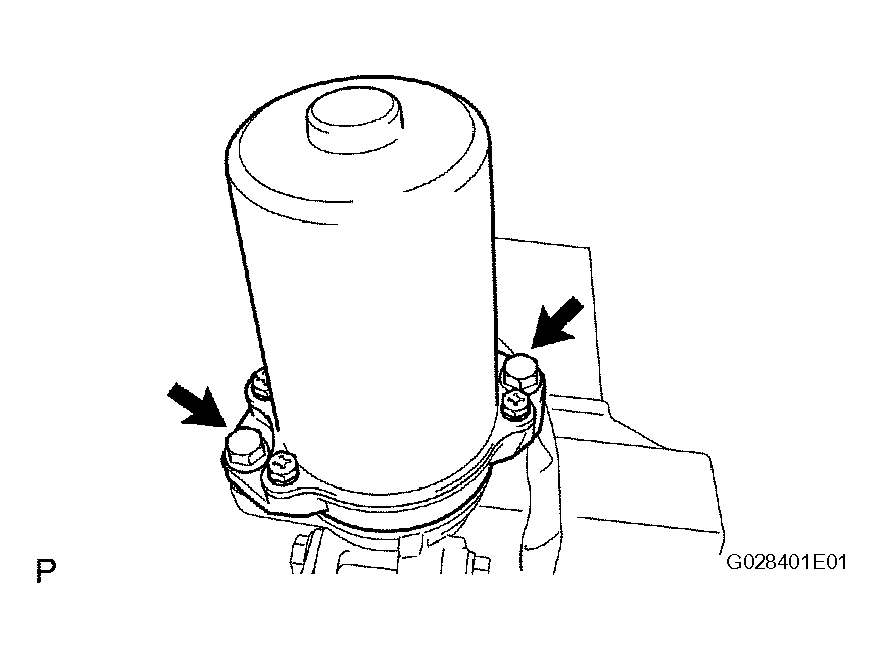

      Fig 1: Removing Power Steering Motor Bolts
      G04474926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
