Steering Control Ecu: Installation

  1. INSTALL POWER STEERING ECU
    1. Install the ECU with the 3 screws.

      Torque: 5.0 N*m (50 kgf*cm, 44 in.*lbf)

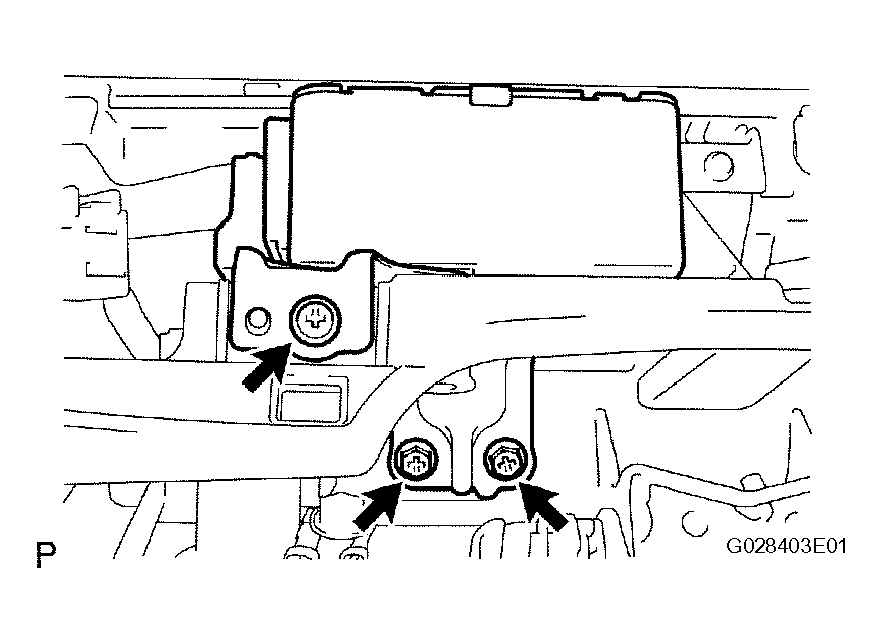

      Fig 1: Installing Power Steering ECU Bolts
      G04474936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 4 ECU connectors.
    3. Install the torque sensor wire harness clamp to the ECU.

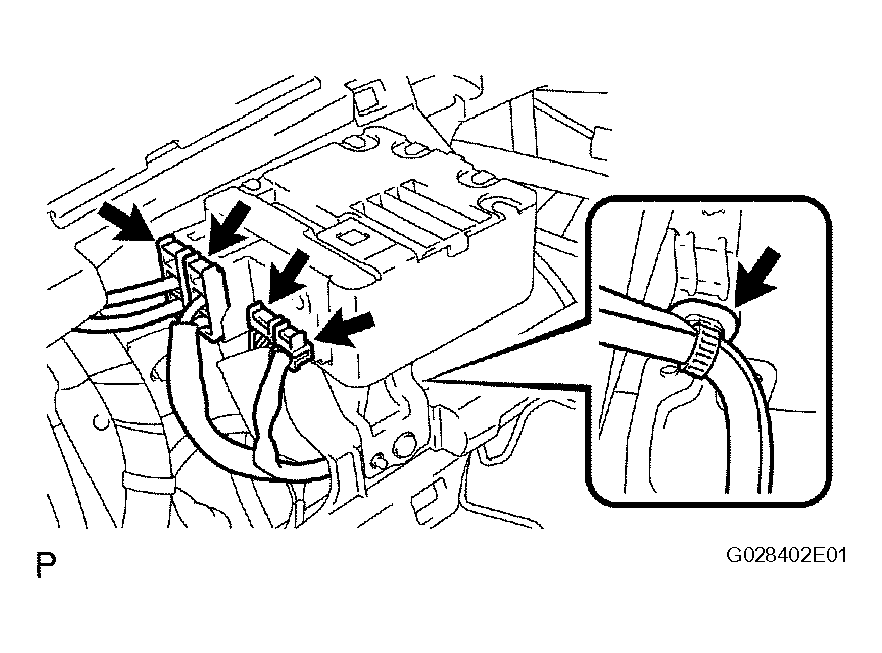

    Fig 2: Connecting Power Steering ECU Connectors
    G04474937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT PANEL SAFETY PAD (see  INSTALLATION  )
  3. INSTALL PASSENGER AIRBAG CONNECTOR (See  INSTALLATION  )
  4. INSTALL FRONT PILLAR GARNISH LH (See  INSTALLATION  )
  5. INSTALL FRONT PILLAR GARNISH RH (See  INSTALLATION  )
  6. INSTALL FRONT PILLAR GARNISH CORNER PIECE LH (See  INSTALLATION  )
  7. INSTALL FRONT PILLAR GARNISH CORNER PIECE RH (See  INSTALLATION  )
  8. INSTALL INSTRUMENT PANEL NO. 1 SPEAKER PANEL SUB-ASSEMBLY (w/ JBL Sound System)
  9. INSTALL GLOVE COMPARTMENT DOOR (see  INSTALLATION  )
  10. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (see  INSTALLATION  )
  11. INSTALL GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
  12. INSTALL MULTI-DISPLAY ASSEMBLY (See  INSTALLATION  )
  13. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY (see  INSTALLATION  )
  14. INSTALL NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY (see  INSTALLATION  )
  15. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See  INSTALLATION  )
  16. INSTALL INSTRUMENT PANEL FINISH PANEL UPPER SUB-ASSEMBLY (See  INSTALLATION  )
  17. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER SUB-ASSEMBLY (See  INSTALLATION  )
  18. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY (See  INSTALLATION  )
  19. CONNECT CABLE TO BATTERY NEGATIVE TERMINAL
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  20. INSTALL NO. 3 REAR FLOOR BOARD
  21. INSTALL REAR DECK FLOOR BOX
  22. INSTALL NO. 2 REAR FLOOR BOARD
  23. INSPECT SRS WARNING LIGHT
    1. Inspect the SRS warning light (see DIAGNOSIS SYSTEM ).
  24. PERFORM CALIBRATION
    1. Perform CALIBRATION .
