Rear Speed Sensor: Components

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Rear Speed Sensor Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

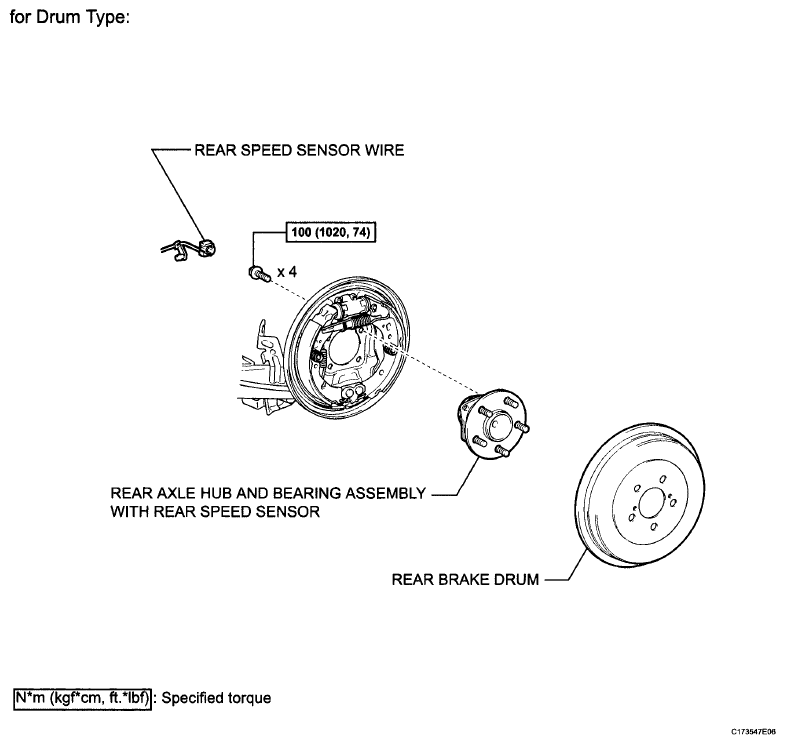

Fig 2: Rear Speed Sensor Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

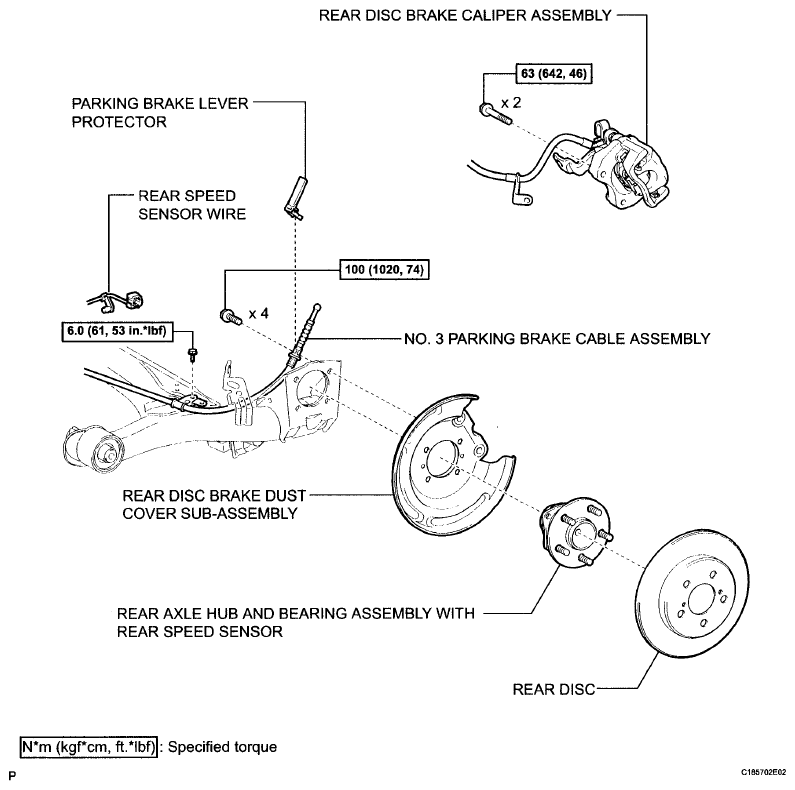

Fig 3: Rear Speed Sensor Replacement Components With Torque Specifications (3 Of 4)

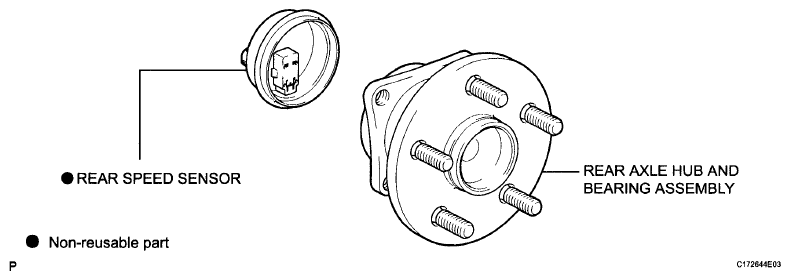

Fig 4: Identifying Rear Speed Sensor Components (4 Of 4)
