Engine Control System (Service Information): ECM: Removal: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
If the cable is disconnected, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH . Refer to REMOVAL - Step 1
REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH . Refer to REMOVAL - Step 2
REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY . Refer to REMOVAL - Step 3
REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY . Refer to REMOVAL - Step 4
REMOVE COWL TOP PANEL OUTER . Refer to REMOVAL - Step 5
REMOVE ECM
1. Remove the 3 nuts.

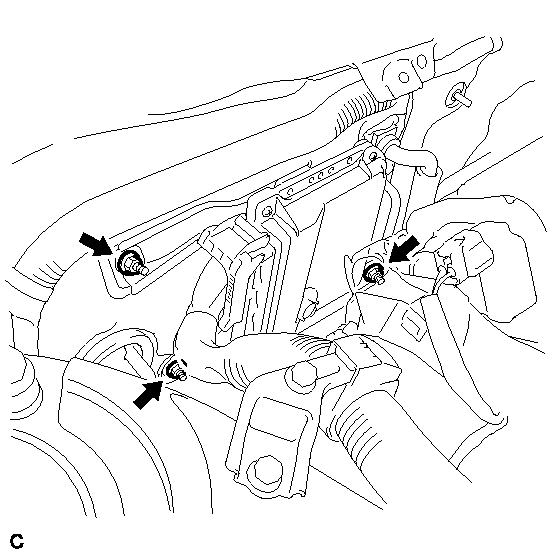

  Fig 1: Locating ECM Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Separate the ECM from the body.

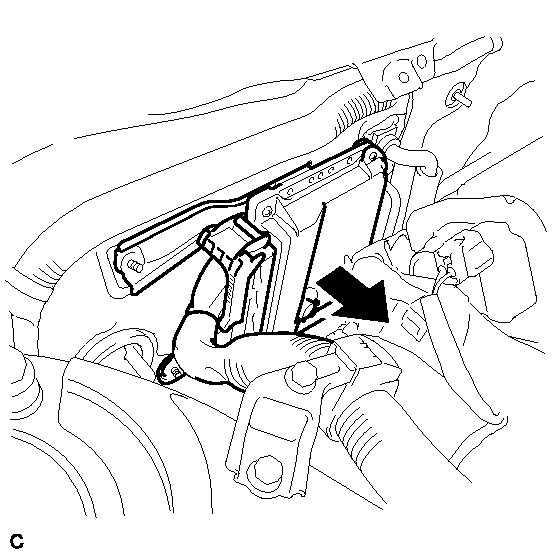

  Fig 2: Separating ECM From Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  When separating the ECM, do not apply excessive force to the wire harness.
3. Disconnect the 2 ECM connectors and remove the ECM.

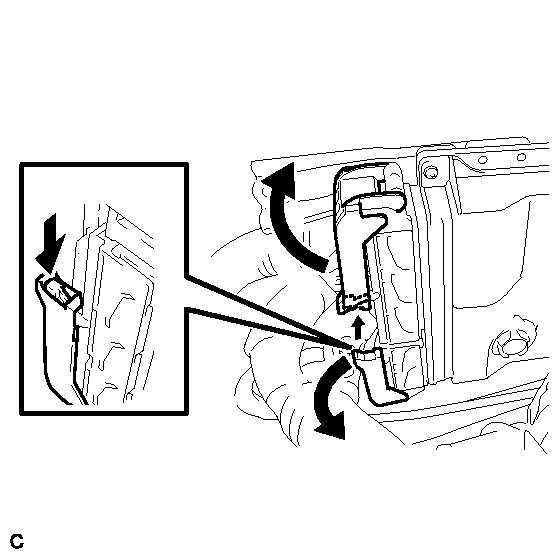

  Fig 3: Raising Levers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Raise the 2 levers while pushing the locks on the 2 levers, and disconnect the 2 ECM connectors.
    NOTE:
    After disconnecting the connectors, make sure that dirt, water or other foreign matter does not contact the connections of the connectors.
  2. Remove the ECM.
4. Remove the 4 screws and 2 ECM brackets.

  Fig 4: Locating ECM Brackets Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
