Driver Side Power Window Does Not Operate With Power Window Master Switch: Wiring Diagram

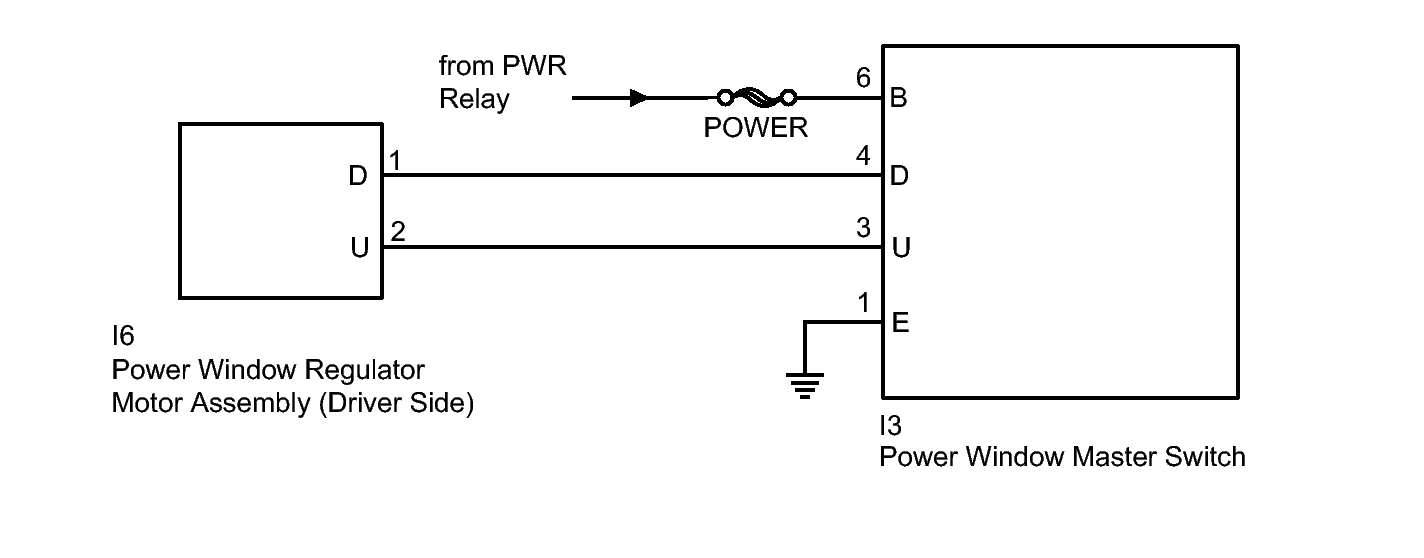

Fig 1: Power Window Master Switch (Driver Side) - Wiring Diagram
GTY241478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
