Key-off Operation Function Operates even if Operating Conditions are not Satisfied: Procedure
- CHECK OPERATION FUNCTION AFTER IGNITION SWITCH IS TURNED OFF
- Check the power window operation function after the ignition switch is turned off.RESULT
Status Proceed to When power window can still be operated even after opening driver door or front passenger door within approximately 45 seconds of ignition switch being turned off A When power window can still be operated even after approximately 45 seconds have elapsed after ignition switch is turned off B
B → REPLACE MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK)
A: Go to next step
- Check the power window operation function after the ignition switch is turned off.
- READ VALUE USING TECHSTREAM (FRONT DOOR COURTESY LIGHT SWITCH)
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Enter the following menu items: Body Electrical/Main Body/Data List.
- Read the Data List according to the display on the Techstream.MAIN BODY (MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK))
Tester Display Measurement Item/Range Normal Condition Diagnostic Note D Door Courtesy Switch Driver side door courtesy switch signal/
ON or OFFON: Driver door open
OFF: Driver door closed- OK
On the Techstream screen, the item changes between ON and OFF according to the chart above.
NG → See step 3
OK → REPLACE MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK)

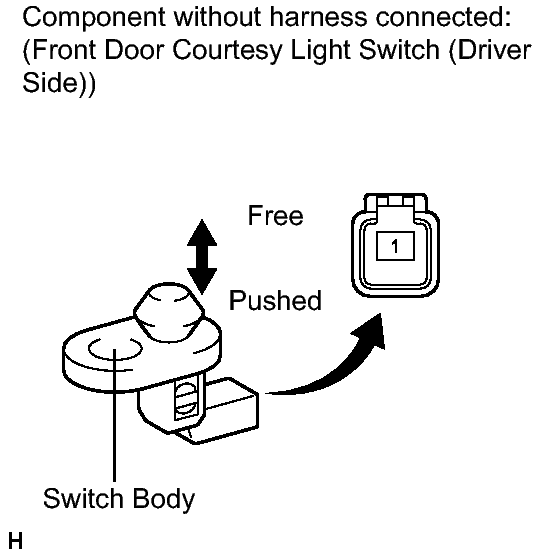

- INSPECT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (Driver Side)
- Remove the front door courtesy light switch (driver side). Refer to REMOVAL .
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Switch Condition Specified Condition 1 - Switch body Pushed 10 kΩ or higher 1 - Switch body Free Below 1 Ω
NG → See step 5
OK: Go to next step

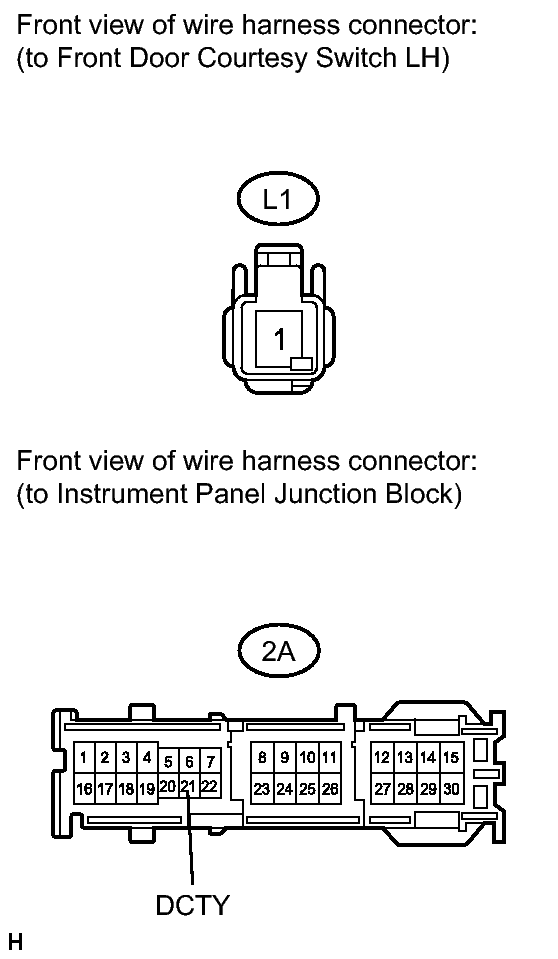

- CHECK HARNESS AND CONNECTOR (FRONT DOOR COURTESY LIGHT SWITCH - MAIN BODY ECU)
- Disconnect the instrument panel junction block connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition L1-1 - 2A-21 (DCTY) Always Below 1 Ω L1-1 - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → REPLACE MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK)
- REPLACE DOOR COURTESY LIGHT SWITCH ASSEMBLY (Driver Side). Refer to REMOVAL
