Power Windows Do Not Operate At All: Wiring Diagram

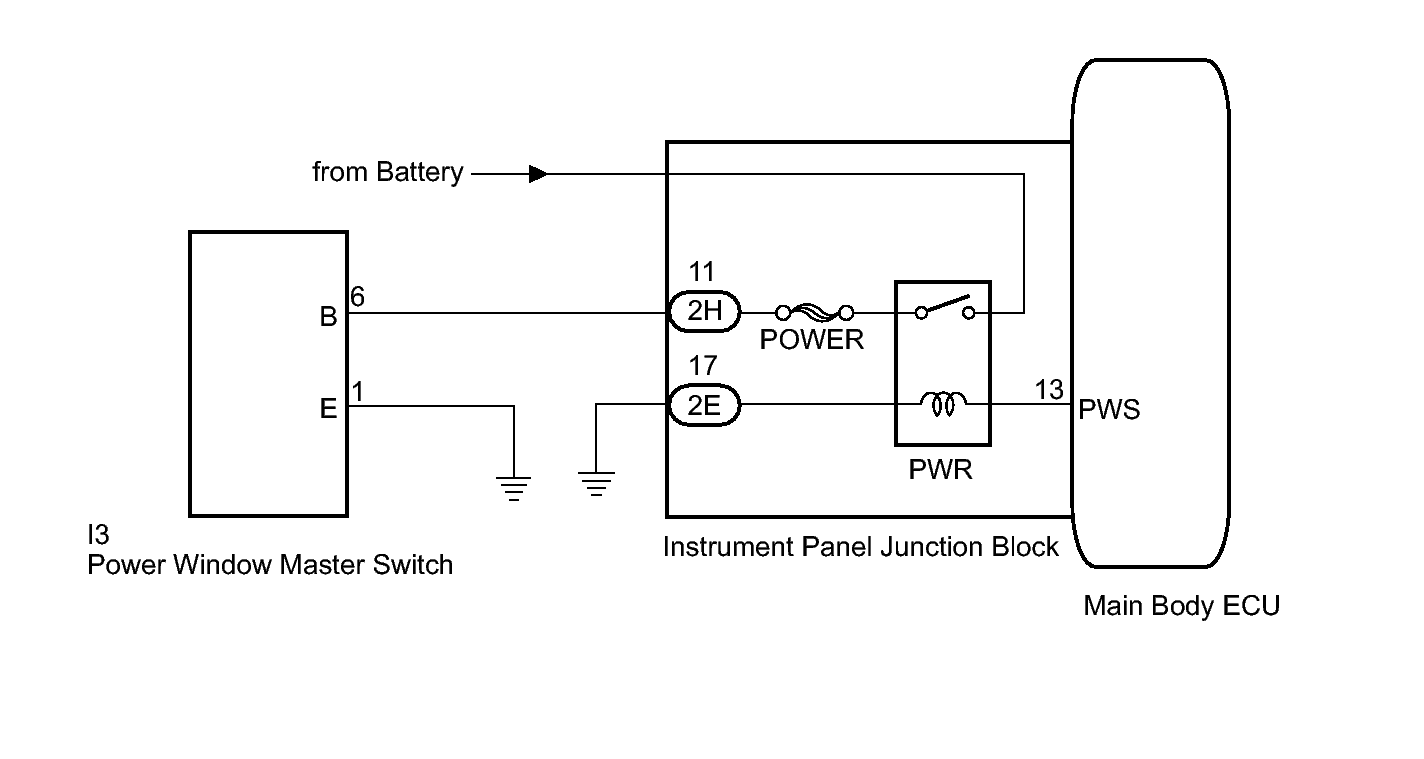

Fig 1: Power Windows - Wiring Diagram
GTY200285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
