Rear Power Window RH Does Not Operate With Rear Power Window Switch RH: Procedure

  1. CHECK POWER WINDOW SWITCH (POWER SOURCE)
    1. Disconnect the power window switch (rear RH side) connector.

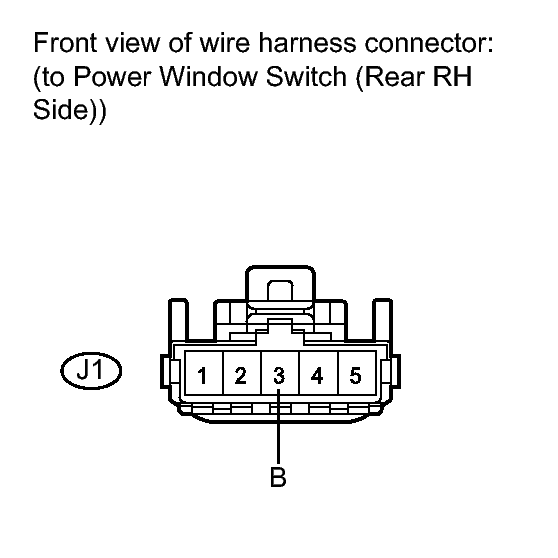

      Fig 1: Identifying J1 Power Window Switch (Rear RH Side) Connector
      GTY241481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      J1-3 (B) - Body ground Ignition switch ON 11 to 14 V

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  2. INSPECT POWER WINDOW SWITCH (REAR RH SIDE)
    1. Remove the power window switch (rear RH side). Refer to REMOVAL .

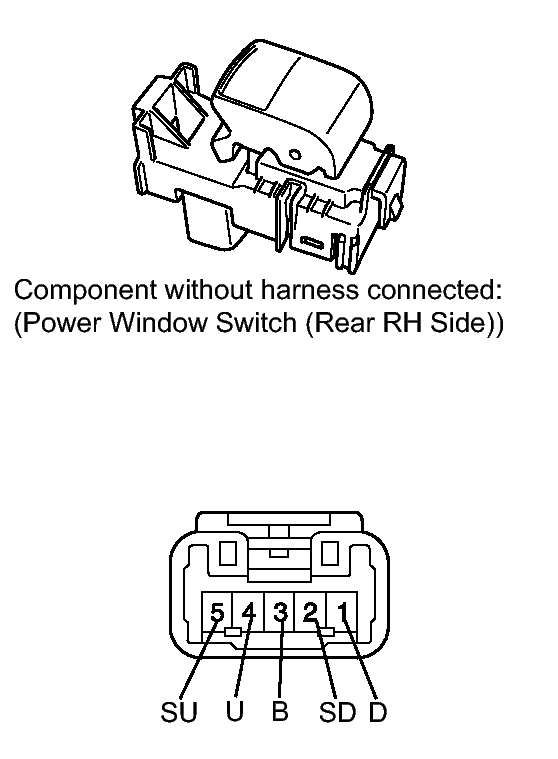

      Fig 2: Identifying Terminals Of Power Window Switch (Rear RH Side) Connector
      GTY200004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      1 (D) - 2 (SD)
      3 (B) - 4 (U)      		 UP Below 1 Ω
      1 (D) - 2 (SD)
      4 (U) - 5 (SU)      		 OFF Below 1 Ω
      2 (SD) - 3 (B)
      4 (U) - 5 (SU)      		 DOWN Below 1 Ω

    NG → See step   6

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (SWITCH (REAR RH) - MOTOR (REAR RH))
    1. Disconnect the power window regulator motor assembly (rear RH side) connector.
      Fig 3: Identifying J1 Power Window Switch (Rear RH Side) And J3 Power Window Regulator Motor Assembly Connectors
      GTY234977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      J1-4 (U) - J3-1 (U) Always Below 1 Ω
      J1-1 (D) - J3-2 (D) Always Below 1 Ω
      J1-4 (U) - Body ground Always 10 kΩ or higher
      J1-1 (D) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  4. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR RH SIDE)
    1. Remove the power window regulator motor assembly (rear RH side). Refer to REMOVAL .

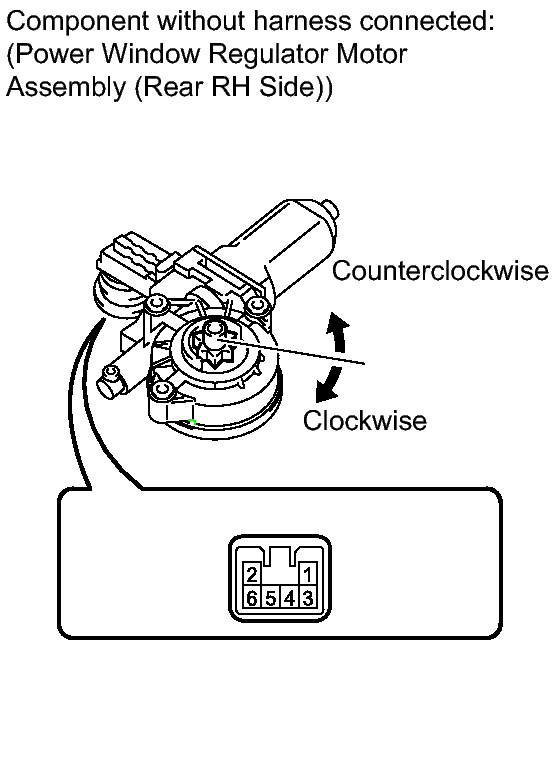

      Fig 4: Checking Operation Of Rear Power Window Regulator Motor Assembly (Rear RH)
      GTY241472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check power window regulator motor operation:
      1. Apply battery voltage to connector terminals 1 and 2.
        NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.
      2. Check that the motor gear rotates smoothly as follows.

        OK

        Measurement Condition Specified Condition
        Battery positive (+) → 1
        Battery negative (-) → 2        		 Motor gear rotates counterclockwise
        Battery positive (+) → 2
        Battery negative (-) → 1        		 Motor gear rotates clockwise
    3. Check PTC operation:
      NOTE: This check must be performed with the power window regulator and door glass installed on the vehicle.
      1. Install the power window regulator motor assembly (rear RH side). Refer to INSTALLATION .
      2. Connect an electrical tester DC 400 A probe to the wire harness of terminal 1.

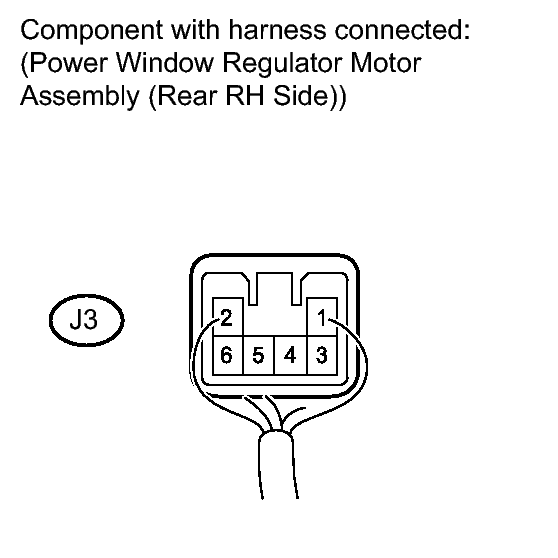

        Fig 5: Identifying J3 Power Window Regulator Motor Assembly (Rear RH Side) Connector
        GTY240561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE: Match the arrow mark of the probe with the direction of the current flow.
      3. Fully close the door glass by pulling up the power window switch. Wait for approximately 60 seconds.
      4. Continue to pull up the power window switch and measure how long it takes for the electrical current to change from a range of 16 to 28 A to approximately 1 A (current shut-off inspection).

        Standard

        4 to 90 seconds

      5. Wait for 60 seconds after the previous step, and then push down the power window switch (rear RH side).

        OK

        The rear RH side window goes down.

    NG → REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR RH SIDE)

    OK: Go to next step

  5. CHECK HARNESS AND CONNECTOR (MASTER SWITCH - SWITCH (REAR RH))
    1. Disconnect the power window master switch connector.
    2. Disconnect the power window switch (rear RH side) connector.
      Fig 6: Identifying I3 Power Window Master Switch & J1 Power Window Master Switch (Rear RH Side) Connectors
      GTY200191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      I3-10 (U) - J1-5 (SU) Always Below 1 Ω
      I3-18 (D) - J1-2 (SD) Always Below 1 Ω
      I3-10 (U) - Body ground Always 10 kΩ or higher
      I3-18 (D) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   7

  6. REPLACE POWER WINDOW SWITCH (REAR RH SIDE). Refer to  REMOVAL
  7. REPLACE POWER WINDOW MASTER SWITCH. Refer to  REMOVAL
