Front Speed Sensor: Installation: Installation

HINT:

• Use the same procedure for the RH side and LH side.
• The procedure listed below is for the LH side.
• If the sensor rotor needs to be replaced, replace it together with the front drive shaft assembly.

1. INSTALL FRONT SPEED SENSOR
   1. Install the front speed sensor with the bolt.

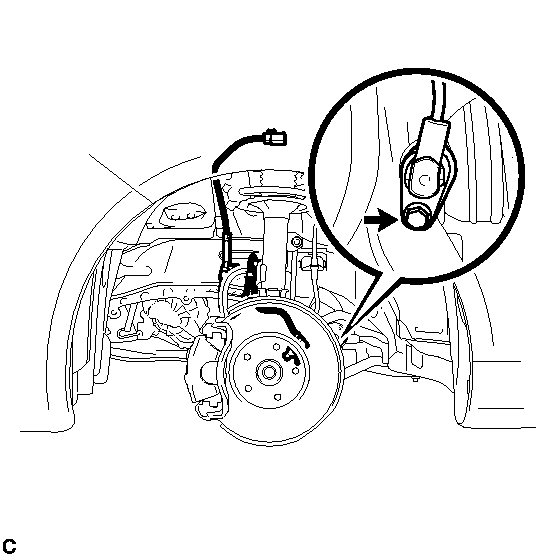

      Fig 1: Locating Front Speed Sensor Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

      NOTE:

      • Prevent foreign matter from attaching to the sensor tip.
      • Do not file the hole or the contact surface because the gap between the magnet rotor and front speed sensor is important.
   2. Install the clamp to the shock absorber.

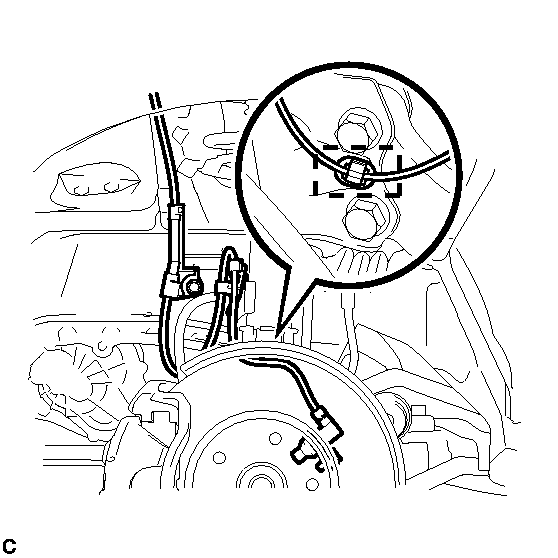

      Fig 2: Identifying Front Speed Sensor Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Temporarily install the No. 1 sensor clamp to the shock absorber.

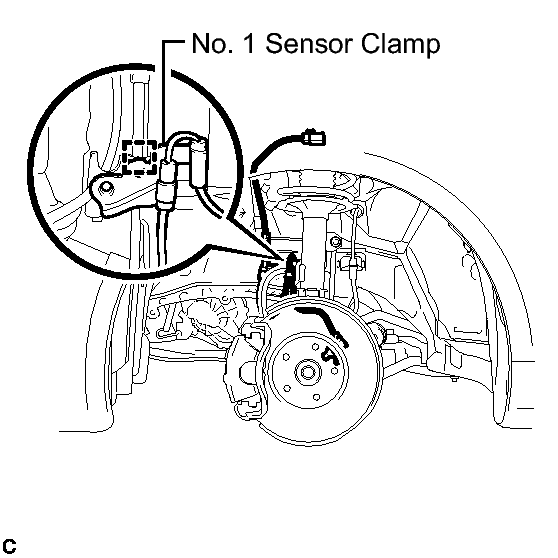

      Fig 3: Identifying No. 1 Sensor Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Install the brake flexible hose with the bolt.

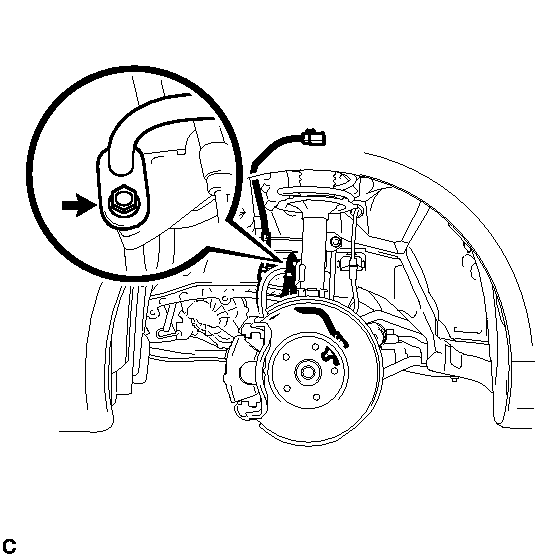

      Fig 4: Locating Brake Flexible Hose And Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

      NOTE:

      • Do not twist the wire harness for the front speed sensor when installing it.
      • Tighten the brake flexible hose and front speed sensor together with the bolt. Make sure that the front speed sensor is positioned over the flexible hose.
   5. Install the No. 2 sensor clamp to the body with the bolt.

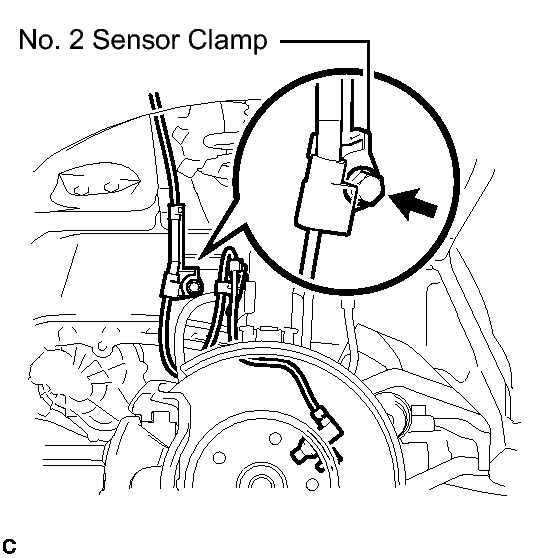

      Fig 5: Locating No. 2 Sensor Clamp And Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   6. Connect the speed sensor wire harness clamp.
      Fig 6: Locating Front Speed Sensor Connector And Wire Harness Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   7. Connect the speed sensor connector.
2. INSTALL FRONT FENDER LINER  . Refer to INSTALLATION - Step 6
3. INSTALL FRONT WHEEL

   Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. CHECK FOR SPEED SENSOR SIGNAL

   HINT:

   • w/o VSC . Refer to TEST MODE PROCEDURE
   • w/ VSC . Refer to TEST MODE PROCEDURE
