OEM System Circuits: 4WD: Notes

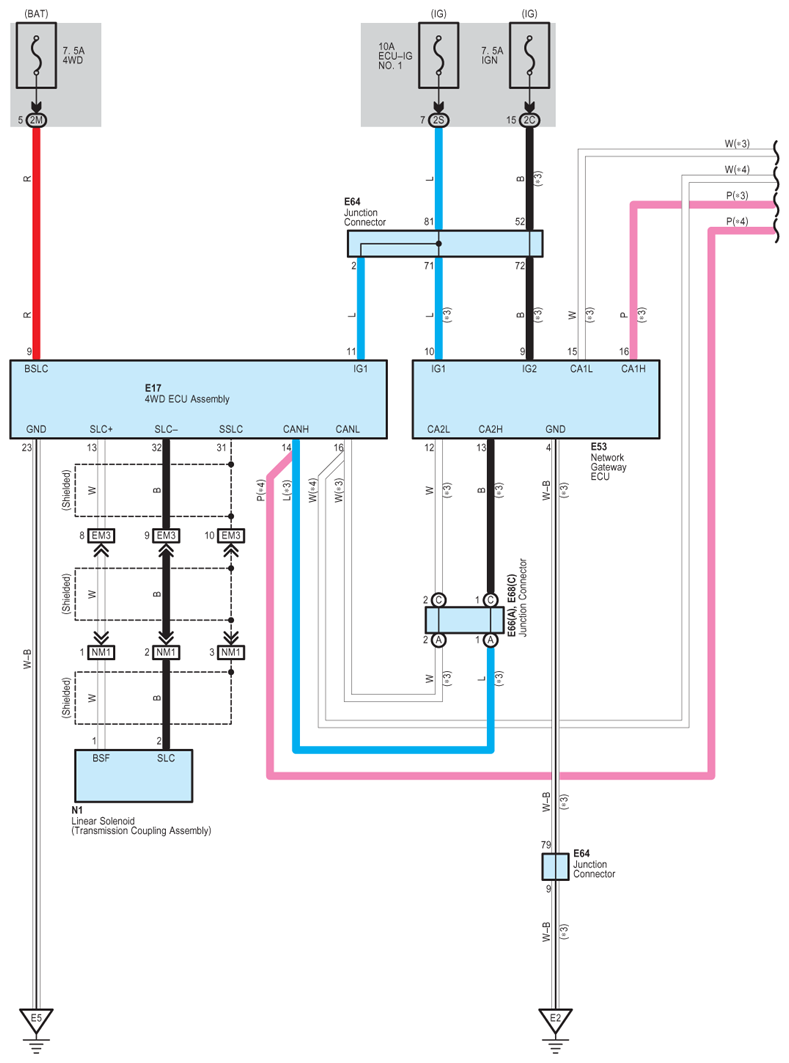

Fig 1: 4WD - Circuit Diagram (1 Of 5)
G07571465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

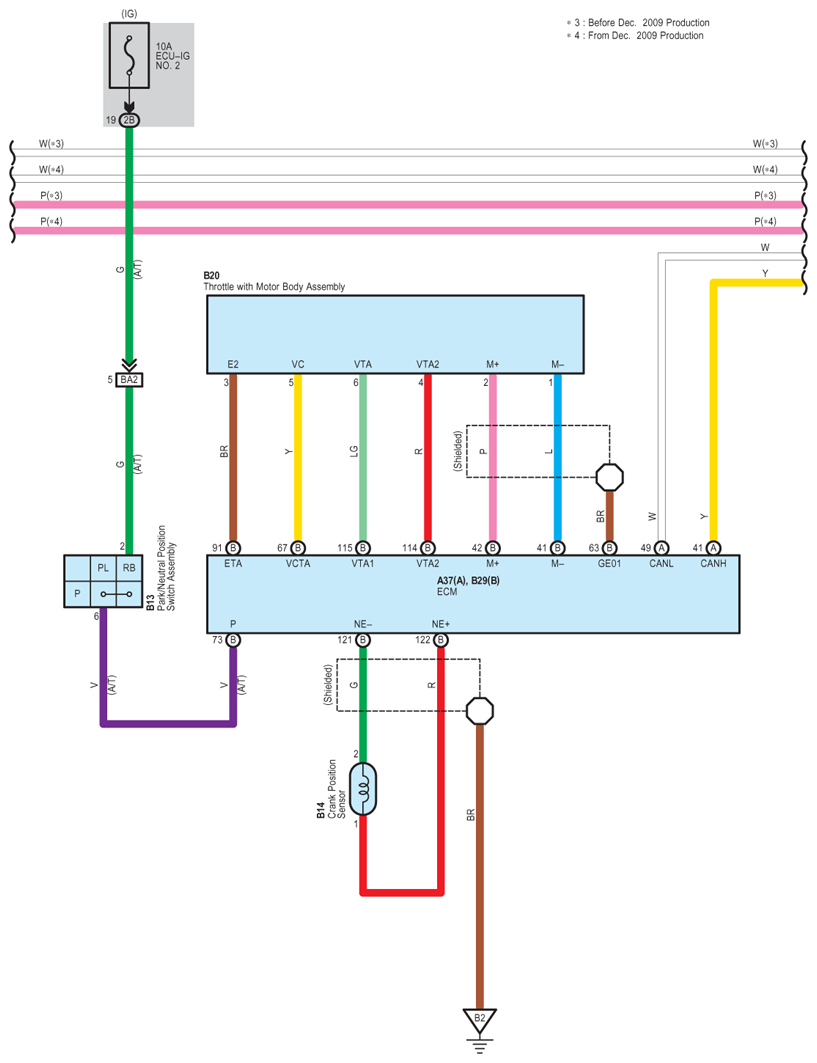

Fig 2: 4WD - Circuit Diagram (2 Of 5)
G07571466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

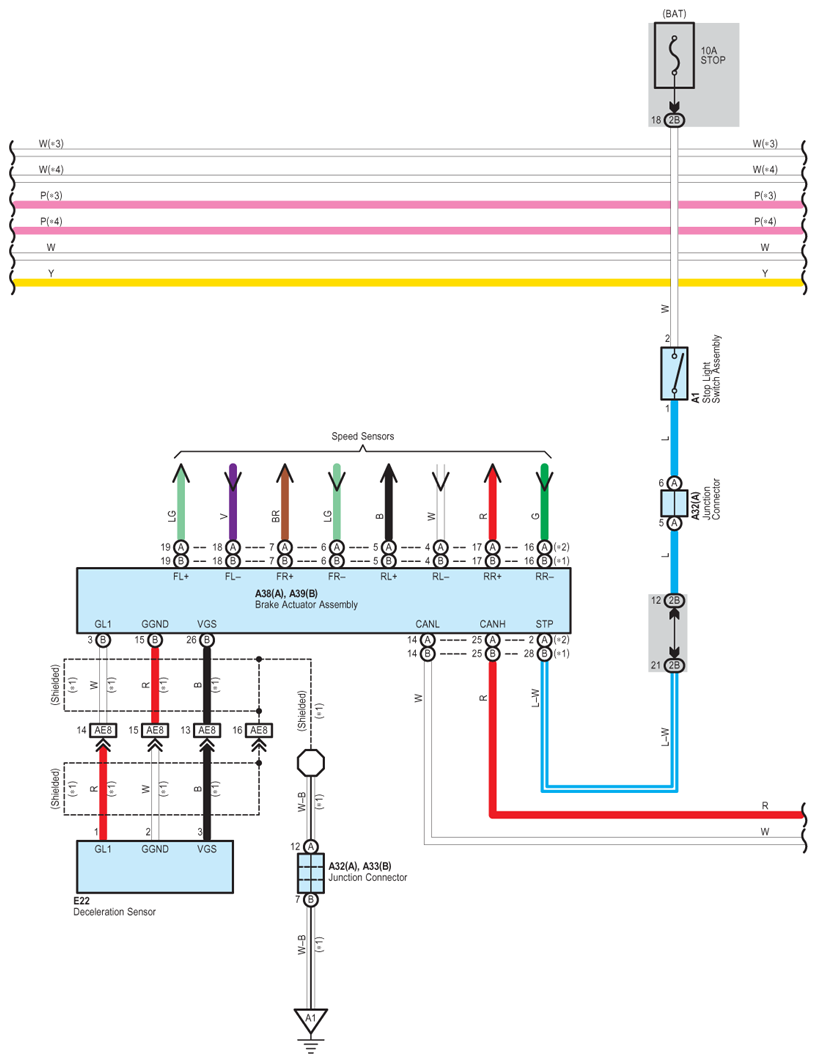

Fig 3: 4WD - Circuit Diagram (3 Of 5)
G07571467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

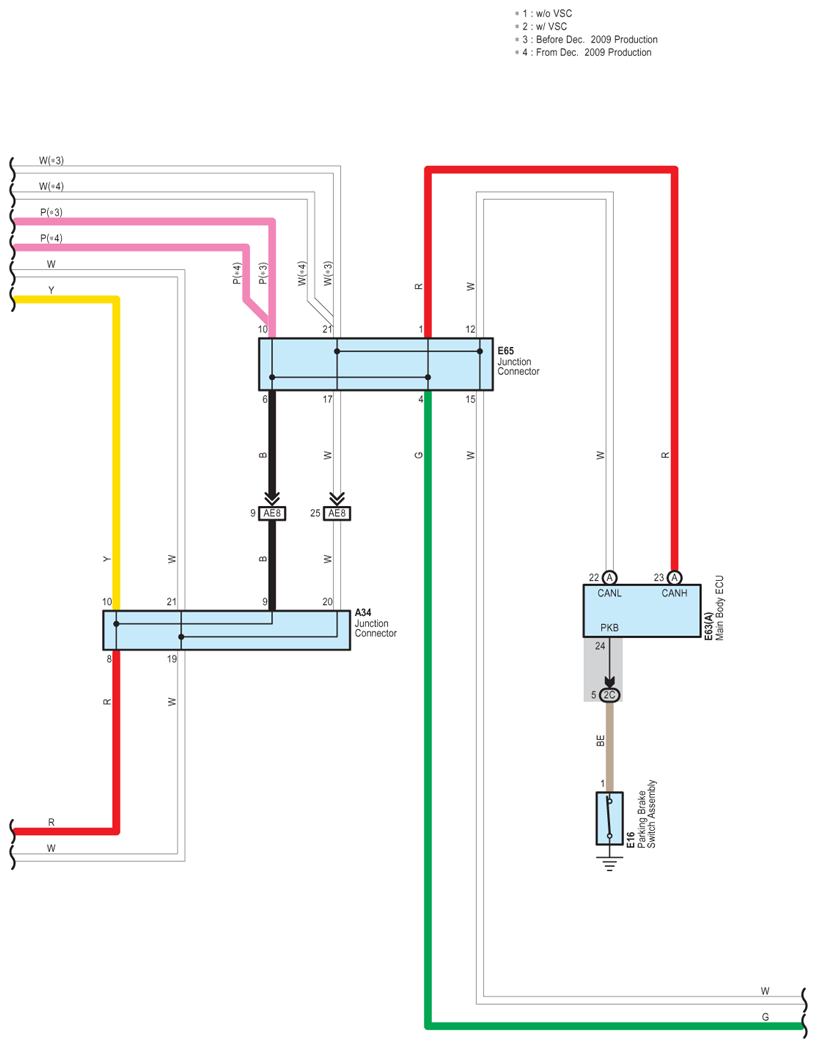

Fig 4: 4WD - Circuit Diagram (4 Of 5)
G07571468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

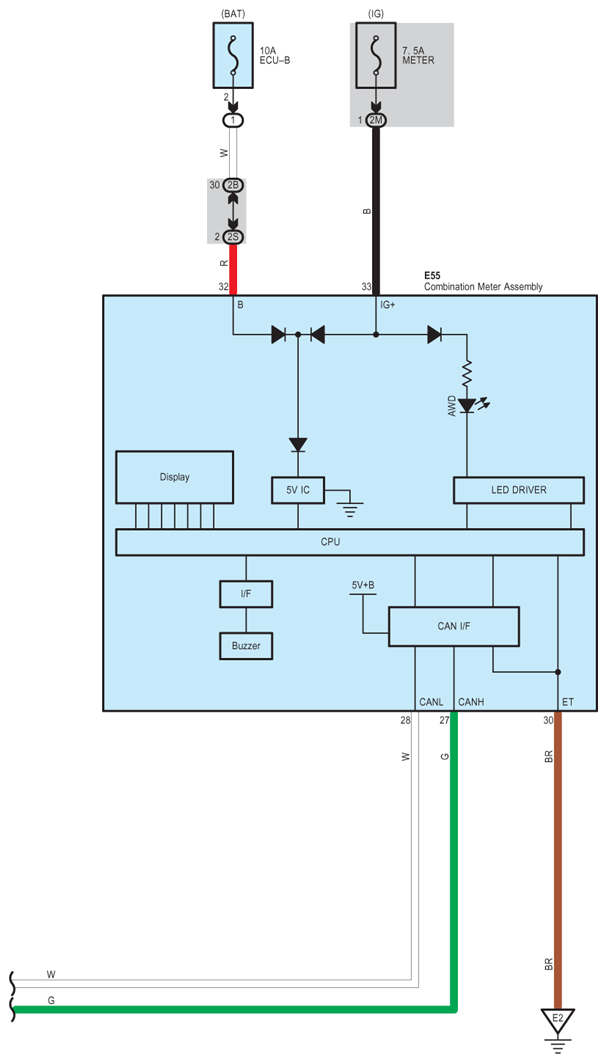

Fig 5: 4WD - Circuit Diagram (5 Of 5)
G07571469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
