Cruise Control (2ZR-FE): Notes

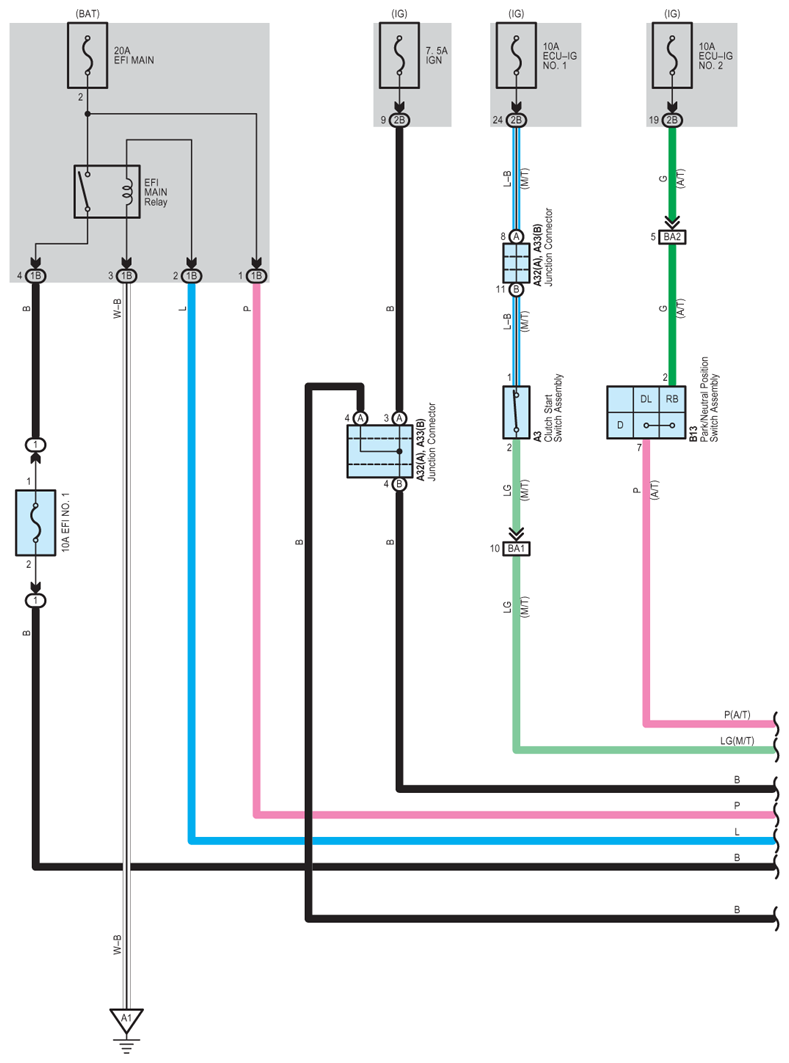

Fig 1: Cruise Control (2ZR-FE) - Circuit Diagram (1 Of 6)
G07571443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

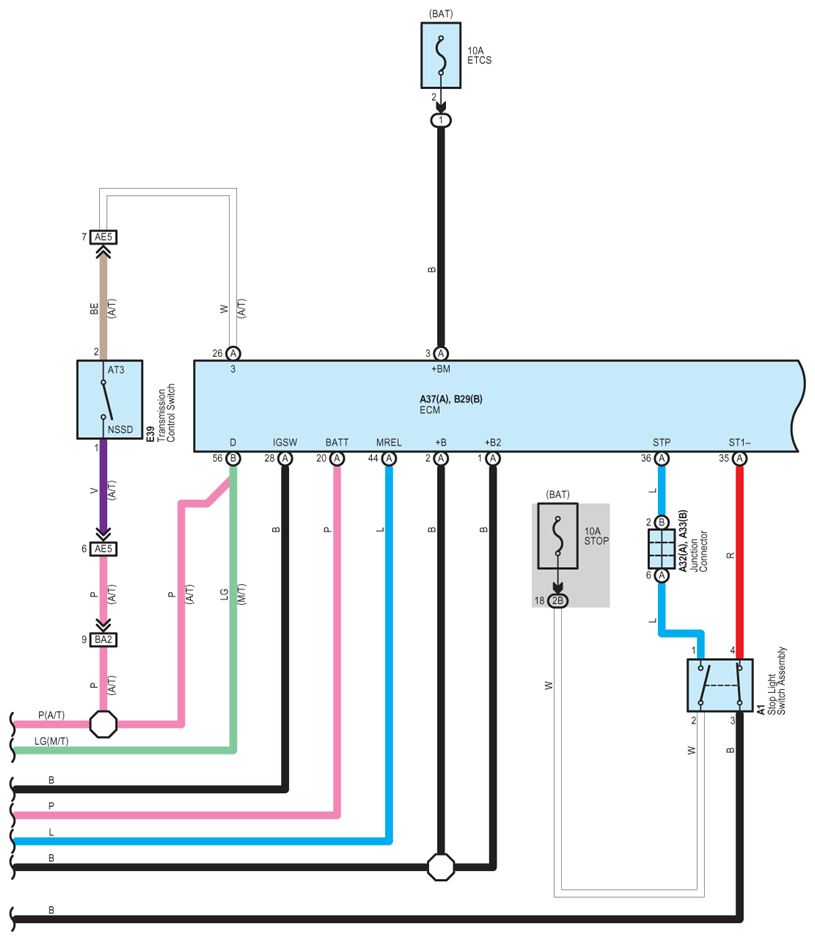

Fig 2: Cruise Control (2ZR-FE) - Circuit Diagram (2 Of 6)
G07571444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

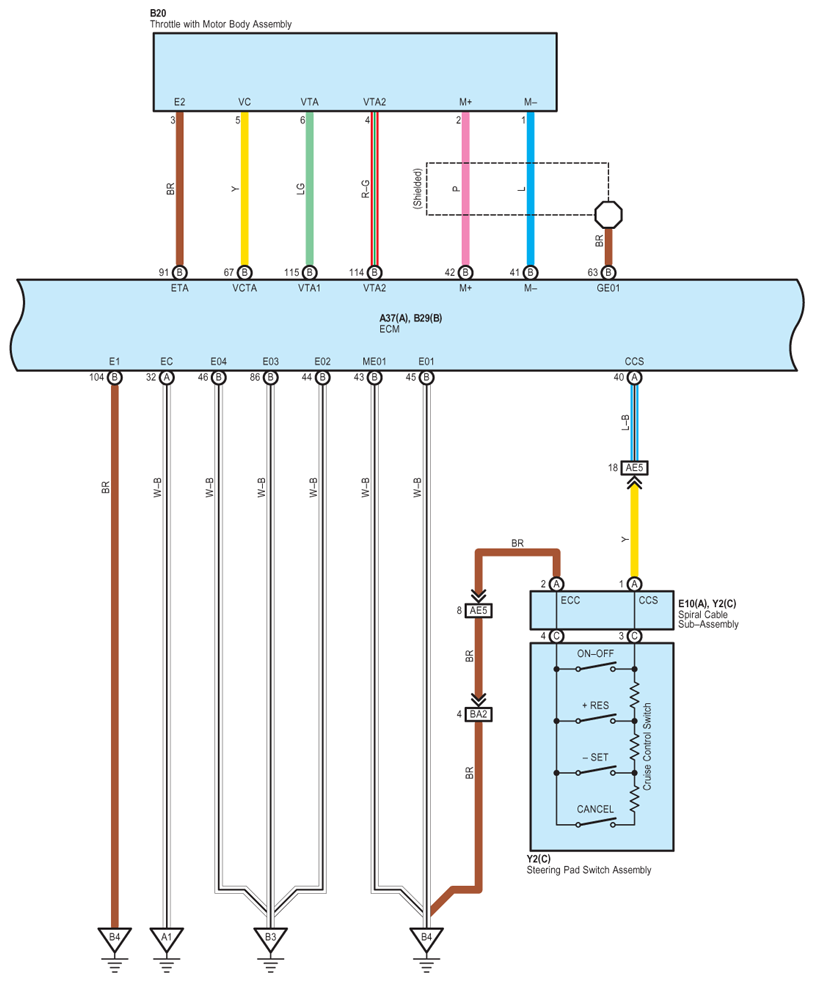

Fig 3: Cruise Control (2ZR-FE) - Circuit Diagram (3 Of 6)
G07571445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

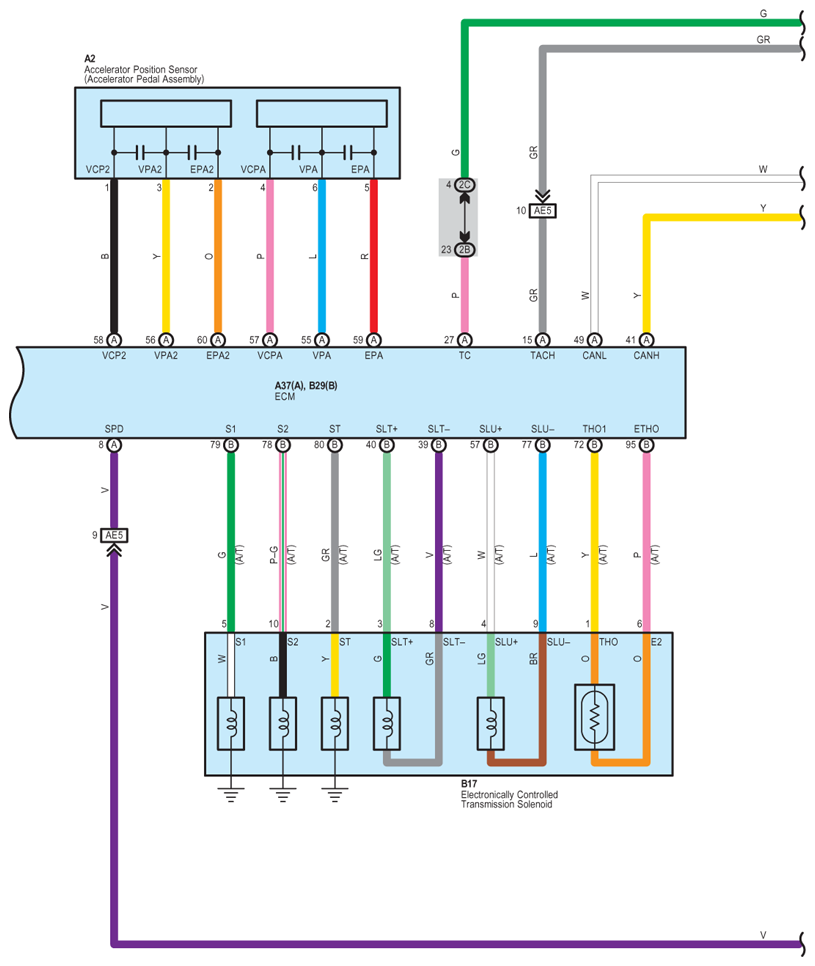

Fig 4: Cruise Control (2ZR-FE) - Circuit Diagram (4 Of 6)
G07571446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

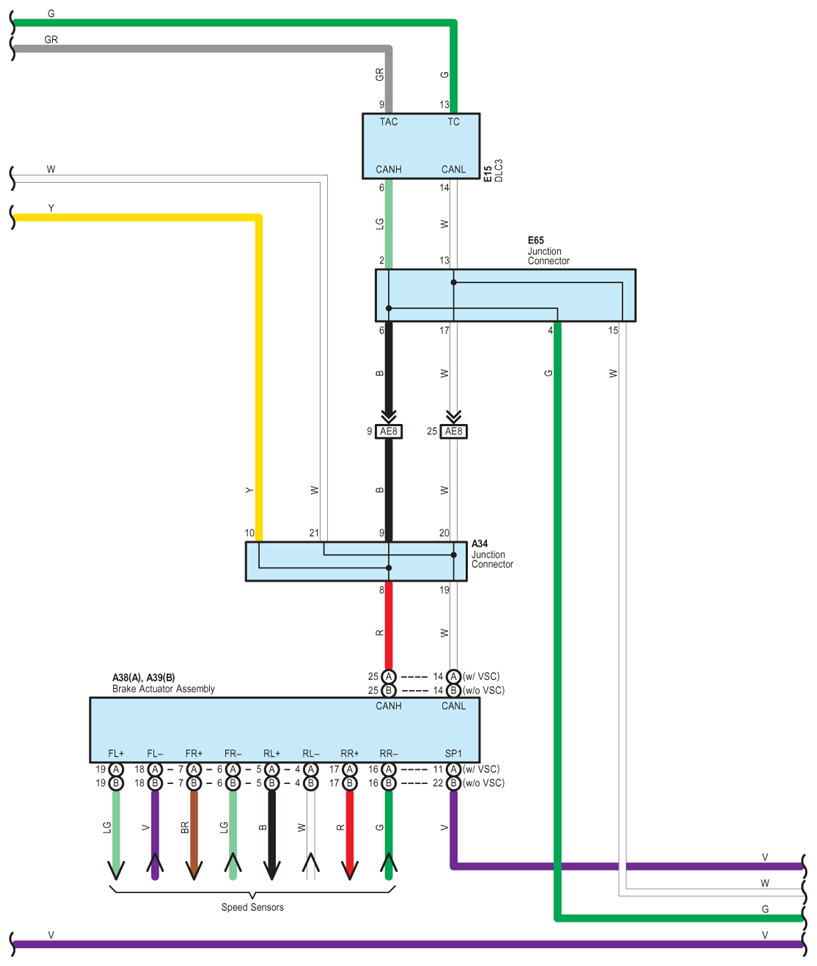

Fig 5: Cruise Control (2ZR-FE) - Circuit Diagram (5 Of 6)
G07571447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

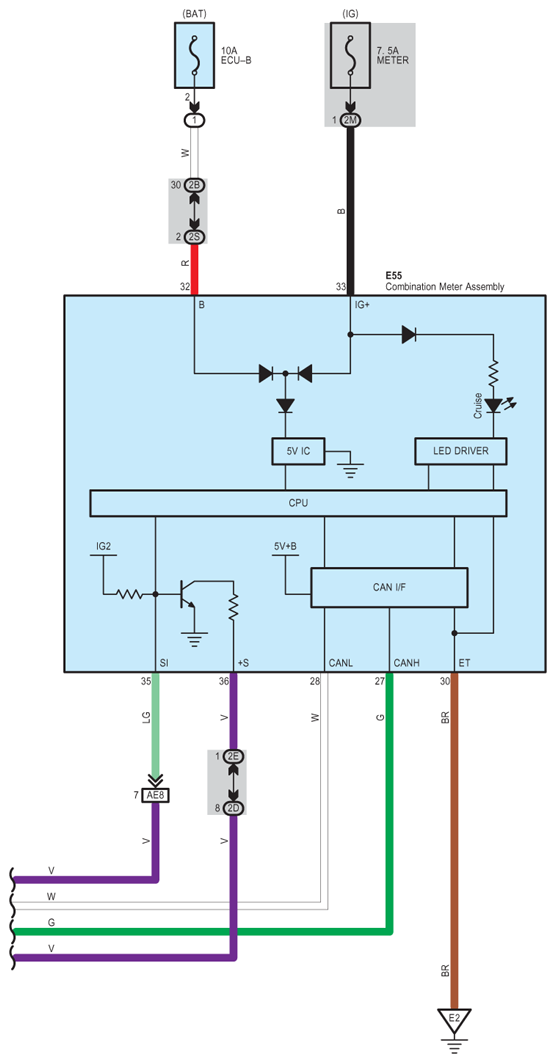

Fig 6: Cruise Control (2ZR-FE) - Circuit Diagram (6 Of 6)
G07571448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
