OEM System Circuits: Headlight: Notes

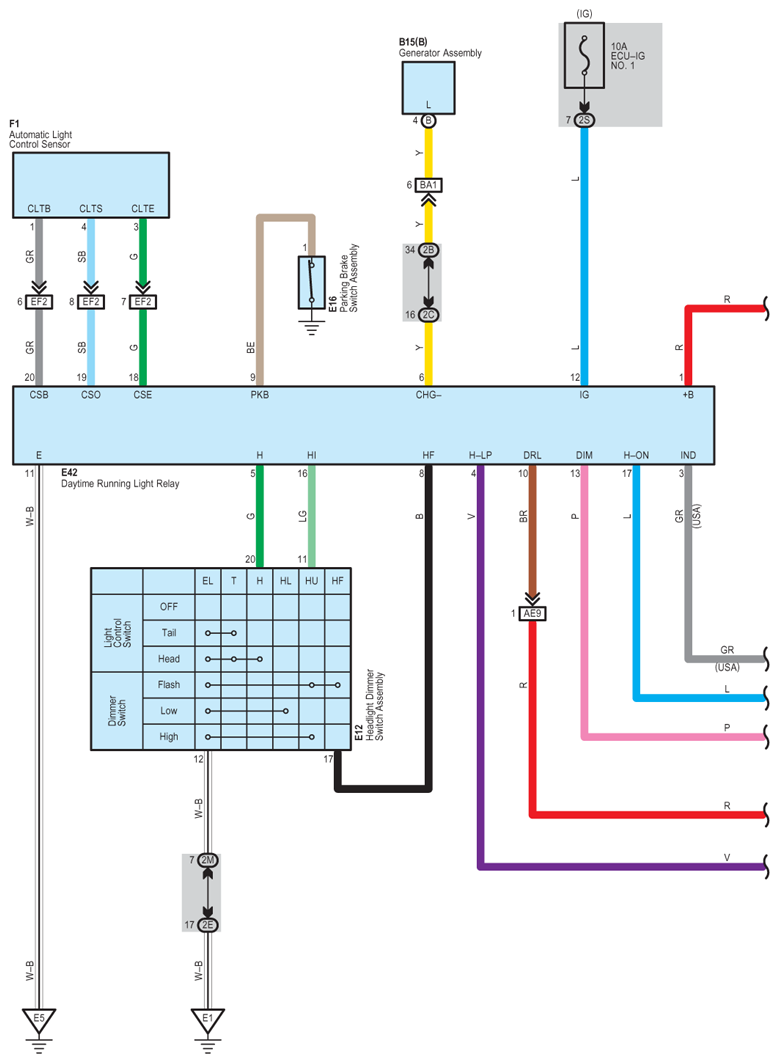

Fig 1: Headlight - Circuit Diagram (1 Of 3)
G07571383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

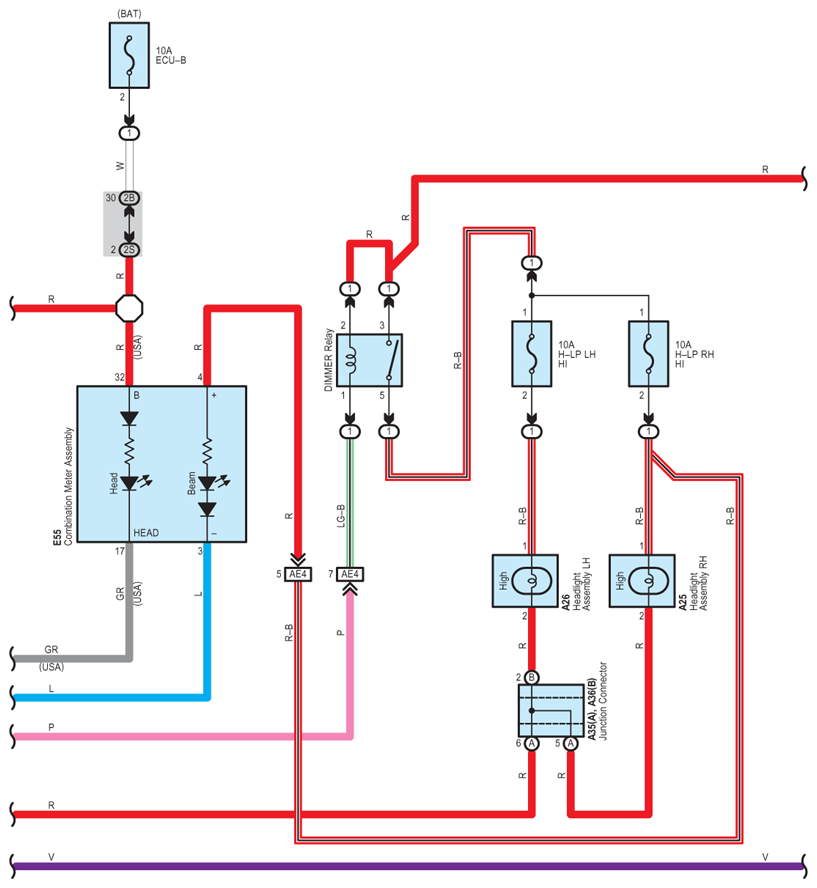

Fig 2: Headlight - Circuit Diagram (2 Of 3)
G07571384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

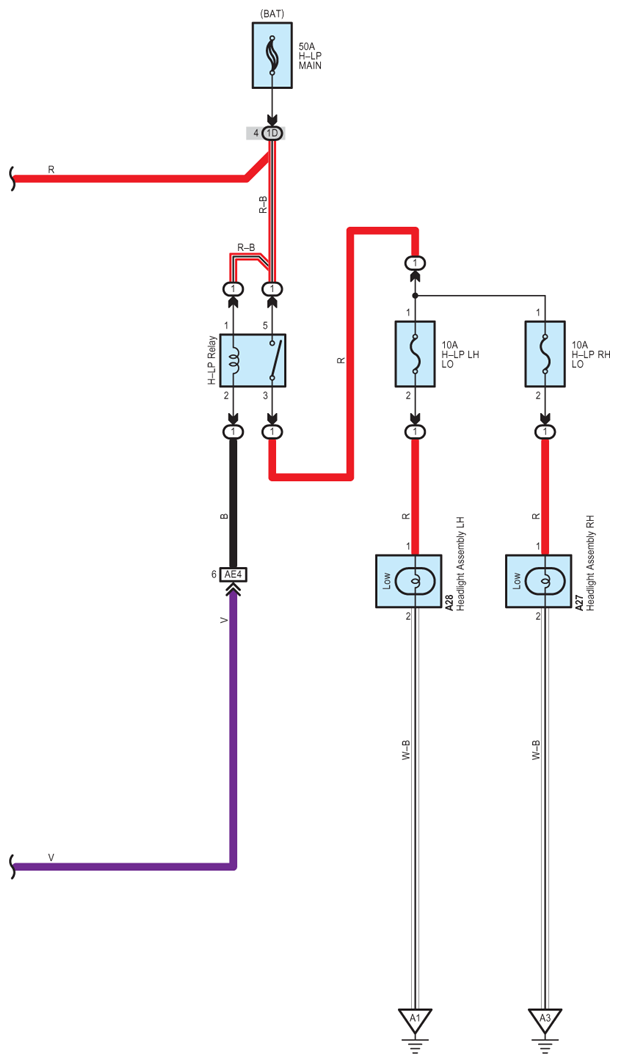

Fig 3: Headlight - Circuit Diagram (3 Of 3)
G07571385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
