Light Reminder: Notes

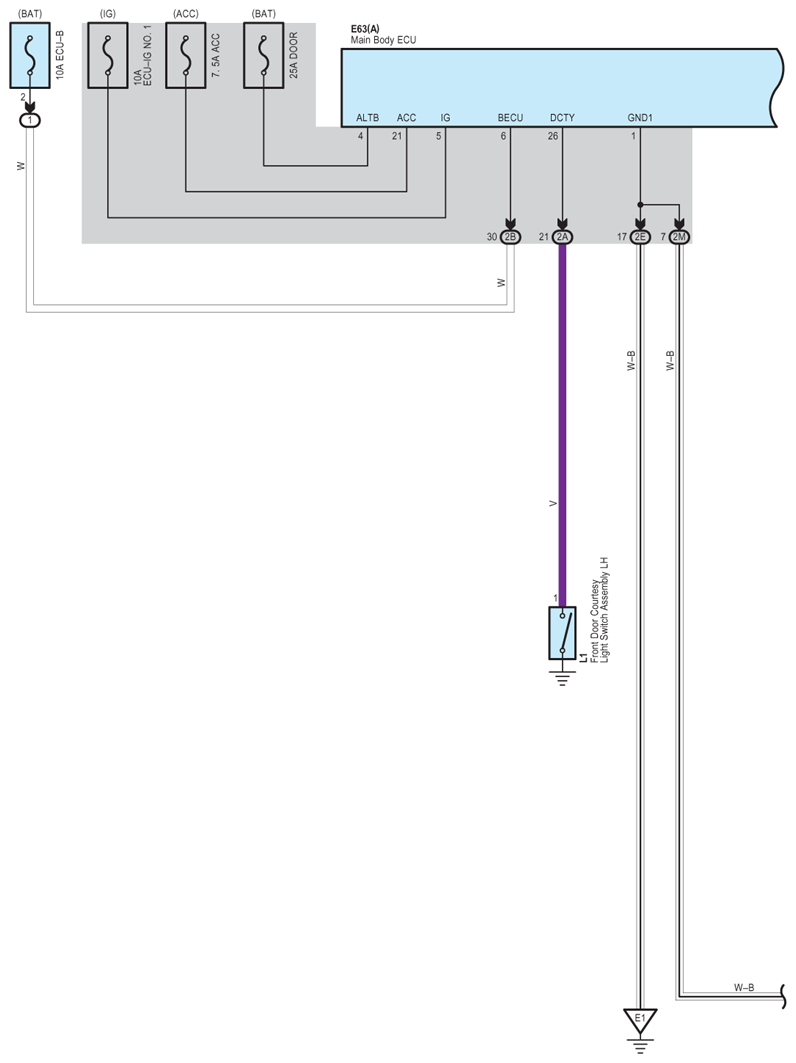

Fig 1: Light Reminder - Circuit Diagram (1 Of 2)
G07571482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

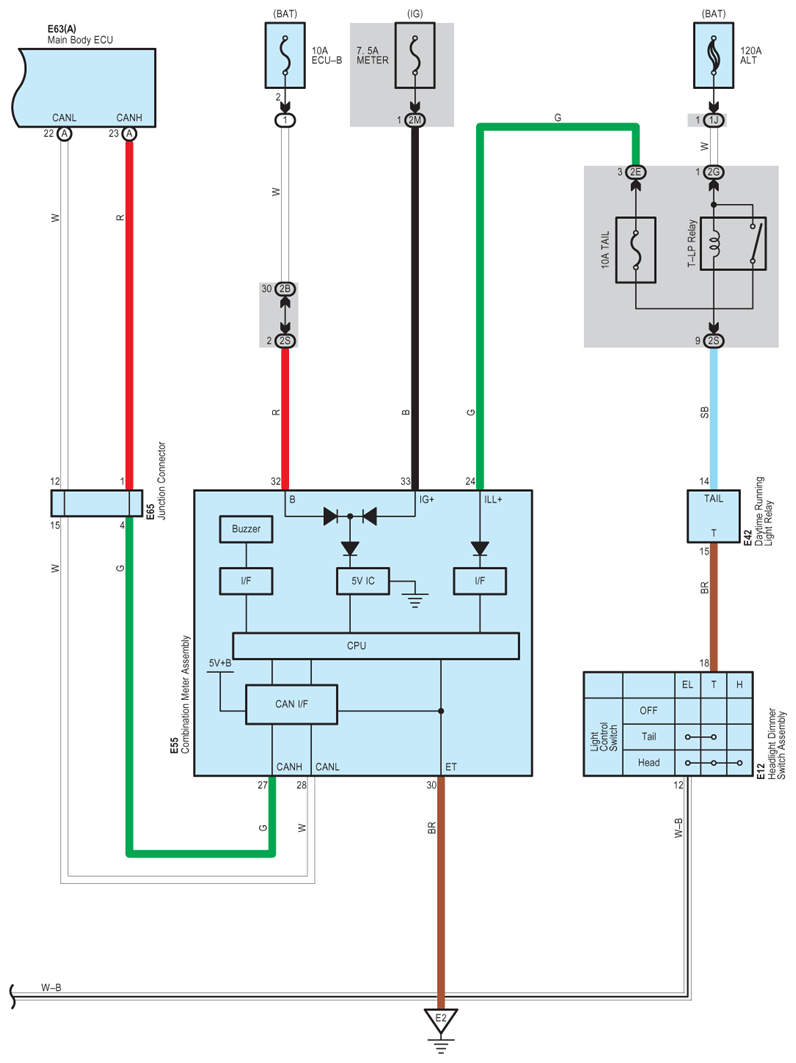

Fig 2: Light Reminder - Circuit Diagram (2 Of 2)
G07571483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
