Theft Deterrent: Notes

Fig 1: Theft Deterrent - Circuit Diagram (1 Of 7)

G07571417

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

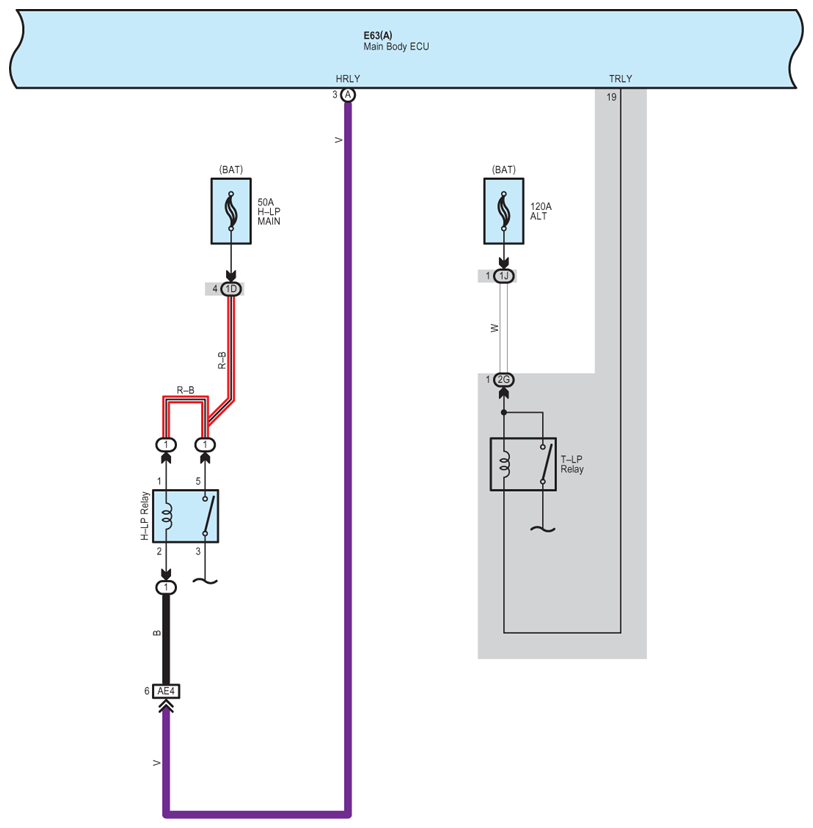

Fig 2: Theft Deterrent - Circuit Diagram (2 Of 7)

G07571418

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Theft Deterrent - Circuit Diagram (3 Of 7)

G07571419

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

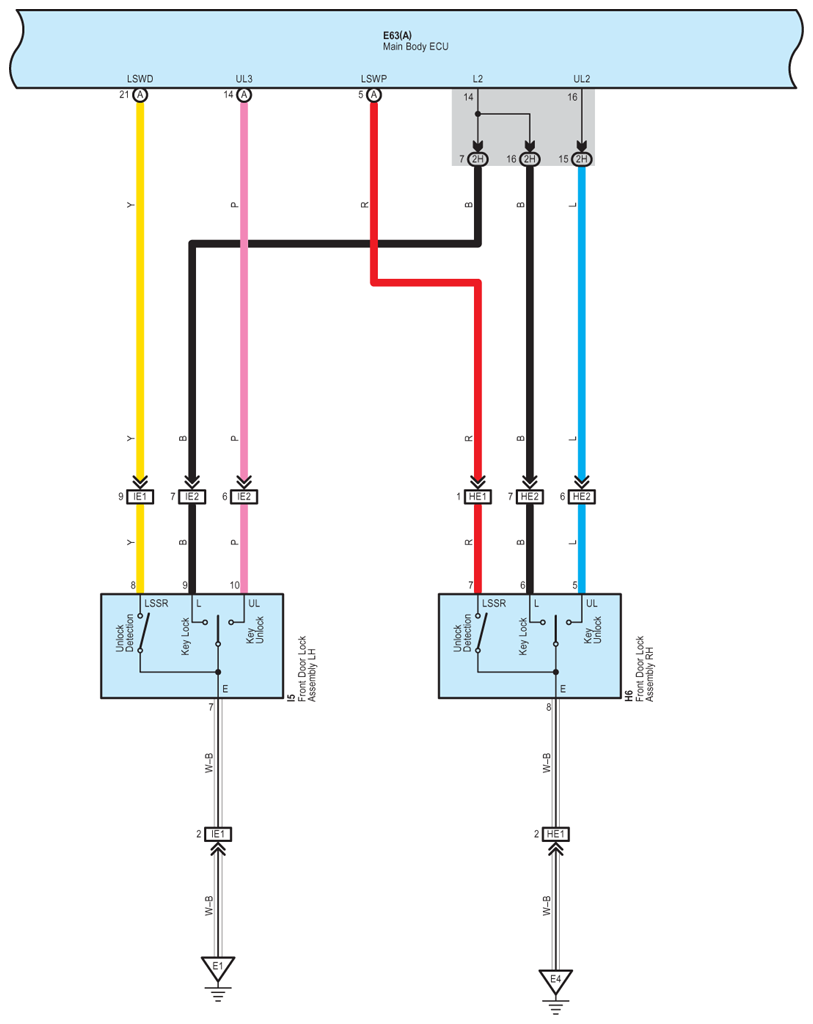

Fig 4: Theft Deterrent - Circuit Diagram (4 Of 7)

G07571420

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

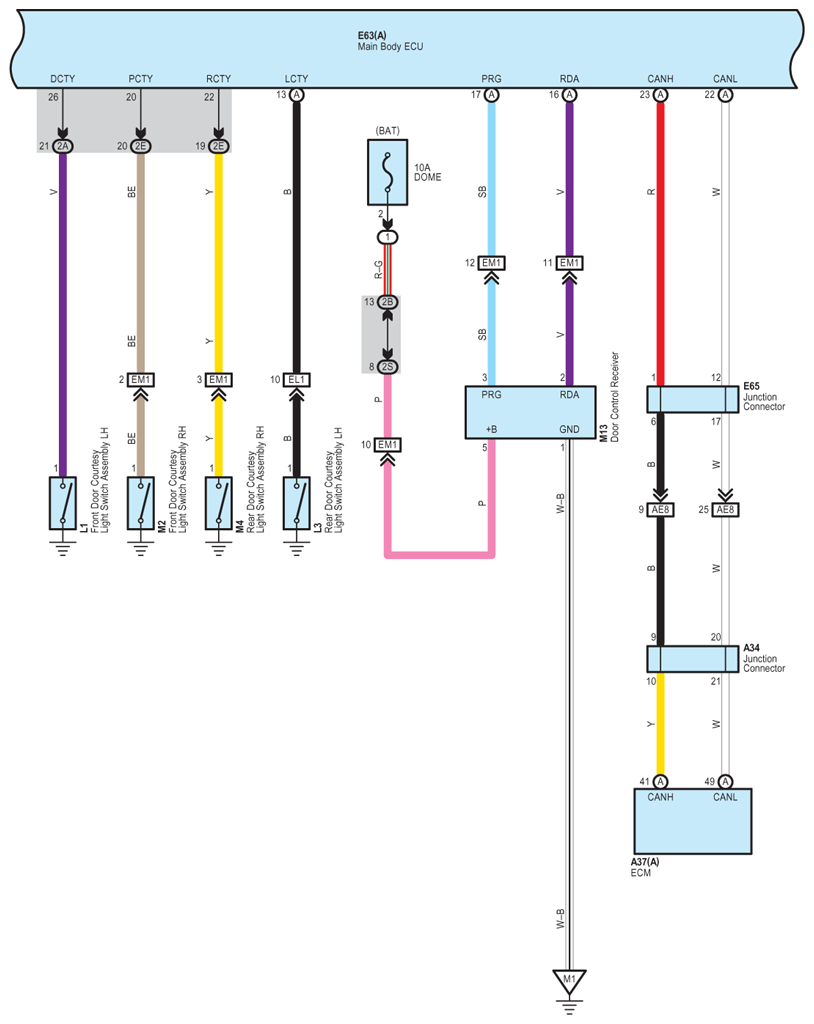

Fig 5: Theft Deterrent - Circuit Diagram (5 Of 7)

G07571421

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

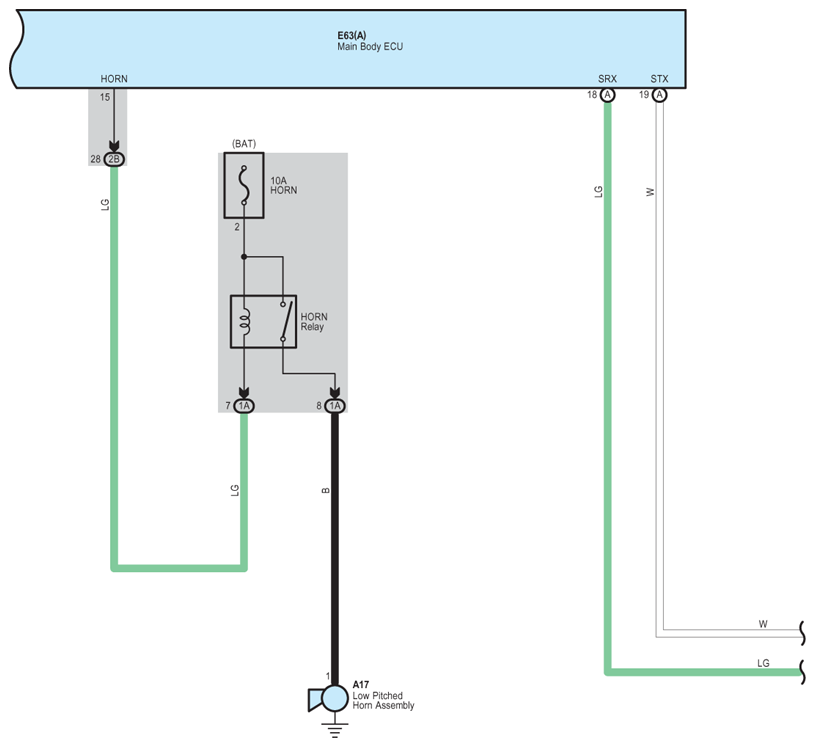

Fig 6: Theft Deterrent - Circuit Diagram (6 Of 7)

G07571422

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

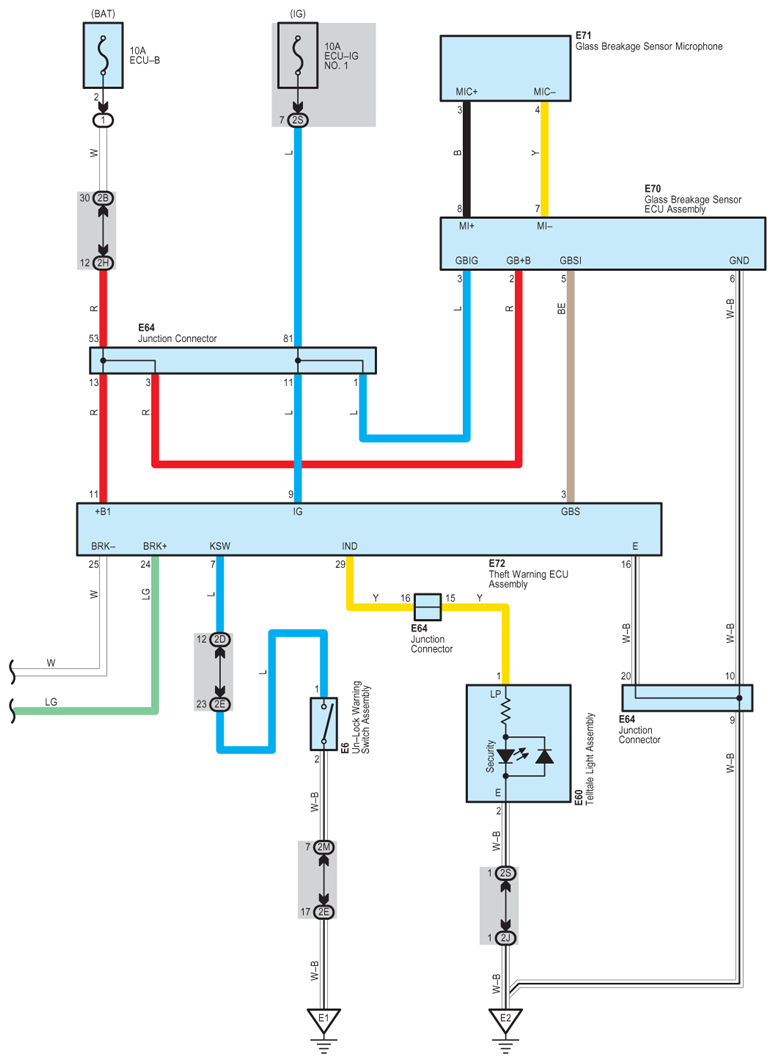

Fig 7: Theft Deterrent - Circuit Diagram (7 Of 7)

G07571423

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
