Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00467318

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Vehicle Overview

G00467320

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Front Seats

G00467321

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Engine Room R/B

G00467322

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Driver Side J/B

G00467323

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: R/B No. 7

G00467324

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

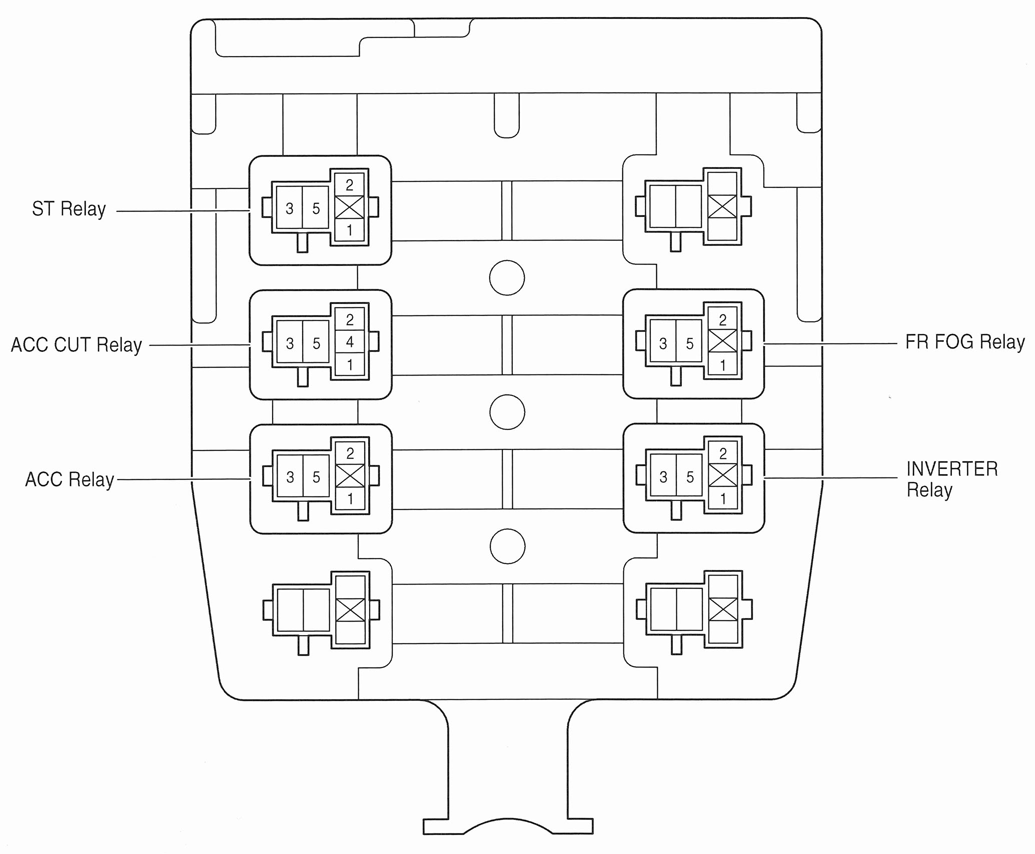

Fig 7: R/B No. 8

G00475591

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

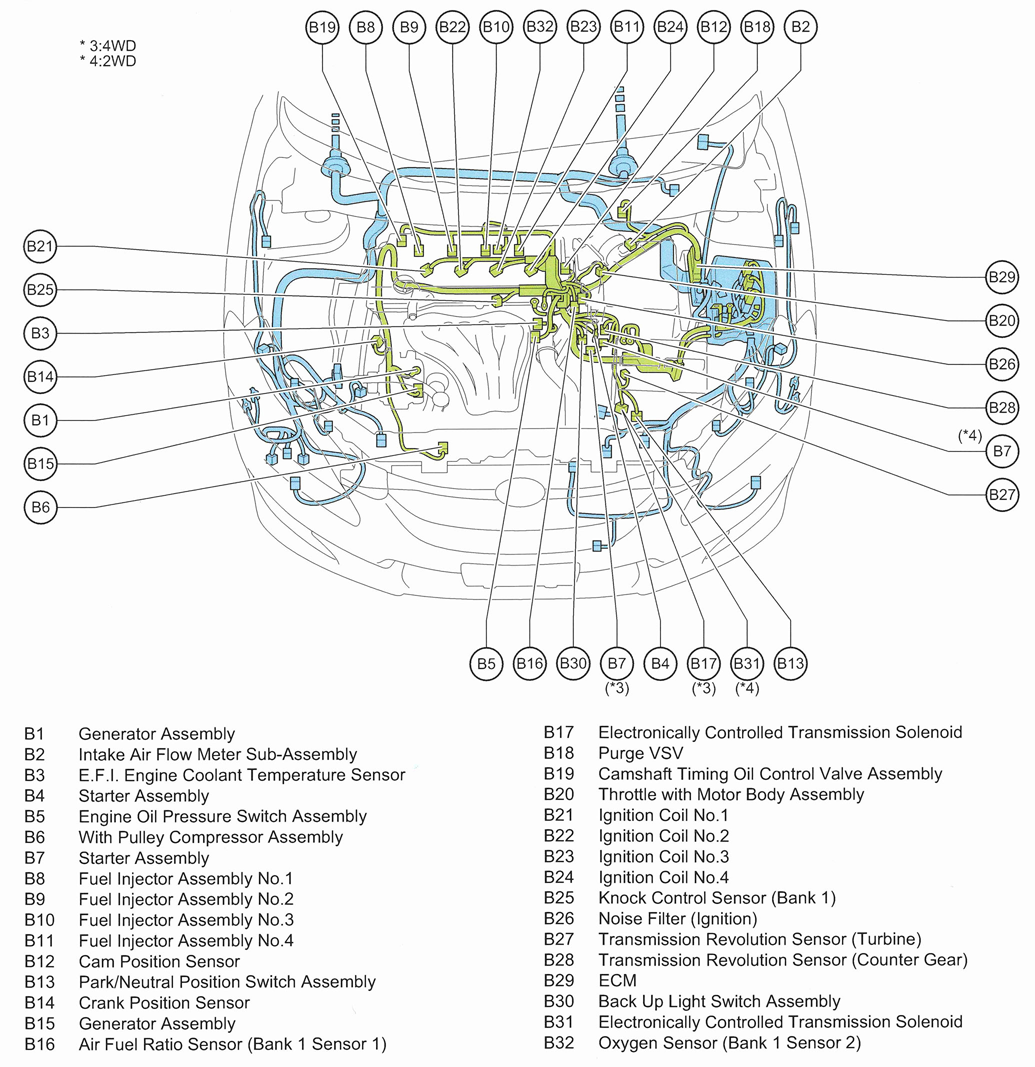

Fig 8: Engine Compartment (2.4L)

G00475593

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

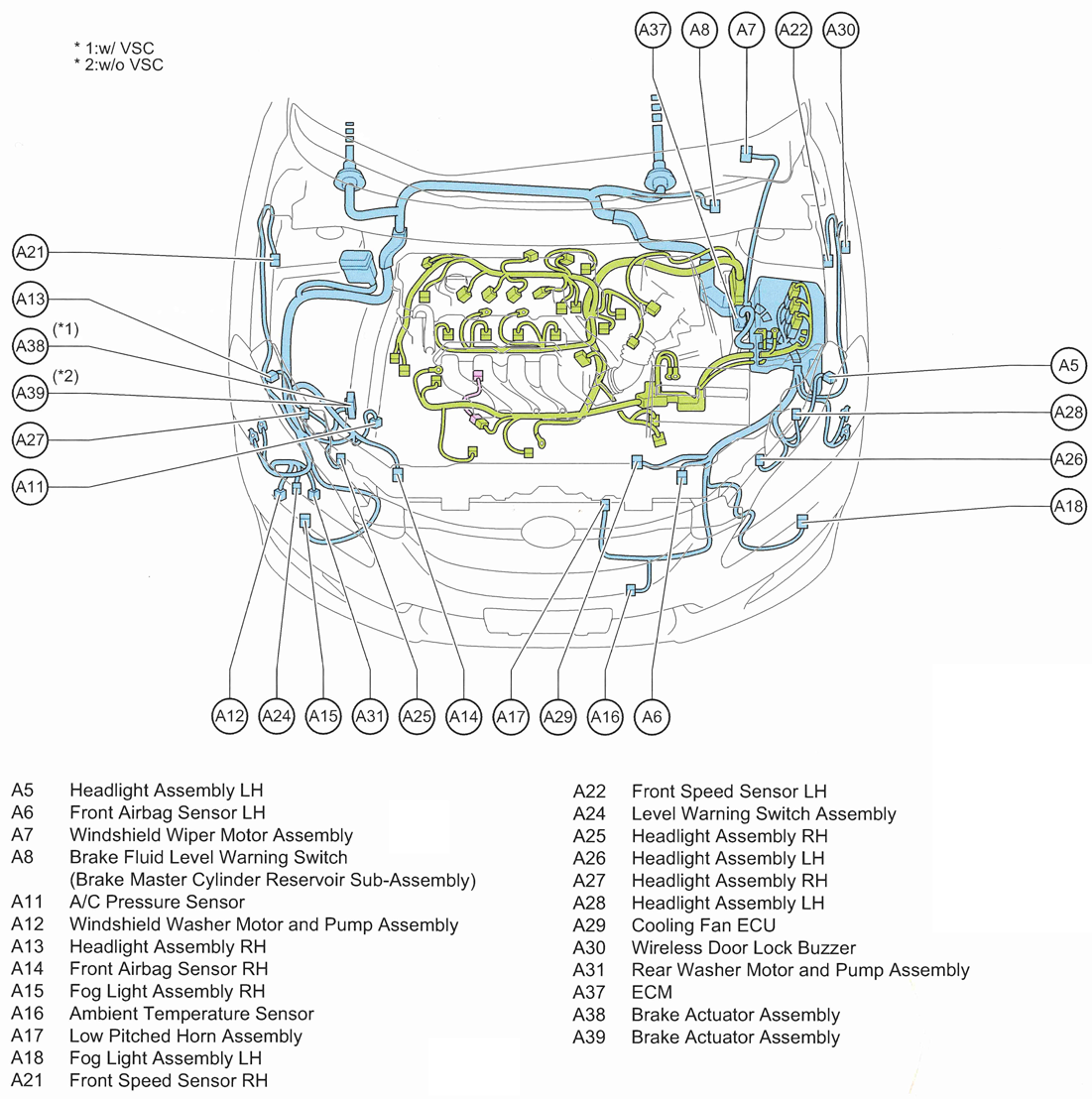

Fig 9: Engine (2.4L)

G00475594

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

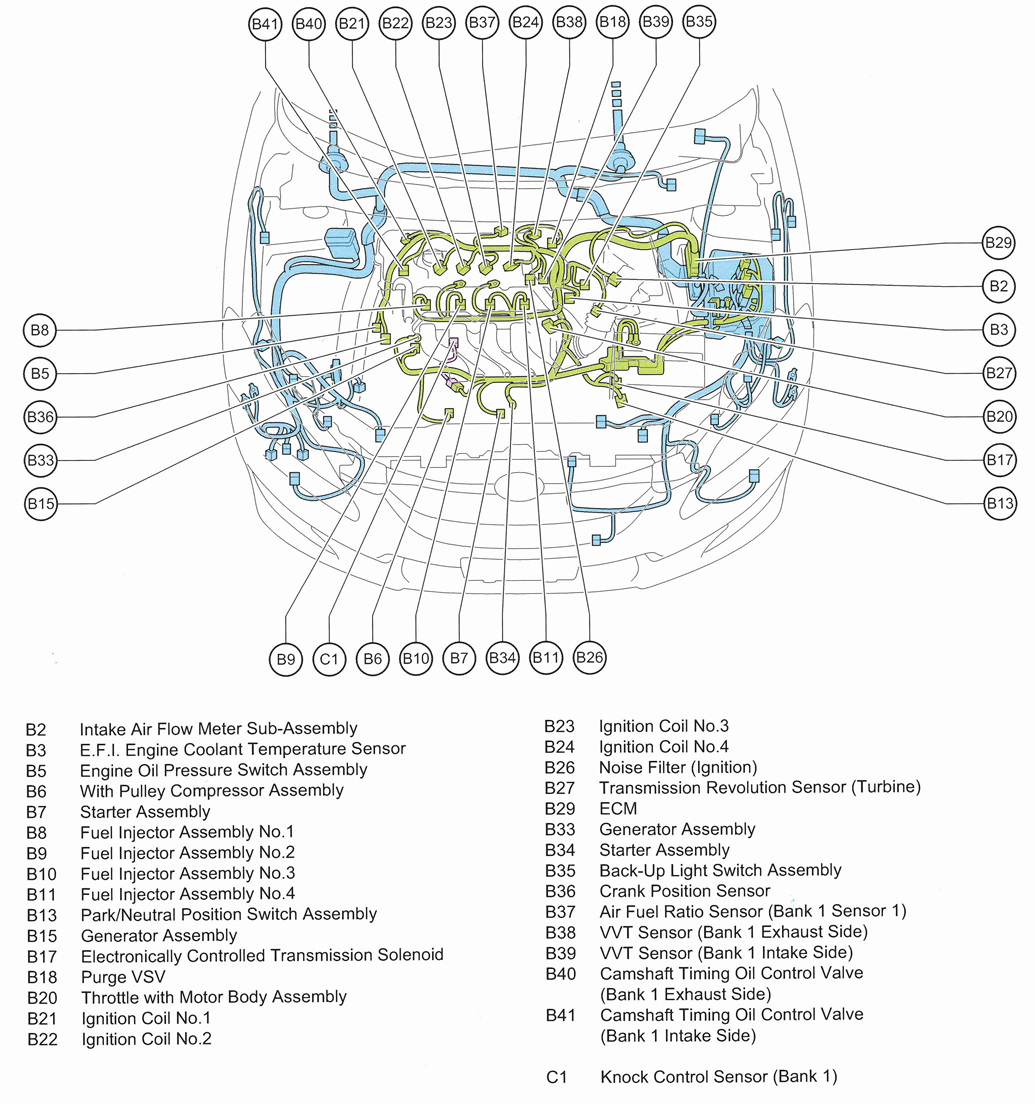

Fig 10: Engine Compartment (1.8L)

G00475595

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

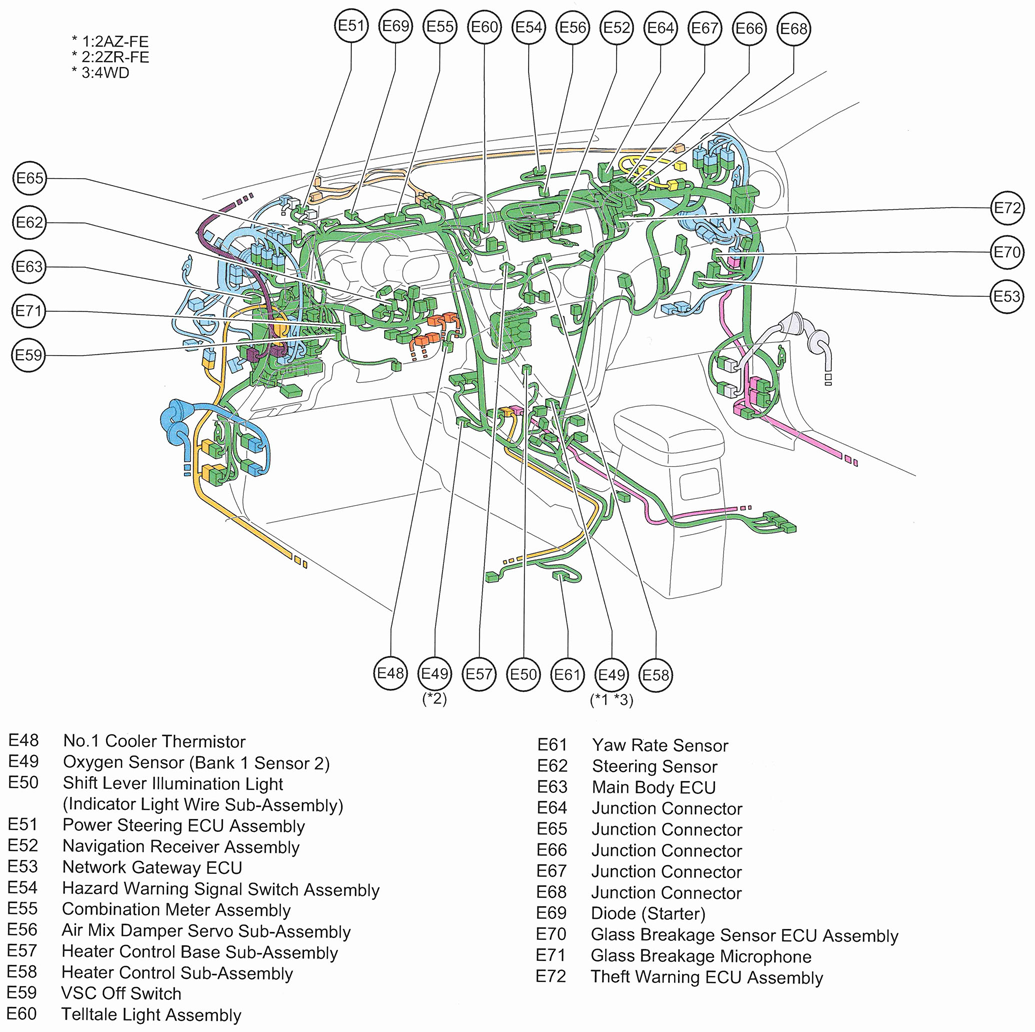

Fig 11: Engine (1.8L)

G00475596

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Dash & Center Console

G00467388

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Dash & Center Console

G00467389

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Dash & Center Console

G00467390

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Dash & Center Console

G00467391

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Vehicle Overview

G00467392

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Vehicle Overview

G00467393

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Front Seats

G00467394

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Engine Compartment (2.4L)

G00467395

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Engine Compartment (1.8L)

G00467396

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Dash & Center Console

G00467397

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Dash & Center Console

G00467398

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Vehicle Overview

G00467399

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: Front Seats

G00467400

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 25: Instrument Panel

G00475590

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 26: Dash & Center Console

G00475592

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
