Throttle Body: Components: Illustration

Fig 1: Identifying Throttle Body Replacement Components And Torque Specifications (1 Of 2)
GTY234531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

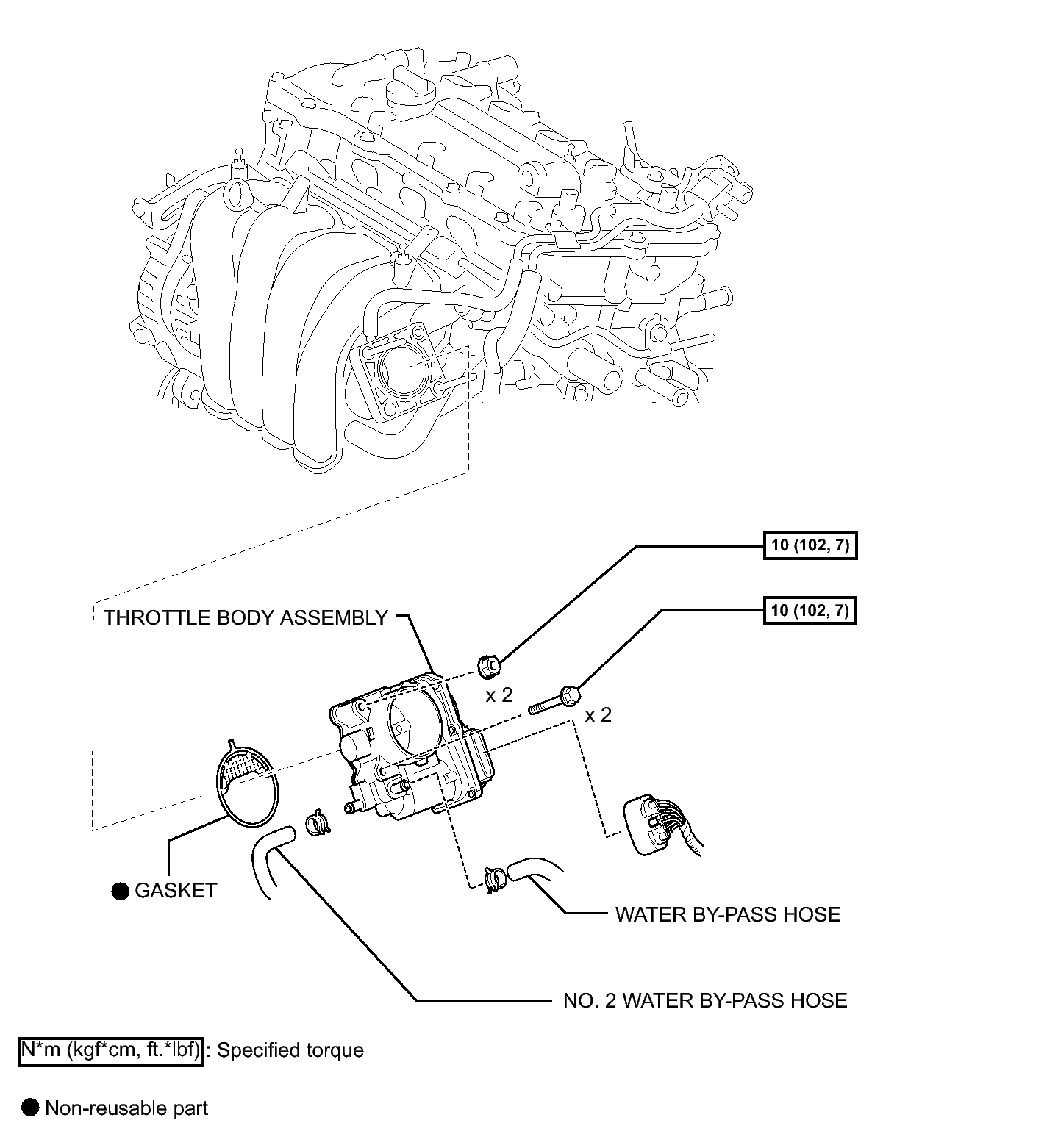

Fig 1: Identifying Throttle Body Replacement Components And Torque Specifications (2 Of 2)
GTY238226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
