FJ Cruiser

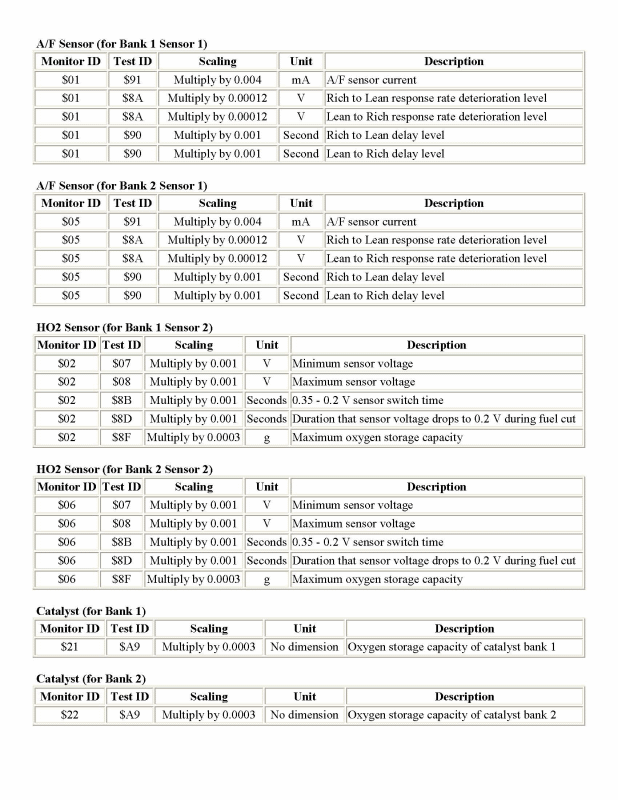

Fig 1: Mode 6 Data For FJ Cruiser (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

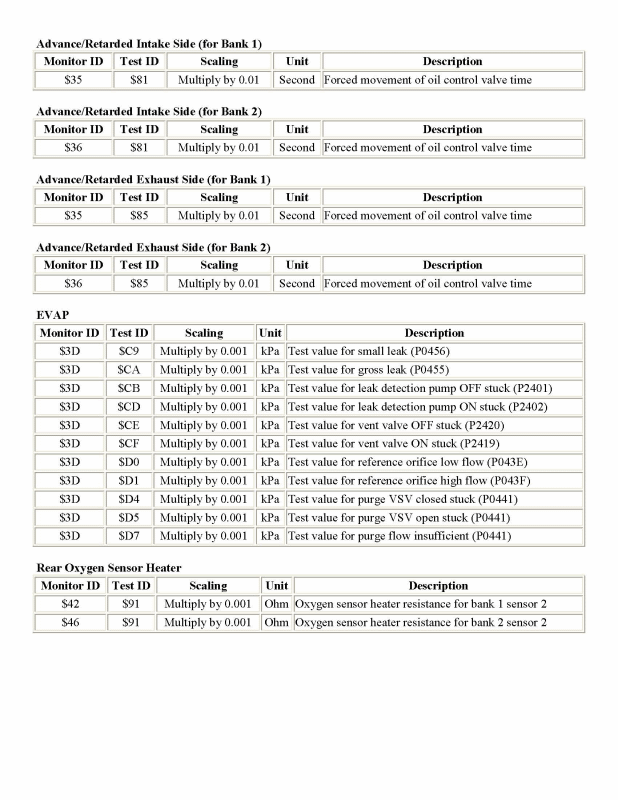

Fig 2: Mode 6 Data For FJ Cruiser (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

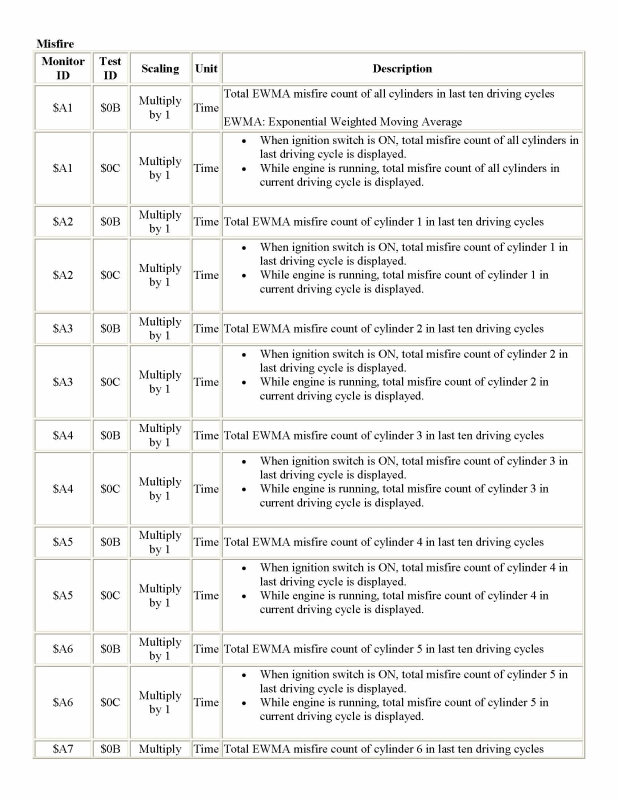

Fig 3: Mode 6 Data For FJ Cruiser (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

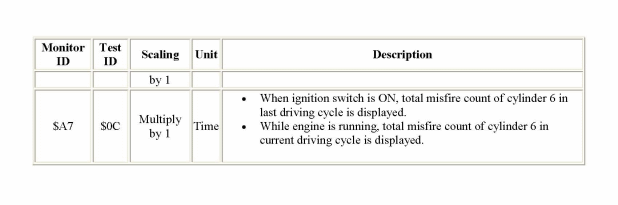

Fig 4: Mode 6 Data For FJ Cruiser (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
