2ZR-FE 1.8L

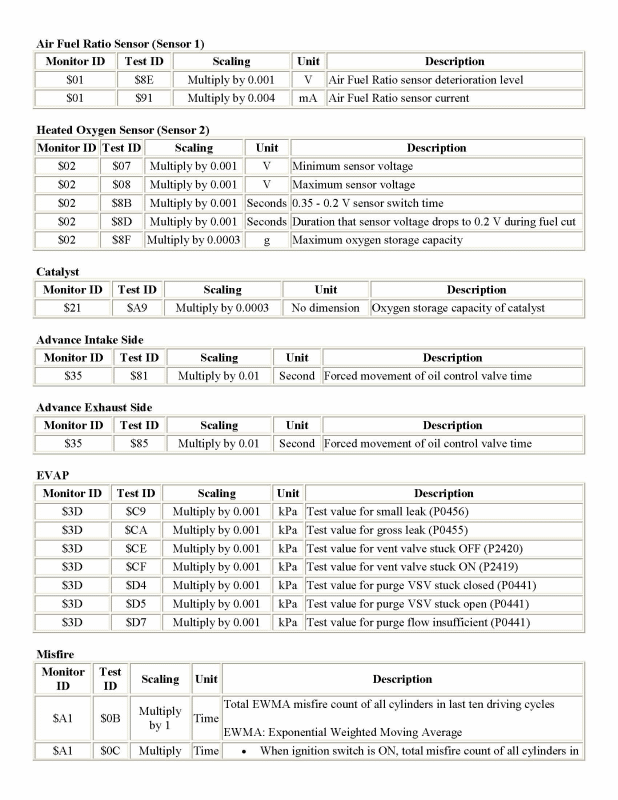

Fig 1: Mode 6 Data For Matrix 1.8L (1 Of 2)
G00526141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

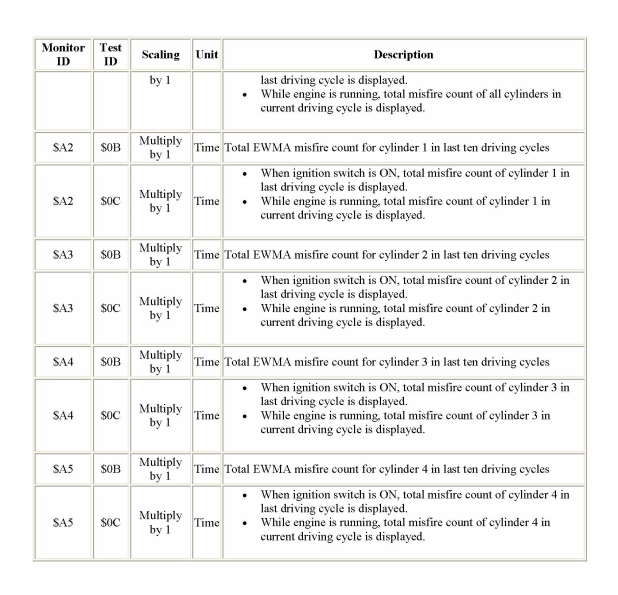

Fig 2: Mode 6 Data For Matrix 1.8L (2 Of 2)
G00526142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
