Ignition Coil And Spark Plug: Installation: Installation

INSTALL SPARK PLUG
1. Using a 14 mm spark plug wrench, install the 4 spark plugs.

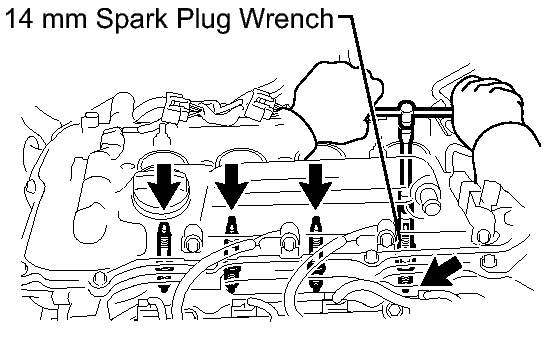

  Fig 1: View Of Spark Plugs And Wrench
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
INSTALL IGNITION COIL ASSEMBLY
1. Install the 4 ignition coils with the 4 bolts.

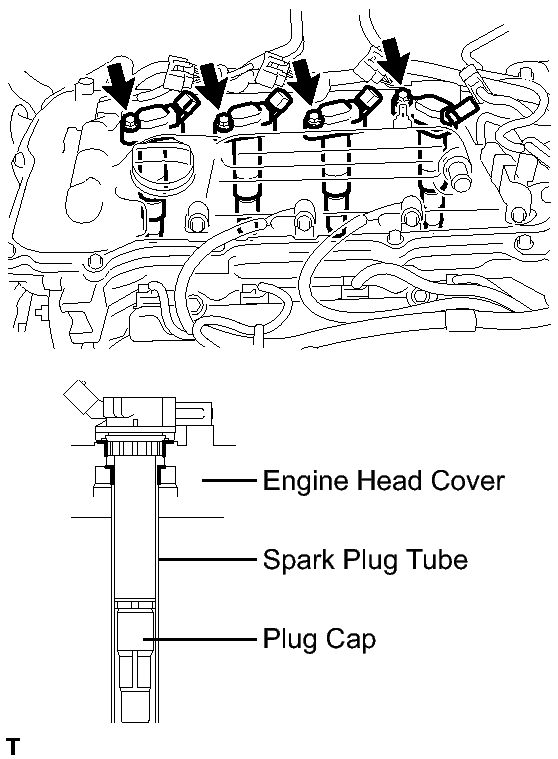

  Fig 2: View Of Ignition Coil Components And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7.4 ft.*lbf)

  NOTE:
  When installing each ignition coil, do not damage the plug cap on the engine head cover opening or the upper edge of the spark plug tube.
2. Connect the 4 ignition coil connectors.

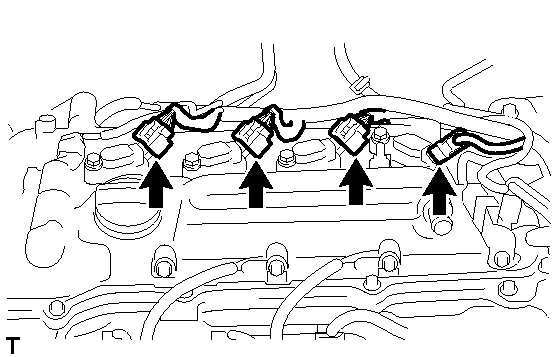

  Fig 3: Locating Ignition Coil Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 CYLINDER HEAD COVER . Refer to INSTALLATION - Step 85
