System Diagram

  1. w/o Smart Key System:

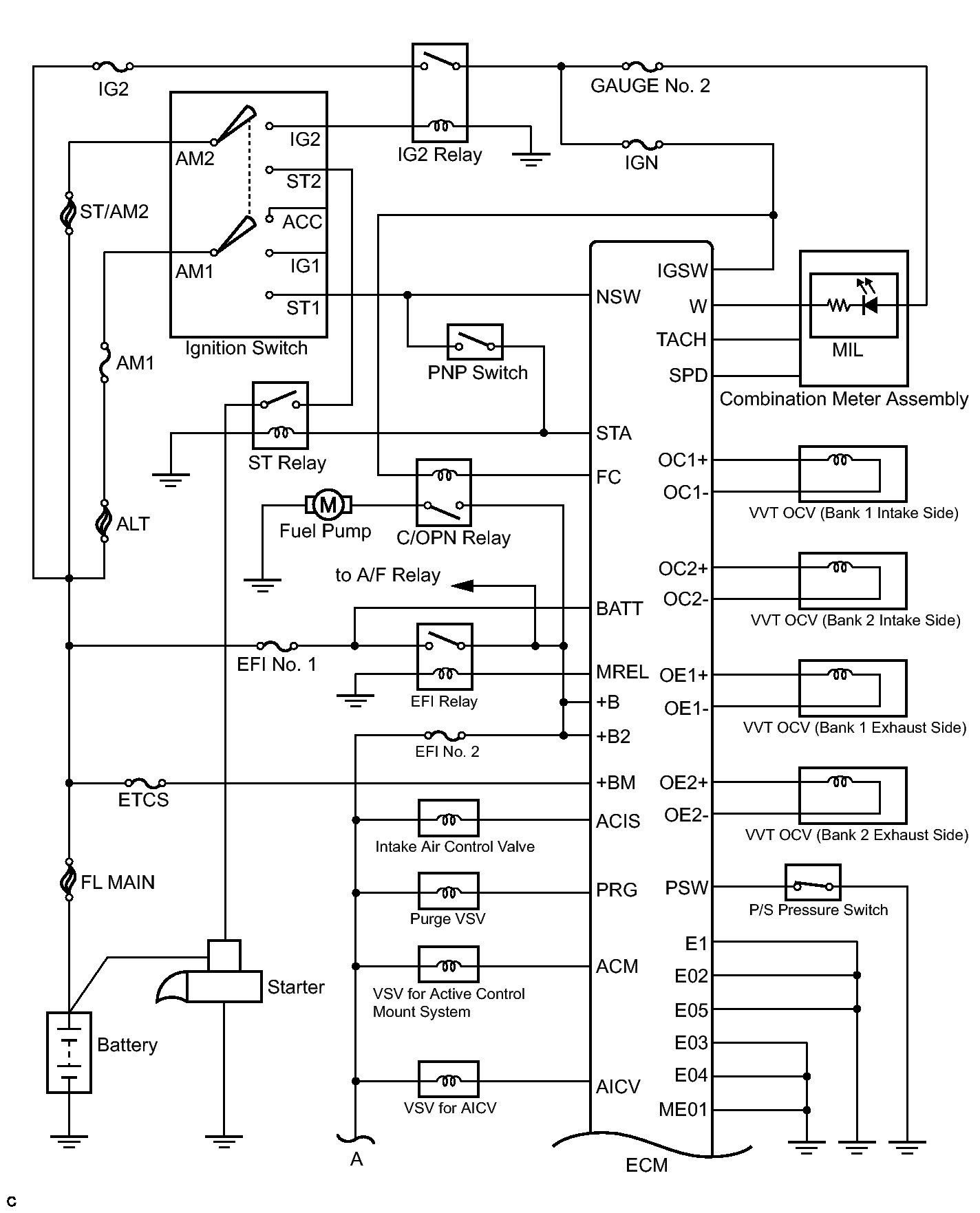

    Fig 1: SFI System Circuit Diagram (w/o Smart Key System) (1 Of 3)
    GTY299490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

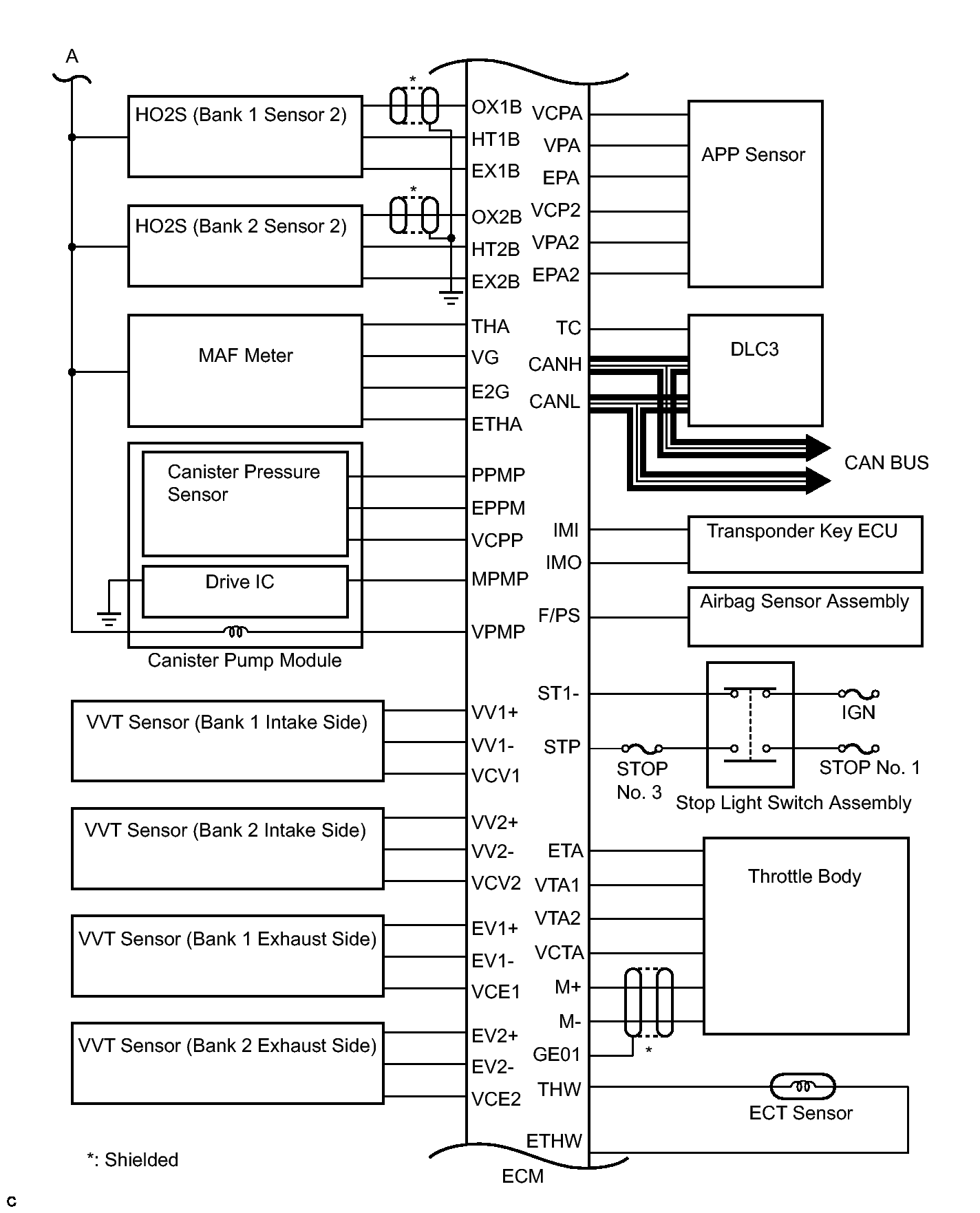

    Fig 2: SFI System Circuit Diagram (w/o Smart Key System) (2 Of 3)
    GTY298815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

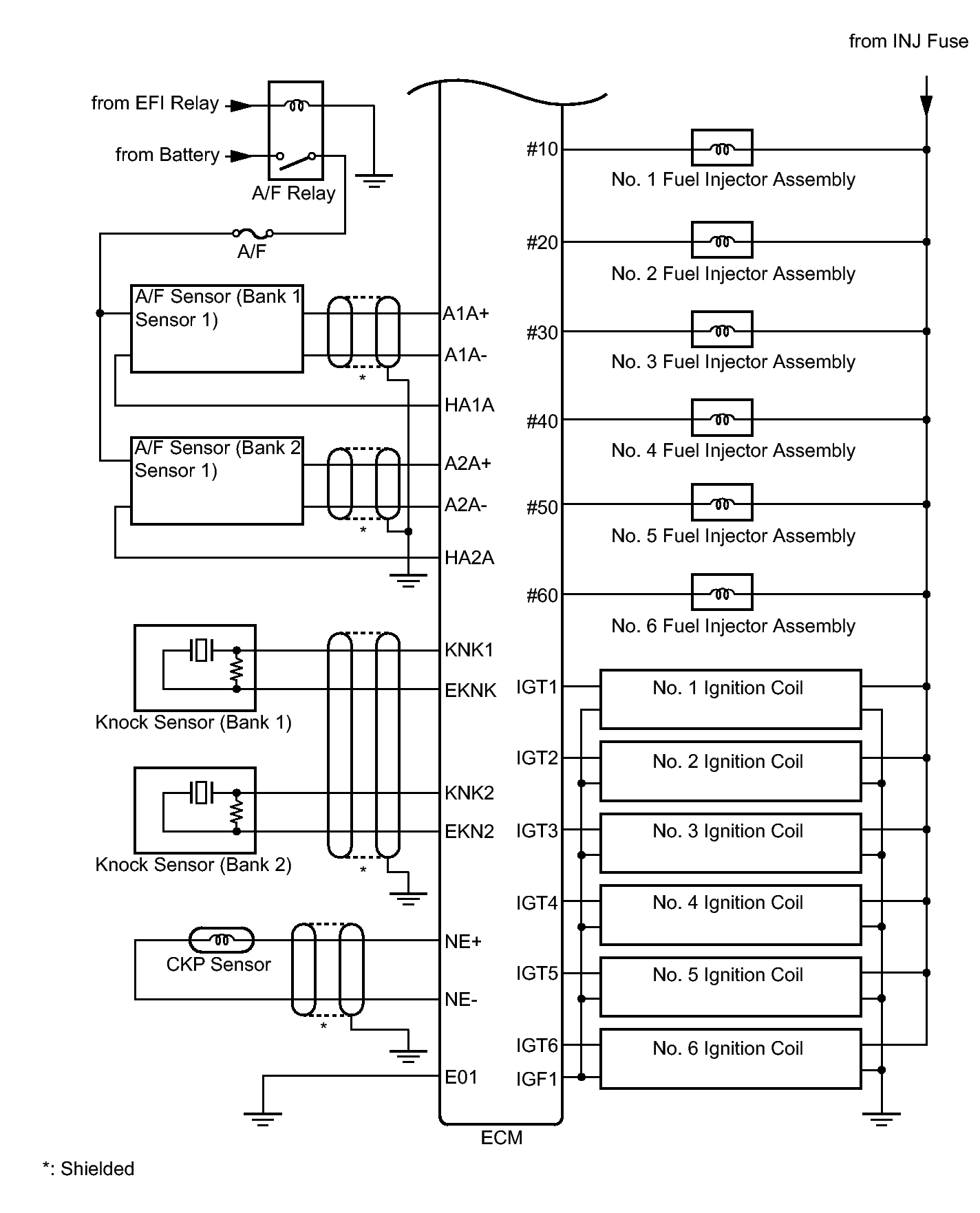

    Fig 3: SFI System Circuit Diagram (w/o Smart Key System) (3 Of 3)
    GTY304369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/ Smart Key System:

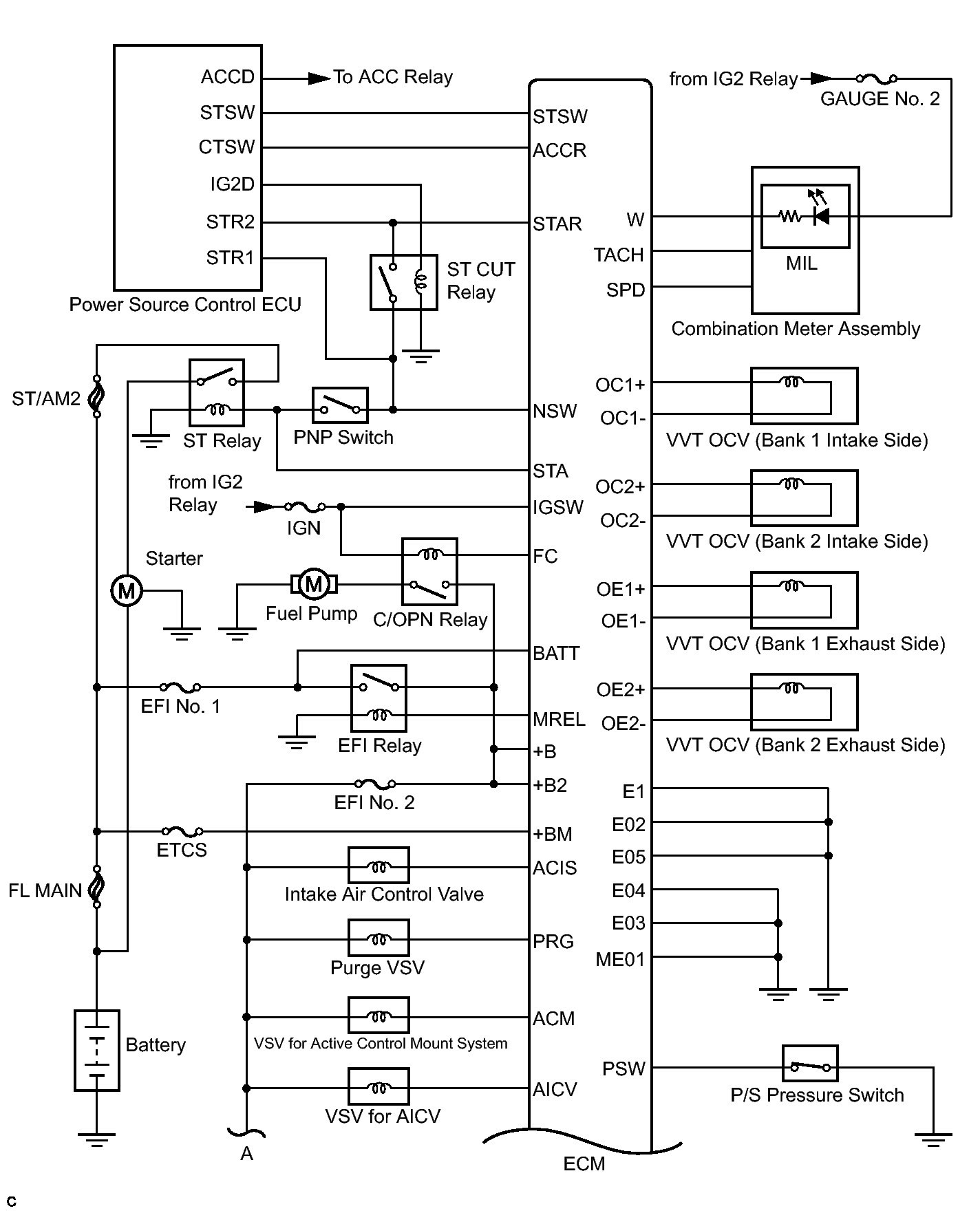

    Fig 4: SFI System Circuit Diagram (w/ Smart Key System) (1 Of 3)
    GTY301507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 5: SFI System Circuit Diagram (w/ Smart Key System) (2 Of 3)
    GTY298815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 6: SFI System Circuit Diagram (w/ Smart Key System) (3 Of 3)
    GTY304369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
