Parts Location: Illustration

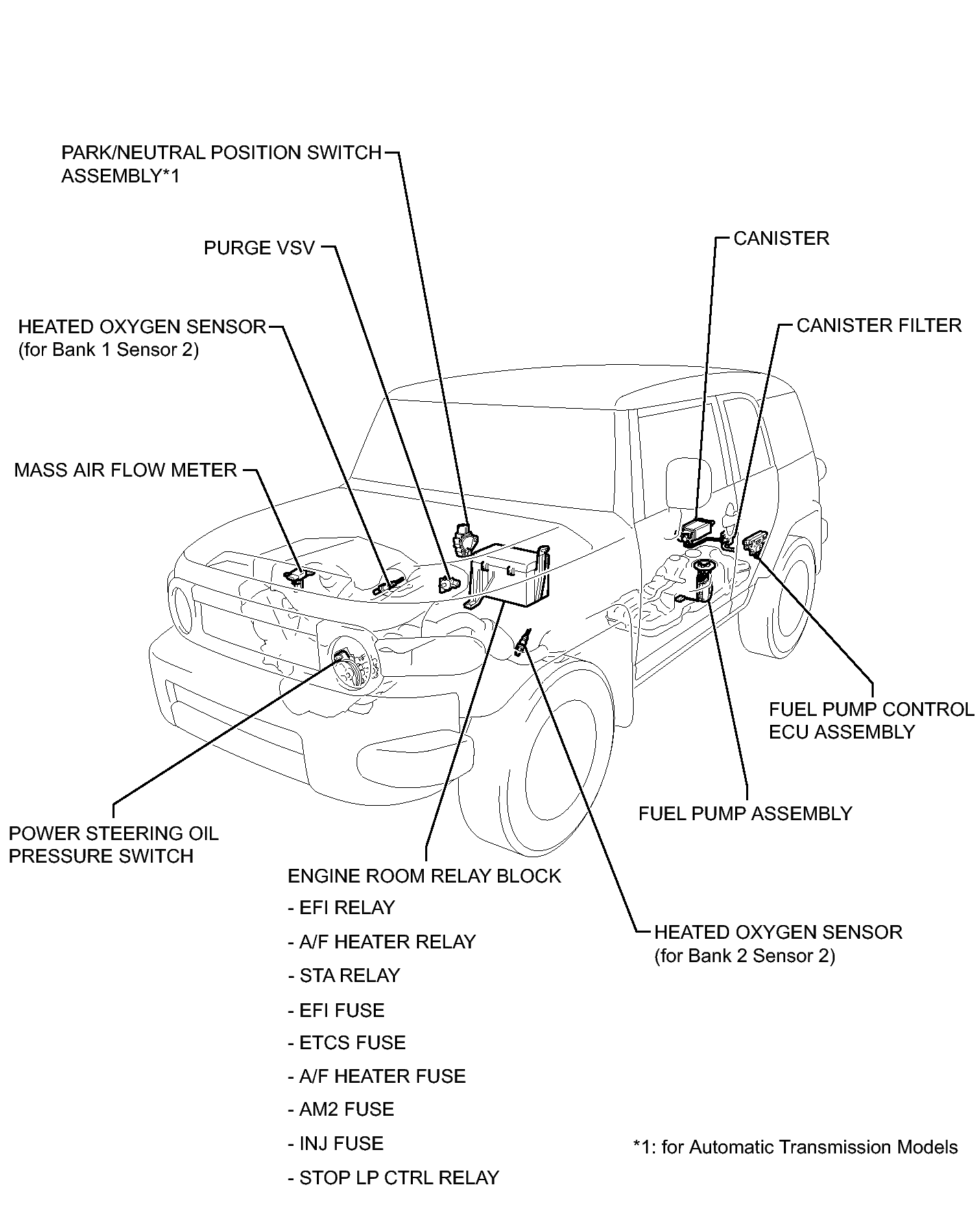

Fig 1: Identifying Engine Control System Components Location (1 Of 4)
GTY308781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

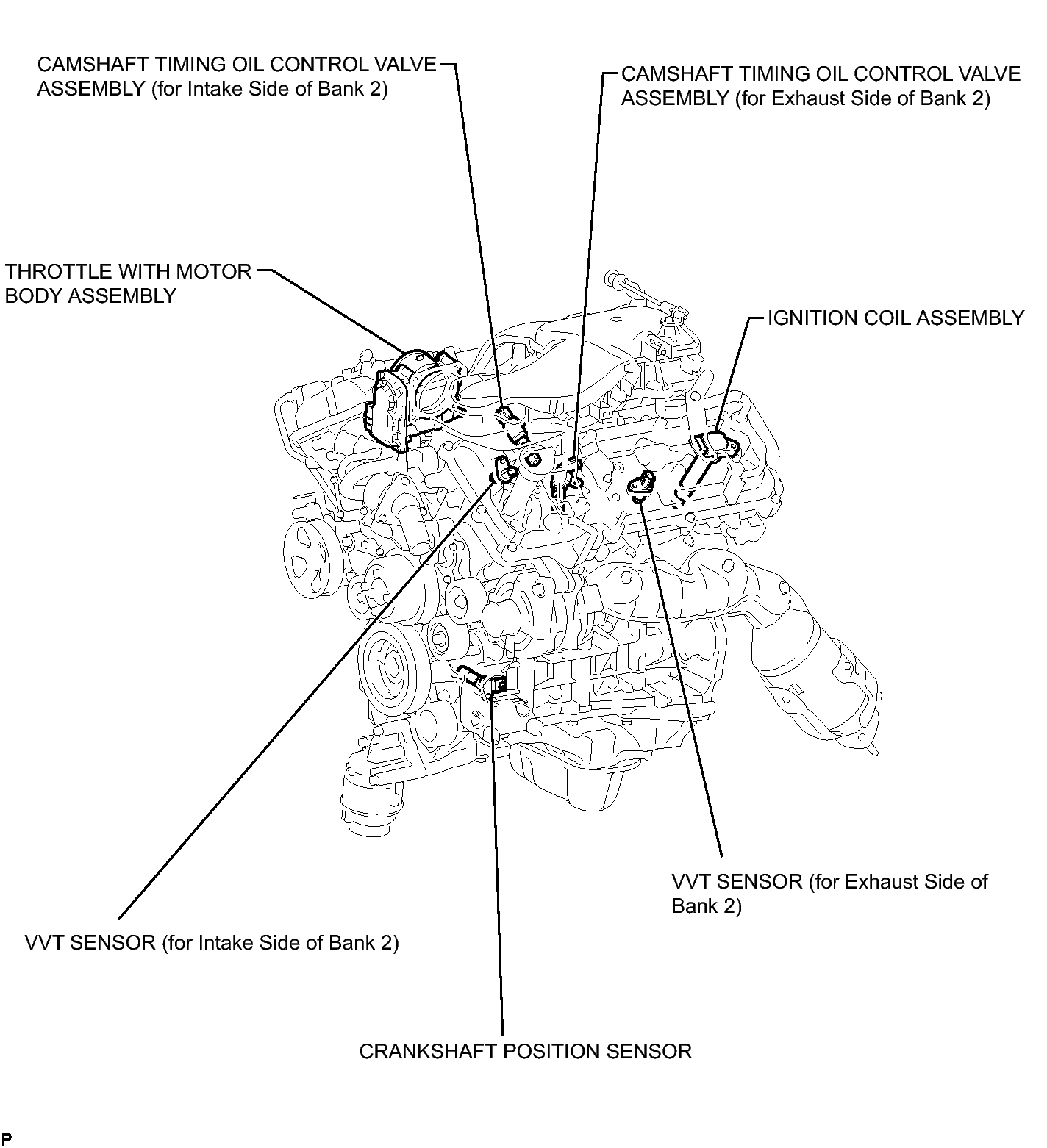

Fig 1: Identifying Engine Control System Components Location (2 Of 4)
GTY308444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Control System Components Location (3 Of 4)
GTY182588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

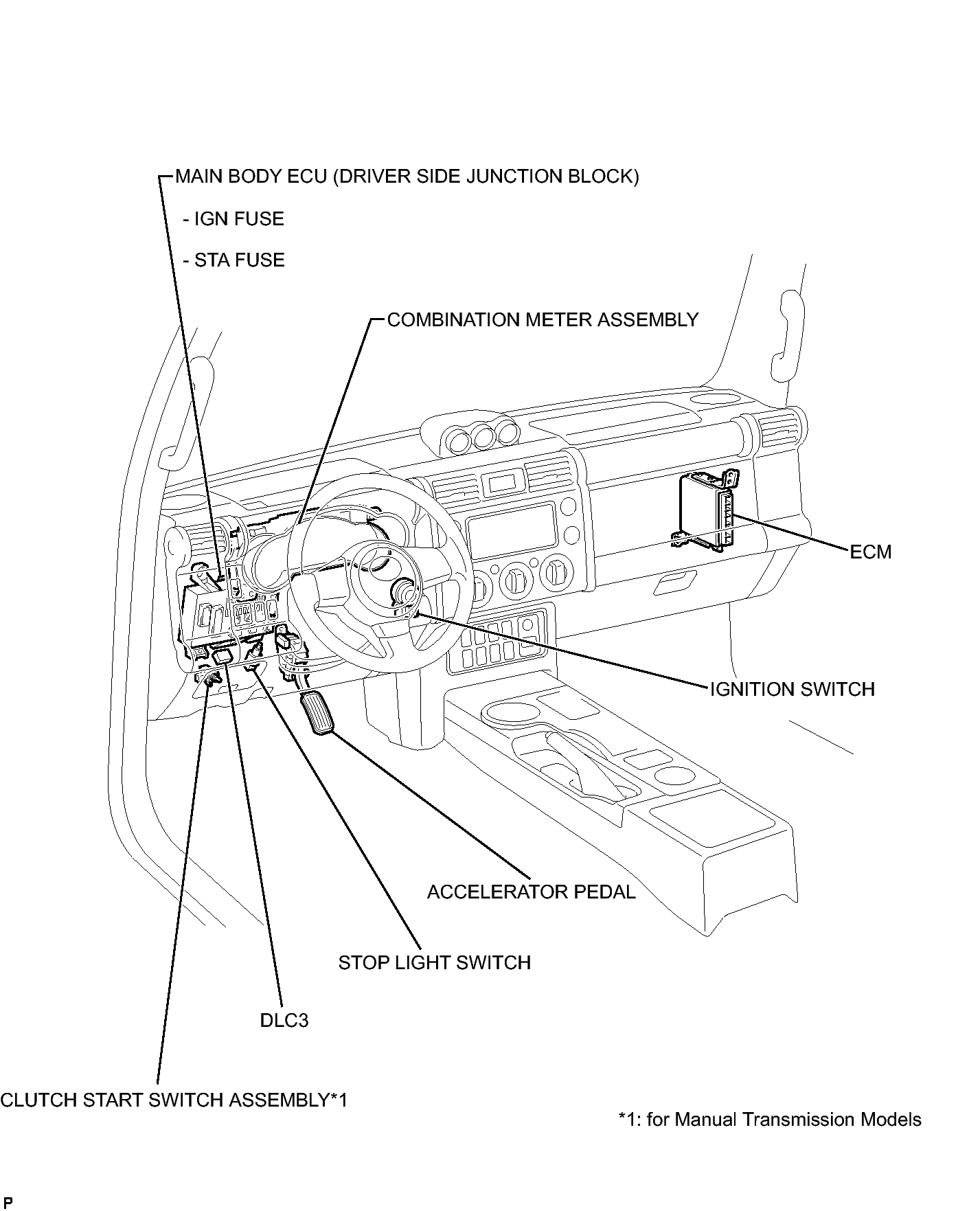

Fig 1: Identifying Engine Control System Components Location (4 Of 4)
GTY308432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
