Terminals Of ECM

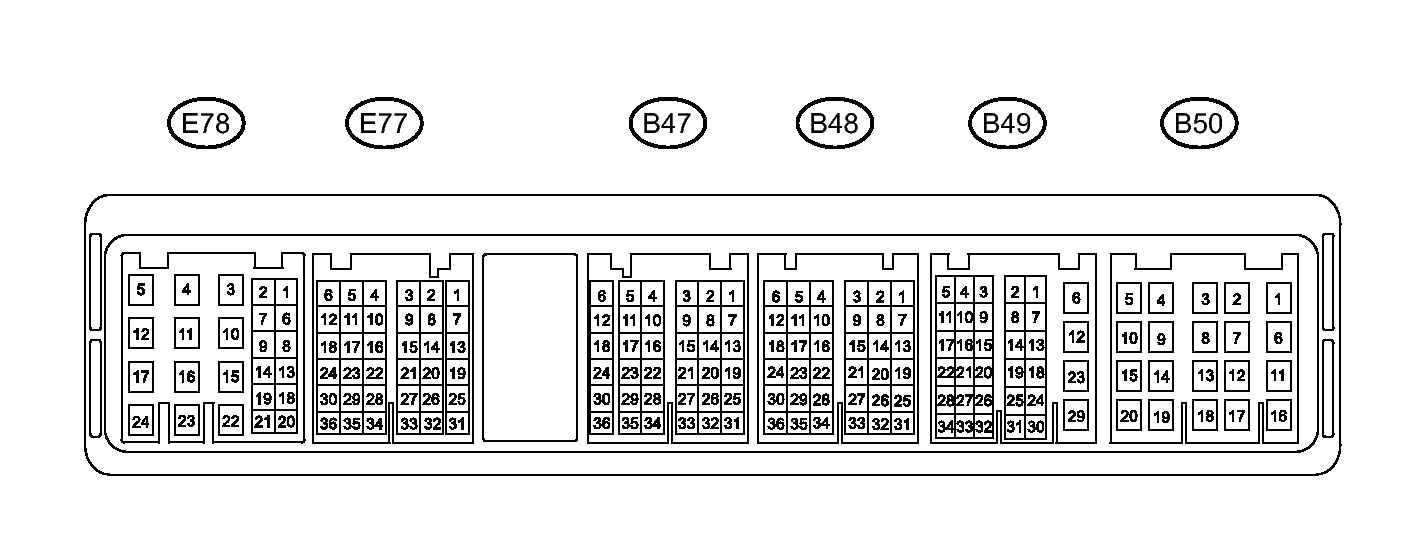

Fig 1: ECM Connector Terminal Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The standard normal voltage between each pair of ECM terminals is shown in the table below. The appropriate conditions for checking each pair of terminals are also indicated. The result of checks should be compared with the standard normal voltage for that pair of terminals, displayed in the Specified Condition column. The illustration above can be used as a reference to identify the ECM terminal locations.

*1: The ECM terminal voltage is constant regardless of the output voltage from the sensor.

*2: for Automatic Transmission Models

1. WAVEFORM 1
   Fig 2: Identifying Waveform 1 Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CAMSHAFT TIMING OIL CONTROL VALVE (OCV)



   ECM Terminal Name	Between OC1+ and OC1- or OC2+ and OC2- OE1+ and OE1- or OE2+ and OE2-
   Tester Range	5 V/DIV, 1 ms/DIV
   Condition	Idling

   HINT:

   The wavelength becomes shorter as the engine rpm increases.

2. WAVEFORM 2

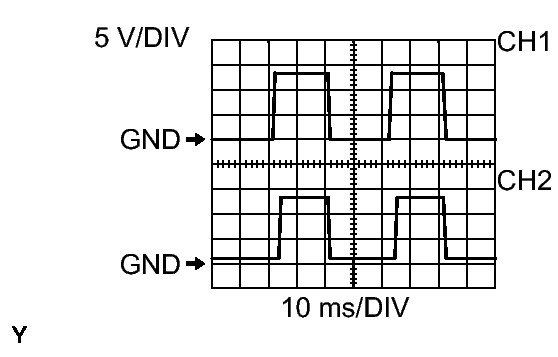

   Fig 3: Identifying Waveform 2 Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   AIR FUEL RATIO SENSOR HEATER



   ECM Terminal Name	CH1: Between HA1A and E04 CH2: Between HA2A and E05
   Tester Range	5 V/DIV, 10 ms/DIV
   Condition	Idling with warm engine

   HINT:

   The wavelength varies in accordance with the engine operating condition.

3. WAVEFORM 3

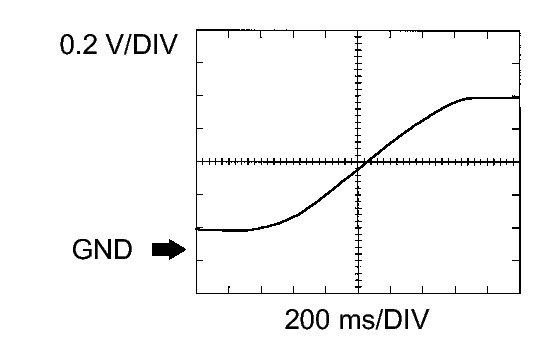

   Fig 4: Identifying Waveform 3 Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   HEATED OXYGEN SENSOR



   ECM Terminal Name	Between OX1B and EX1B or OX2B and EX2B
   Tester Range	0.2 V/DIV, 200 ms/DIV
   Condition	Engine speed maintained at 2500 rpm for 2 minutes after warming up sensor

   HINT:

   In the Data List, item O2S B1S2 or O2S B2S2 shows the ECM input values from the heated oxygen sensor.

4. WAVEFORM 4

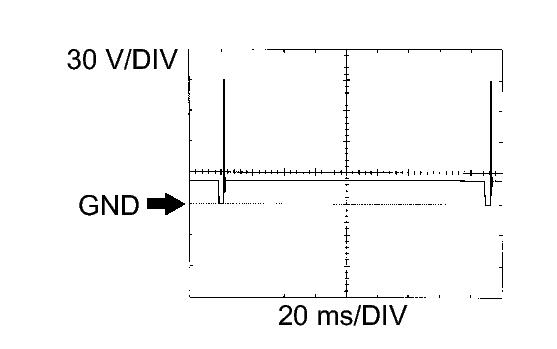

   Fig 5: Identifying Waveform 4 Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   FUEL INJECTOR



   ECM Terminal Name	Between #10 (to 60) and E01
   Tester Range	30 V/DIV, 20 ms/DIV
   Condition	Idling

   HINT:

   The wavelength becomes shorter as the engine rpm increases.

5. WAVEFORM 5

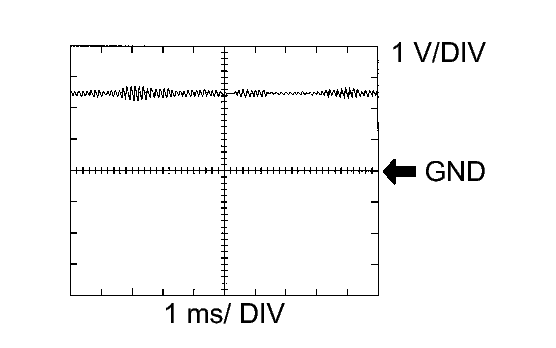

   Fig 6: Identifying Waveform 5 Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   KNOCK SENSOR



   ECM Terminal Name	Between KNK1 and EKNK or KNK2 and EKN2
   Tester Range	1 V/DIV, 1 ms/DIV
   Condition	Engine speed maintained at 4000 rpm after warming up engine

   HINT:

   • The wavelength becomes shorter as the engine rpm increases.
   • The waveforms and amplitudes displayed on the tester differ slightly depending on the vehicle.
6. WAVEFORM 6

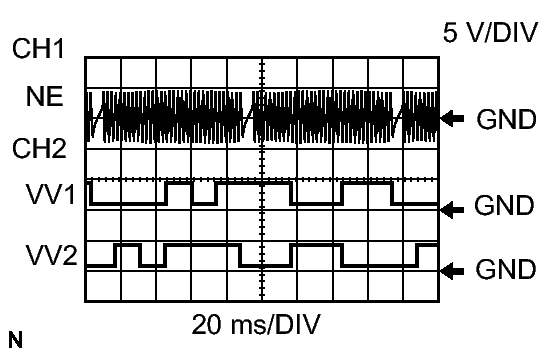

   Fig 7: Identifying Waveform 6 Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CRANKSHAFT POSITION SENSOR AND VVT SENSOR FOR INTAKE SIDE



   ECM Terminal Name	CH1: Between NE+ and NE- CH2: Between VV1+ and VV1- or VV2+ and VV2-
   Tester Range	5 V/DIV, 20 ms/DIV
   Condition	Idling

   HINT:

   The wavelength becomes shorter as the engine rpm increases.

7. WAVEFORM 7

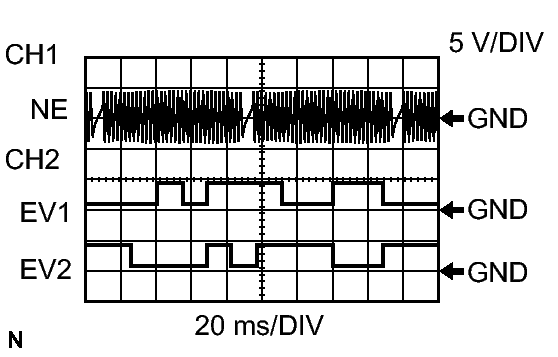

   Fig 8: Identifying Waveform 7 Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   VVT SENSOR FOR EXHAUST SIDE



   ECM Terminal Name	CH1: Between NE+ and NE- CH2: Between EV1+ and EV1- or EV2+ and EV2-
   Tester Range	5 V/DIV, 20 ms/DIV
   Condition	Idling

   HINT:

   The wavelength becomes shorter as the engine rpm increases.

8. WAVEFORM 8

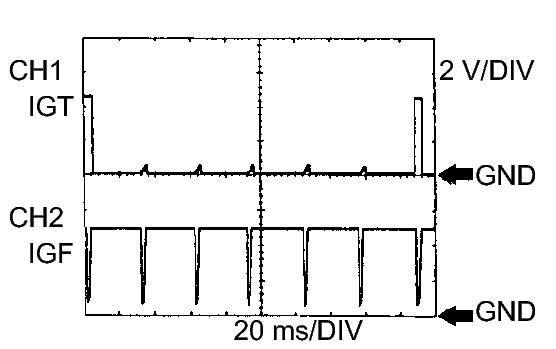

   Fig 9: Identifying Waveform 8 Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   IGNITER IGT SIGNAL (FROM ECM TO IGNITER) AND IGNITER IGF SIGNAL (FROM IGNITER TO ECM)



   ECM Terminal Name	CH1: Between IGT (1 to 6) and E1 CH2: Between IGF1 and E1
   Tester Range	2 V/DIV, 20 ms/DIV
   Condition	Idling

   HINT:

   The wavelength becomes shorter as the engine rpm increases.

9. WAVEFORM 9

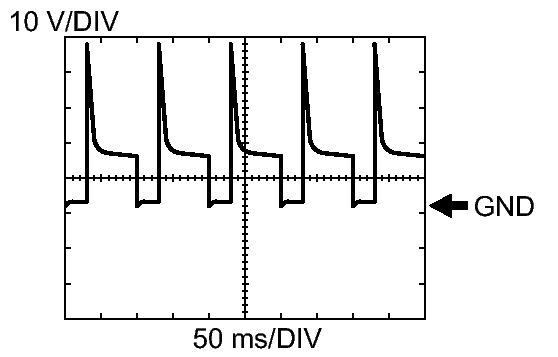

   Fig 10: Identifying Waveform 9 Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   PURGE VSV



   ECM Terminal Name	Between PRG and E1
   Tester Range	10 V/DIV, 50 ms/DIV
   Condition	Idling, during purge control

   HINT:

   If the waveform is not similar to the illustration, check the waveform again after idling for 10 minutes or more.

10. WAVEFORM 10

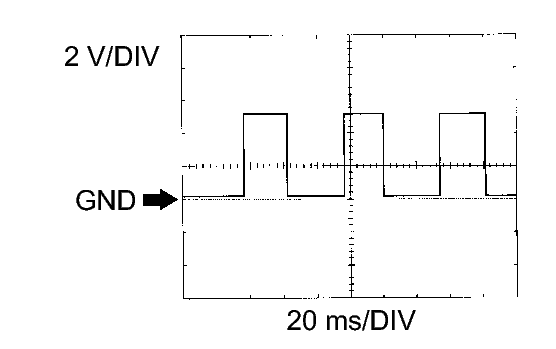

    Fig 11: Identifying Waveform 10 Graph

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    VEHICLE SPEED SIGNAL



    ECM Terminal Name	Between SPD and E1
    Tester Range	2 V/DIV, 20 ms/DIV
    Condition	Driving at 20 km/h (12 mph)

    HINT:

    The wavelength becomes shorter as the vehicle speed increases.

11. WAVEFORM 11

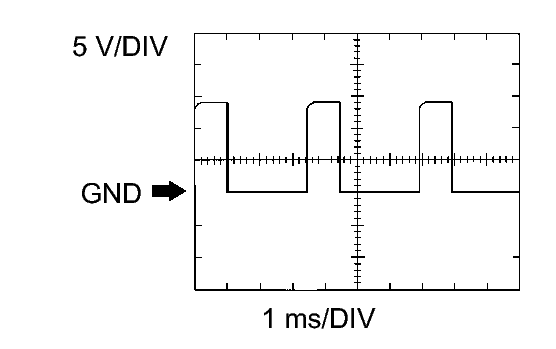

    Fig 12: Identifying Waveform 11 Graph

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    THROTTLE ACTUATOR POSITIVE TERMINAL



    ECM Terminal Name	Between M+ and ME01
    Tester Range	5 V/DIV., 1 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The duty ratio varies depending on the throttle actuator operation.

12. WAVEFORM 12
    Fig 13: Identifying Waveform 12 Graph

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    THROTTLE ACTUATOR NEGATIVE TERMINAL



    ECM Terminal Name	Between M- and ME01
    Tester Range	5 V/DIV., 1 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The duty ratio varies depending on the throttle actuator operation.

13. WAVEFORM 13

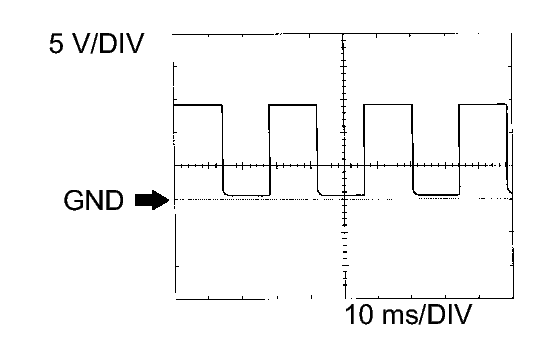

    Fig 14: Identifying Waveform 13 Graph

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ENGINE SPEED SIGNAL



    ECM Terminal Name	Between TACH and E1
    Tester Range	5 V/DIV, 10 ms/DIV
    Condition	Idling

    HINT:

    The wavelength becomes shorter as the engine rpm increases.

14. WAVEFORM 14

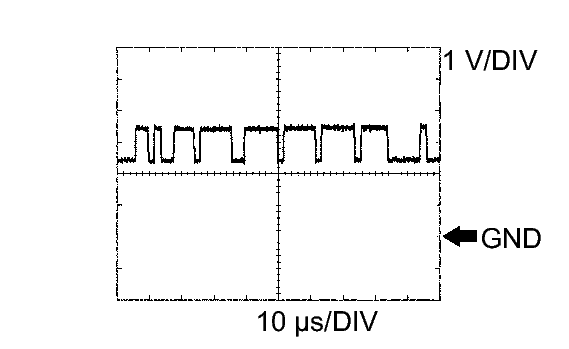

    Fig 15: Identifying Waveform 14 Graph

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAN COMMUNICATION SIGNAL (REFERENCE)



    ECM Terminal Name	Between CANH and E1
    Tester Range	1 V/DIV, 10 μs/DIV
    Condition	Stop engine and ignition switch to ON

    HINT:

    The wavelength varies depending on the CAN communication signal.

15. WAVEFORM 15

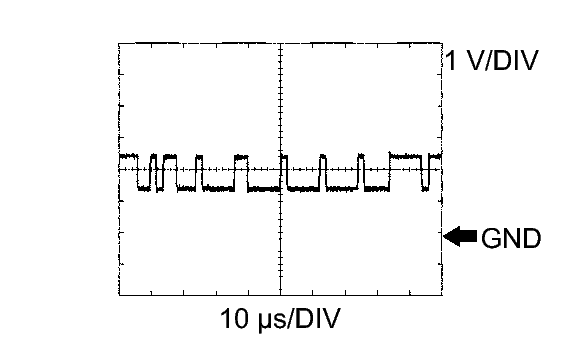

    Fig 16: Identifying Waveform 15 Graph

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAN COMMUNICATION SIGNAL (REFERENCE)



    ECM Terminal Name	Between CANL and E1
    Tester Range	1 V/DIV, 10 μs/DIV
    Condition	Stop engine and ignition switch to ON

    HINT:

    The wavelength varies depending on the CAN communication signal.
