Customize Parameters

HINT:

The following items can be customized.

NOTE:

When the customer requests a change in a function, first make sure that the function can be customized.
Be sure to make a note of the current settings before customizing.
When troubleshooting a function, first make sure that the function is set to the default setting.

AIR CONDITIONING SYSTEM (for Automatic Air Conditioning System)

AIR CONDITIONING SYSTEM:

Display (Item)	Default	Contents	Setting
Set Temperature Shift	NORMAL	To control with shifted temperature against displayed temperature	+2 C / +1 C / NORMAL / -1 C / -2 C
Ambient Temperature Shift	NORMAL	To control with shifted temperature against displayed temperature	+3 C / +2 C / +1 C / NORMAL / -1 C / -2 C / -3 C
Air Inlet Mode	AUTO	Function to shift from INLET mode to RECIRCULATION mode when A/C is turned ON	MANUAL / AUTO
Compressor Mode	AUTO	Function to automatically turn A/C ON by pressing AUTO button when blower is ON and A/C is OFF	MANUAL / AUTO
Compressor / Air Inlet DEF Operation	LINK	Function to automatically turn A/C ON linked with FRONT DEF button when A/C is OFF	NORMAL / LINK
Evaporator Control	AUTO	Function to set evaporator control to AUTOMATIC position (AUTO) to save power, or to coldest position (MANUAL) to dehumidify air and to prevent windows from fogging up	MANUAL / AUTO
Foot / DEF Auto Mode	ON	Function to automatically turn airflow from FOOT/DEF ON when AUTO MODE is ON	OFF / ON
Foot / DEF Automatic Blow Up Function	ON	Function to automatically increase blower level when defroster is ON	OFF / ON

THEFT DETERRENT SYSTEM (w/ Smart Key System)

SECURITY:

Display (Item)	Default	Contents	Setting
Passive Mode (Security System)	OFF	Passive Mode is a function that switches the theft deterrent system from the arming preparation state to the armed state 30 seconds after the key is removed from the actuation area and all doors, glass hatch^* and engine hood are closed, even if the doors are not locked by wireless or door key lock operation. In Passive Mode, if the following operations are not performed within 14 seconds after a door is opened during armed state, the theft deterrent system will judge that condition as a theft and switch to the alarm sounding state. Unlock any door by key or wireless operation Turn the engine switch on (IG)	ON / OFF
Warning by Horn	ON	Function that allows the vehicle horn and theft deterrent horn to be used as warning devices.	ON / OFF
Entry Delay	14 s	Function that changes entry delay time (time before warning starts) for Passive Mode	0 s / 14 s / 30 s

HINT:

*: w/ Glass Hatch Opener System

THEFT DETERRENT SYSTEM (w/o Smart Key System)

SECURITY:

Display (Item)	Default	Contents	Setting
Passive Mode (Security System)	OFF	Passive Mode is a function that switches the theft deterrent system from the arming preparation state to the armed state 30 seconds after the key is removed from the key cylinder and all doors, engine hood and luggage compartment door are closed, even if the doors are not locked by wireless or door key lock operation. In Passive Mode, if the following operations are not performed within 14 seconds after a door is opened during armed state, the theft deterrent system will judge that condition as a theft and switch to the alarm sounding state. Unlock any door by key or wireless operation Turn the ignition switch to the ON position Open the luggage compartment door by key or wireless operation	ON/OFF
Warning by Horn	ON	Function that allows the vehicle horn and theft deterrent horn to be used as warning devices	ON/OFF
Entry Delay	14 s	Function that changes entry delay time (time before warning starts) for Passive Mode	0 s/14 s/30 s
Warning by Glass Broken Sensor	ON	Function that turns the glass breakage sensor on/off. This function is only effective for vehicles with glass breakage sensor.	ON/OFF

LIGHTING SYSTEM

ILLUMINATED ENTRY:

Display	Default	Contents	Setting
Lighting Time	15 s	Changes the lighting time of the personal light, interior lights and ignition key cylinder light^1 /engine switch illumination^2 after closing all of the doors. (It will quickly fade out when the ignition switch is turned on (IG)	7.5 s / 15 s / 30 s
I/L when ACC OFF	ON	Lights up the personal light, interior lights and ignition key cylinder light^1 /engine switch illumination^2 when the ignition switch is turned from on (ACC or IG) to off.	ON / OFF
I/L ON W/Door Key Unlock	ON	Lights up the personal light, interior lights and ignition key cylinder light^1 /engine switch illumination^2 when the doors are unlocked using the mechanical key.	ON / OFF
Mirr-Foot-Lgt Approached	ON	Lights up the door mirror foot lights when the key enters actuation area around the doors.	ON / OFF
Mirr-Foot-Lgt Unlocked	ON	Lights up the door mirror foot lights when the doors are unlocked using door control transmitter or mechanical key.	ON / OFF
Mirr-Foot-Lgt w/Master SW	ON	Lights up the door mirror foot lights when the doors are unlocked with the door control switch.	ON / OFF
Mirror Foot Light Time	15 s	Changes the lighting time of the door mirror foot lights.	0 s / 7.5 s / 15 s / 30 s

HINT:

*1: w/o Smart Key System
*2: w/ Smart Key System

LIGHT CONTROL:

Display	Default	Contents	Setting
Disp Ex ON Sen	Normal	Changes the ambient brightness level required to dim the lights such as the indicator lights of the combination meter, A/C indicator light, and clock.	Light2 / Light1 / Normal / Dark1 / Dark2
Disp Ex OFF Sen	Normal	Changes the ambient brightness level required to cancel the dimming of the combination meter indicator lights, A/C indicator light, and clock.	Light2 / Light1 / Normal / Dark1 / Dark2
Light Auto OFF Delay	30 s	Keeps the headlights on for a certain period of time after turning the ignition switch off and closing all the doors with the headlights on.	OFF / 30 s / 60 s / 90 s
Sensitivity	Normal	Adjusts the sensitivity of the automatic light control function.	Light2 / Light1 / Normal / Dark1 / Dark2
DRL Function	ON	ON / OFF of the DRL function.	ON / OFF

POWER DOOR LOCK CONTROL SYSTEM

MAIN BODY (MAIN BODY ECU):

Display	Default	Contents	Setting
Unlock Key Twice	ON	Function that unlocks only driver side door when driver side door key cylinder is turned to UNLOCK once, and unlock all doors when it is turned to UNLOCK twice. For OFF setting, turning it once unlocks all doors.	ON / OFF
Auto Lock/Shift	ON	Function that locks all doors when shift lever is shifted to P from any other position with engine running and all doors closed	ON / OFF
Auto Unlock/Shift	ON	Function that unlocks all doors when shift lever is shifted to P from any other position while the ignition switch is on (IG)	ON / OFF
All Unlock/Open-Close	OFF	Function that unlocks all doors when opening driver door within 10 seconds after turning the ignition switch on (IG)	ON / OFF
Auto Lock	OFF	Function that locks all doors when the vehicle reaches a certain speed	ON / OFF

WIRELESS DOOR LOCK CONTROL SYSTEM (w/ Smart Key System)

WIRELESS DOOR LOCK

Display (Item)	Default	Contents	Setting
Wireless Control	ON	ON/OFF of wireless door lock function	ON/OFF
Hazard Answer Back	ON	When LOCK switch on transmitter pressed, all hazard warning lights illuminate once. When UNLOCK switch pressed, all hazard warning lights illuminate twice	ON/OFF
Wireless Buzzer Resp	ON	Function that makes wireless buzzer sound for answer-back when transmitter LOCK/UNLOCK switch pressed	ON/OFF
Wireless Auto Lock	ON	Function to control automatic relocking of doors after unlocking with wireless door lock function.	ON/OFF
Open Door Warning	ON	If door is not completely closed and transmitter LOCK switch is pressed, this function sounds a buzzer for 10 seconds	ON/OFF
Unlock 2 Operation	ON	Function that unlocks driver side door when unlock switch on transmitter is pressed once, and unlocks all doors when pressed twice. If setting is OFF, pressing unlock switch once makes all doors unlock.	ON/OFF
Auto Lock Time	60s	This function controls amount of time from unlocking doors to automatic re-locking function	30s/60s/120s
Panic Alarm Function	ON	Function to operate theft deterrent system by continuously pressing panic switch on transmitter for 0.8 seconds	ON/OFF

WIRELESS DOOR LOCK CONTROL SYSTEM (w/o Smart Key System)

WIRELESS DOOR LOCK

Display (Item)	Default	Contents	Setting
Wireless Control	ON	ON/OFF of wireless door lock function	ON/OFF
Hazard Answer Back	ON	When LOCK switch on transmitter pressed, all hazard warning lights illuminate once. When UNLOCK switch pressed, all hazard warning lights illuminate twice	ON/OFF
Wireless Buzzer Resp	ON	Function that makes wireless buzzer sound for answer-back when transmitter LOCK/UNLOCK switch pressed	ON/OFF
Wireless Auto Lock	ON	Function to control automatic relocking of doors after unlocking with wireless door lock function.	ON/OFF
Open Door Warning	ON	If door is not completely closed and transmitter LOCK switch is pressed, this function sounds a buzzer for 10 seconds	ON/OFF
Unlock 2 Operation	ON	Function that unlocks driver side door when unlock switch on transmitter is pressed once, and unlocks all doors when pressed twice. If setting is OFF, pressing unlock switch once makes all doors unlock.	ON/OFF
Panic Function	ON	This function operates the theft deterrent system when PANIC is pressed and held for 0.8 second or more.	ON/OFF
Auto Lock Time	60s	This function controls amount of time from unlocking doors to automatic re-locking function.	30s/60s/120s
Wireless Glass Hatch Open^*	Long 1	This function changes operation method of transmitter to glass hatch.	1tim ON: Push once 2tim ON: Push twice Long 1: Push and hold for 0.6 seconds Long 2: Push and hold for 0.8 seconds Prohibit: Does not operate

HINT:

*: w/ Glass Hatch Opener System

SMART KEY SYSTEM

SMART KEY (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (SMART):

Display (Item)	Default	Contents	Setting
Ignition Available Area	ALL	Function to choose the available area for electrical key to start engine and release the steering lock.	FRONT / ALL
Park Wait Time	2.5s	Function that sets waiting time to permit opening door after door is locked with entry lock function.	0.5 s / 1.5 s / 2.5 s / 5.0 s
Glass Hatch Open Operation	ON	Function to open the glass hatch when the driver has the electrical key and presses glass hatch opener switch.	ON / OFF
Back Door Opening Operation	LONG	Function to open the back door when the driver has the electrical key and presses back door opener switch.	LONG / TWICE / OFF

SMART KEY (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (WARNING):

Display (Item)	Default	Contents	Setting
Passenger Take Key	ON	Function to warn that the electrical key is taken out by passengers (It means that the key is taken out from except the driver's door) when engine is running.	ON / OFF
Key Out Range Warning	ON	Function to set a warning function for trying to start the engine before key is still out of its range.	ON / OFF
Key Low Battery Warning	ON	Function to set a warning function for the time when a key battery becomes weak.	ON / OFF

ENTRY UNLOCK MODE SWITCHING FUNCTION (Smart Key System)
HINT:

The function only changes the entry unlock mode of the smart key system. This function is not for the wireless door lock control.
1. To change the vehicle to entry unlock mode switching function:
  - Driver door unlock mode:
    When the driver door's touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.
  - All door unlock mode:
    When any touch sensor is touched, all doors unlock.
  1. Check that the power source mode is OFF and the LED on the electrical key is not blinking. Press the lock switch and one of the other switches on the electrical key at the same time for approximately 5 seconds while the electrical key is in the detection area.
  2. The certification ECU (smart key ECU assembly) receives this signal from the door control receiver and switches the entry unlock mode.
  3. The certification ECU (smart key ECU assembly) sounds the wireless door lock buzzer and the buzzer in the combination meter to inform the user that the mode has been switched.
  4. If the entry unlock mode needs to be switched again, press the lock switch and one of the other switches on the electrical key at the same time for approximately 5 seconds after the LED of the key goes off.
    NOTE:
    After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.
2. The certification ECU (smart key ECU assembly) receives this signal from the door control receiver and changes the smart key system to the entry unlock mode.
3. The certification ECU (smart key ECU assembly) sounds the wireless door lock buzzer and the buzzer of the combination meter to inform the user that the mode has been switched.

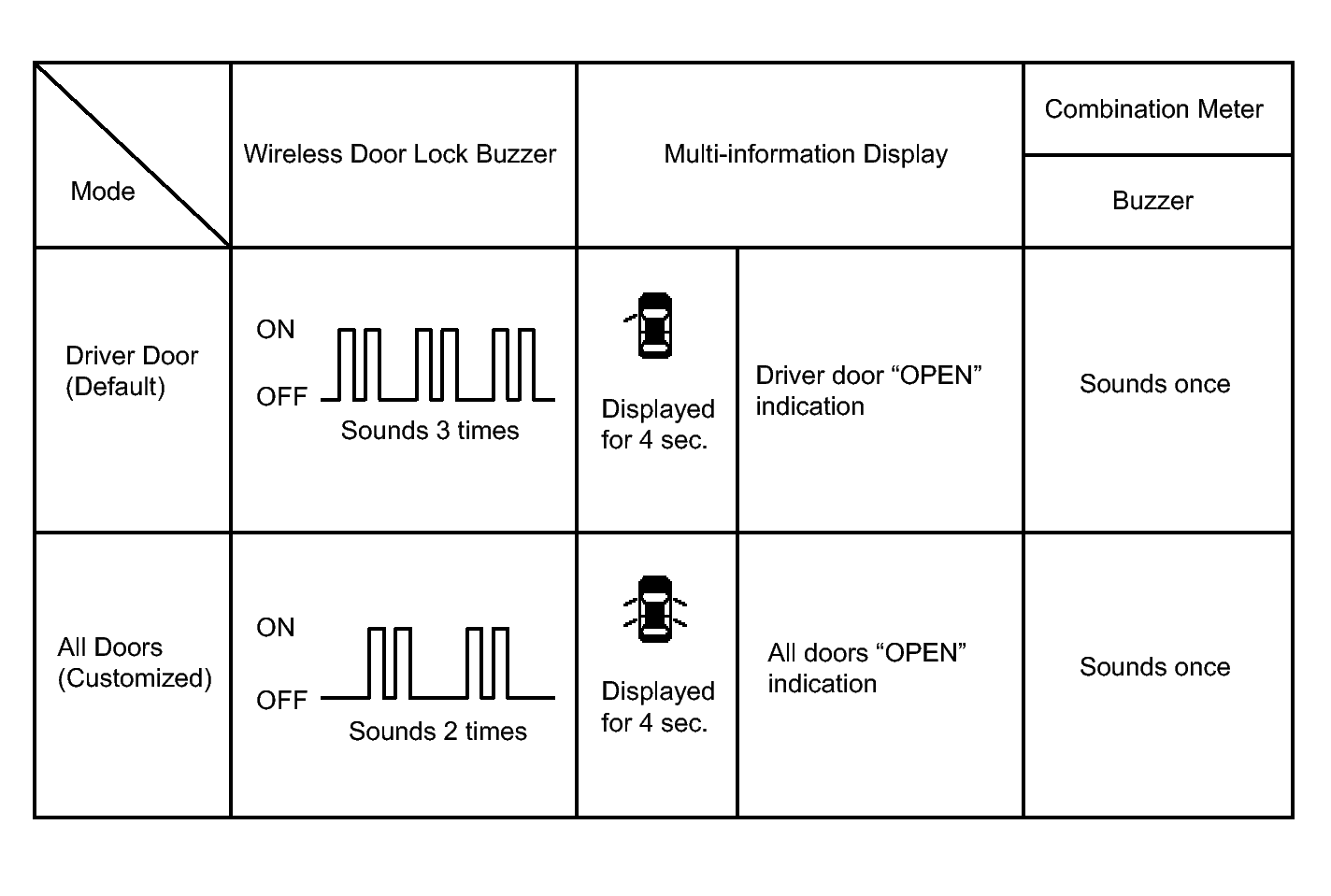

  Fig 1: Identifying Multi-Information Display
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ELECTRICAL KEY CANCEL (Smart Key System)
The electrical key cancel operation disables the following functions:
- Entry Unlock/Lock
- Entry Back Door Open
- Entry Glass Hatch Open
- Electrical Key Lock-in Prevention
- Warning
1. The operation procedures are as follows:
  Precondition:

  Engine switch off, driver side door closed and unlocked.
  1. Unlock the driver side door once with the UNLOCK switch of the electrical key.
  2. Open the driver door within 5 seconds.
  3. Unlock the driver side door twice with the UNLOCK switch of the electrical key within 5 seconds.
  4. Close and open the driver door twice within 30 seconds.
    (Driver Door: Close → Open → Close → Open)
  5. Unlock the driver side door twice with the UNLOCK switch of the electrical key within 5 seconds.
  6. Close and open the driver door within 30 seconds.
    (Driver Door: Close → Open)
  7. Close the driver door within 5 seconds.
    When electrical key cancel is activated, the wireless door lock buzzer sounds twice.

    To return to the original condition, perform the procedures again. When the original condition is returned, the wireless door lock buzzer sounds once.

METER / GAUGE SYSTEM

COMBINATION METER:

Tester Display	Default	Contents	Setting
Key Remind Volume	Large	Function to change the volume of the key reminder buzzer.	Large, Medium, Small
Key Remind Sound	Slow	Function to change the frequency of the key reminder buzzer.	Fast, Normal, Slow
Driver Side Seatbelt Warning Buzzer (*)	On	Function to change the seat belt warning buzzer.	On, Off
Front Passenger Side Seatbelt Warning Buzzer (*)	On	Function to change the seat belt warning buzzer.	On, Off

HINT:

*: This setting is only valid for the buzzer which sounds at the 20 km/h (12 mph) or more.

POWER WINDOW CONTROL SYSTEM

POWER WINDOW (MAIN BODY ECU):

Tester Display	Default	Contents	Setting
Door Key P/W Up	ON	Function that raises all power windows when, with engine switch off, key is used to hold driver door key cylinder to lock position for more than 2.3 seconds	ON / OFF
Door Key P/W Down	ON	Function that lowers all power windows when, with engine switch off, key is used to hold driver door key cylinder to unlock position for more than 2.3 seconds	ON / OFF
P/W Down W/ Transmit	ON	Function that lowers all power windows when, with engine switch off, unlock switch on transmitter is pressed and held for more than 3.0 seconds	ON / OFF

POWER BACK DOOR SYSTEM

Display (Item)	Default	Function	Setting
PBD SW Operation	0.8 s	Function that turns power back door closer switch ON when switch is pushed once or held down for 0.8 sec.	0.8s / ON
PBD Buzzer	ON	This function makes the power back door buzzer sound when power back door is operating	ON / OFF
Wirels PBD SW Operation	0.8 s	Function that operates power back door when transmitter switch is pressed in specified way	ON / 2 times / 0.8 s / OFF
