Air Pump: Components: Illustration

Fig 1: Identifying Air Pump Replacement Components With Torque Specifications (1 Of 2)
GTY238097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

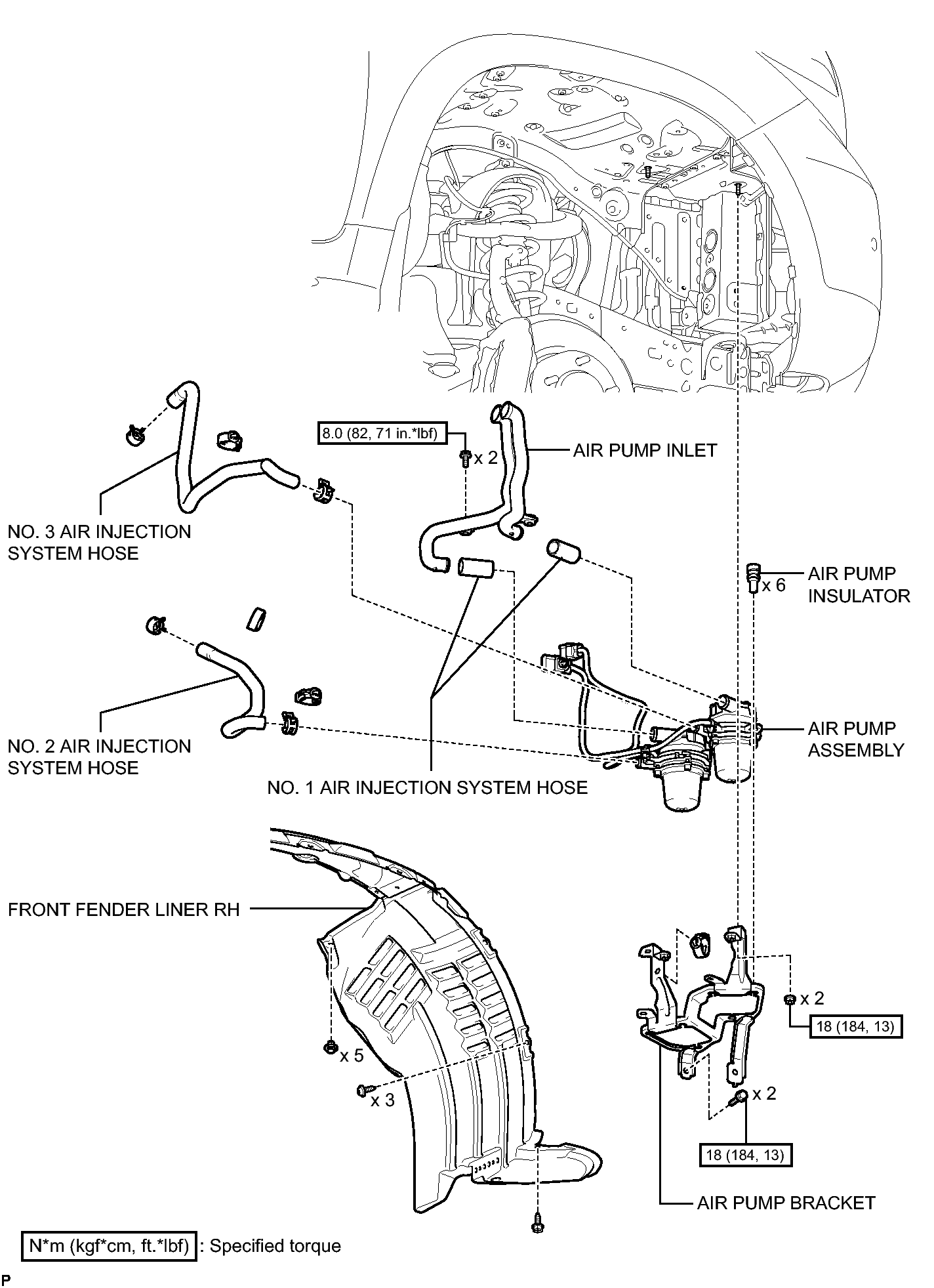

Fig 1: Identifying Air Pump Replacement Components With Torque Specifications (2 Of 2)
GTY228583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
