PCV Valve: Components: Illustration

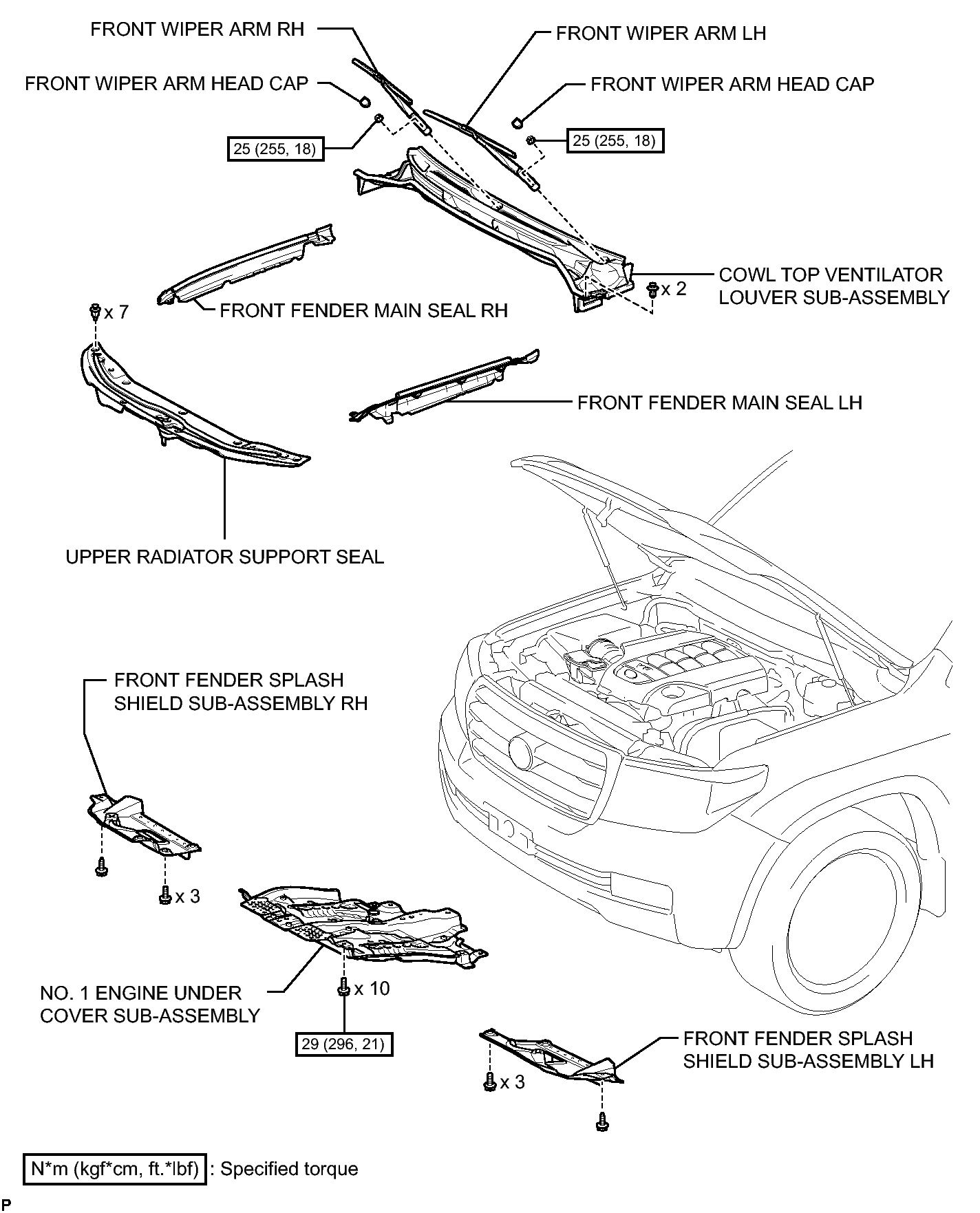

Fig 1: Identifying PCV Valve Replacement Components With Torque Specifications (1 Of 4)
GTY234723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

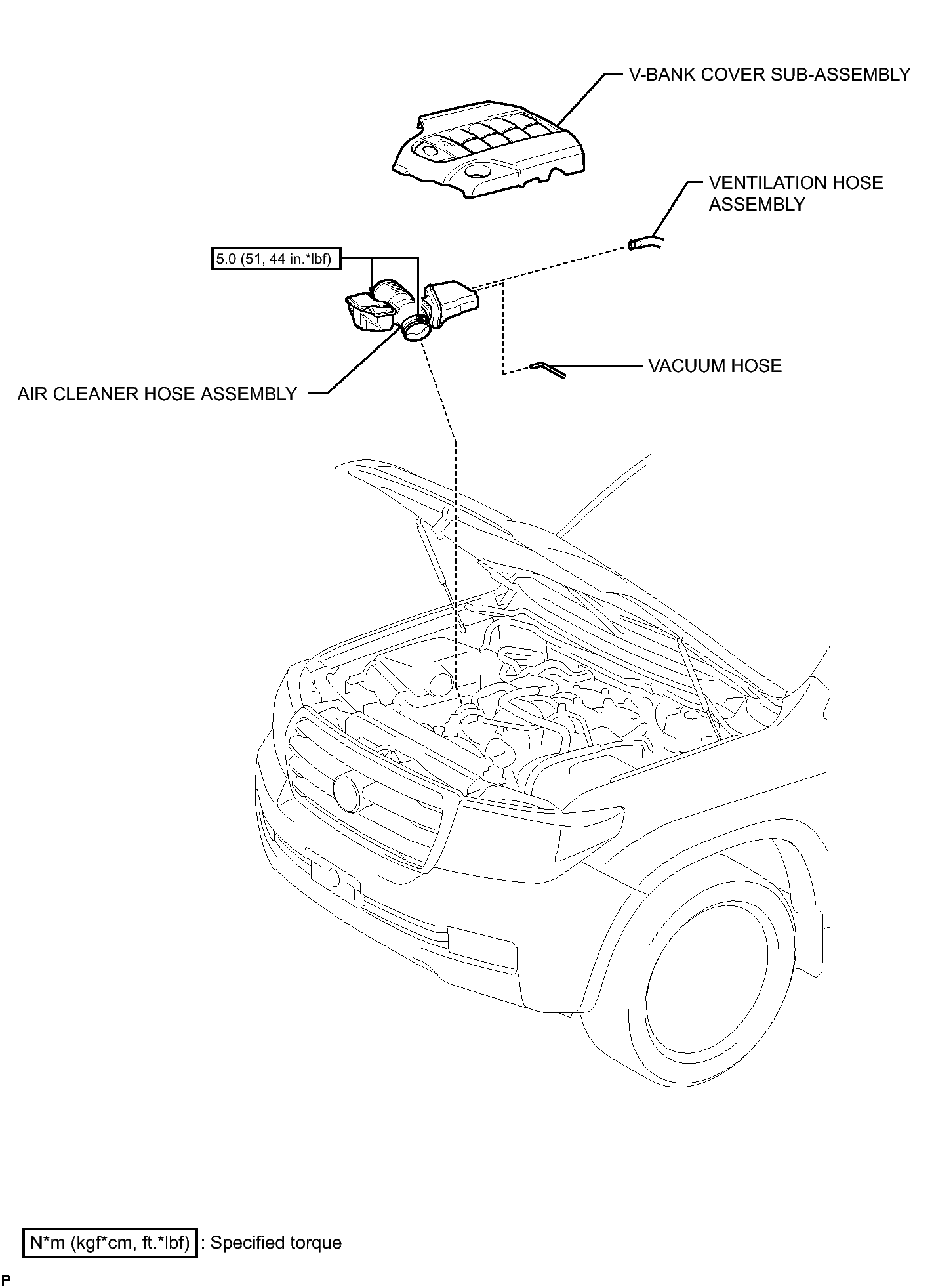

Fig 1: Identifying PCV Valve Replacement Components With Torque Specifications (2 Of 4)
GTY238072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

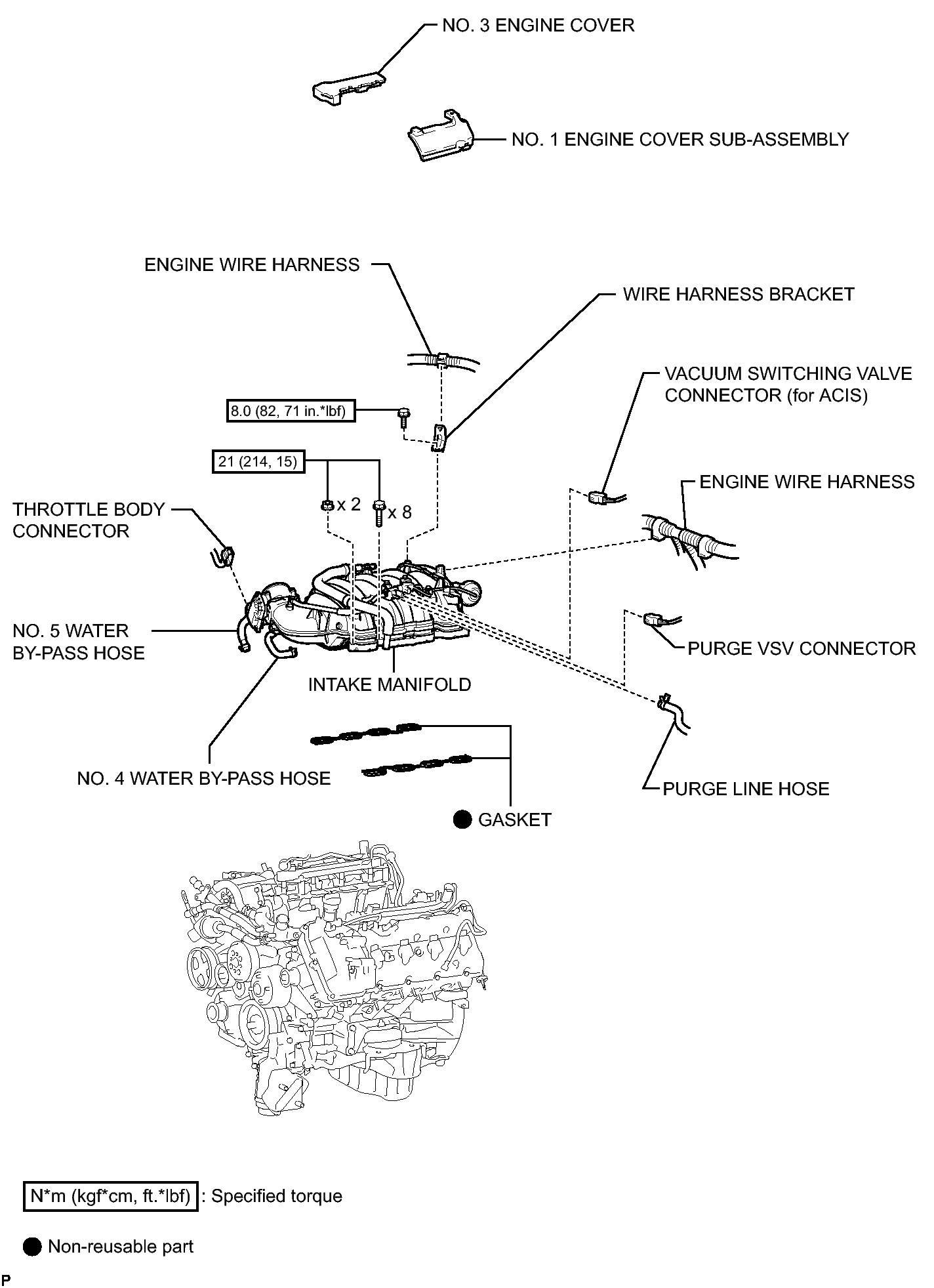

Fig 1: Identifying PCV Valve Replacement Components With Torque Specifications (3 Of 4)
GTY232920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

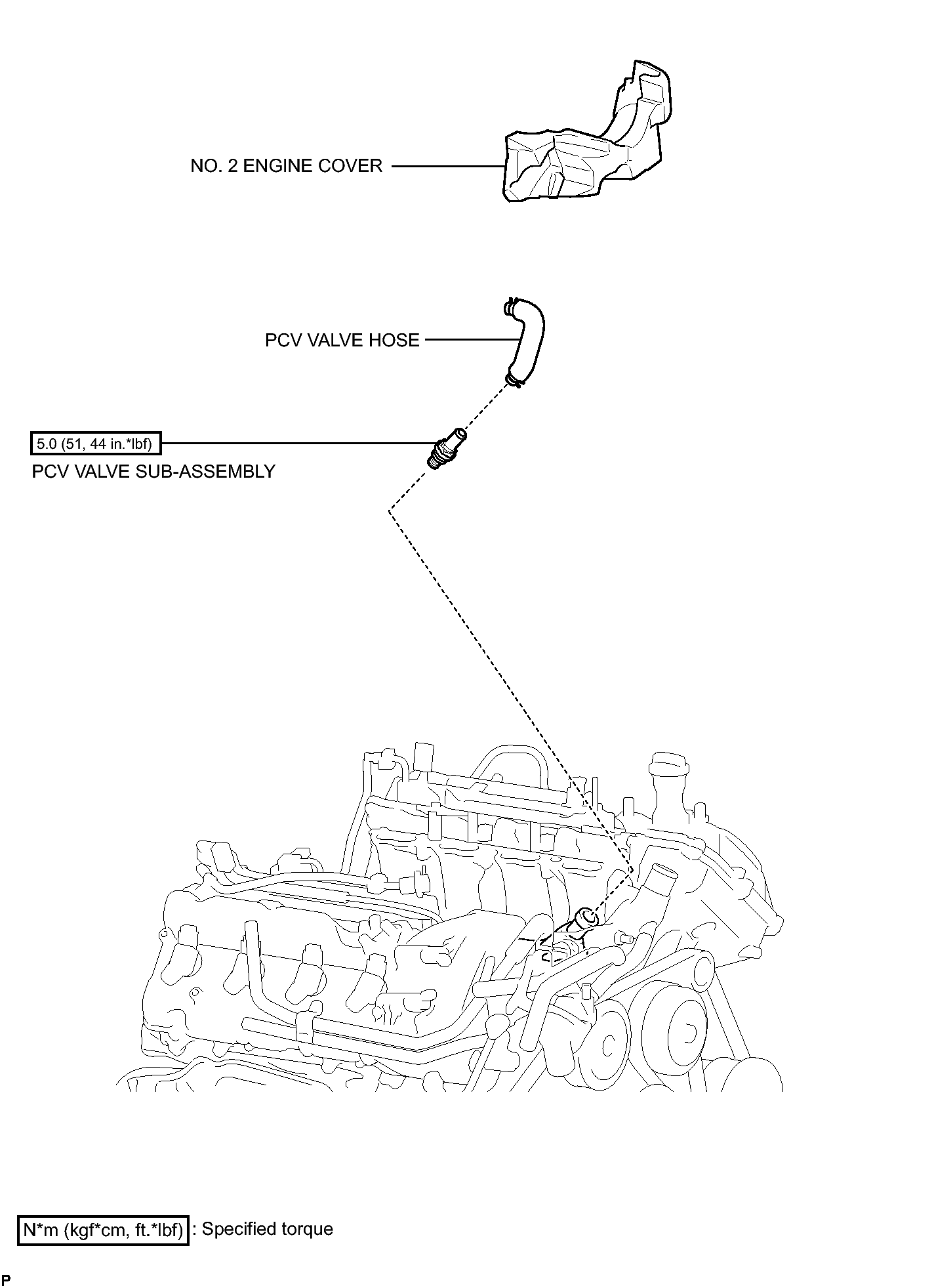

Fig 1: Identifying PCV Valve Replacement Components With Torque Specification (4 Of 4)
GTY188221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
