Purge Valve: Inspection: Inspection

  1. INSPECT PURGE VSV

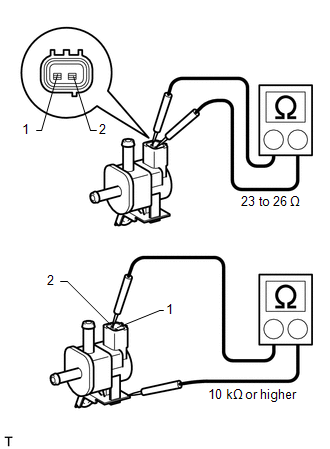

    Fig 1: Inspecting Purge VSV
    GTY147471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 20°C (68°F) 23 to 26 Ω
      1 - VSV body ground Always 10 kΩ or higher
      2 - VSV body ground 10 kΩ or higher

      If the result is not as specified, replace the purge VSV.

    2. Check the operation of the purge VSV.

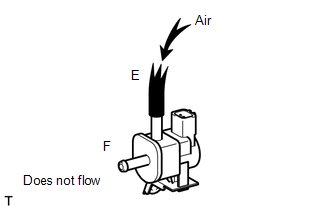

        Fig 2: Inspecting Purge VSV Operation
        GTY147472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Check that air does not flow from port F when air is applied to port E.

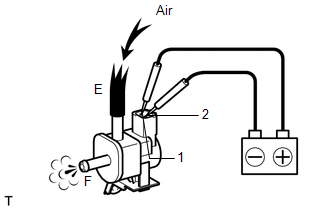

        2. Fig 3: Applying Battery Voltage To Connector
        GTY135788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Apply battery voltage to the connector, and check the VSV operation.

        OK

        Measurement Condition Specified Condition
        Battery positive (+) → Terminal 1
        Battery negative (-) → Terminal 2        		 Air flows from port E to port F

        If the result is not as specified, replace the purge VSV.
