Engine Immobiliser System: Notes

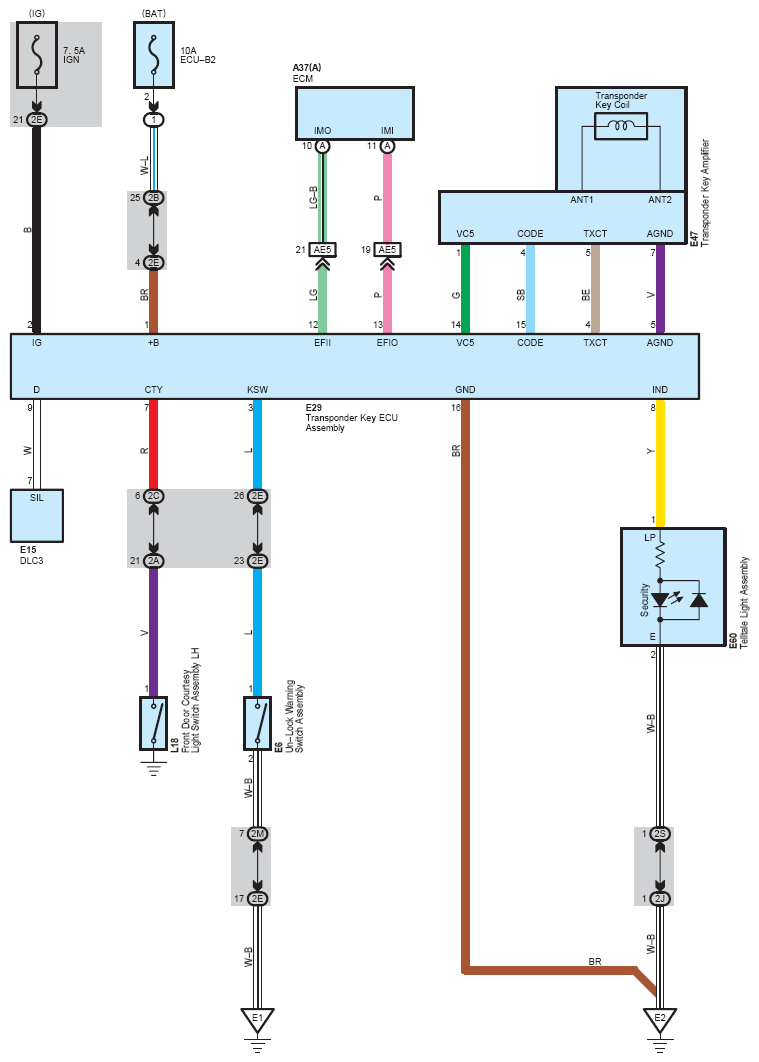

Fig 1: Engine Immobiliser System Wiring Diagram
G07114230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
