Interior Light: Notes

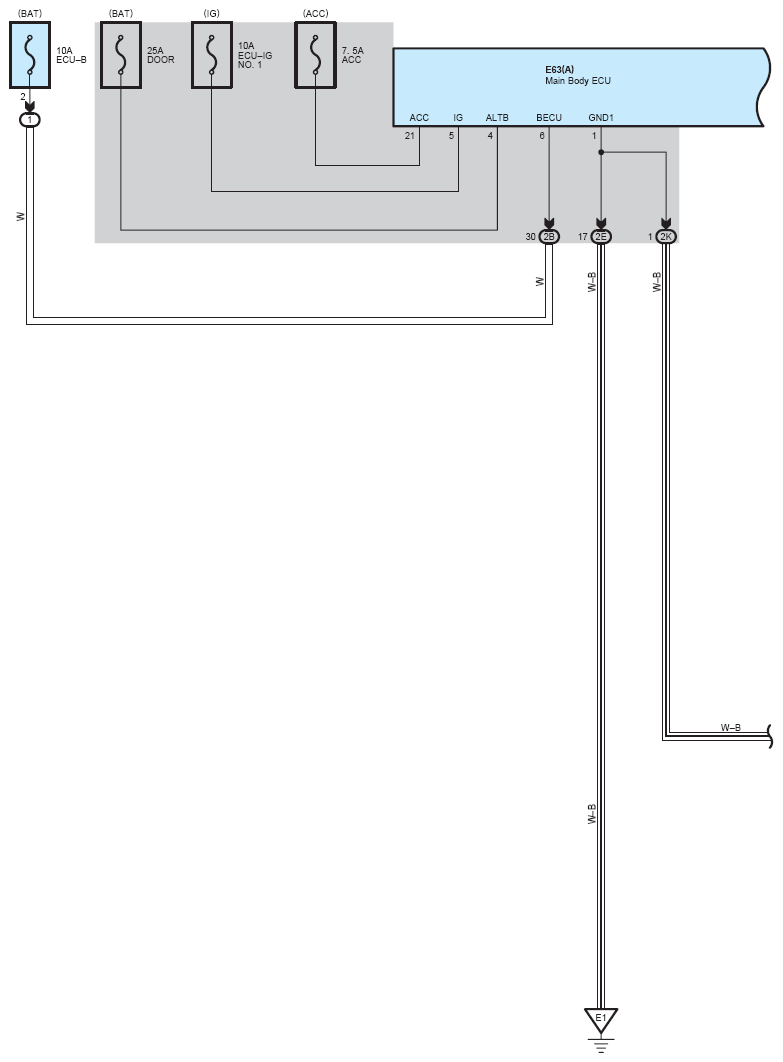

Fig 1: Interior Light System Wiring Diagram (1 Of 4)
G07114237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

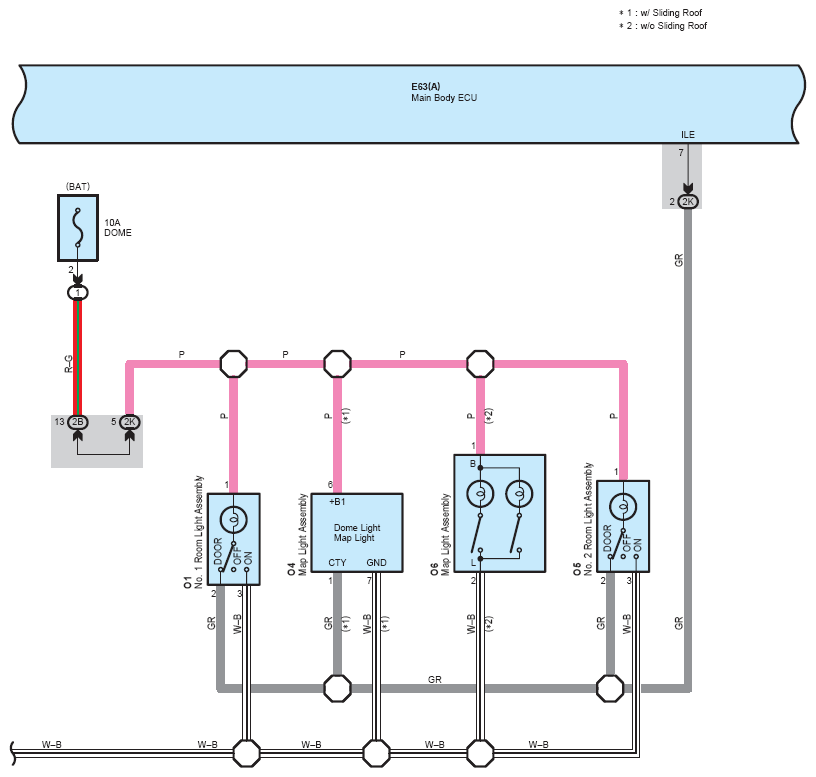

Fig 2: Interior Light System Wiring Diagram (2 Of 4)
G07114238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

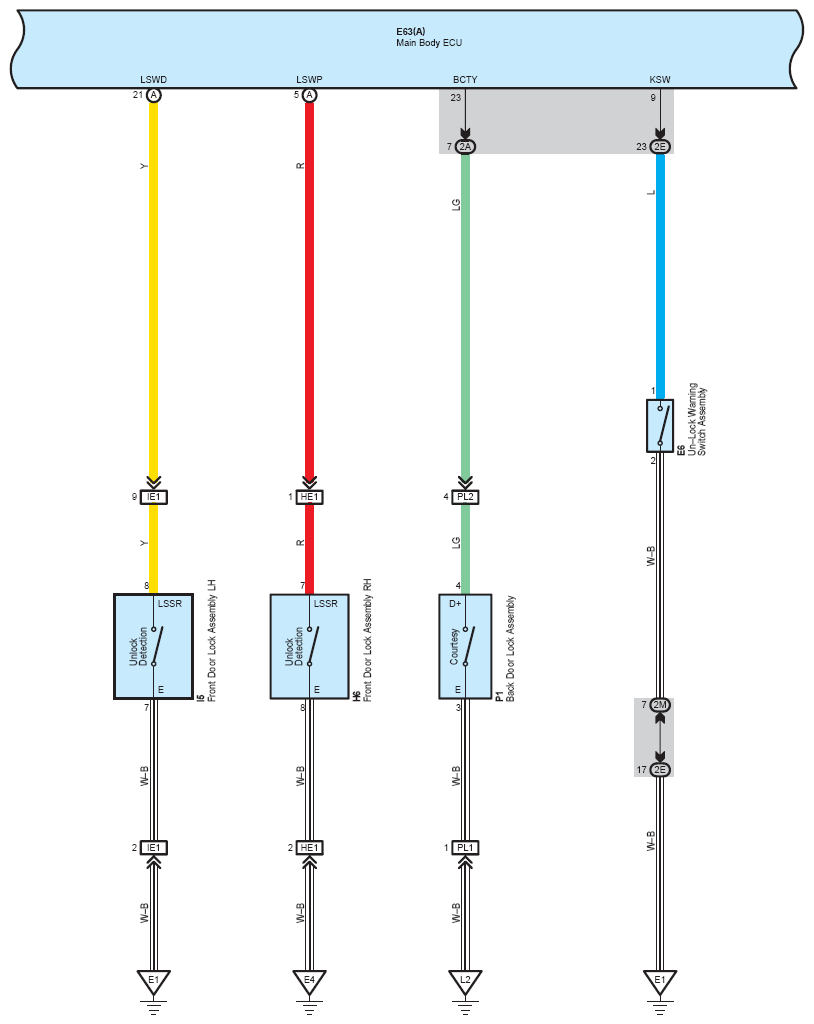

Fig 3: Interior Light System Wiring Diagram (3 Of 4)
G07114239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

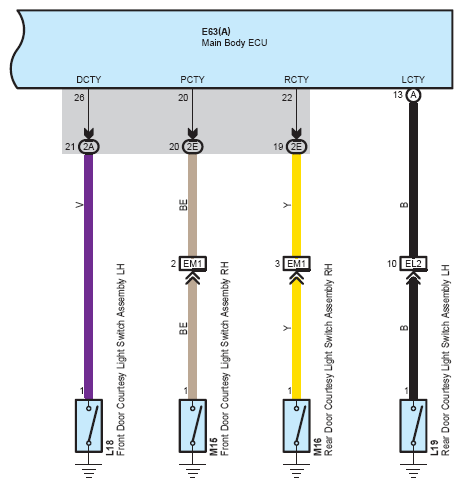

Fig 4: Interior Light System Wiring Diagram (4 Of 4)
G07114240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
