Light Reminder: Notes

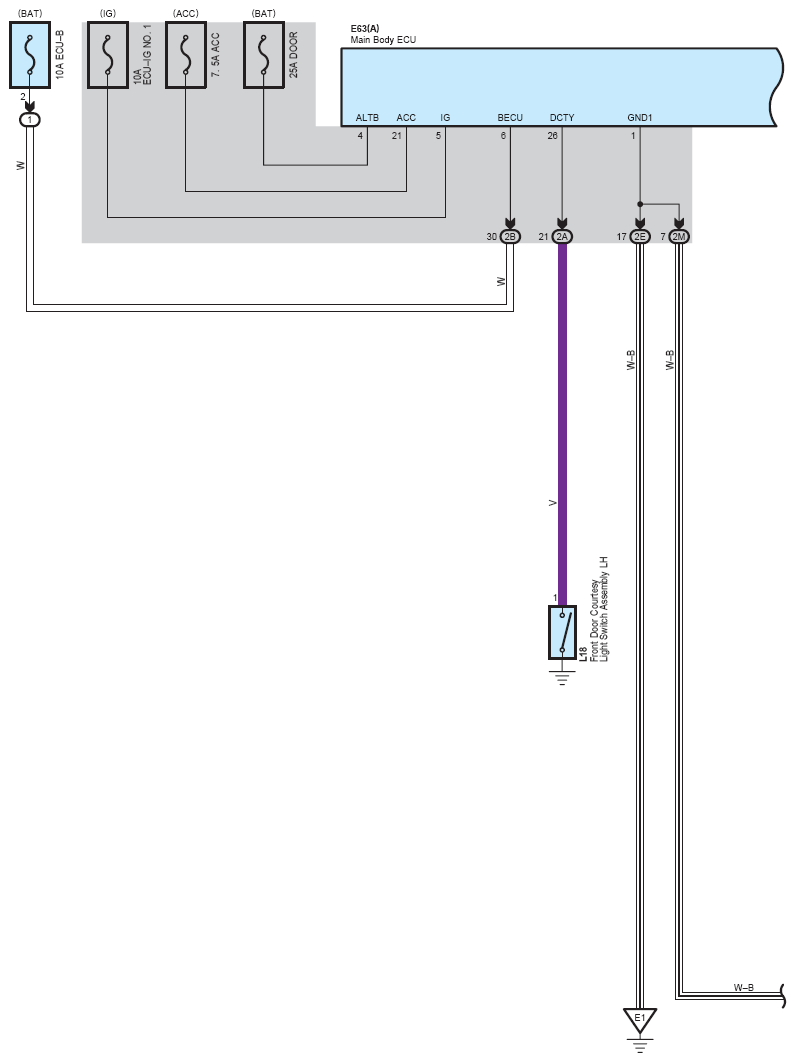

Fig 1: Light Reminder System Wiring Diagram (1 Of 2)
G07114321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

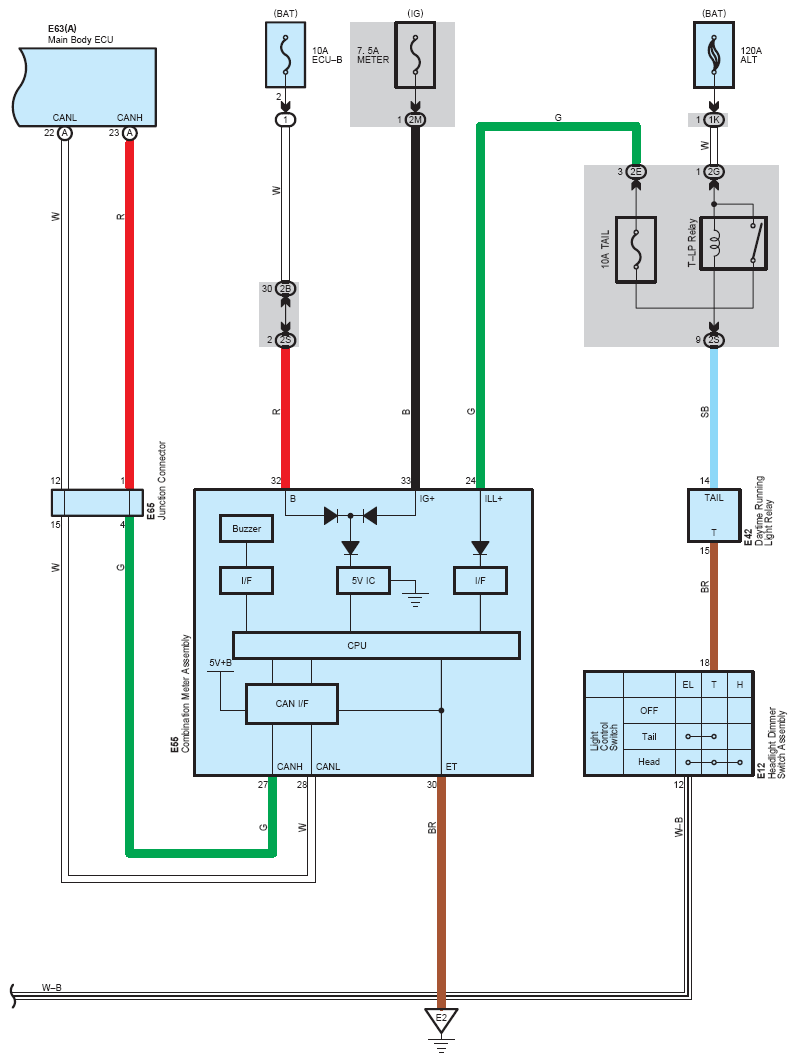

Fig 2: Light Reminder System Wiring Diagram (2 Of 2)
G07114322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
