Rear Window Defogger and Mirror Heater: Notes

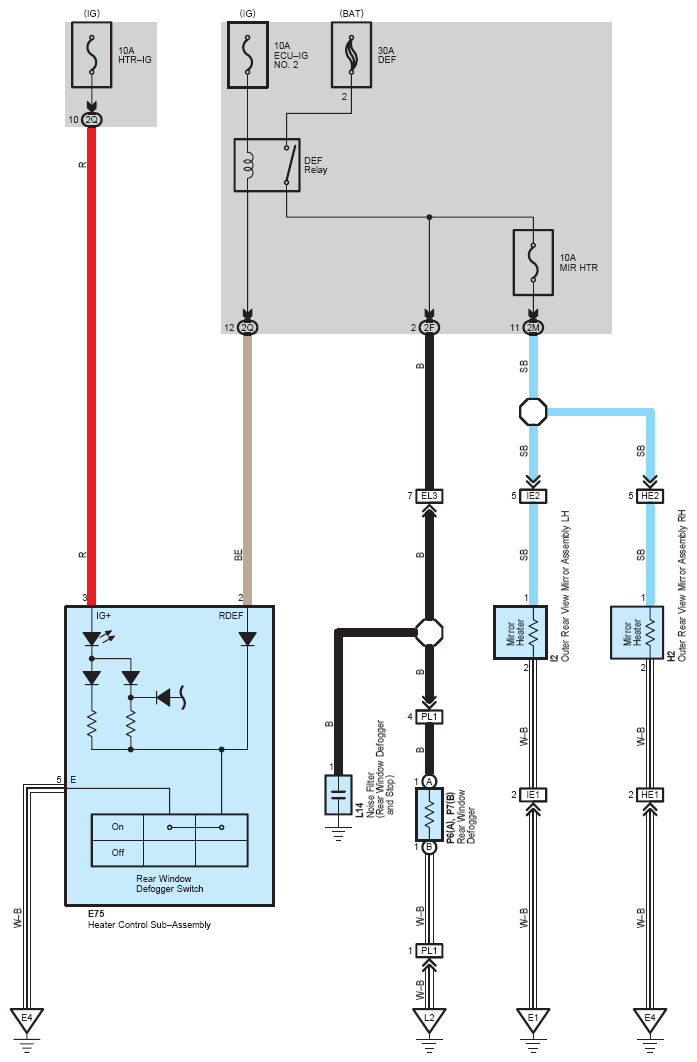

Fig 1: Rear Window Defogger And Mirror Heater System Wiring Diagram
G07114326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
