Sliding Roof: Notes

Fig 1: Sliding Roof System Wiring Diagram (1 Of 4)
G07114314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

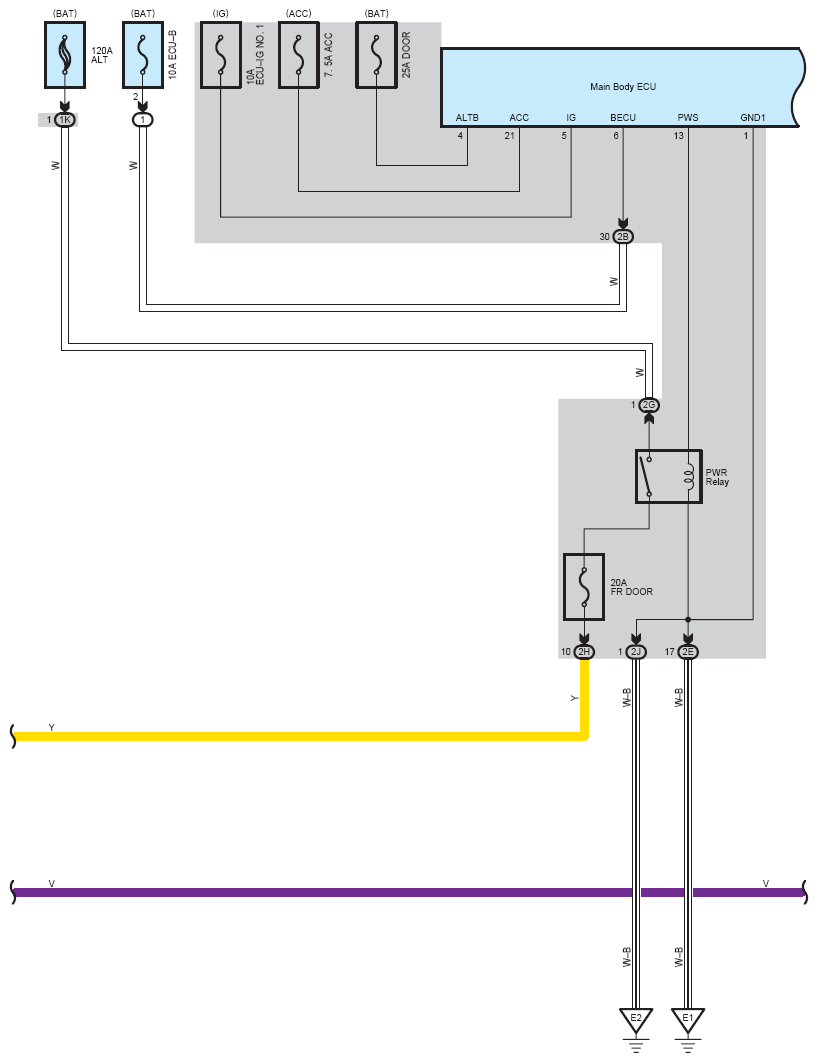

Fig 2: Sliding Roof System Wiring Diagram (2 Of 4)
G07114315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

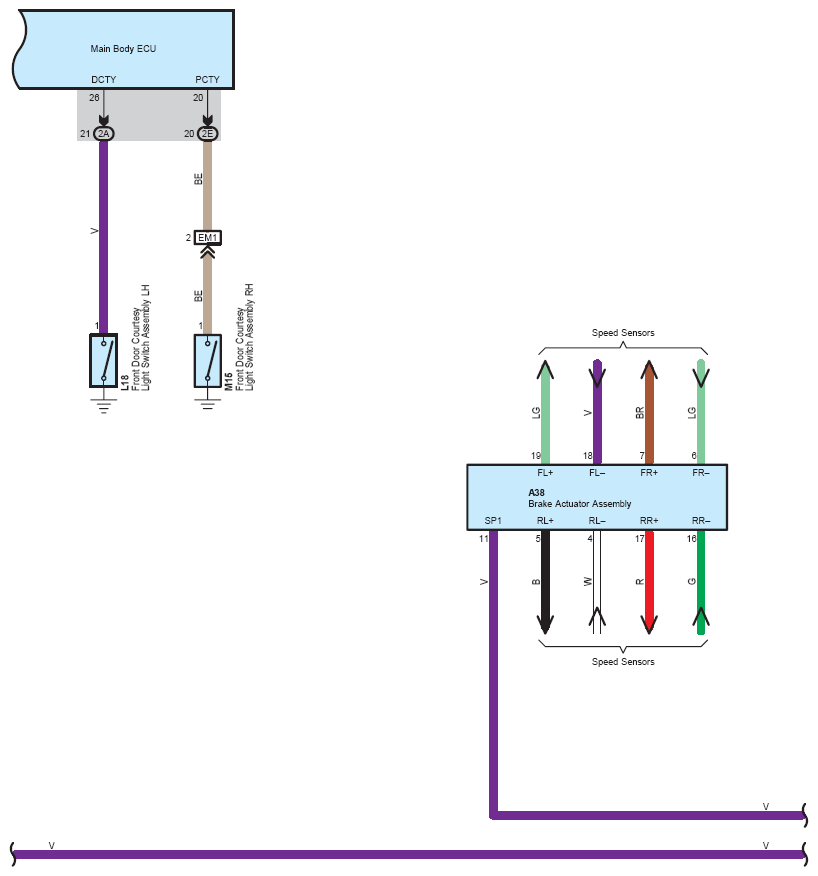

Fig 3: Sliding Roof System Wiring Diagram (3 Of 4)
G07114316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

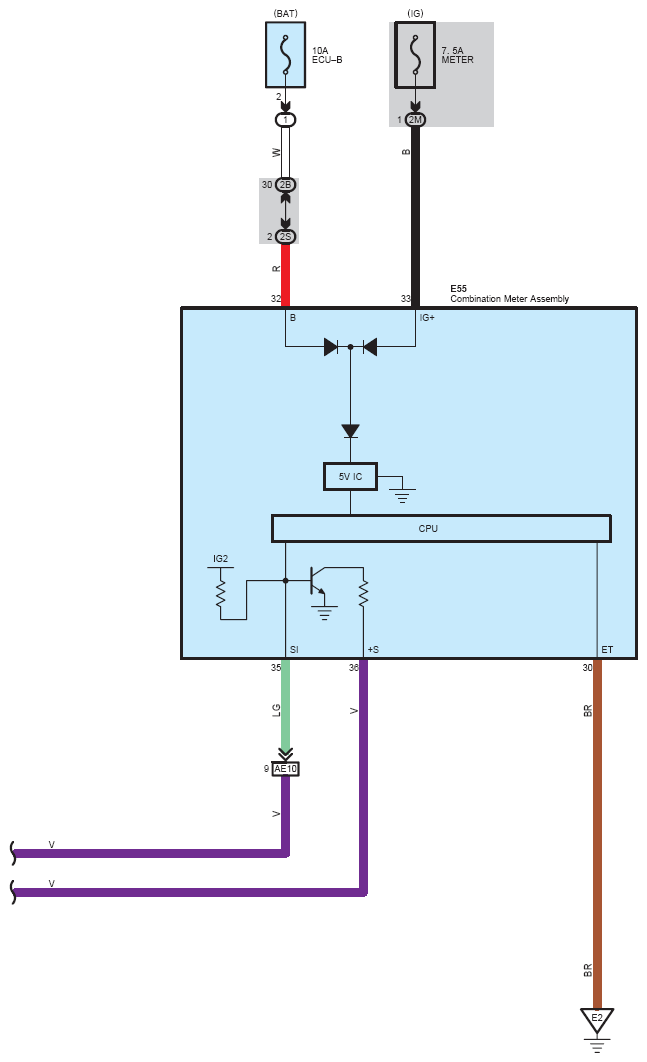

Fig 4: Sliding Roof System Wiring Diagram (4 Of 4)
G07114317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
