1UR-FE 4.6L

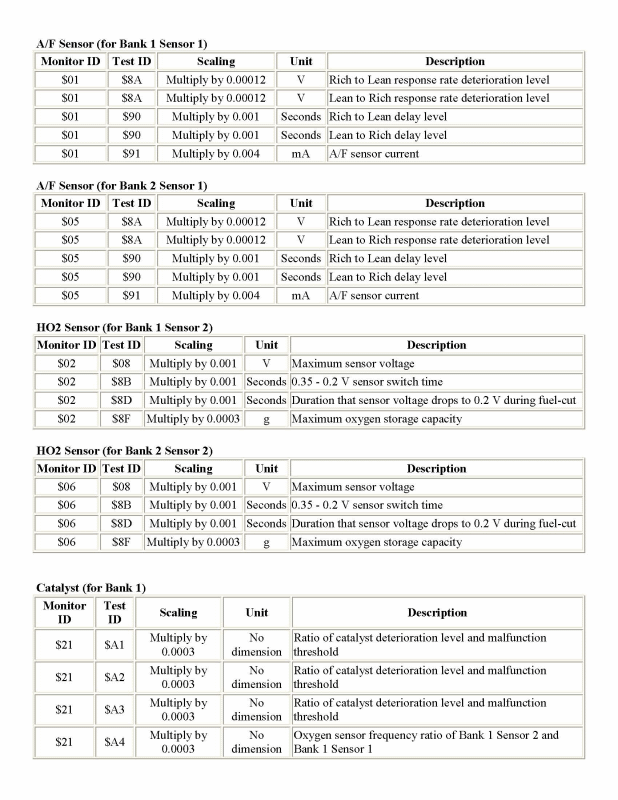

Fig 1: Mode 6 Data For Sequoia 4.6L (1 Of 5)
G00526311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

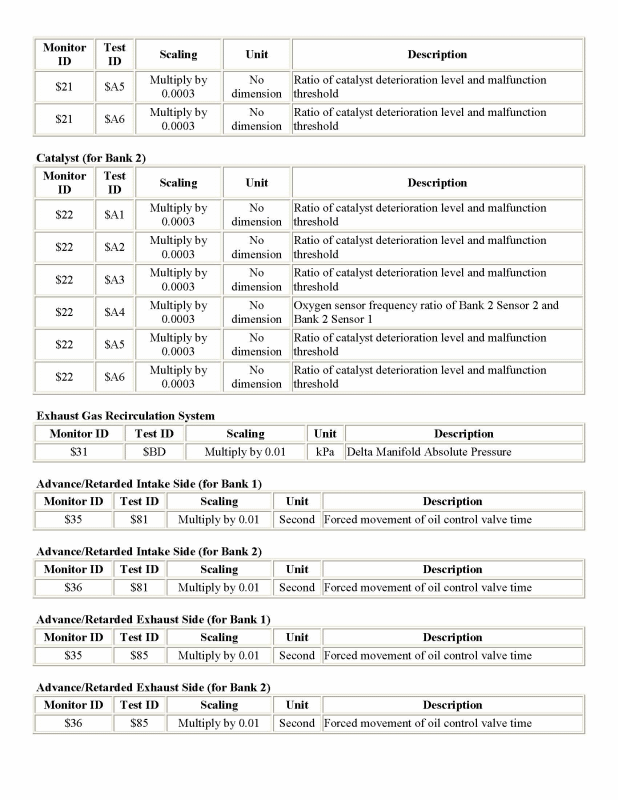

Fig 2: Mode 6 Data For Sequoia 4.6L (2 Of 5)
G00526312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

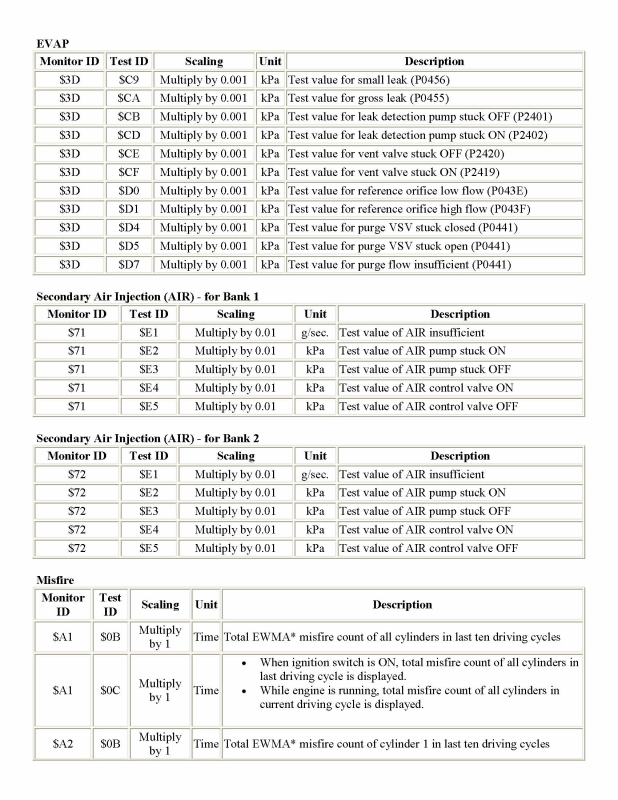

Fig 3: Mode 6 Data For Sequoia 4.6L (3 Of 5)
G00526313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

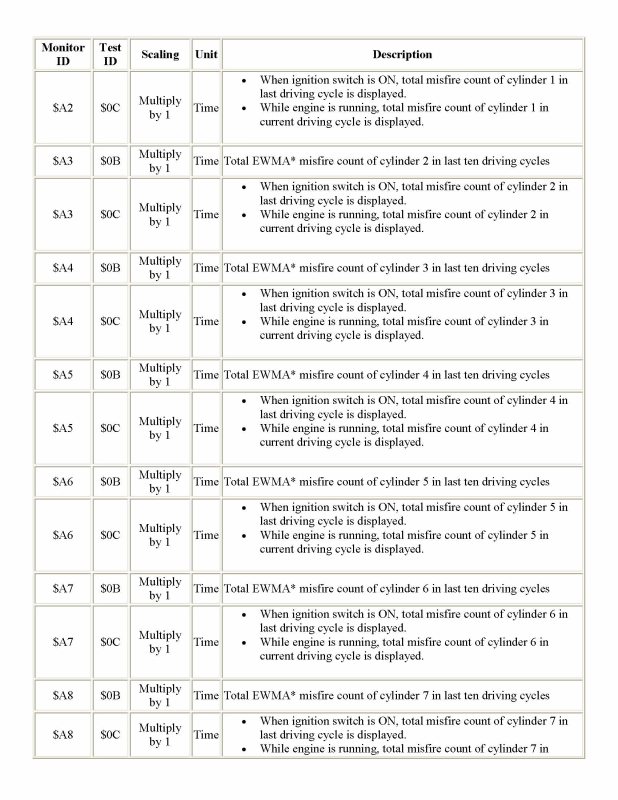

Fig 4: Mode 6 Data For Sequoia 4.6L (4 Of 5)
G00526314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

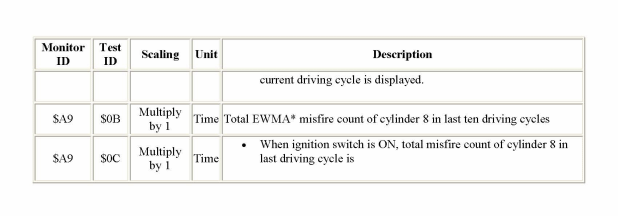

Fig 5: Mode 6 Data For Sequoia 4.6L (5 Of 5)
G00526315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
