Engine Control and Cruise Control or Dynamic Radar Cruise Control: Notes

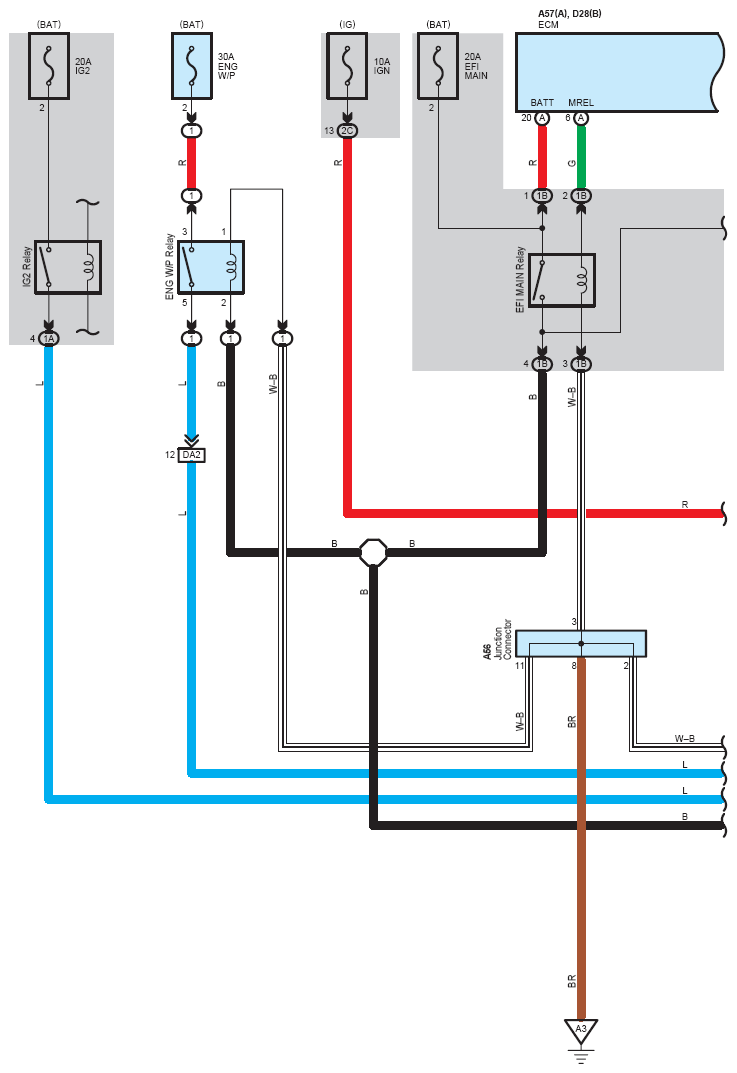

Fig 1: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (1 Of 31)
G07116774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

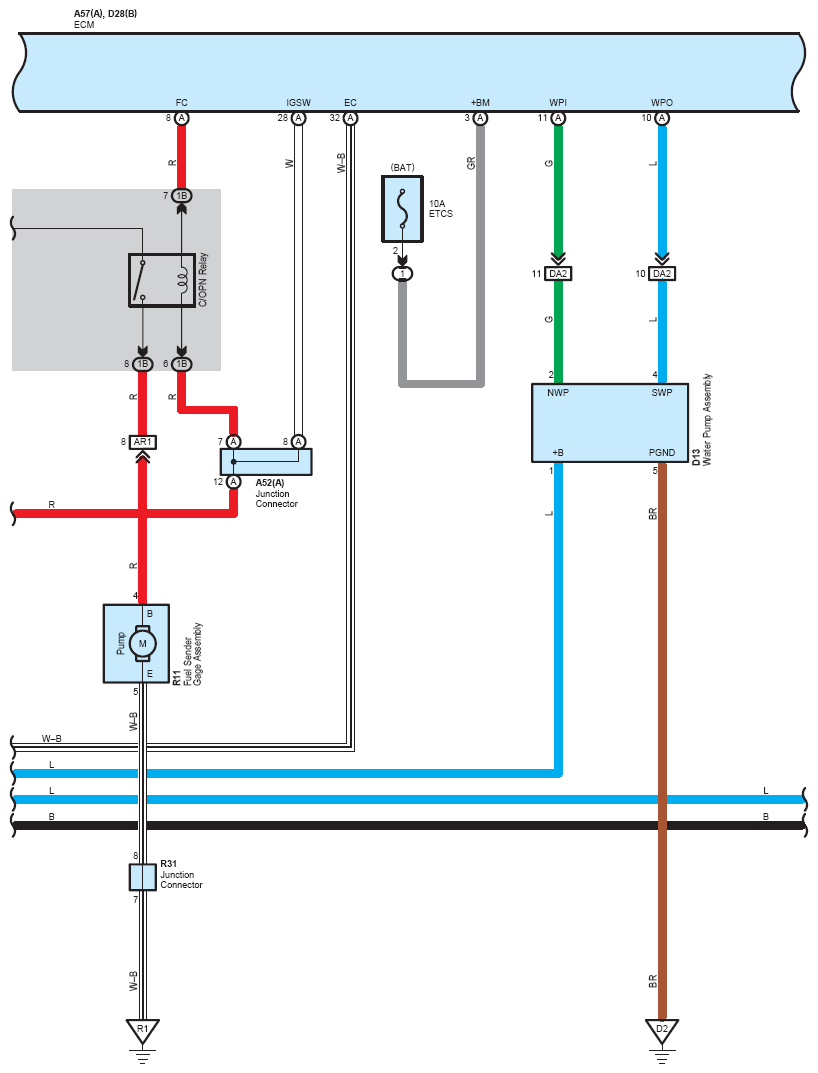

Fig 2: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (2 Of 31)
G07116775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

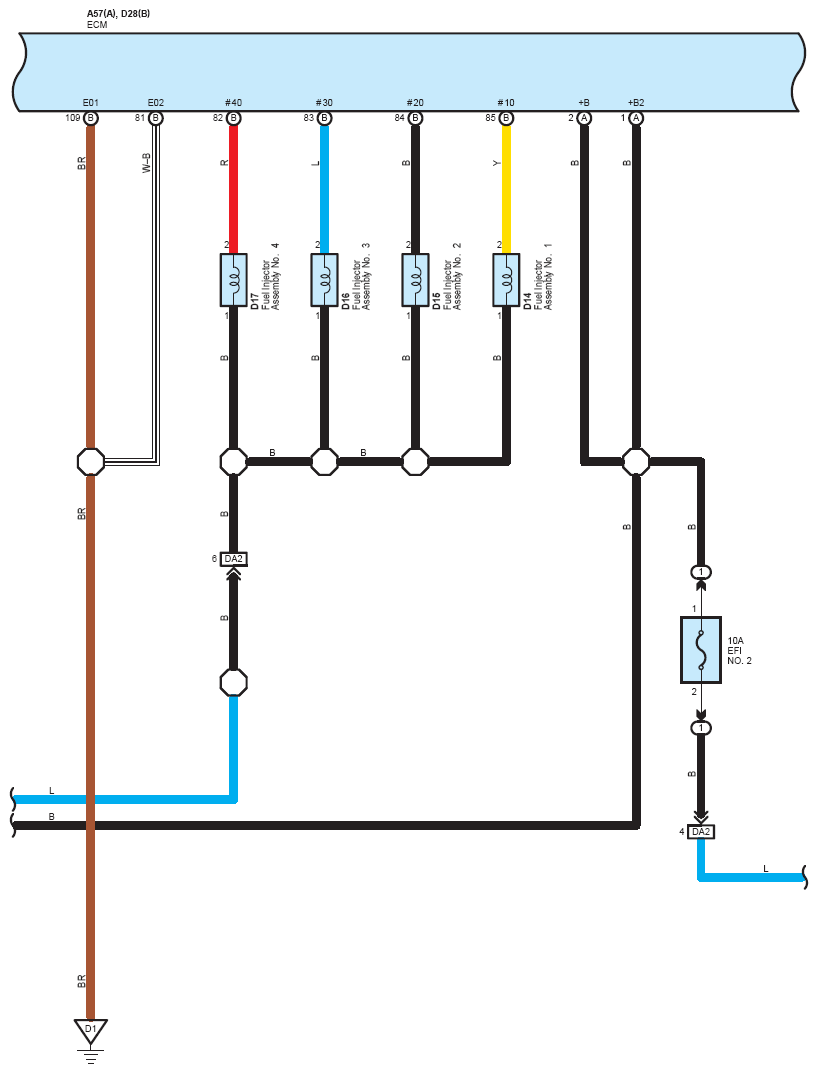

Fig 3: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (3 Of 31)
G07116776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

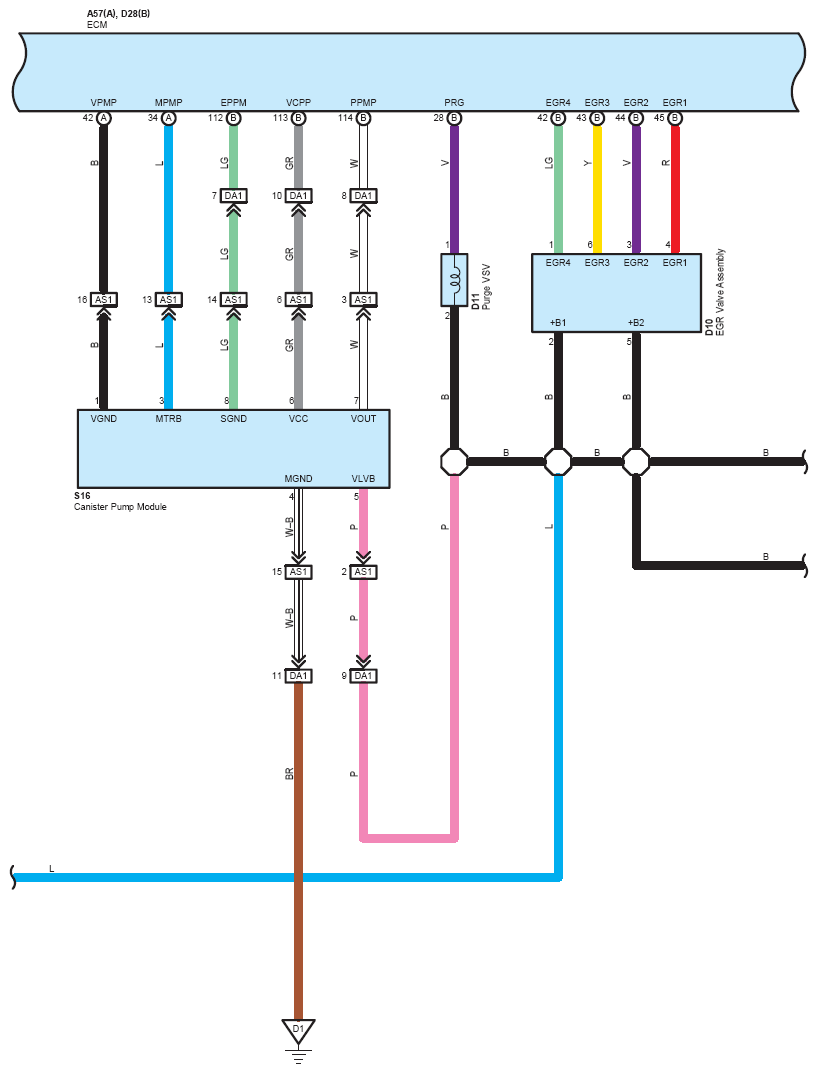

Fig 4: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (4 Of 31)
G07116777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

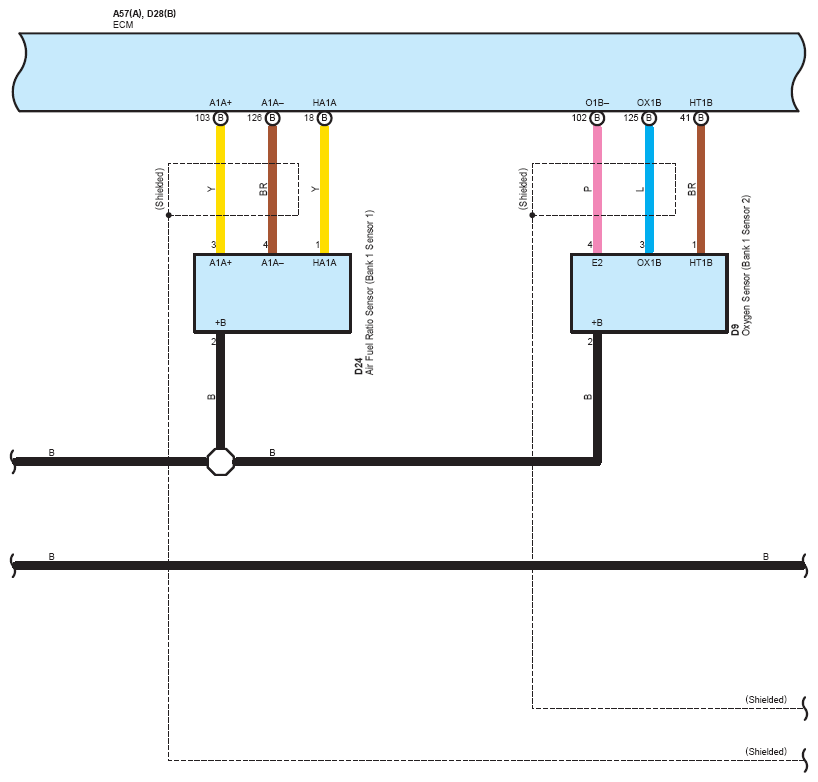

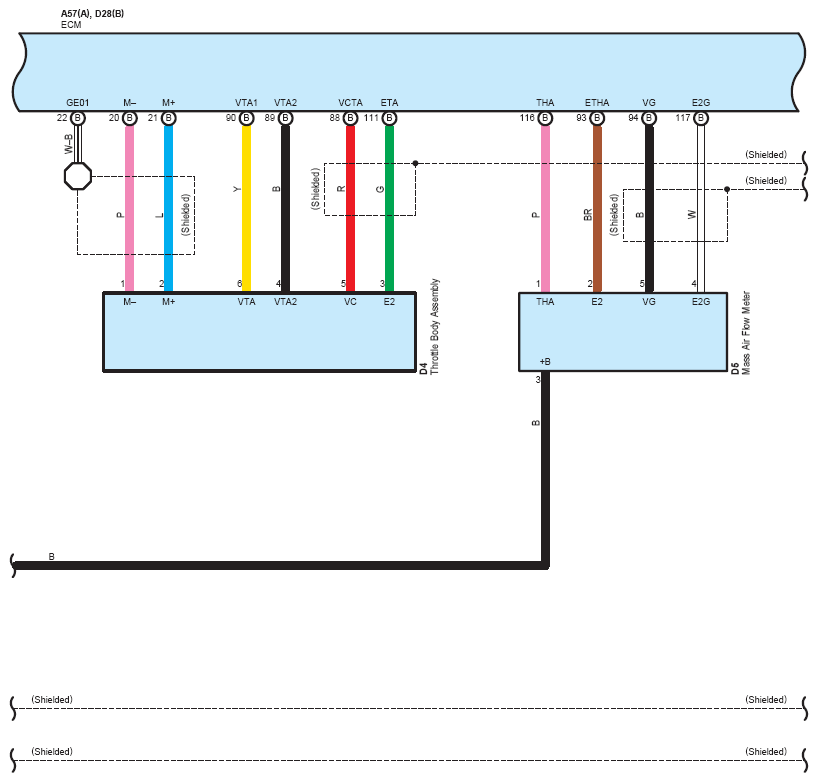

Fig 5: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (5 Of 31)
G07116778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

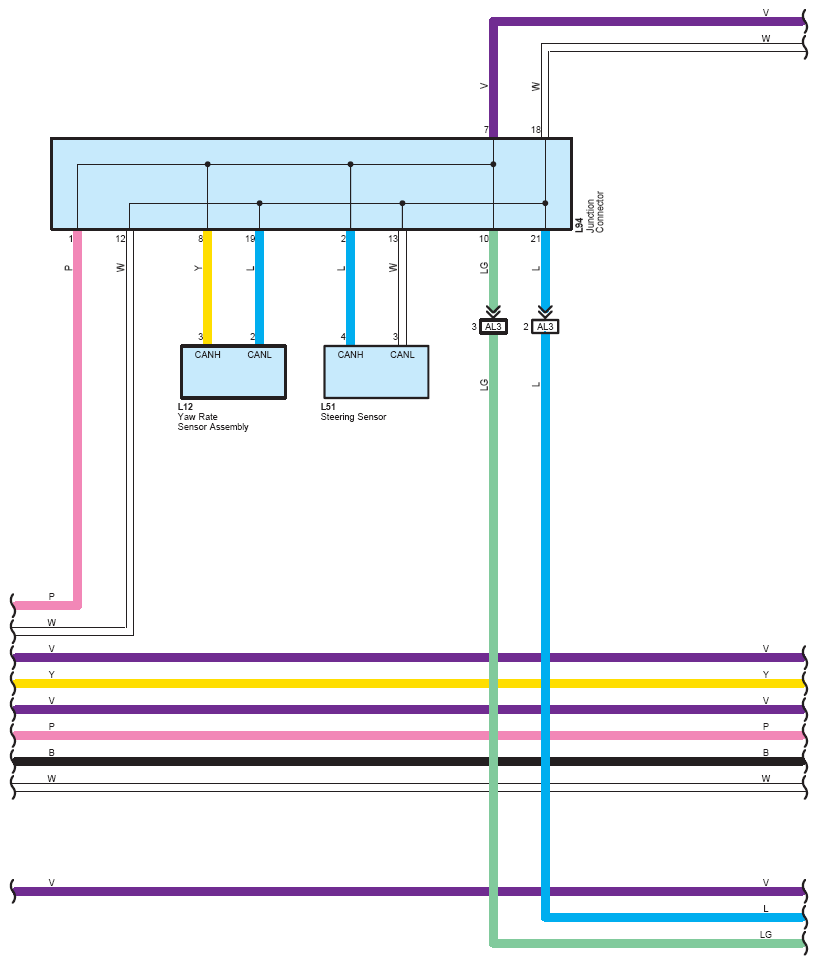

Fig 6: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (6 Of 31)
G07116779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (7 Of 31)

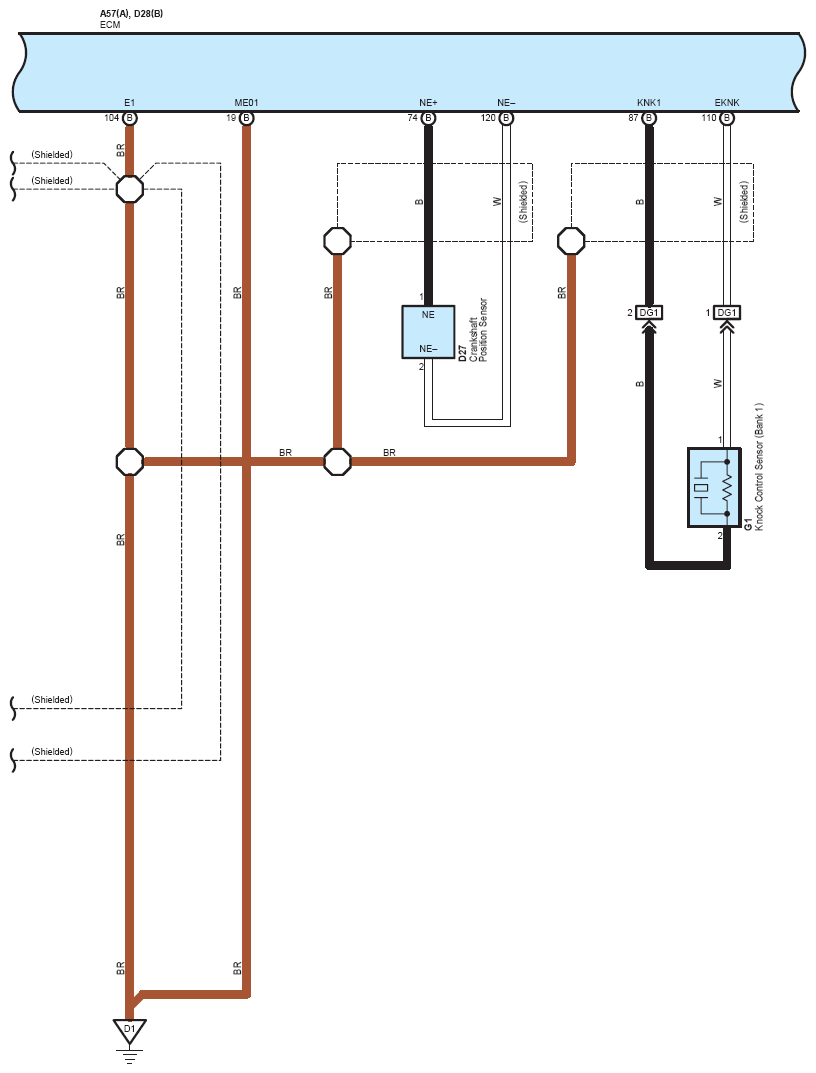

G07116780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

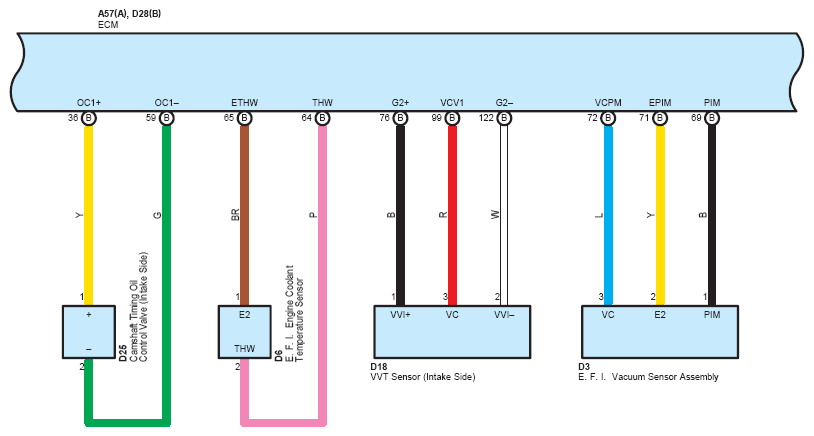

Fig 8: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (8 Of 31)
G07116781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

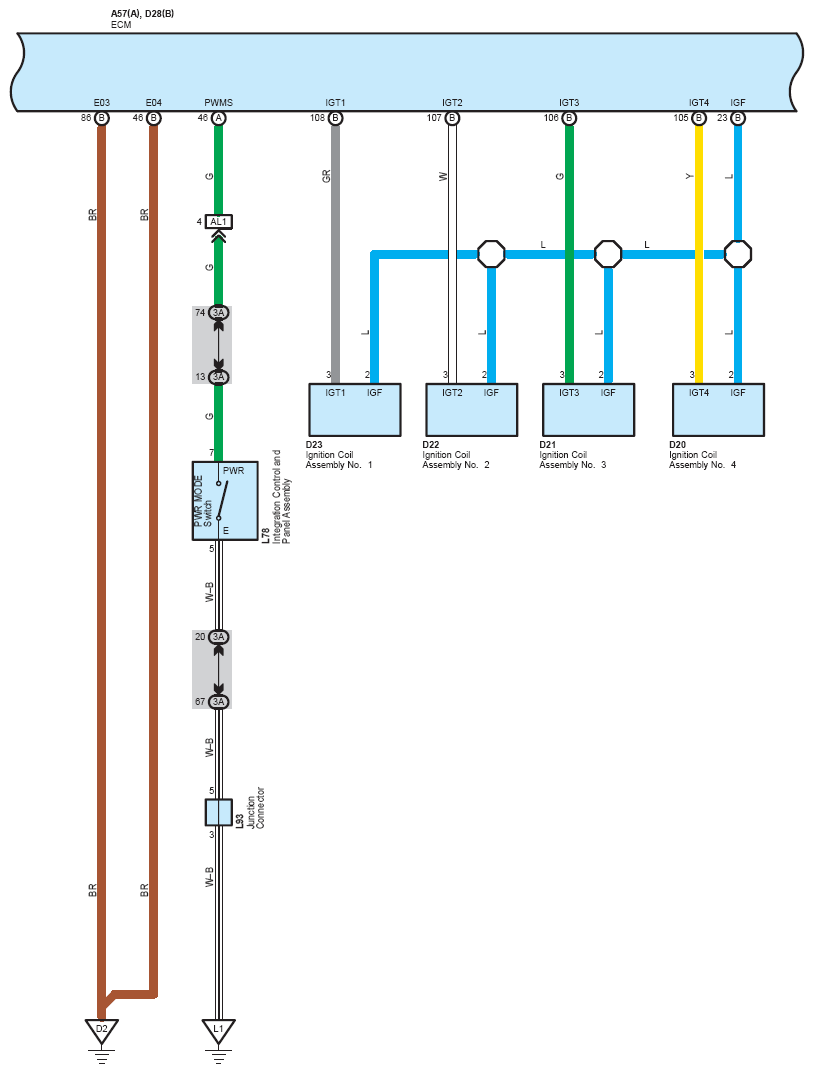

Fig 9: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (9 Of 31)
G07116782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

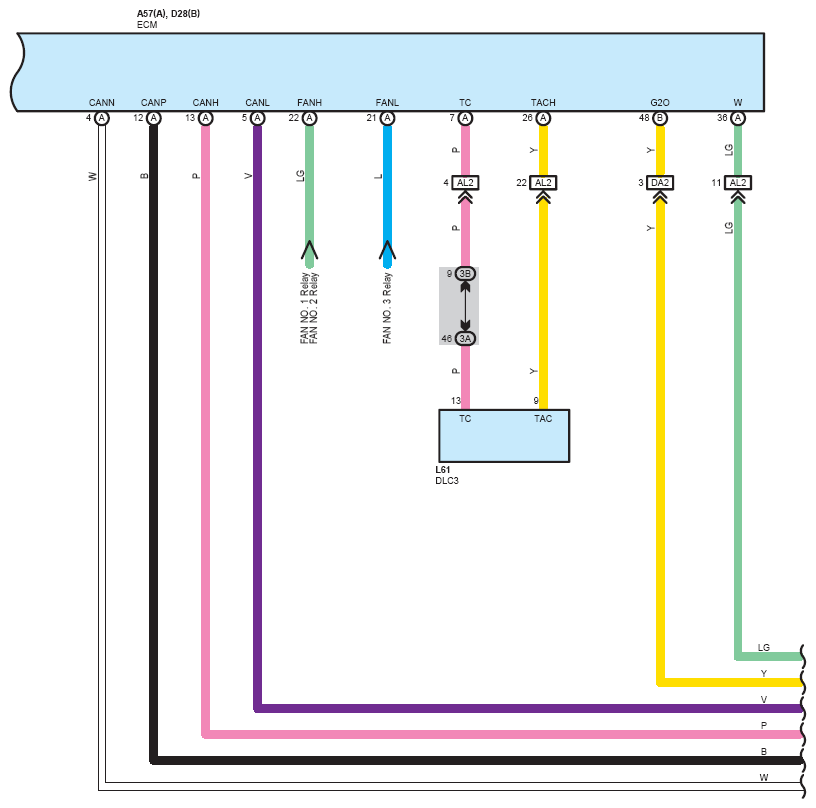

Fig 10: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (10 Of 31)
G07116783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

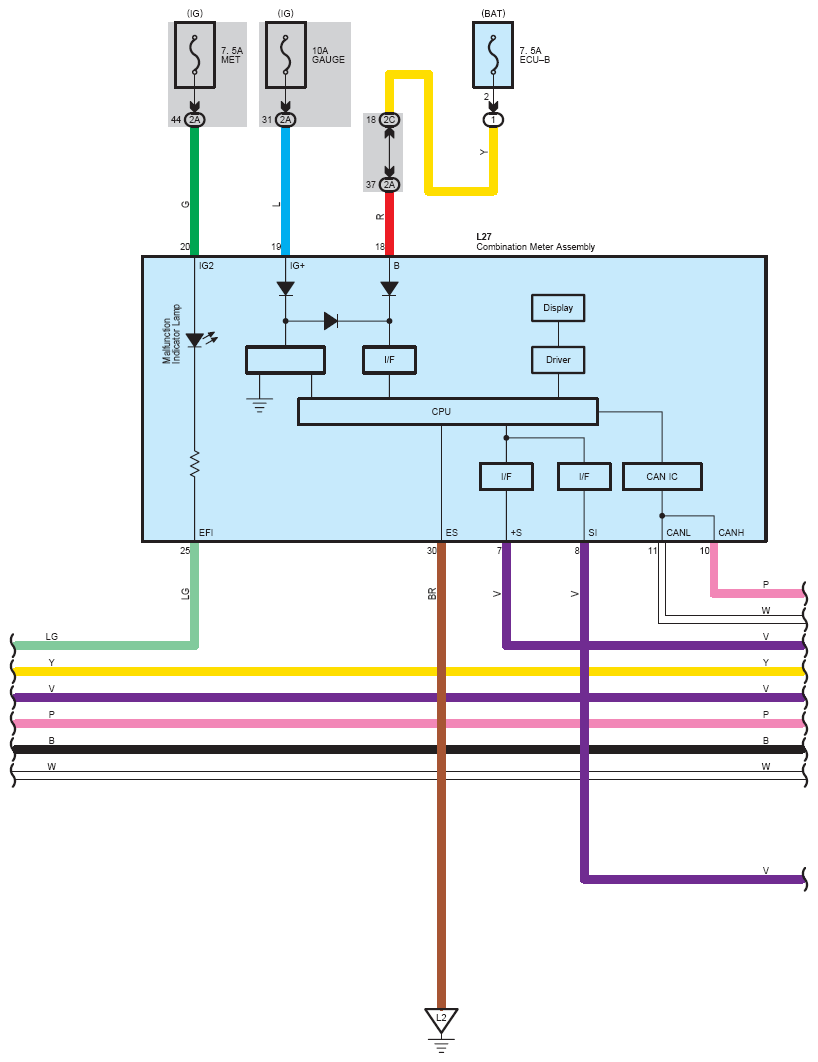

Fig 11: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (11 Of 31)
G07116784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 12: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (12 Of 31)
G07116785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

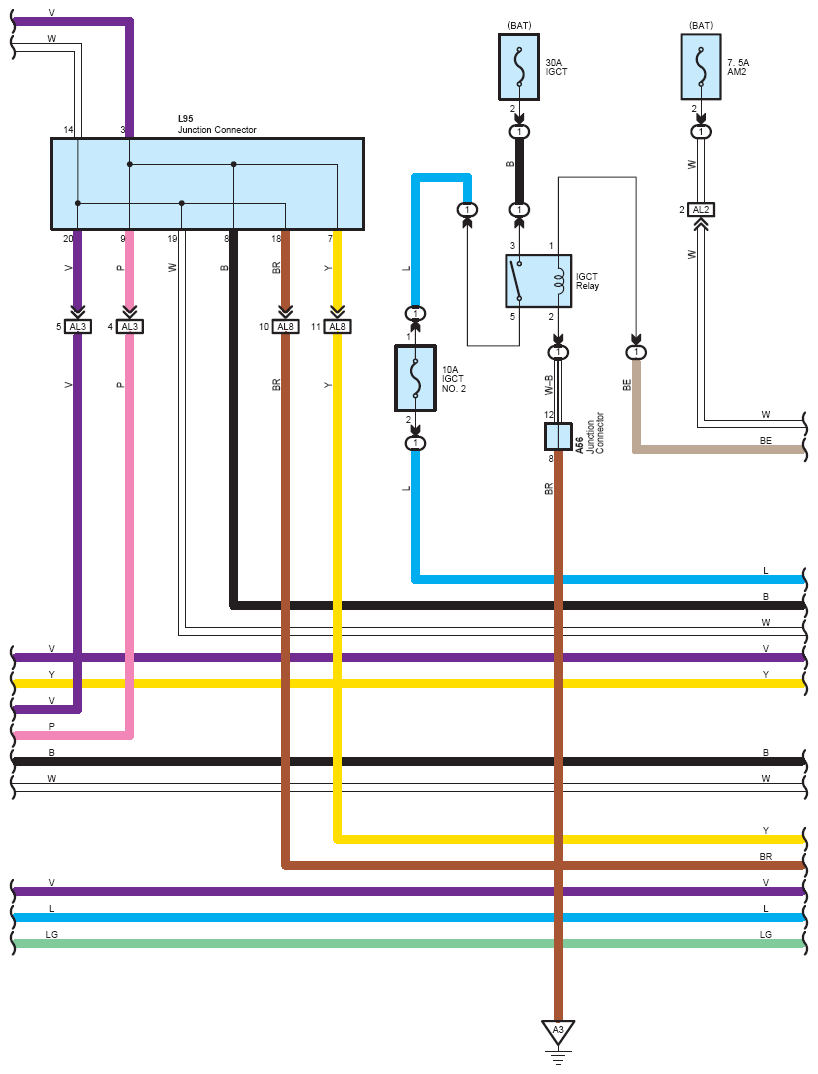

Fig 13: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (13 Of 31)
G07116786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

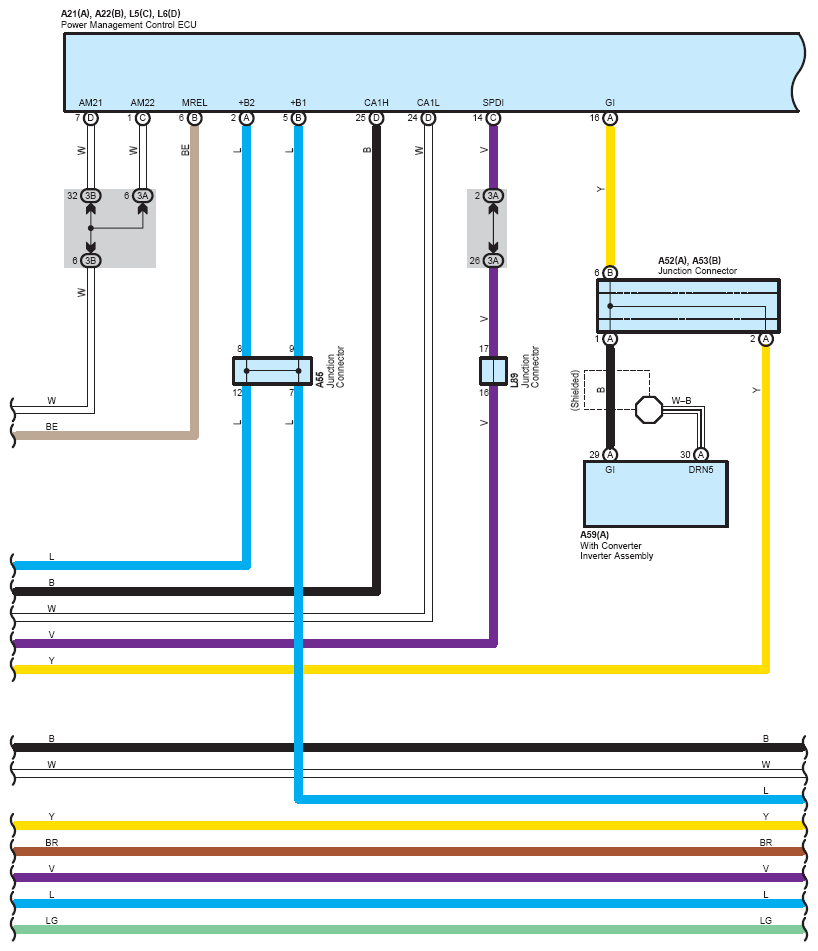

Fig 14: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (14 Of 31)
G07116787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

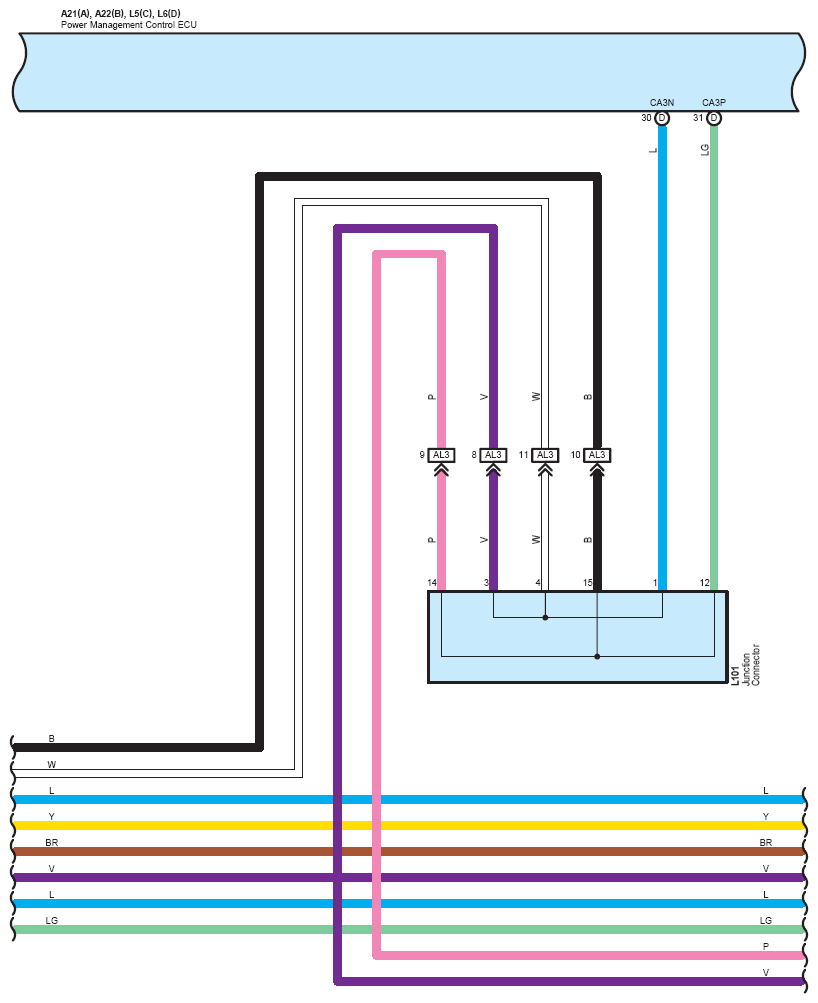

Fig 15: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (15 Of 31)
G07116788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

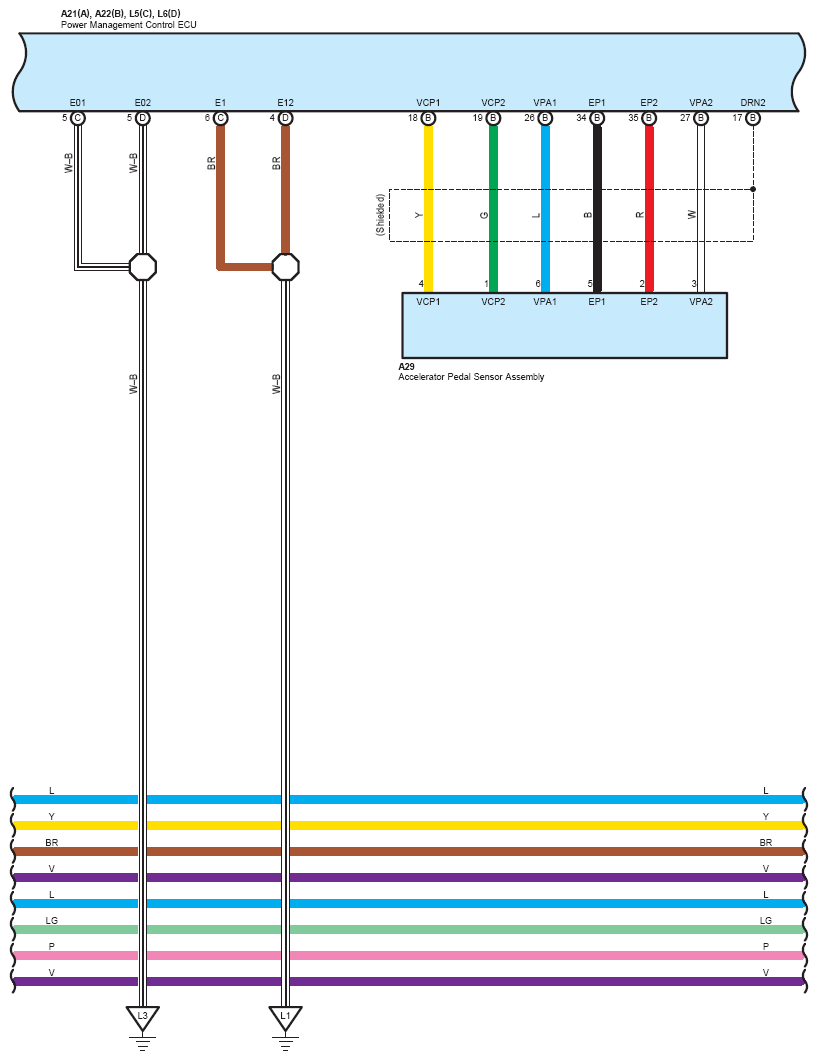

Fig 16: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (16 Of 31)
G07116789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 17: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (17 Of 31)
G07116790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

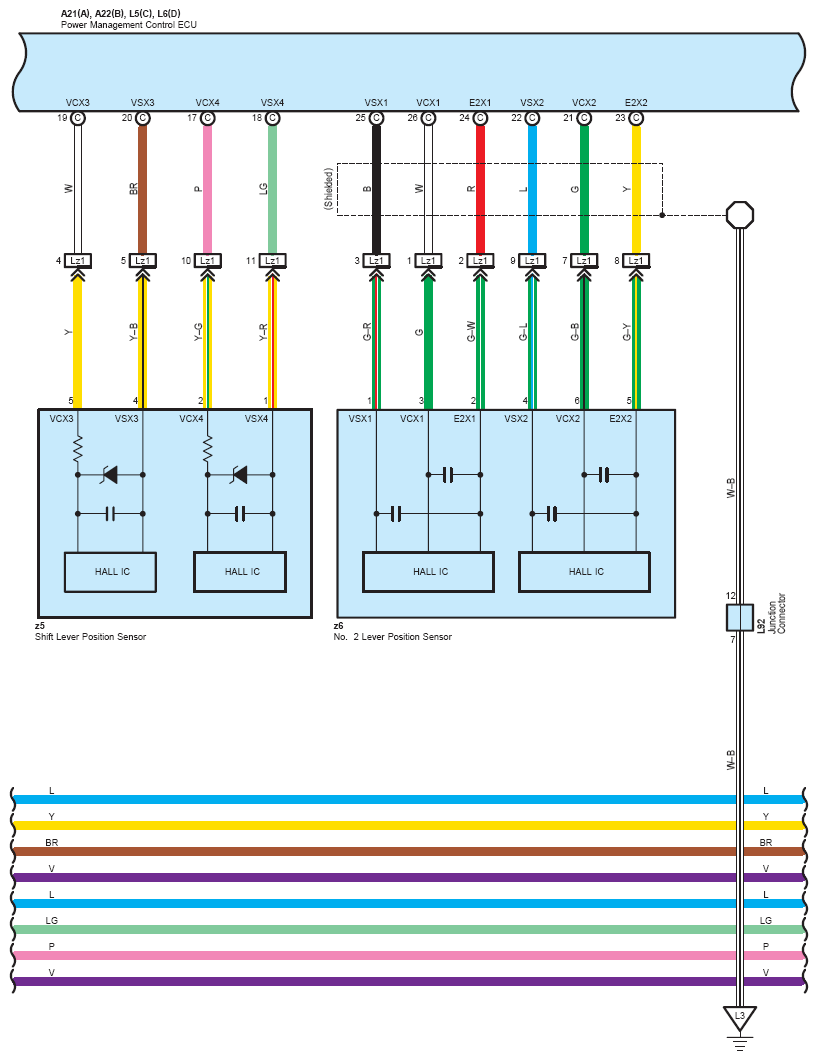

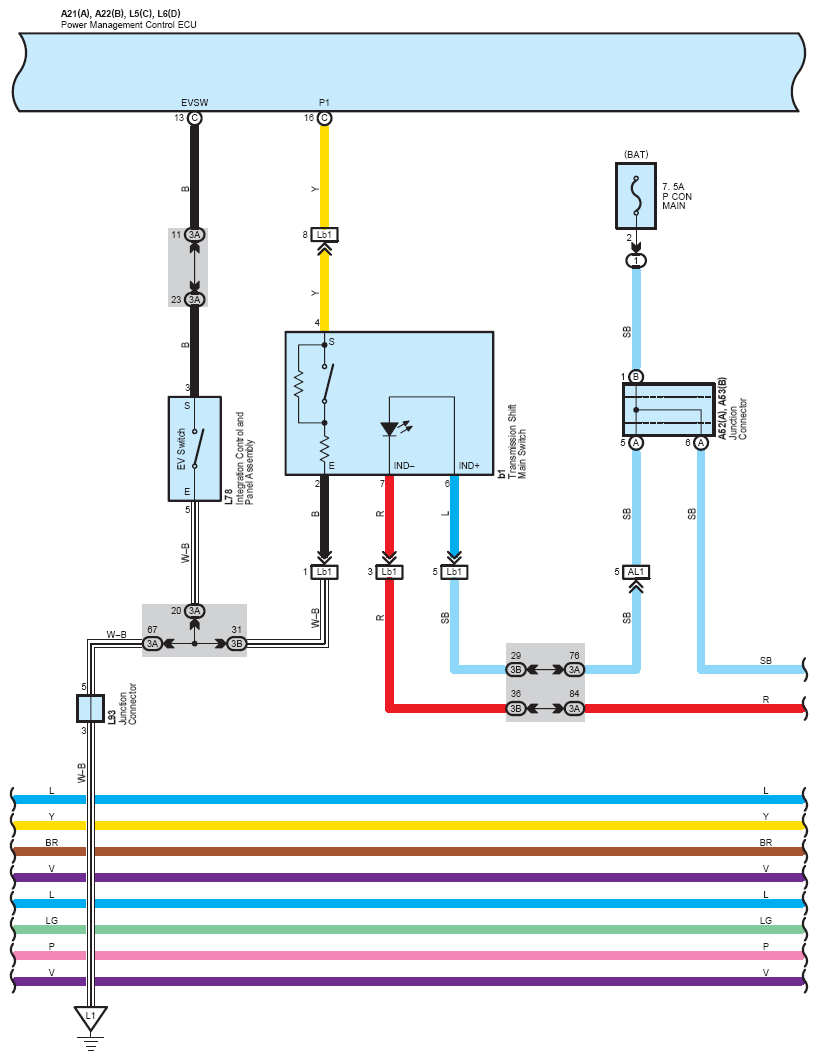

Fig 18: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (18 Of 31)
G07116791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

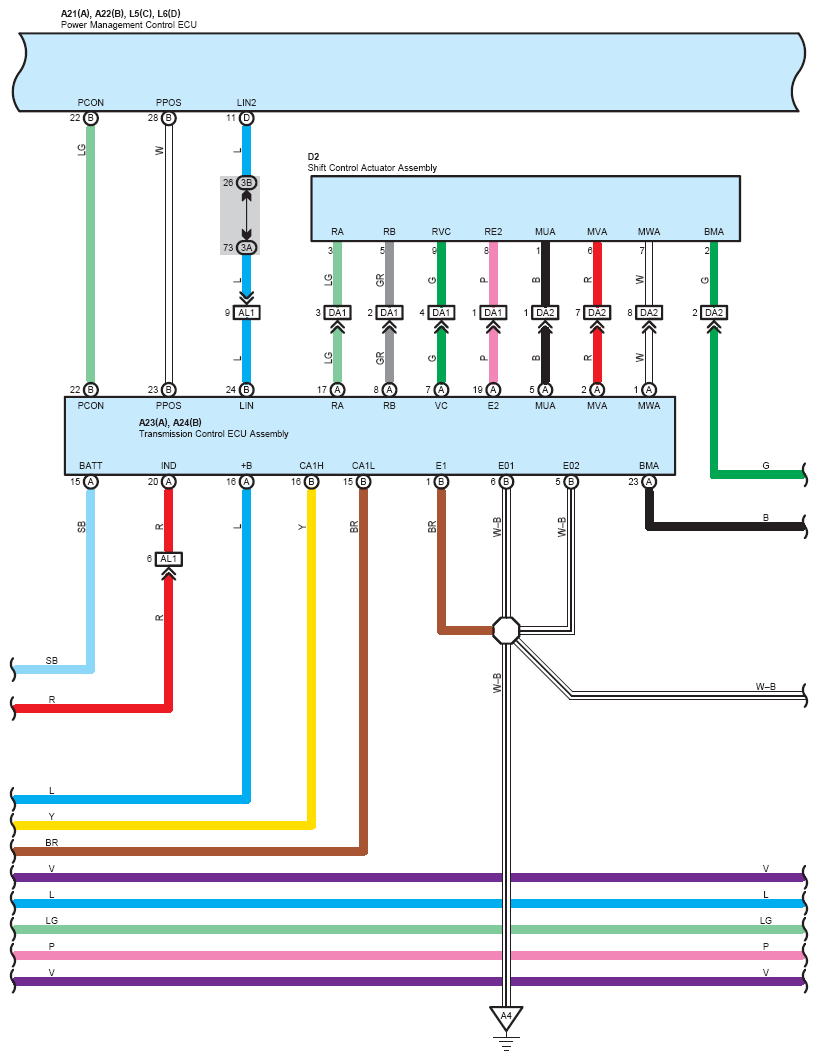

Fig 19: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (19 Of 31)
G07116792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

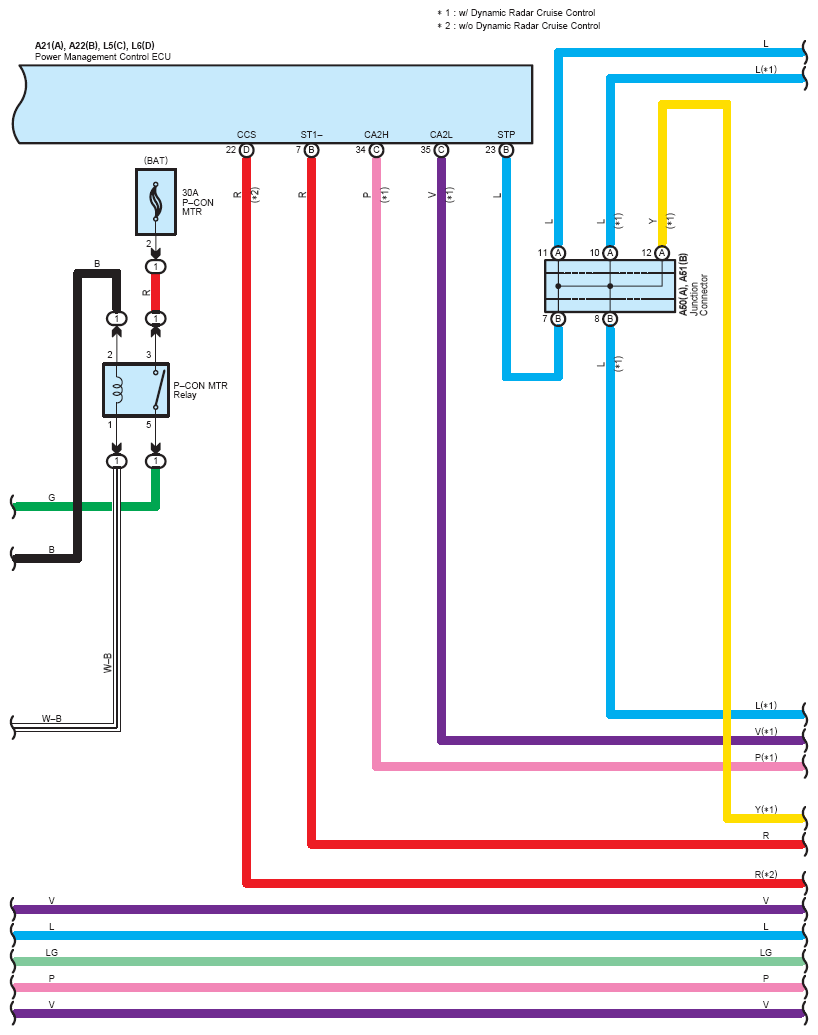

Fig 20: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (20 Of 31)
G07116793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

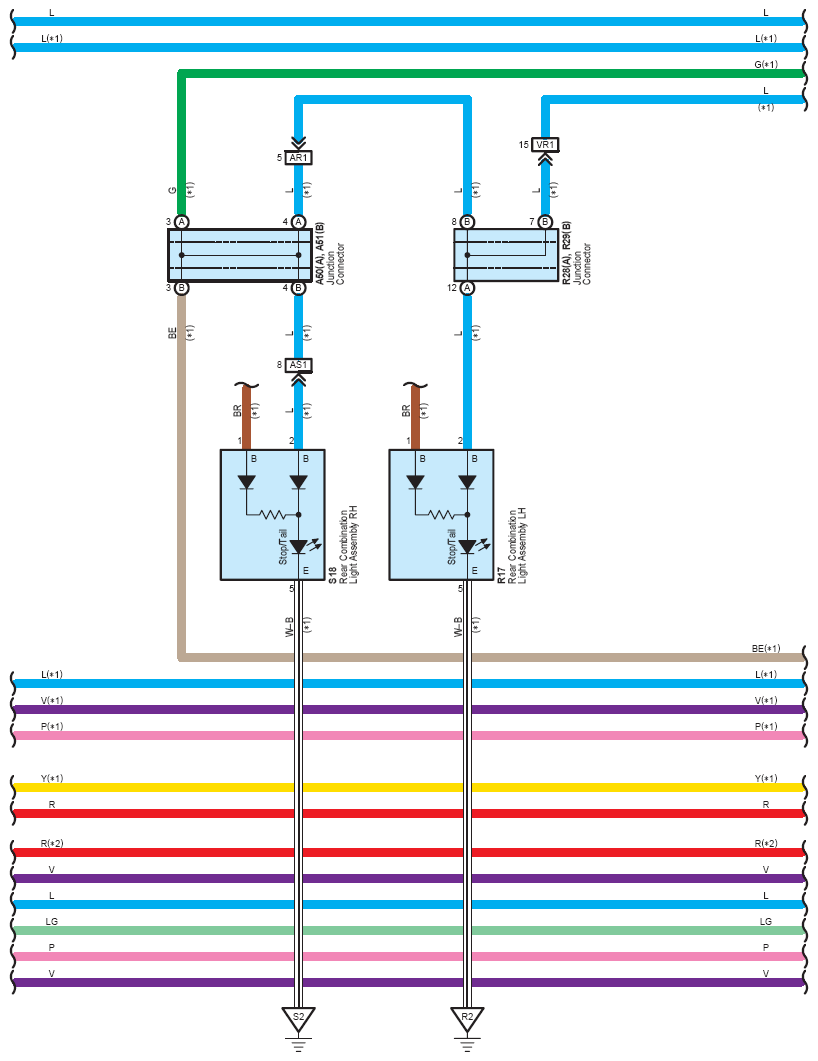

Fig 21: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (21 Of 31)
G07116794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

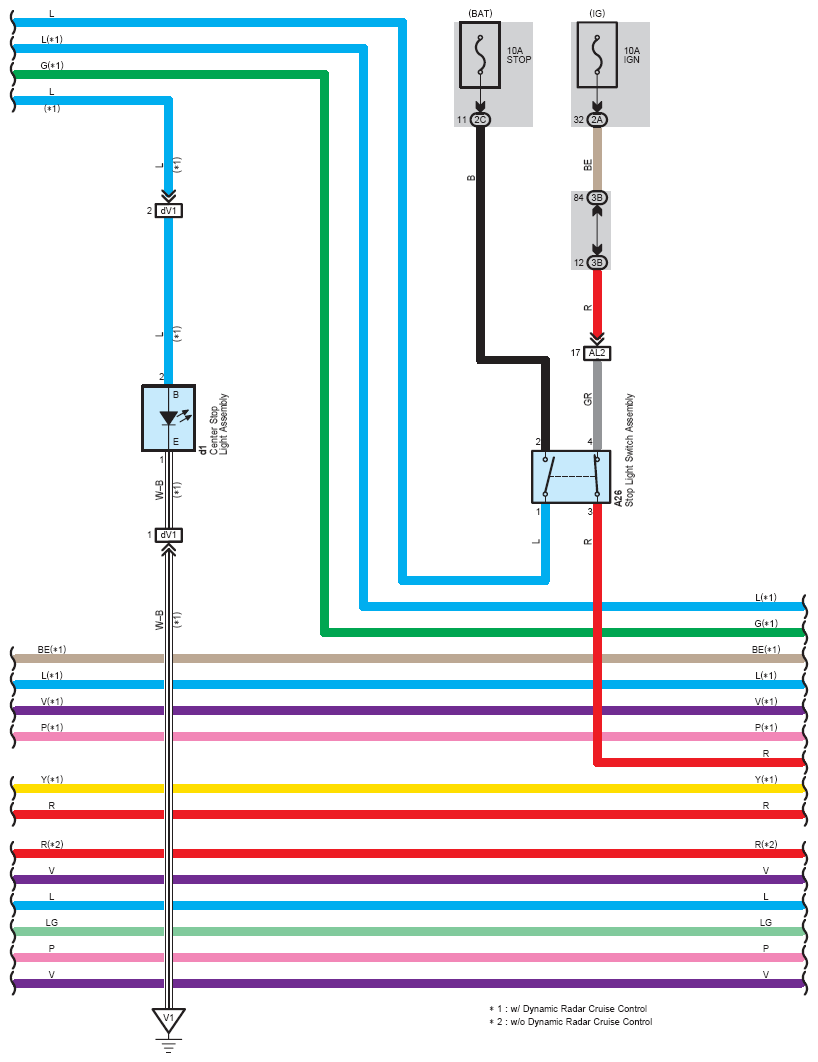

Fig 22: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (12 Of 31)
G07116795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 23: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (23 Of 31)
G07116796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 24: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (24 Of 31)
G07116797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 25: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (25 Of 31)
G07116798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

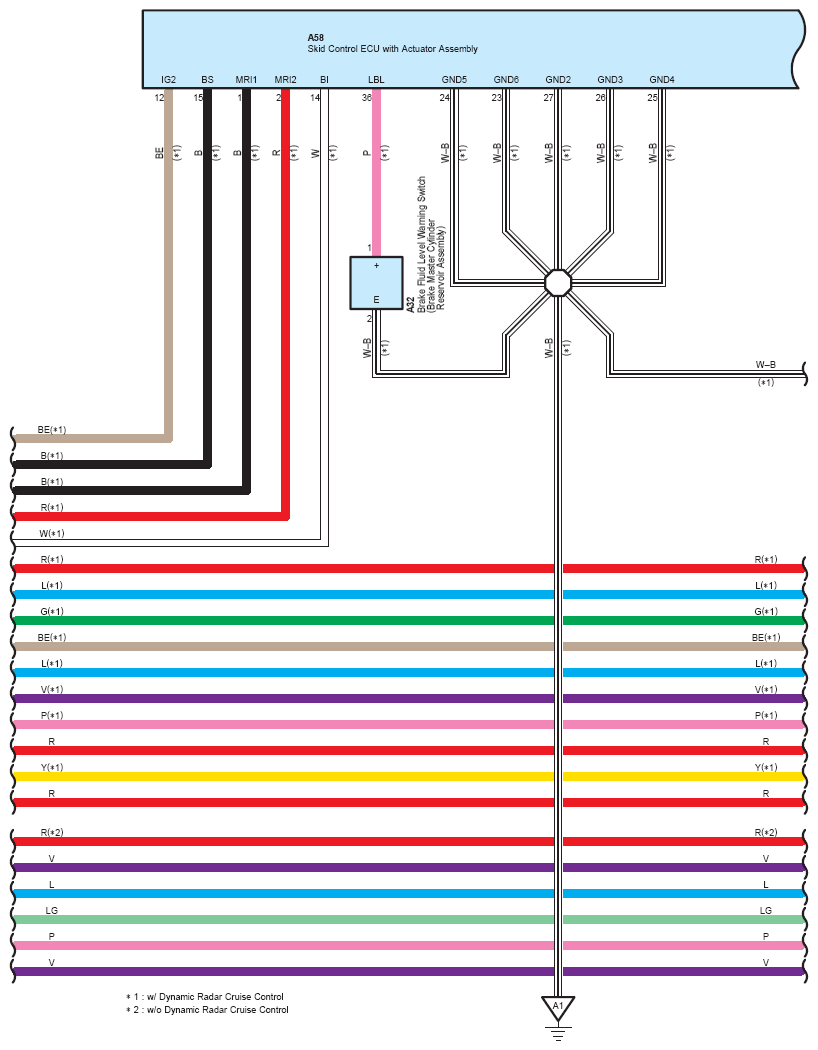

Fig 26: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (26 Of 31)
G07116799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

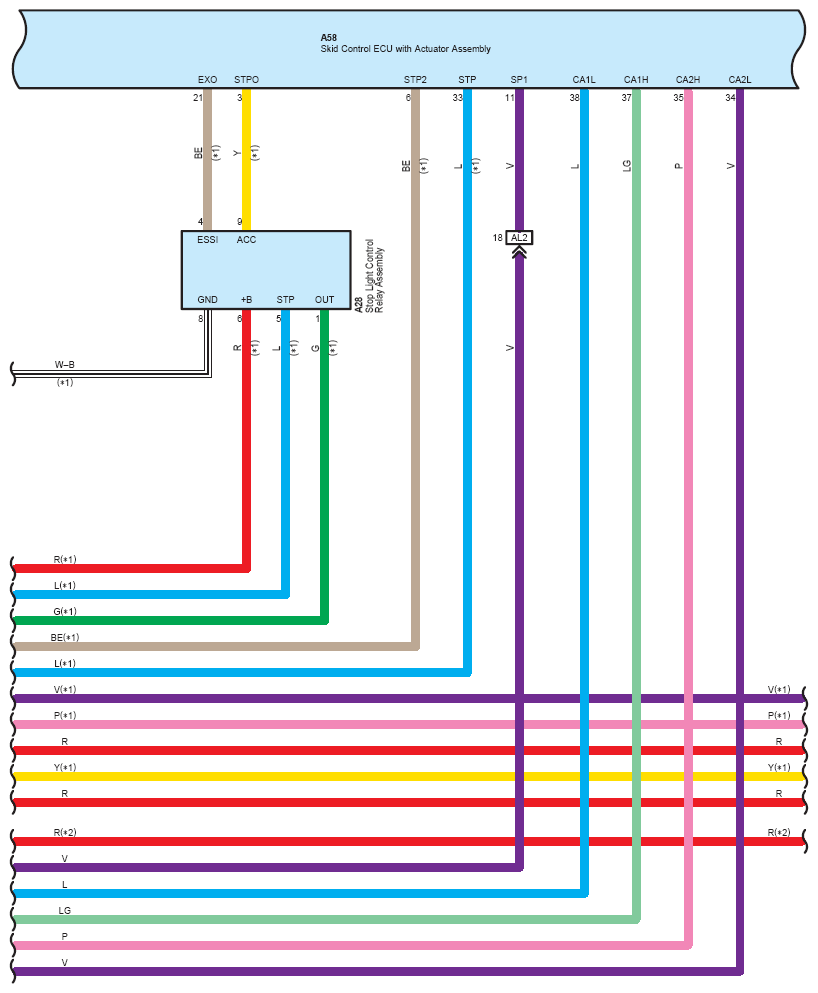

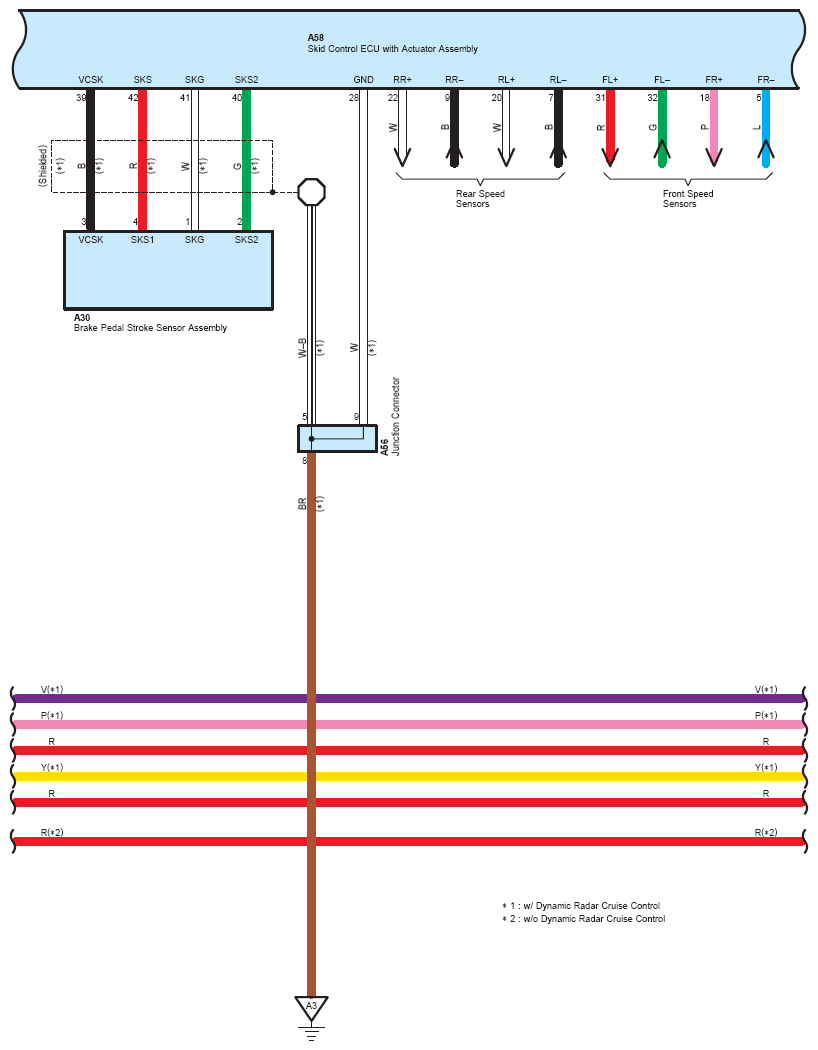

Fig 27: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (27 Of 31)
G07116800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

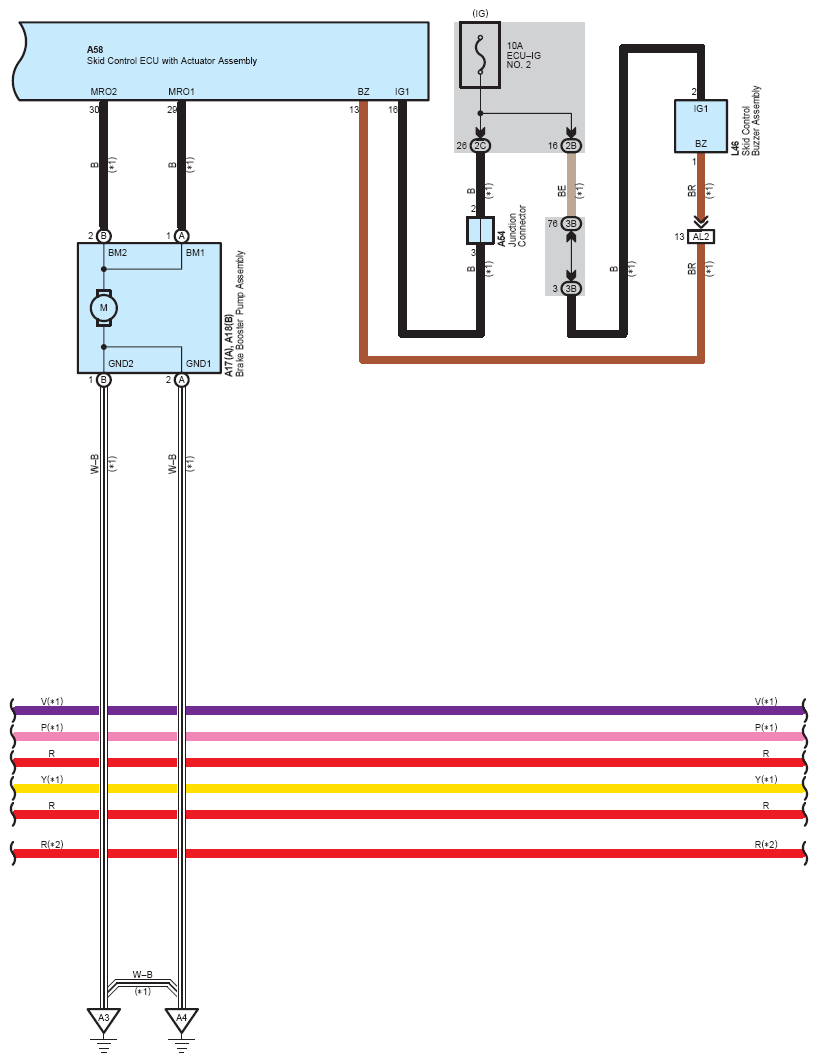

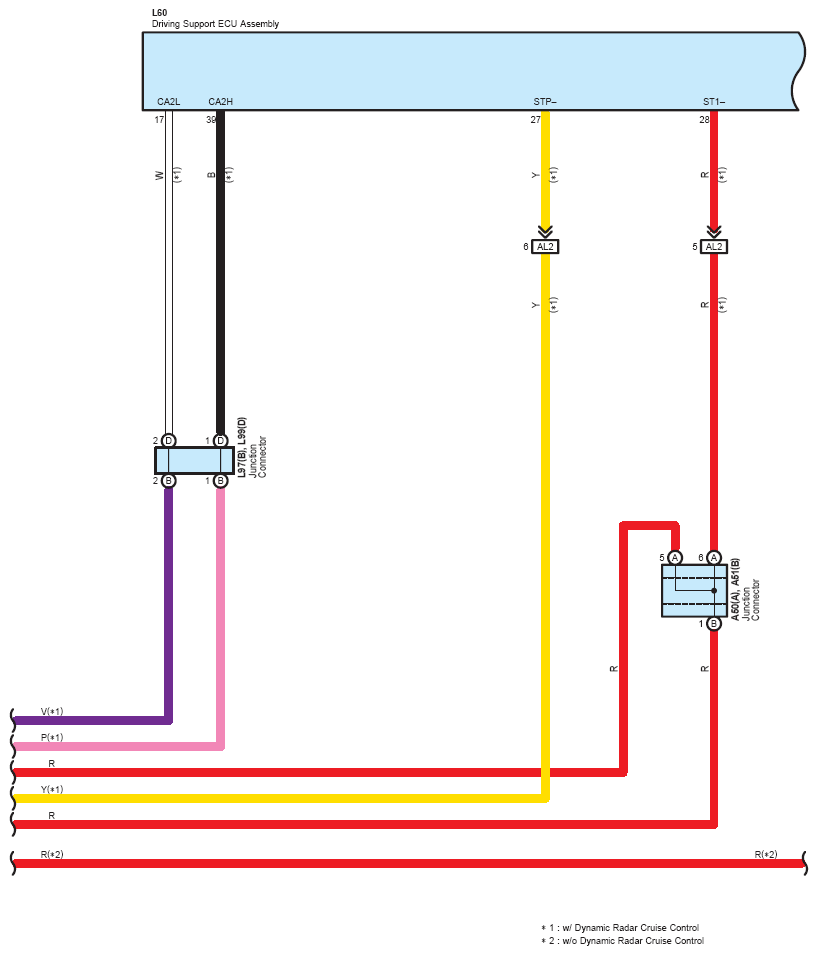

Fig 28: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (28 Of 31)
G07116801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 29: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (29 Of 31)
G07116802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

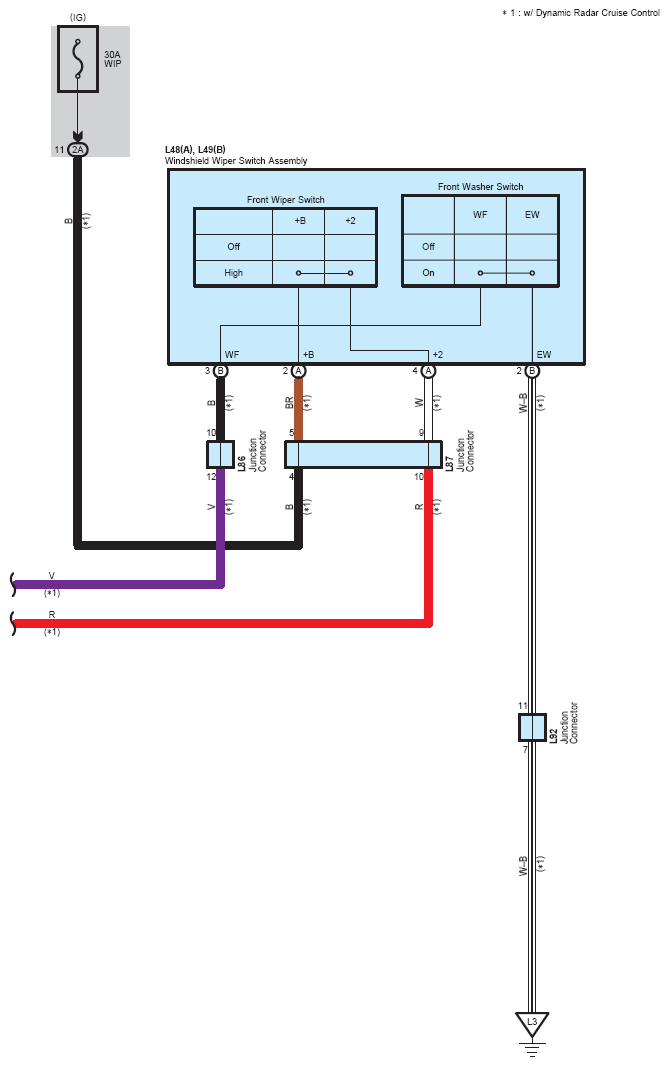

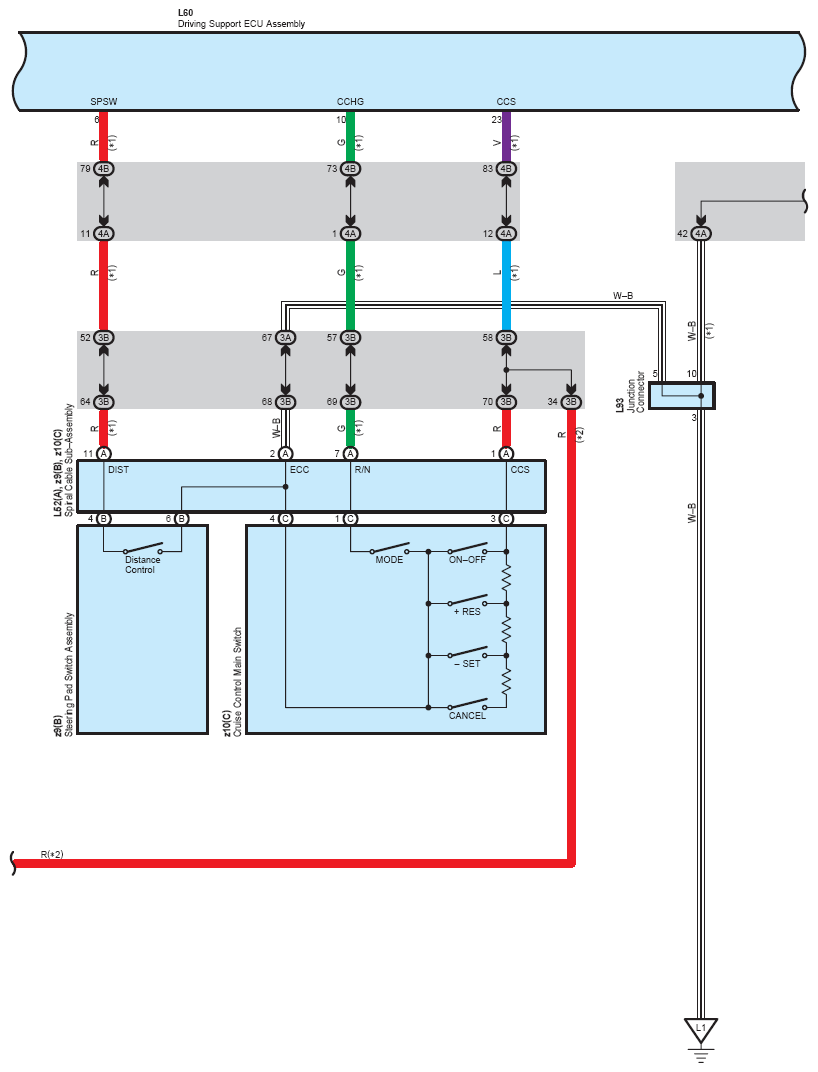

Fig 30: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (30 Of 31)
G07116803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

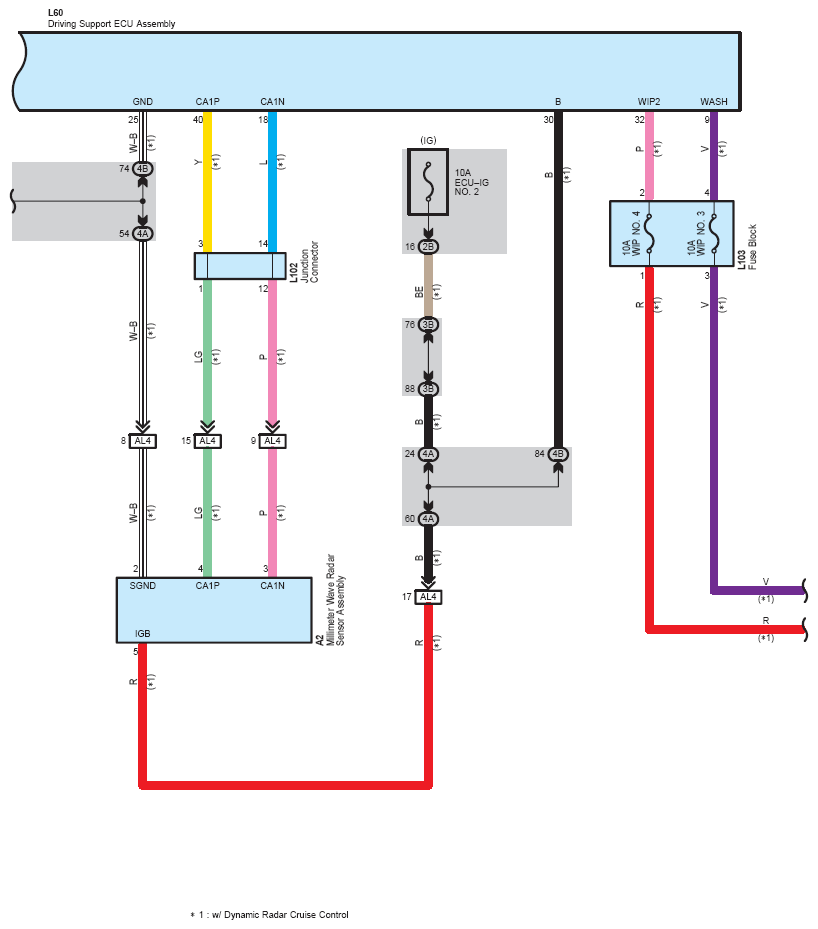

Fig 31: Engine Control And Cruise Control Or Dynamic Radar Cruise Control System Wiring Diagram (31 Of 31)
G07116804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
